Aluminum Extrusion Profile Selection: A Technical Comparison of 6061 vs. 6063 Alloys, Tempers, and Finishing Technologies

1. Introduction to Aluminum Extrusion Profiles

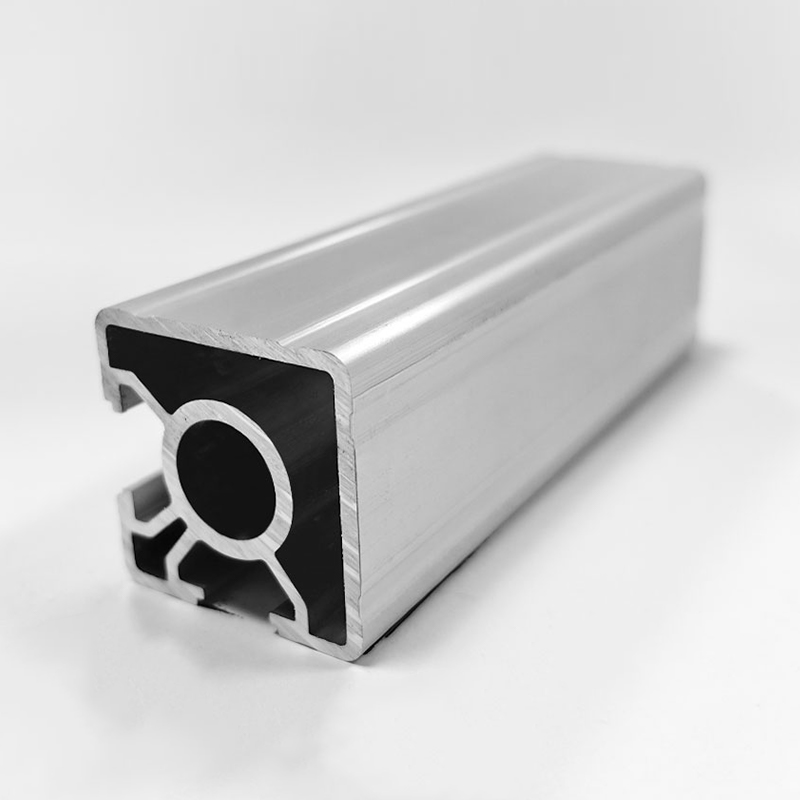

Aluminum extrusion profiles have become fundamental components in modern engineering, construction, automotive, renewable energy, and industrial automation. The extrusion process involves forcing heated aluminum alloy billets through a shaped steel die under extreme hydraulic pressure. This process yields continuous length profiles with complex, constant cross-sections that combine lightweight characteristics with structural durability.

For international buyers, structural engineers, and original equipment manufacturers, selecting the correct aluminum extrusion profile requires evaluating several critical factors. Material properties are dictated by alloy composition, heat treatment temper, cross-sectional geometry, and surface finishing methods. Choosing the wrong alloy grade or temper designation can lead to premature mechanical failure, aesthetic degradation, higher manufacturing costs, or unnecessary assembly challenges.

This comprehensive technical guide delivers an in-depth comparative analysis of the primary architectural and structural aluminum alloys, specifically focusing on 6061, 6063, and 6005A. It breaks down chemical compositions, mechanical strength, temper states, surface treatment performance, and design tolerances to help procurement teams and engineers select the optimal extrusion profile for their specific application requirements.

2. Chemical Composition and Metallurgy: 6061 vs. 6063 vs. 6005A

The performance of an aluminum extrusion profile is rooted in its chemical composition. Standard extruded profiles predominantly belong to the 6xxx series aluminum alloys, which feature magnesium and silicon as their principal alloying elements. These elements form magnesium silicide (Mg2Si), a compound that renders the alloy heat-treatable and responsive to precipitation hardening.

2.1 Chemical Composition Limits (ASTM B221 Standard)

The exact balance of magnesium, silicon, copper, chromium, and iron defines the processing behavior, extrusion speed, formability, and post-aging strength of each alloy grade.

2.2 Metallurgical Differences and Alloy Characterization

• 6061 Aluminum Alloy: Often referred to as structural aluminum, 6061 contains higher levels of magnesium and silicon along with deliberate additions of copper (0.15 to 0.40 percent) and chromium (0.04 to 0.35 percent). Copper enhances ultimate tensile strength and hardness, while chromium refines grain structure and controls recrystallization during heat treatment. However, higher alloy content increases flow stress during extrusion, which limits extrusion speed and reduces maximum section complexity.
• 6063 Aluminum Alloy: Widely recognized as architectural aluminum, 6063 features lower magnesium and silicon levels and near-zero copper content. This clean formulation results in low deformation resistance during extrusion, allowing for smooth extrusion through complex multi-void dies. It also yields thin wall thicknesses and superior surface smoothness, making it the preferred alloy for anodizing.
• 6005A Aluminum Alloy: Positioned intermediate between 6061 and 6063, 6005A incorporates controlled manganese and chromium content to boost strength and toughness without significantly sacrificing extrudability. It offers superior bending resistance and impact strength compared to 6063 while maintaining better extrusion speed than 6061.

3. Mechanical Properties and Load-Bearing Capacity Comparison

Engineers must select aluminum alloys based on specific mechanical load criteria, such as yield strength under tension, ultimate tensile strength, elongation, and surface hardness.

3.1 Mechanical Property Matrix for Common Extrusion Tempers

The mechanical behavior varies significantly depending on the alloy composition and applied heat treatment process.

3.2 Structural Load Analysis: 6061 vs. 6063

1. Yield and Tensile Performance: 6061-T6 exhibits approximately 30 to 40 percent higher yield strength and ultimate tensile strength than 6063-T6. For structural frames, heavy equipment mounting, automotive chassis subframes, and load-bearing trusses, 6061-T6 allows designers to reduce profile wall thickness while maintaining safety margins.
2. Deflection and Elastic Modulus: Both 6061 and 6063 possess an identical modulus of elasticity of approximately 68.9 Gigapascals. This means that under pure elastic bending conditions where stress does not exceed the yield limit, profiles made of 6061 and 6063 with the same cross-sectional geometry will deflect by the exact same amount. High strength does not increase stiffness; stiffness is governed entirely by cross-sectional moment of inertia (I-value) and geometry design.
3. Fatigue Resistance: 6061-T6 provides a fatigue strength of 96 Megapascals compared to 69 Megapascals for 6063-T6. For components subjected to dynamic cyclical loading, cyclic vibration, or repeated structural impacts, 6061-T6 offers greater longevity against micro-cracking and fatigue failure.

4. Heat Treatment and Temper Designations (T4, T5, T6)

Aluminum extrusion profiles derive a significant portion of their final strength from precipitation hardening, also known as artificial aging. Understanding temper designations is critical when reading engineering drawings and ordering raw extrusions.

4.1 Explanation of Common Extrusion Tempers

• T4 Temper (Solution Heat Treated and Naturally Aged): The aluminum profile is solution heat-treated at elevated temperatures, quenched, and allowed to age naturally at ambient room temperature to a substantially stable condition. T4 profiles retain excellent cold formability, ductility, and bendability, making them suitable for post-extrusion cold bending, stretching, or severe forming operations.
• T5 Temper (Cooled from Elevated Temperature and Artificially Aged): The profile exits the extrusion die at temperatures above solution threshold (around 500 degrees Celsius), undergoes rapid air cooling or water mist quenching right at the press run-out table, and is subsequently placed into an artificial aging oven (typically 175 to 195 degrees Celsius for 4 to 8 hours). T5 temper minimizes thermal distortion and internal residual stress, making it ideal for thin-walled architectural shapes, door frames, and curtain wall profiles where dimensional stability is paramount.
• T6 Temper (Solution Heat Treated and Artificially Aged): Profiles undergo intensive forced water quenching immediately after exiting the extrusion press or are re-heated in an off-line solution furnace, quenched rapidly in water, and then artificially aged in a heating oven. T6 temper achieves maximum precipitation hardening of Mg2Si phase, yielding maximum tensile strength, hardness, and wear resistance.

4.2 Comparative Matrix of Temper Characteristics

5. Surface Finishing and Coating Technologies

Extruded aluminum profiles naturally develop a thin passive aluminum oxide film (5 to 10 nanometers thick) when exposed to oxygen. However, industrial, marine, architectural, and decorative environments require engineered surface treatments to enhance corrosion resistance, wear resistance, color uniformity, and electrical insulation.

5.1 Anodizing (Electrochemical Oxidation)

Anodizing is an electrochemical conversion process that thickens the natural aluminum oxide coating into an integrated, hard, porous anodic layer. The profile is submerged as the anode in a sulfuric acid electrolyte bath while direct electric current is applied.

• Layer Thickness: Standard architectural anodizing ranges from 10 to 15 microns for interior/mild exterior use, and 20 to 25 microns for marine or heavy industrial atmospheric exposure (Qualanod Class 20/25).
• Coloration: The porous oxide film can be colored via electrolytic dyeing using metal salts (such as tin or cobalt) to produce champagne, bronze, dark bronze, and black shades, or through organic dye bath immersion.
• Alloy Suitability: 6063 is the premier alloy for anodizing due to its low iron and copper content, producing a brilliant, clear, uniform metallic appearance. In contrast, 6061 anodizes to a slightly darker, grayish hue due to copper and chromium constituent particles.

5.2 Electrostatic Powder Coating

Powder coating involves spraying electrostatically charged dry thermosetting polymer powder onto a thoroughly pretreated aluminum extrusion profile. The profile is then baked in a curing oven at 180 to 200 degrees Celsius, melting and cross-linking the powder into a continuous protective layer.

• Coating Thickness: Standard dry film thickness ranges between 60 and 120 microns.
• Standards: High-performance architectural coatings comply with AAMA 2603, AAMA 2604, or AAMA 2605 specifications (Qualicoat Class 1, 2, or 3).
• Advantages: Unlimited color availability (RAL color matching palette), various sheen choices (matte, satin, high gloss), textured finishes, excellent impact resistance, and elimination of organic solvent emissions (VOC-free).

5.3 Electrophoretic Coating (E-Coating)

Electrophoresis combines anodizing with a secondary electro-deposited water-soluble resin topcoat. After standard anodizing, the wet profile is immersed in an acrylic or epoxy coating tank under direct electrical current, which deposits a uniform polymer film inside and over the anodic pores before heat curing.

• Characteristics: Combined layer thickness is typically 15 to 25 microns. It delivers high surface smoothness, ultra-clear metallic luster, high hardness (up to 3H to 4H pencil hardness), and superior chemical and salt spray resistance compared to standard anodizing.

5.4 PVDF (Polyvinylidene Fluoride) Liquid Coating

PVDF liquid paint systems, commonly referred to under trade names such as Kynar 500 or Hylar 5000, utilize fluoropolymer resin technology blended with durable ceramic pigments. Applied as a multi-coat system (primer, color coat, and optional clear topcoat), PVDF coatings offer high resistance to atmospheric degradation.

• Performance: Meets AAMA 2605 performance criteria. It exhibits superior resistance to ultraviolet radiation, chalking, color fading, acid rain, and marine salt spray.
• Primary Application: High-rise architectural curtain walls, monumental buildings, and coastal industrial facilities exposed to severe weather conditions.

5.5 Surface Treatment Technical Specification Matrix

6. Extrusion Tolerances, Design Rules, and Die Engineering

Designing an efficient aluminum extrusion profile requires understanding profile geometry, wall thickness distribution, symmetric weight balance, and manufacturing tolerances. Proper design reduces die wear, prevents material flow distortion, and minimizes production costs.

6.1 Dimensional Tolerance Standards

International production of aluminum extrusions follows standardized dimensional tolerances set by organizations such as ASTM (American Society for Testing and Materials) and EN (European Committee for Standardization).

• ASTM B221 / ANSI H35.2: Governs dimensional tolerances for extruded aluminum solid, semi-hollow, and hollow profiles in North America.
• EN 755-9 & EN 12020-2: Defines standard precision tolerances for European architectural and engineering extrusions. EN 12020-2 applies specifically to high-precision structural profiles requiring tight fitting tolerances.

6.2 Key Extrusion Design Principles

1. Uniform Wall Thickness: Abrupt transitions between thick and thin sections cause uneven cooling rates during extrusion. Thin sections cool rapidly and contract faster, resulting in profile warpage, sink marks on exterior visible surfaces, and internal residual stress. Transition zones should incorporate gradual radii rather than step changes.
2. Symmetric Die Flow: Cross-sectional shapes should be as symmetrical as possible relative to the vertical and horizontal centerlines. Asymmetric shapes cause uneven material flow speed through the steel die land, leading to profile twisting and bowing.
3. Corner Radii: Avoid sharp 90-degree internal and external corners. Incorporating a minimum radius of 0.5 to 1.0 millimeter at internal corners reduces stress concentrations in both the extrusion die steel and the finished aluminum profile.
4. Tongue Ratio Limit: The tongue ratio refers to the width of an open channel relative to its depth. Deep, narrow channels increase force on the steel die tongue, raising the risk of die breakage. Tongue ratios should generally be kept under 3:1 for standard extrusions, though ratios up to 5:1 can be achieved using specialized die tool steels.

7. Fabrications, CNC Machining, and Assembly Techniques

Most industrial aluminum profiles require post-extrusion fabrication, including cutting to precision lengths, drilling, milling, tapping, bending, and joining before installation into final assemblies.

7.1 Precision CNC Machining Characteristics

• Machinability of 6061-T6: High structural hardness (95 HBW) allows high-speed CNC milling, turning, and drilling. Chips break cleanly off the cutting tool edge, preventing built-up edge formation and producing superior machined surface finishes.
• Machinability of 6063-T5/T6: Lower hardness (60 to 75 HBW) makes 6063 more prone to gummy chips that can adhere to cutting tools if cutting speeds, feed rates, and cooling lubrication are not properly controlled. High-speed single-flute or two-flute aluminum-geometry end mills with polished flutes are recommended for machining 6063.

7.2 Joining and Welding Technologies

Aluminum extrusions can be joined using mechanical fasteners, structural adhesive bonding, or thermal welding methods.

• Gas Tungsten Arc Welding (GTAW / TIG) and Gas Metal Arc Welding (GMAW / MIG): 6061 and 6063 are heat-treatable alloys. During welding, localized heat input creates a Heat-Affected Zone (HAZ) adjacent to the weld bead. The HAZ experiences localized annealing, reducing mechanical strength in that zone by approximately 30 to 50 percent compared to parent metal values. Structural calculations must account for this strength reduction, or post-weld solution heat treatment and aging must be applied. Recommended filler alloys include 4043 (Al-Si) for general applications or 5356 (Al-Mg) for higher joint ductility and post-weld anodizing color match.
• Friction Stir Welding (FSW): Friction stir welding is a solid-state joining technique that uses a rotating tool to generate frictional heat, plastically joining aluminum profiles without melting the material. FSW avoids hot cracking, porosity, and severe HAZ strength degradation, making it ideal for joining wide extruded panel assemblies in railcars, battery trays, and marine decks.

8. Technical Selection Matrix by Industry Application

To assist design engineers and purchasing managers in selecting the optimal alloy, temper, and finish combination, the matrix below highlights recommended profile specifications for core industrial sectors.

Frequently Asked Questions

FAQ 1: What is the primary difference between 6061 and 6063 aluminum extrusion profiles?

The main difference lies in chemical composition, strength, and surface finishing performance. 6061 contains higher levels of magnesium and silicon, along with added copper and chromium. This makes 6061-T6 approximately 30 to 40 percent stronger than 6063-T6, making it ideal for heavy load-bearing structural applications. In contrast, 6063 has a cleaner composition with low copper content, offering exceptional extrudability into complex or thin-walled shapes and producing a superior anodized surface finish for architectural applications.

FAQ 2: Why is 6063 alloy preferred over 6061 for anodized architectural profiles?

6063 aluminum contains virtually no copper and low iron content, allowing it to form a highly uniform, clear, bright anodic oxide film when electrolytically processed. 6061 contains copper (0.15 to 0.40 percent) and chromium, which form micro-constituent phase particles that scatter light, resulting in a slightly darker, grayish, or mottled appearance after anodizing. For visual architectural components, 6063 provides superior surface consistency and color brilliance.

FAQ 3: How does temper designation affect the performance of an aluminum profile?

Temper designations indicate the heat treatment and mechanical processing applied to the aluminum profile. For instance, T4 temper offers moderate strength with high ductility, making it suitable for profiles that require post-extrusion cold bending. T5 temper is produced by air quenching at the extrusion press followed by artificial aging, delivering good strength and dimensional stability with minimal thermal distortion. T6 temper involves aggressive water quenching and extended artificial aging, achieving maximum tensile strength and hardness for load-bearing structures.

FAQ 4: Can aluminum extrusion profiles replace structural steel in load-bearing frames?

Yes, aluminum extrusions can replace structural steel in many load-bearing applications, offering a weight reduction of approximately 60 percent. While aluminum has roughly one-third the density and elastic modulus of steel (68.9 GPa vs 200 GPa), structural engineers can compensate for lower stiffness by increasing the profile cross-sectional depth and optimizing section moment of inertia. Aluminum also provides natural corrosion resistance, reducing long-term maintenance costs associated with steel rust protection.

FAQ 5: What causes warpage or twisting in extruded aluminum profiles during manufacturing?

Warpage and twisting typically result from uneven metal flow velocity through the extrusion die land, non-uniform cooling across asymmetric cross-sections as the profile exits the die, or uneven stress relief during stretching. Designing profiles with uniform wall thickness, balanced cross-sectional symmetry, and proper transition radii helps ensure even material flow and uniform cooling, maintaining tight dimensional straightness tolerances.

Industry References and Standards

1. ASTM B221 / B221M: Standard Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods, Wire, Profiles, and Tubes. ASTM International, West Conshohocken, PA.
2. EN 755 (Parts 1-9): Aluminum and Aluminum Alloys - Extruded Rod/Bar, Tube and Profiles. European Committee for Standardization (CEN), Brussels.
3. EN 12020 (Parts 1-2): Aluminum and Aluminum Alloys - Extruded Precision Profiles in Alloys EN AW-6060 and EN AW-6063. European Committee for Standardization (CEN), Brussels.
4. The Aluminum Association: Aluminum Standards and Data (ASD), Washington, D.C.
5. AAMA 2605: Voluntary Specification, Performance Requirements and Test Procedures for Superior Performing Organic Coatings on Aluminum Extrusions and Panels. Fenestration & Glazing Industry Alliance (FGIA).
6. ASM International: ASM Handbook, Volume 2: Properties and Selection: Nonferrous Alloys and Special-Purpose Materials. ASM International, Materials Park, OH.
