20 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 20 Series Aluminum Extrusion Profile / T-slot 2060 Aluminum Profile 6mm slot width Multi-slot design Standard anodized treatment

T-slot 2060 Aluminum Profile 6mm slot width Multi-slot design Standard anodized treatment

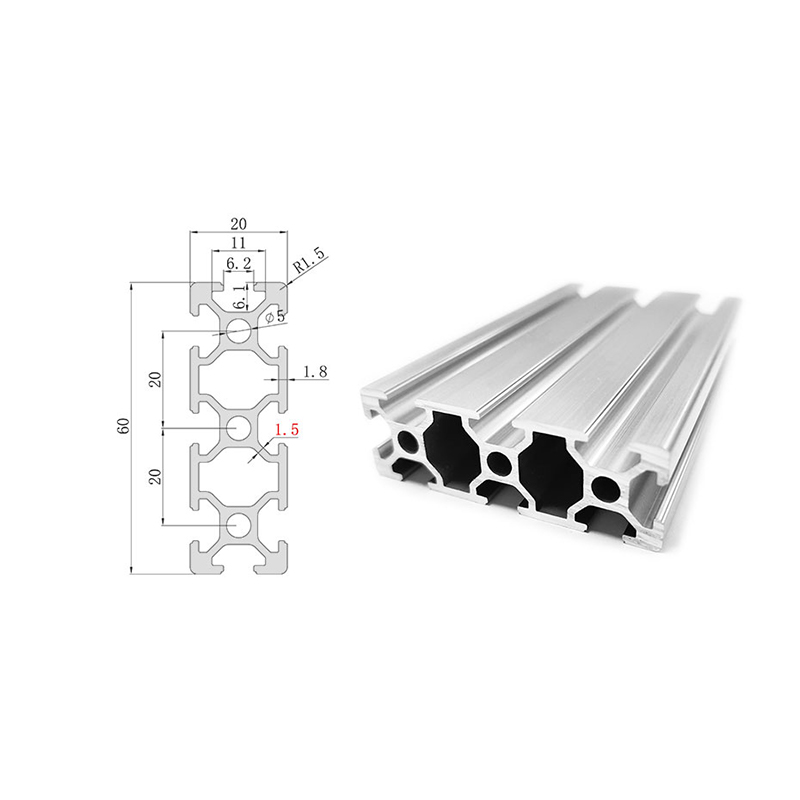

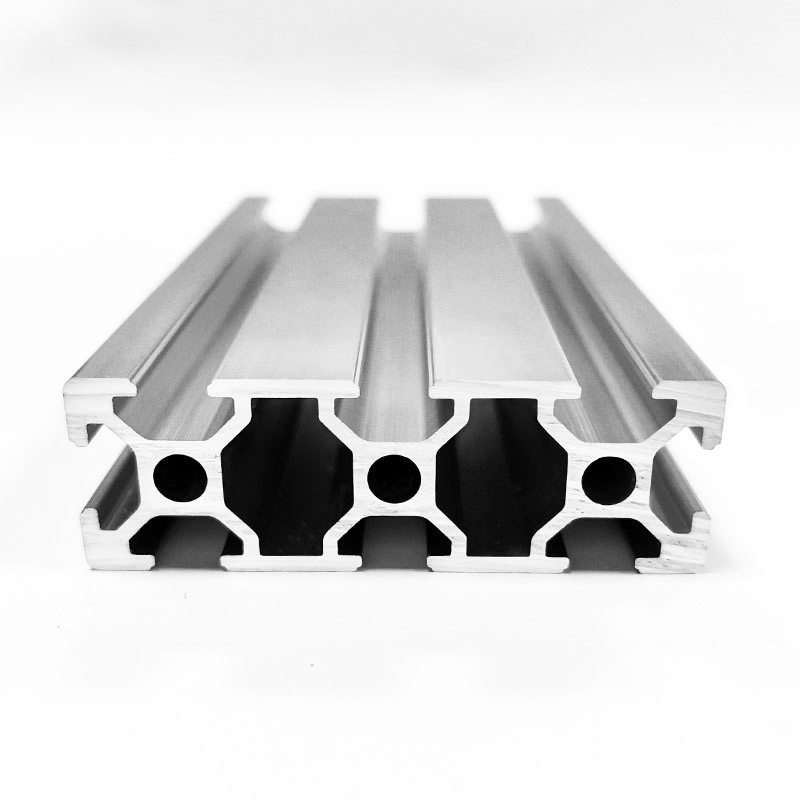

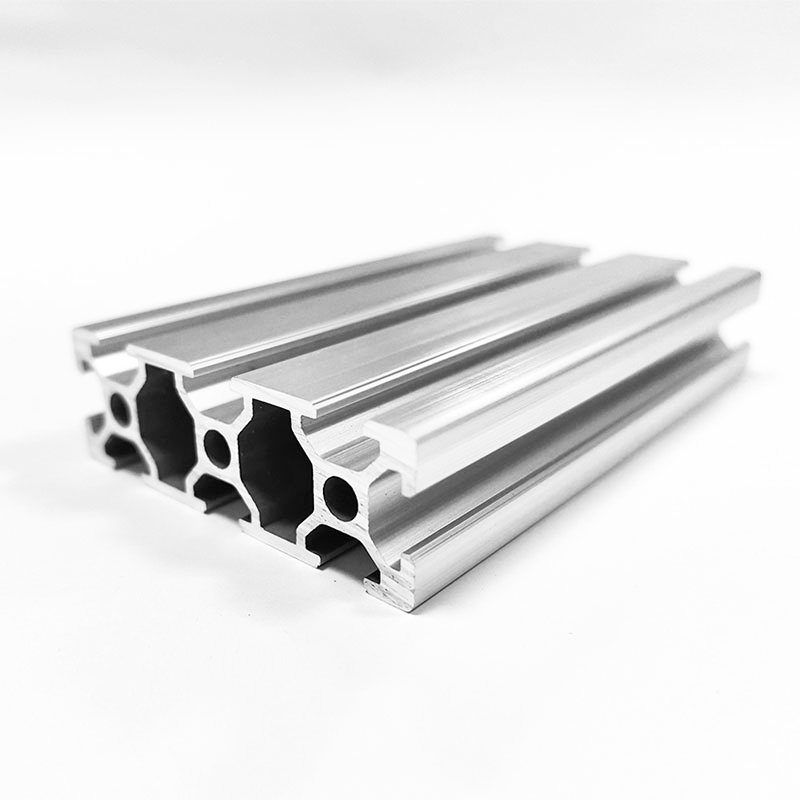

The 2060 aluminum profile is the widened load-bearing model of the 20 series, with dimensions of 20×60mm and a 6mm slot width, belonging to the European standard T-slot system (no corresponding national standard model). The body is made of 6063-T5 aluminum alloy with anodized surface treatment. The 60mm face features 3 slots, and the 20mm face features 1 slot. Commonly used for equipment racks, workbench supports, conveyor line barriers, and industrial modular structures, making it a popular choice in light-load frames that balance rigidity and installation flexibility.

CAD Drawing Download
PREV：Square Slot 2040 Aluminum Profile 8mm slot width Square slot design Dual-side slotting Standard anodized treatmentNEXT：2080 Aluminum Profile Wide-face structure Multi-slot design 6mm slot width Heavy-load frame structure
  • Specification

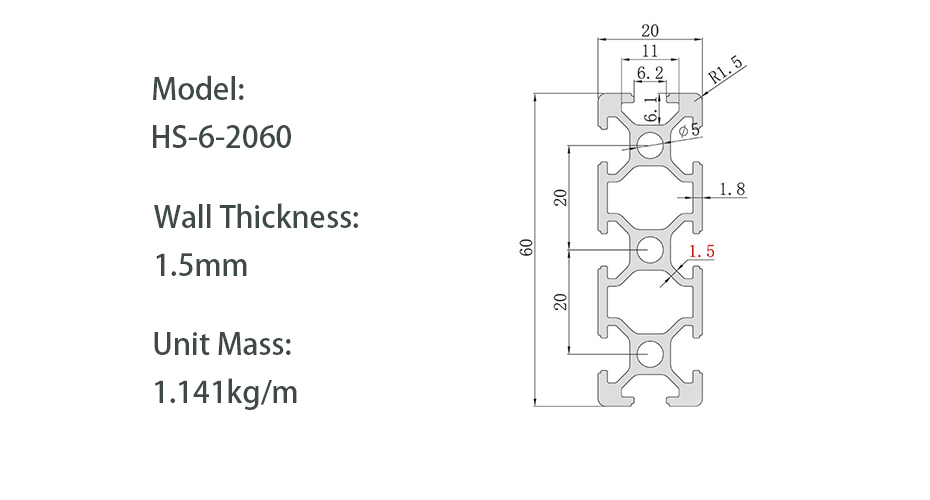

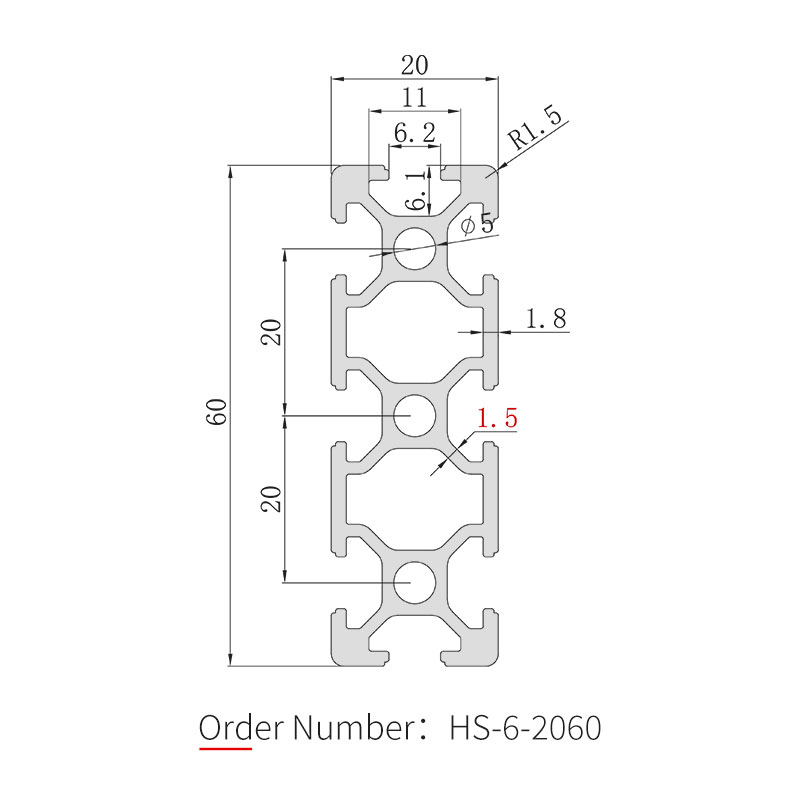

Model HS-6-2060
Cross-sectional Dimensions 20mm × 60mm
Unit Weight 1.141 kg/m
Surface Treatment Anodized
Color  Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot Type T-slot
Slot Width 6.2mm
Slot Depth 6.1mm
Hole Diameter Φ5
Wall Thickness 1.5mm
  • Product Parameters

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
