Square Slot 2040 Aluminum Profile 8mm slot width Square slot design Dual-side slotting Standard anodized treatment

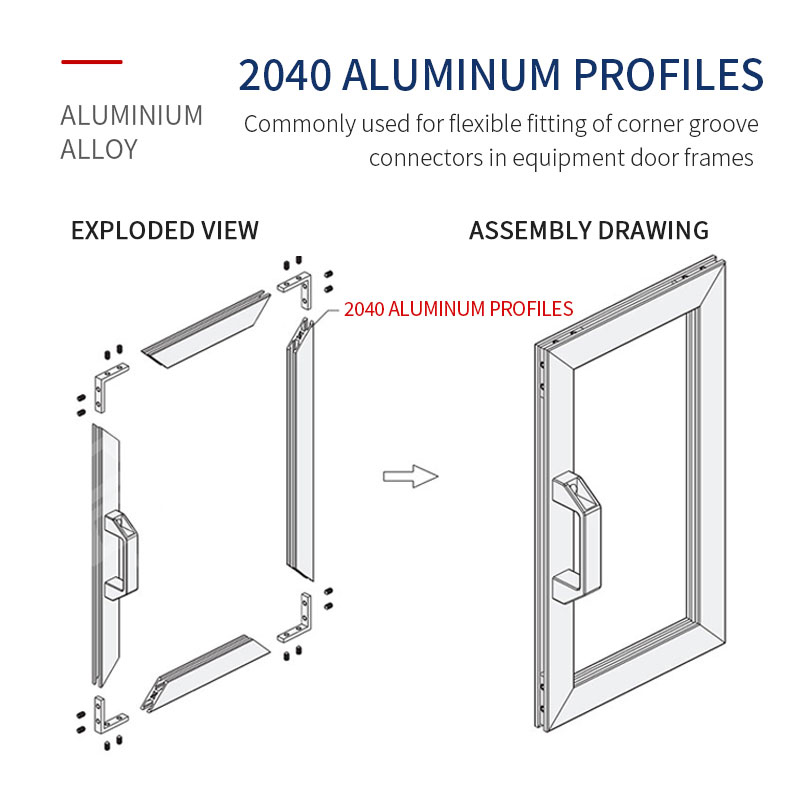

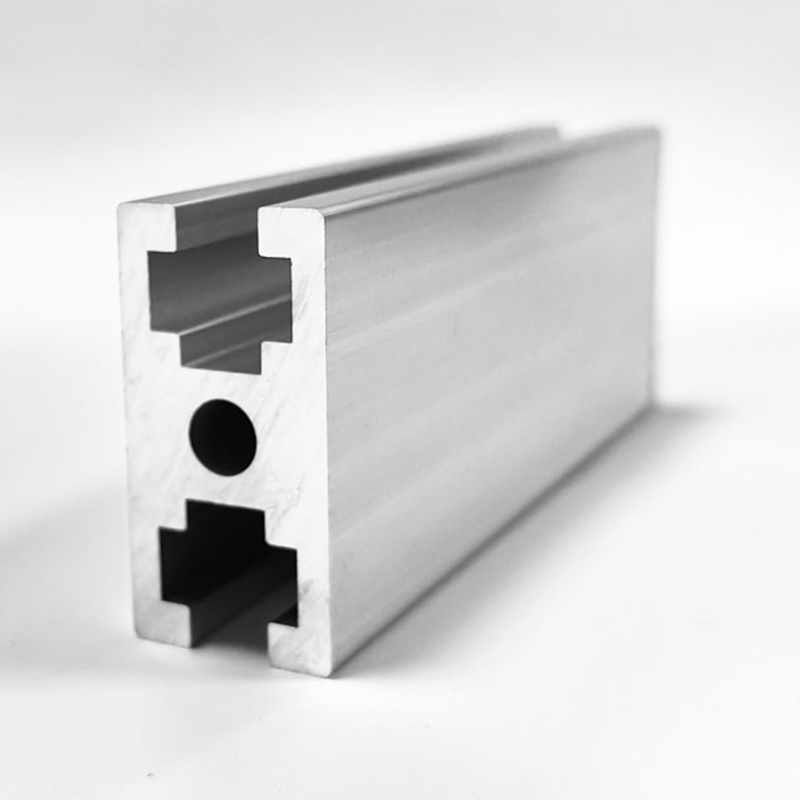

The square slot 2040 aluminum profile is a standout product in the modular aluminum profile market, belonging to the square slot system. The body is made of 6063-T5 aluminum alloy with anodized surface treatment, with a unit weight of approximately 1.43 kg/m and a wall thickness of 4mm. The 40mm face features a smooth slot-free design, mainly used for equipment door frames, enclosures, instrument racks, and display panels, making it a commonly used door frame profile in lightweight frame structures. Connections typically use M6 square nuts with 14mm opposite sides and high-strength socket head cap screws.

CAD Drawing Download
PREV：2040 Industrial Aluminum Profile 20×40mm rectangular cross-section 6mm slot width Light-load frame structureNEXT：T-slot 2060 Aluminum Profile 6mm slot width Multi-slot design Standard anodized treatment

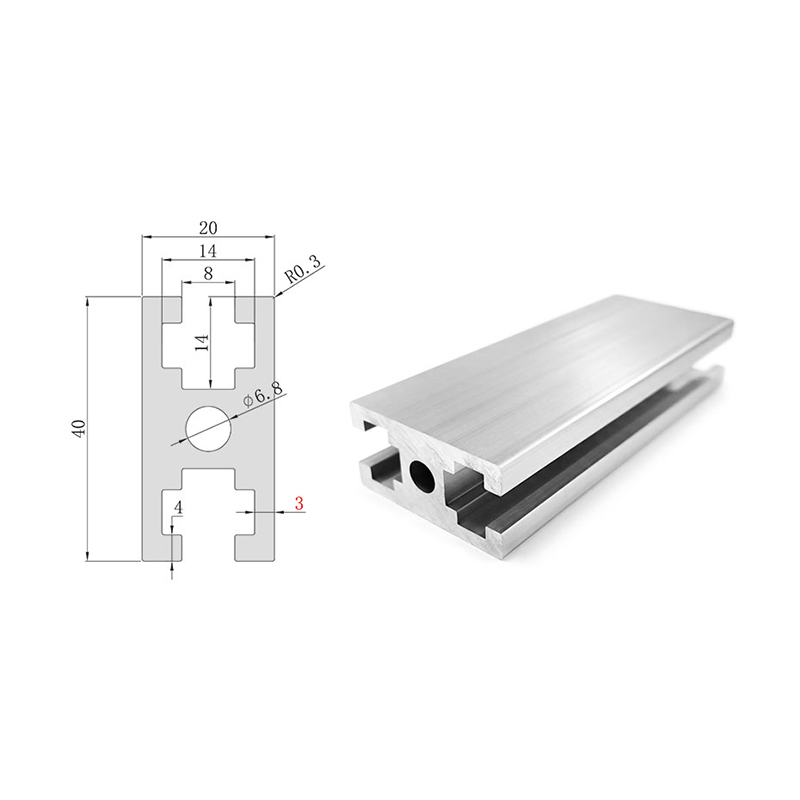

  • Specification

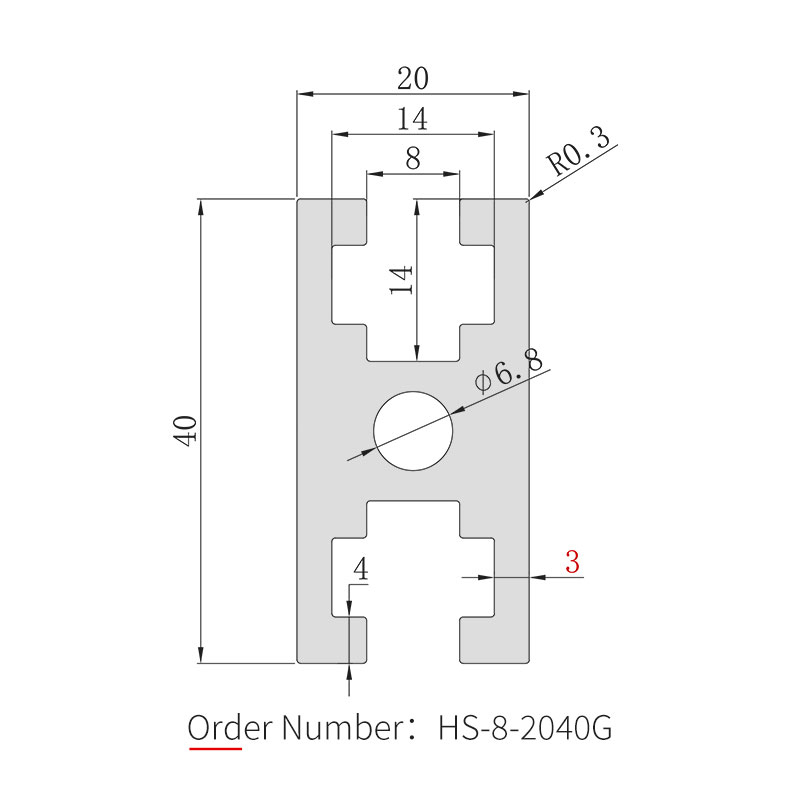

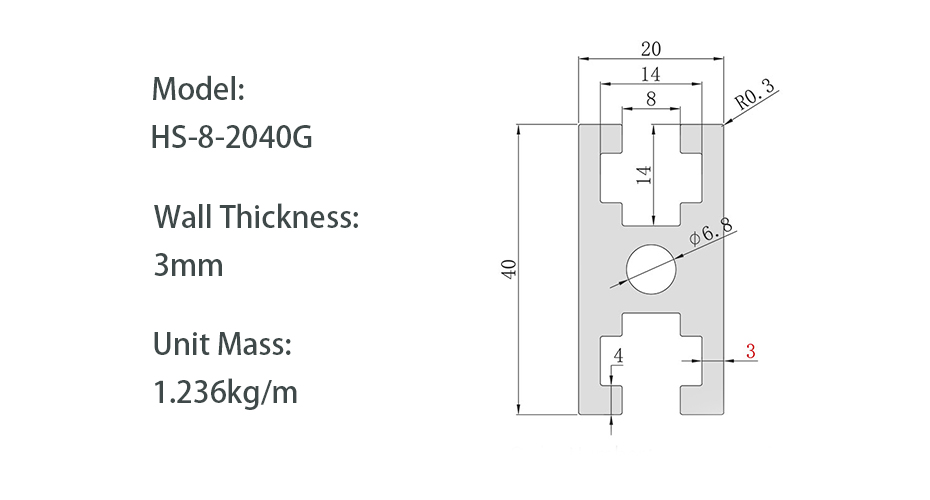

Model HS-8-2040G
Cross-sectional Dimensions 20mm × 40mm
Unit Weight 1.236 kg/m
Surface Treatment Anodized
Color  Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot Type Square slot
Slot Width 8mm
Slot Depth 14mm
Hole Diameter Φ6.8
Wall Thickness 3mm
  • Product Parameters

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
