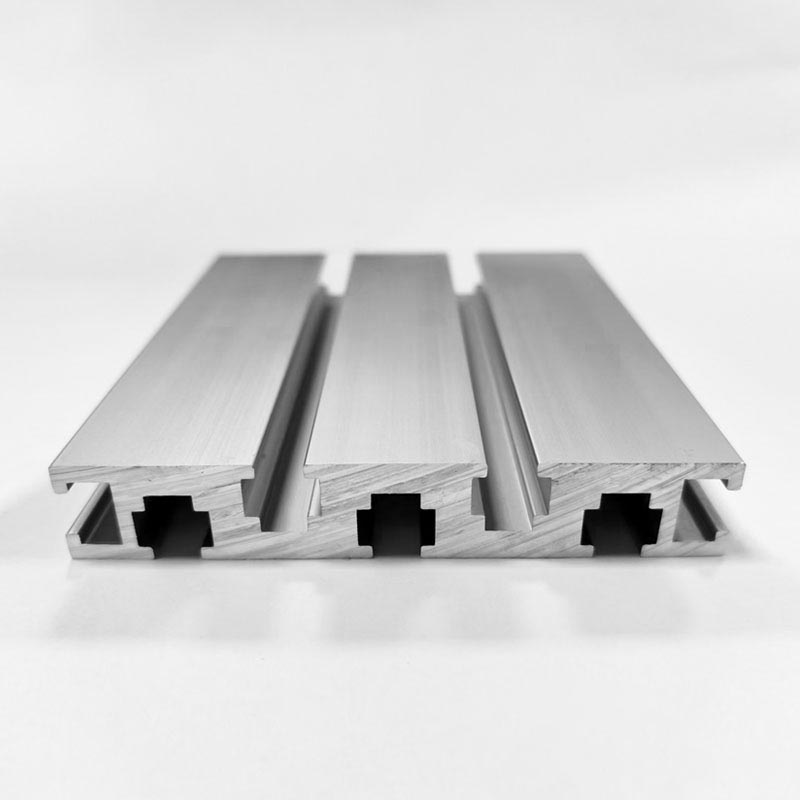

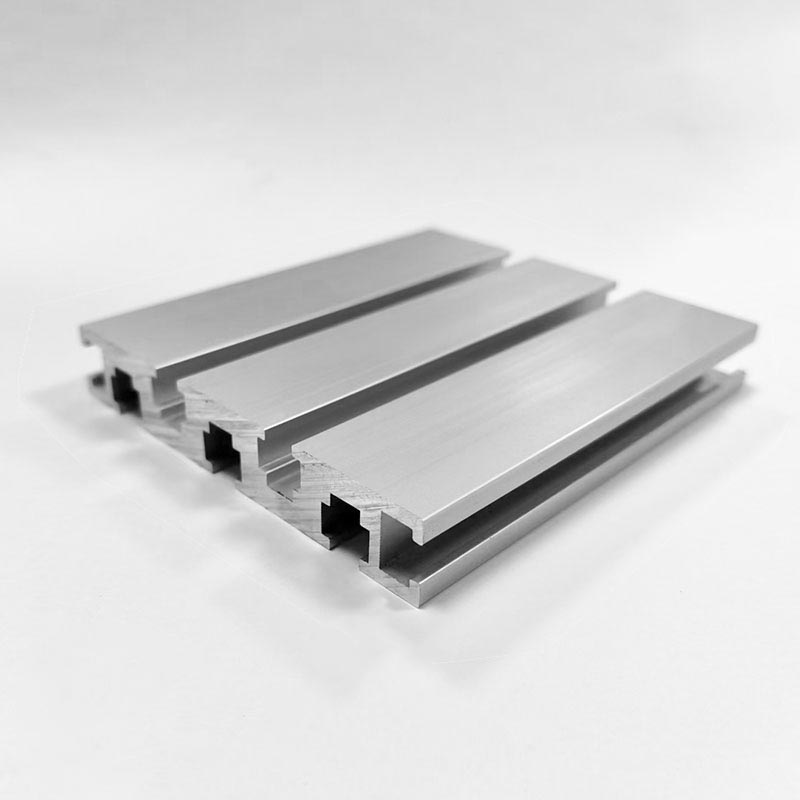

1590G series aluminum extrusion profile for lightweight framing system

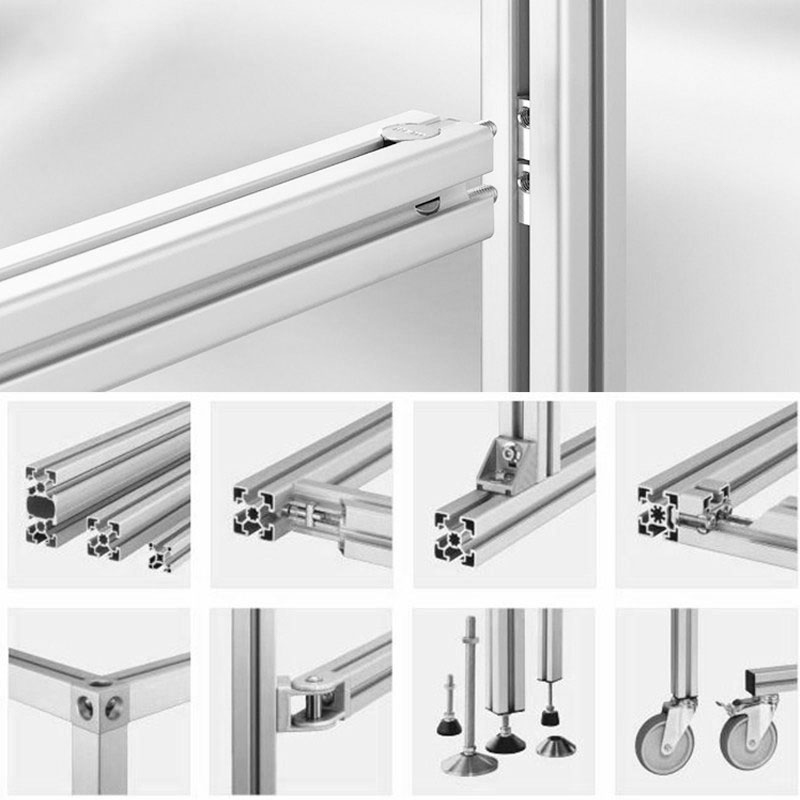

The 1590 series aluminum profile is the "ultra-wide load-bearing" solution within the 15 series. While maintaining a 15mm mounting height, it extends the width to 90mm and features a multi-slot distribution design, further enhancing structural stability. It is commonly used for constructing CNC router frames, medium-sized equipment bases, linear slide workbenches, and assembly line workstations. It effectively balances the need for larger mounting surfaces and higher load capacities within a lightweight framing system.

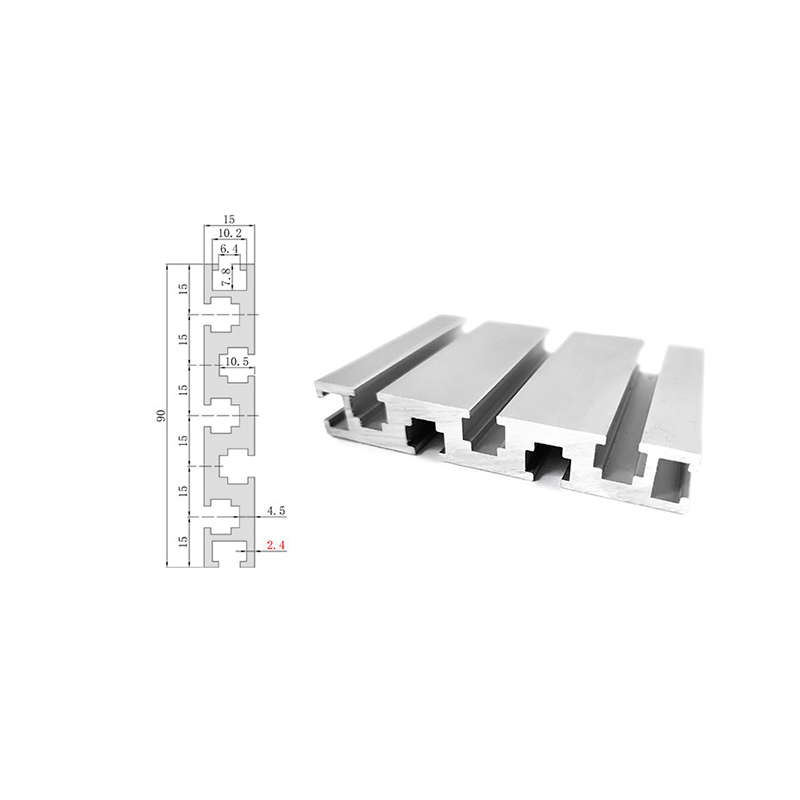

CAD Drawing Download

PREV：1560G series industrial square slot silver aluminum alloy extrusion profile NEXT：No next article

Specification

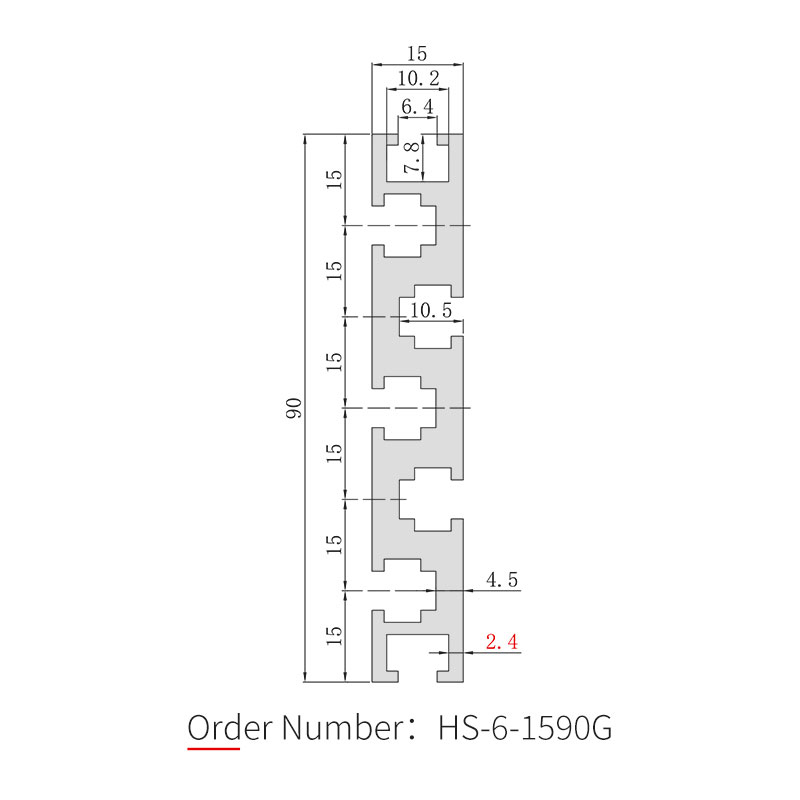

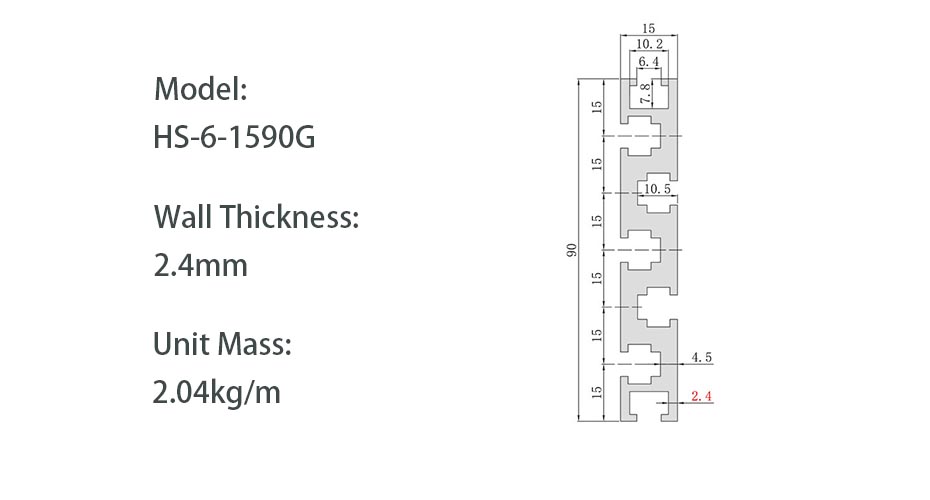

	Model	HS-6-1590G
	Section Size	15mm*90mm
	Unit Mass	2.04kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	Square Slot
	Slot Width	6.4mm
	Slot Depth	10.5mm
	Hole Diameter
	Wall Thickness	2.4mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
