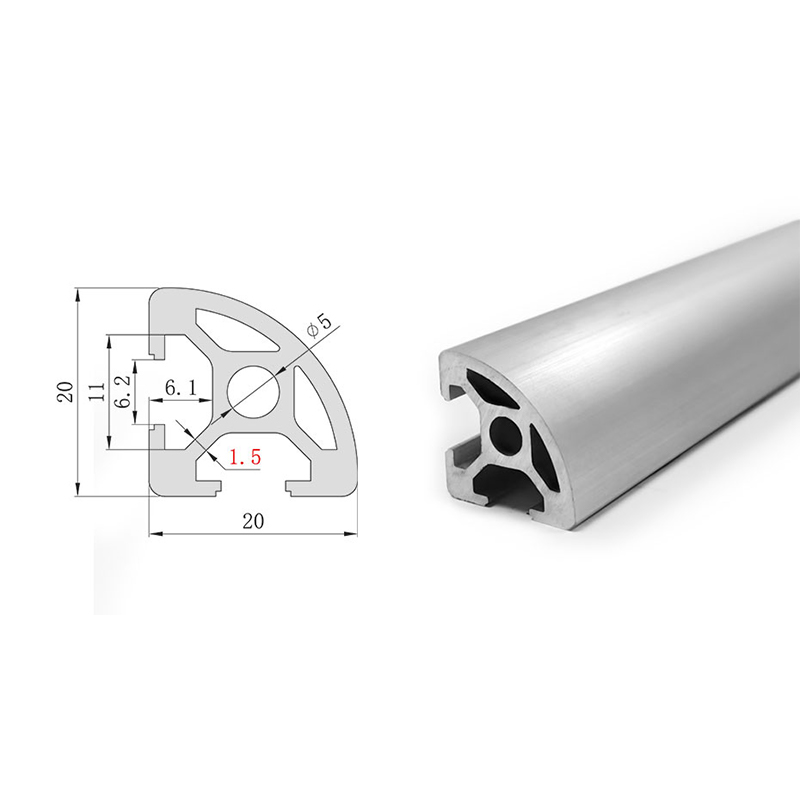

2020R Arc Aluminum Profile 20×20mm rounded corner design 6mm slot width Anodized finish Impact-resistant and aesthetically pleasing

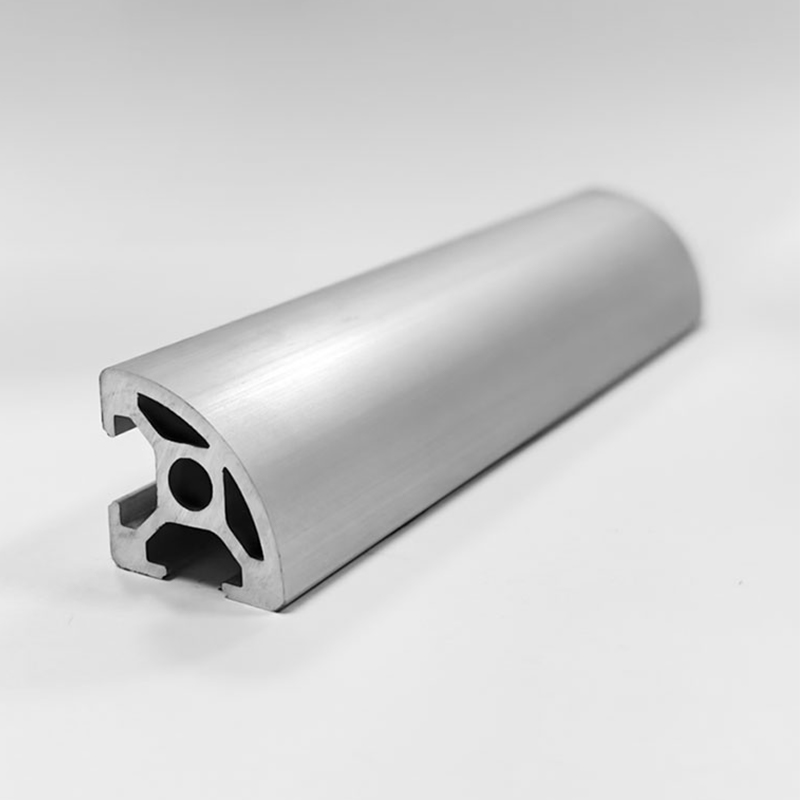

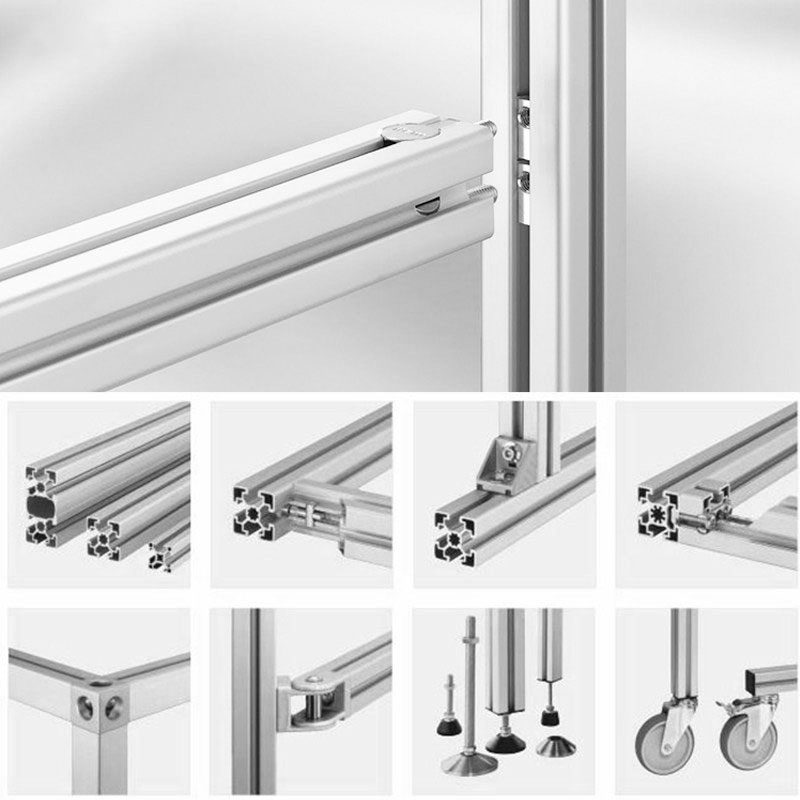

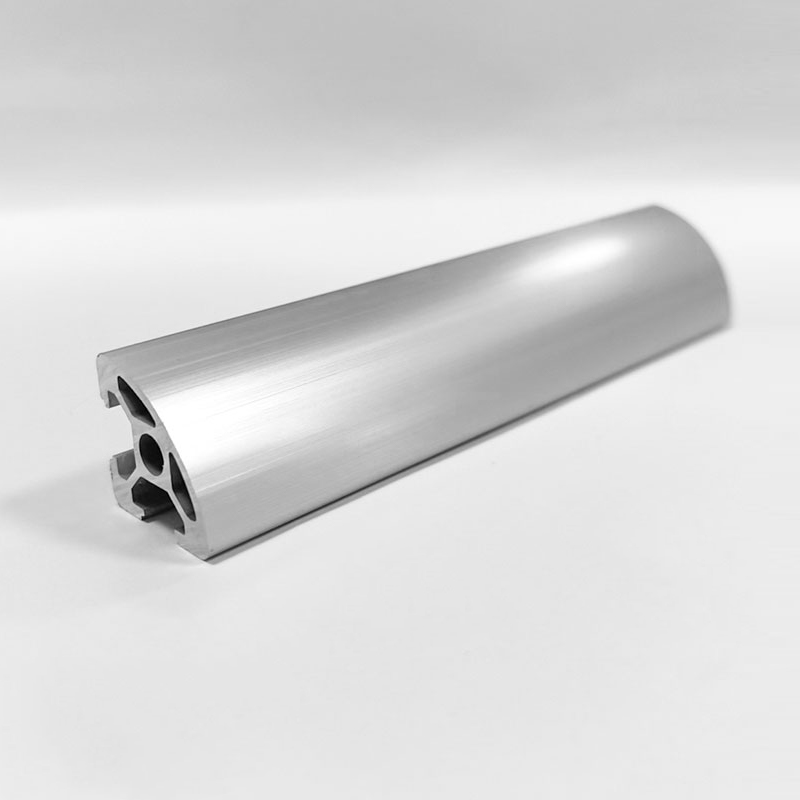

The 2020R arc aluminum profile is a special model in the 20 series. Based on the standard 2020, one right angle is replaced with a rounded arc chamfer design. The body is made of 6063-T5 aluminum alloy with anodized surface treatment. The rounded arc surface has no sharp edges, and is mainly used for the outer edges and columns of aluminum profile frames, effectively preventing personnel injuries from accidental contact, improving equipment safety levels, and giving the frame a smoother and more aesthetically pleasing appearance.

CAD Drawing Download

PREV：2020 aluminum profile, T-slot design, silver or black anodized finish, compatible with standard mainstream accessories NEXT：2020N1 Aluminum Profile 6mm slot width Single-side closed slot Three-sided T-slot design Dust-proof and aesthetically pleasing

Specification

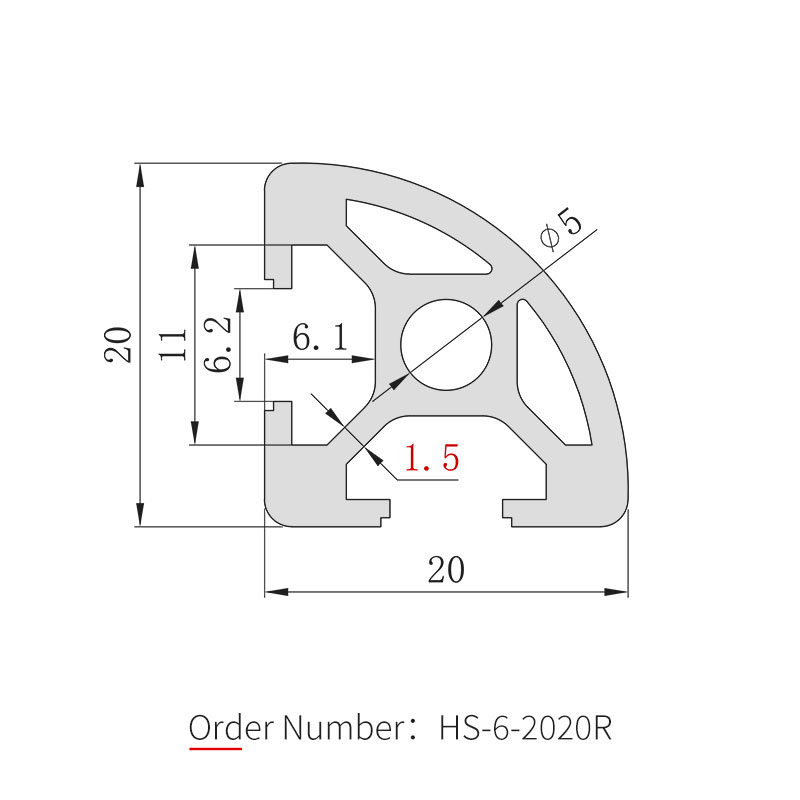

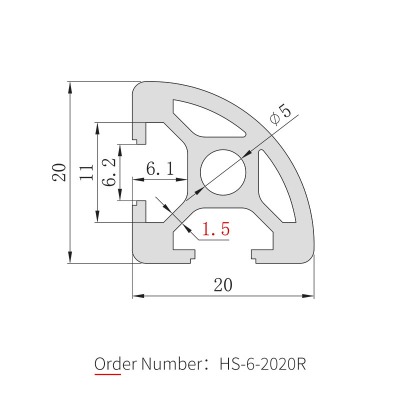

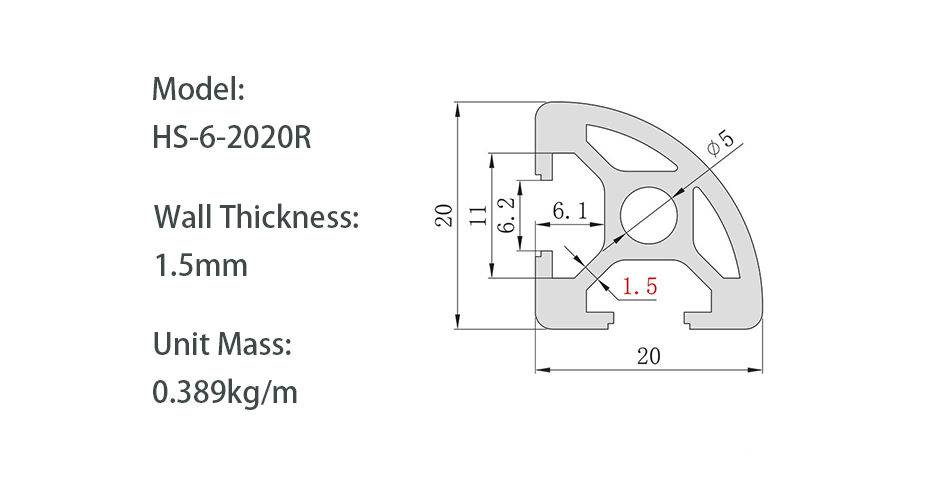

	Model	HS-6-2020R
	Cross-sectional Dimensions	20mm × 20mm
	Unit Weight	0.389 kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	6.2mm
	Slot Depth	6.1mm
	Hole Diameter	Φ5
	Wall Thickness	1.5mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
