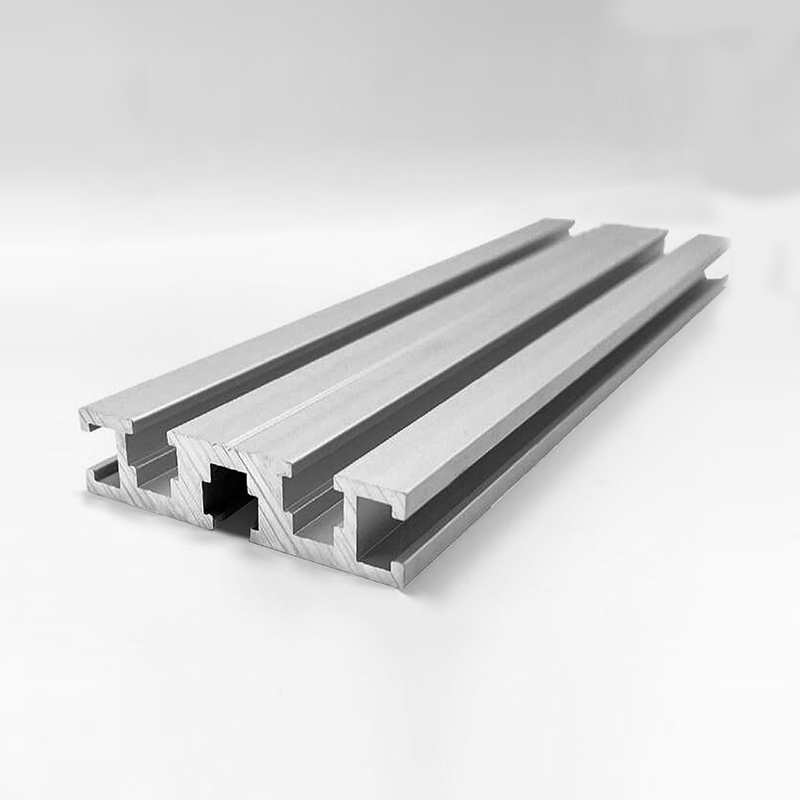

1560G series industrial square slot silver aluminum alloy extrusion profile

The 1560G series aluminum profile is a "load-bearing" staple in industrial framing applications. Compared to smaller profiles, its 60mm wide face features a multi-slot structure, significantly enhancing structural rigidity and load-bearing capacity. It is commonly used for constructing equipment bases, workstation frames, and heavy-duty safety guards. It provides stable structural support for large-scale equipment while maintaining the advantage of easy installation.

CAD Drawing Download

PREV：1515B series compact T-slot silver aluminum extrusion profile NEXT：1590G series aluminum extrusion profile for lightweight framing system

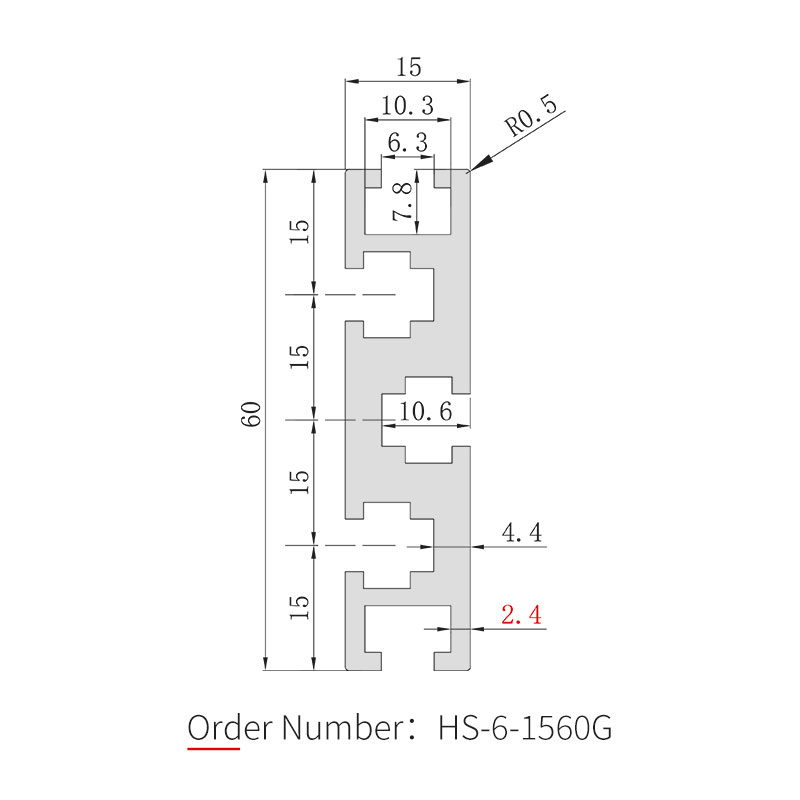

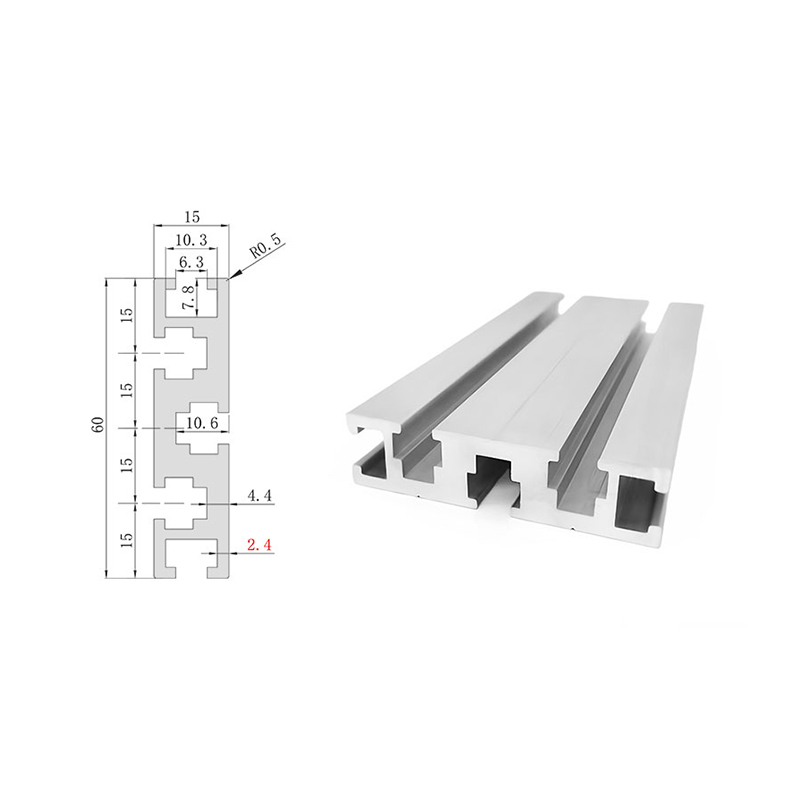

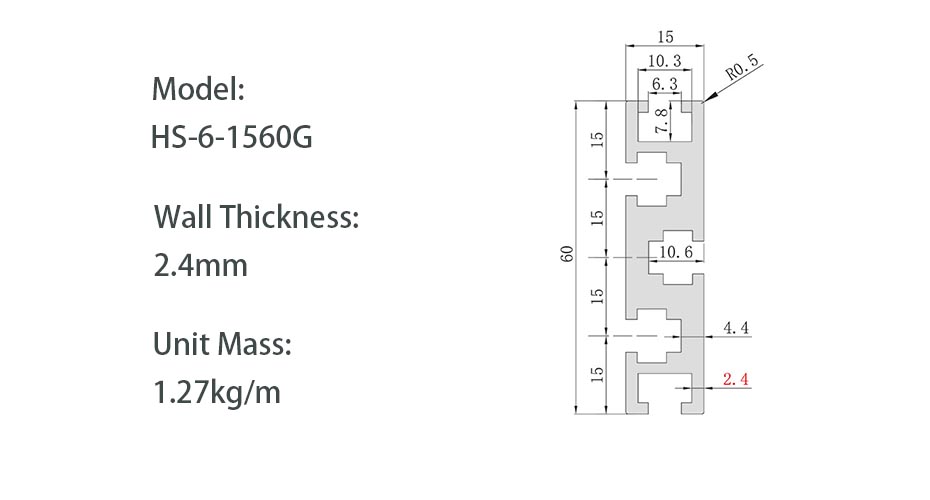

Specification

	Model	HS-6-1560G
	Section Size	15mm*60mm
	Unit Mass	1.27kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	Square Slot
	Slot Width	6.3mm
	Slot Depth	10.6mm
	Hole Diameter
	Wall Thickness	2.4mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
