Our 80 series aluminum extrusion profiles are the heavy-duty powerhouses of our catalog, support multi-ton loads, and provide maximum anti-torsion performance for the most demanding structural challenges. Widely used for heavy machinery bases, multi-level work platforms, and large-scale industrial gantries where absolute stability is non-negotiable. Our service advantage includes comprehensive structural load-bearing analysis support, helping your engineering team select the most secure configuration for massive assemblies. Every 80 series profile is extruded to the highest quality standards, ensuring that even under extreme static or dynamic loads, your industrial infrastructure remains safe, rigid, and professional in appearance.
Huishuo Aluminum Industry is professional China 80 Series Aluminum Extrusion Profile manufacturers and 80 Series Aluminum Extrusion Profile factory, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality 80 Series Aluminum Extrusion Profile and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
Two purchase orders for the same 4040 T-slot profile can specify different metals: one buyer writes 6063-T5, another insists on 6061-T6, and the gap between the two quotes often reaches 10 to 20 percent. That difference is not paperwork. Among aluminum alloy types, the grade yo...
READ MOREA purchasing engineer who orders forty sticks of 6-meter T-slot profile without checking aluminum density in lb/in3 usually finds out at the loading dock, when the pallet weighs far more than the quote predicted and the freight class changes on the spot. The number that prevent...
READ MOREWhen a machine builder asks about the melting point of aluminum, they are usually not planning to melt anything. They are checking a weldment drawing, specifying a die-cast housing, or confirming that an extruded profile frame can sit near a heat source. The answer is simple: pu...
READ MOREChoosing the right stock aluminum extrusion profiles comes down to matching profile geometry, alloy, and finish to the real mechanical and environmental demands of your project. Engineers, fabricators, and procurement teams rely on these pre-designed sections to skip custom die ...
READ MOREThe 80 series aluminum extrusion profile is the backbone of heavy industrial framing. With an 80 mm cross-section, these profiles deliver the rigidity, load capacity, and torsional resistance required for machinery bases, multi-level work platforms, conveyor supports, large-span gantries, and automation cells. When your application demands multi-ton static loads or dynamic forces, the 80 series is the correct starting point. As a professional 80 Series Aluminum Extrusion Profile manufacturer, Shanghai Huishuo Aluminum Industry Technology Co., Ltd. offers a range of profiles with different slot geometries, wall thicknesses, and surface finishes to match your exact structural and integration needs.
The 80 series family includes several variants, each optimized for a specific load class, assembly method, or accessory compatibility. The table below compares the most common profiles available from this supplier.
| Profile Model | Cross-Section (mm) | Slot Type | Wall Thickness | Typical Load Class | Best Application Fit |
|---|---|---|---|---|---|

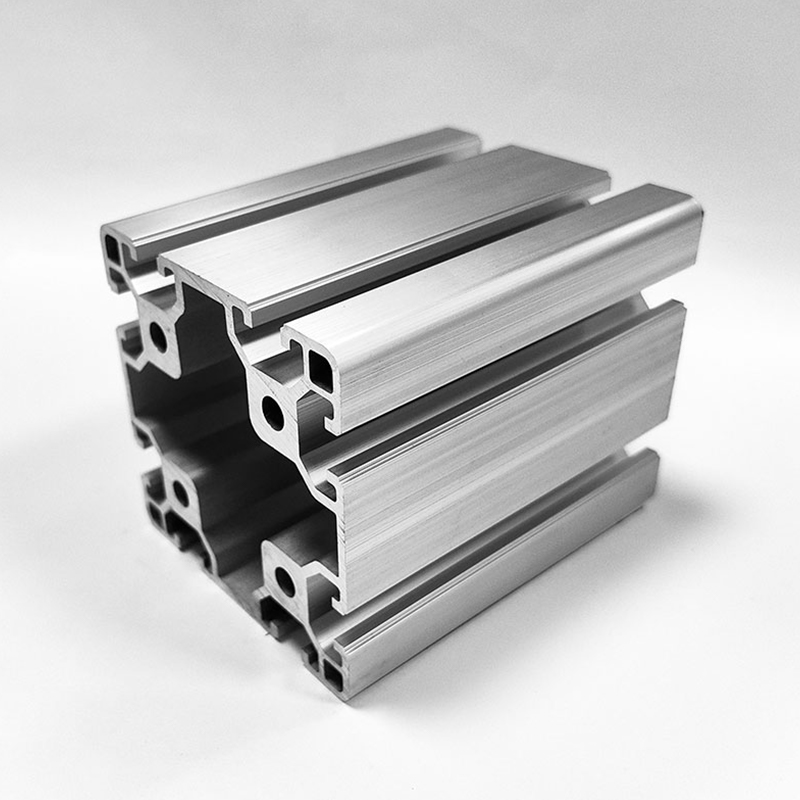

| HS-8-8080 | 80 × 80 | T-slot (8 mm) | Standard | Medium-heavy | General machine frames, workstations |

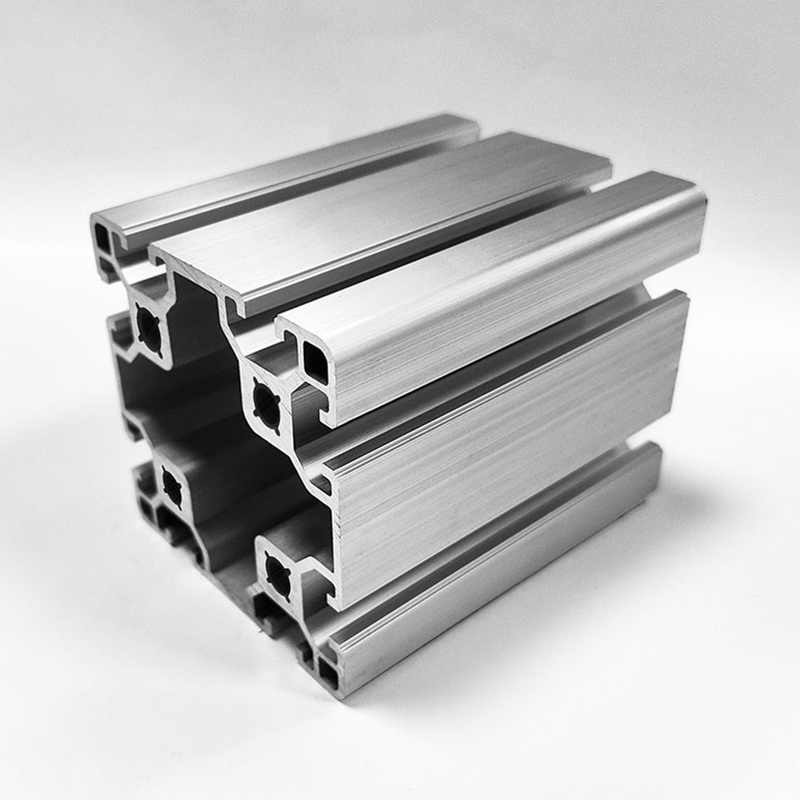

| HS-10-8080 | 80 × 80 | T-slot (10 mm) | Standard | Medium-heavy | High-adaptability frames, larger fasteners |

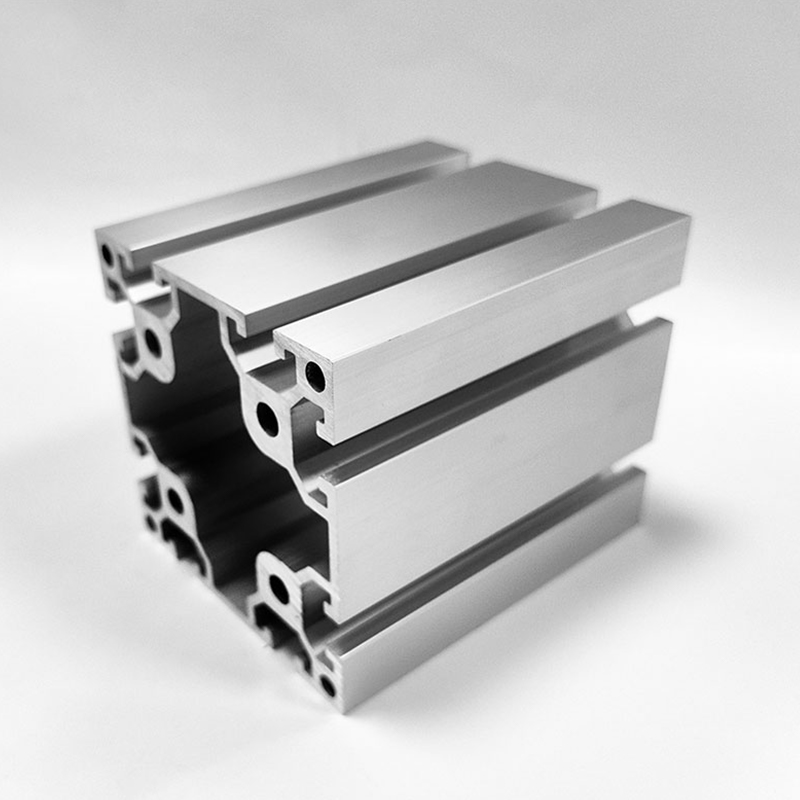

| HS-8-8080FW | 80 × 80 | T-slot (8 mm) | Precision | Medium-heavy | High-precision assembly, automation guides |

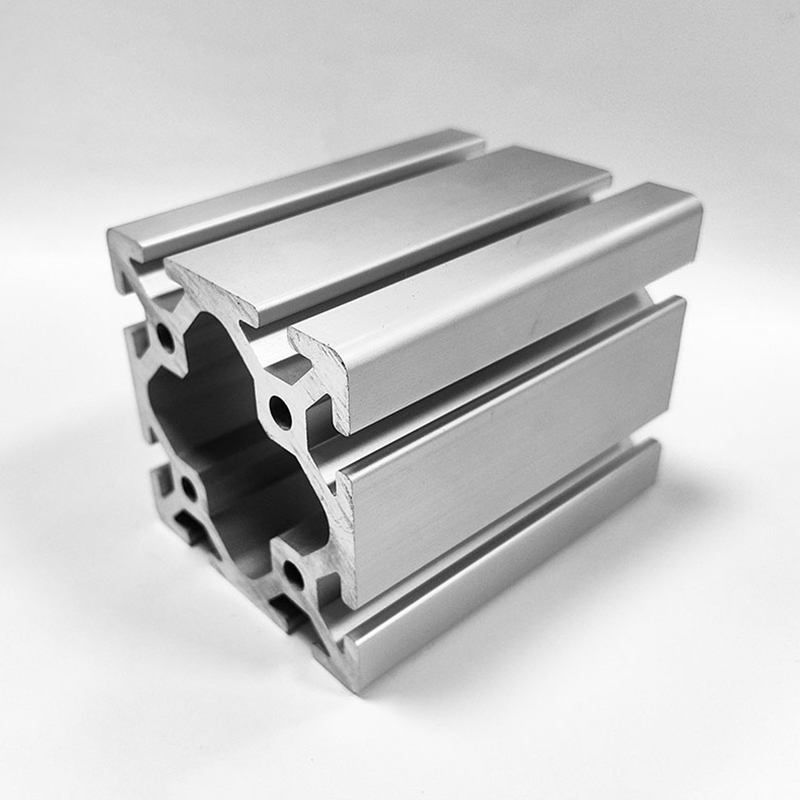

| HS-8-8080W | 80 × 80 | T-slot (8 mm) | Extra-thick | Extra-heavy | High-load supports, press frames |

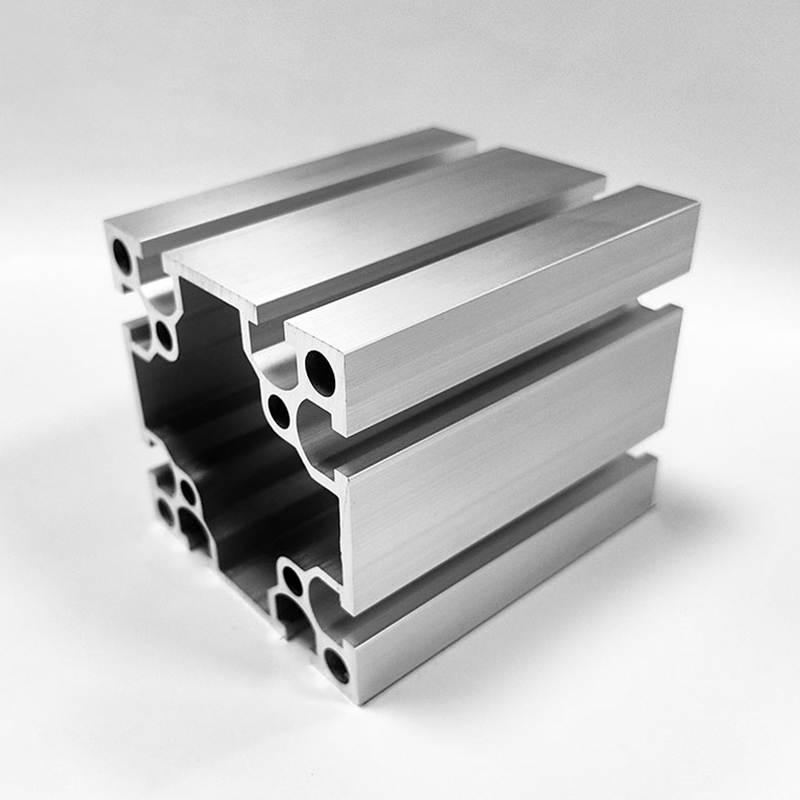

| HS-8-8080GU | 80 × 80 | U-slot (deep) | Standard | Medium-heavy | High-fit connections, panel mounting |

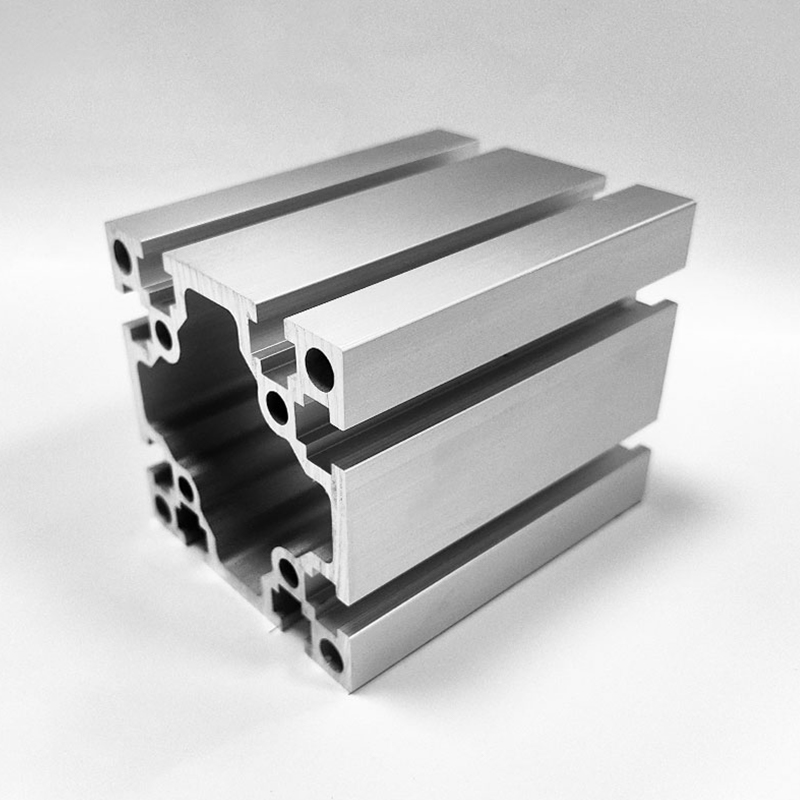

| HS-8-8080GA | 80 × 80 | Square-slot (thick wall) | Thick | Heavy | Strong load-bearing columns |

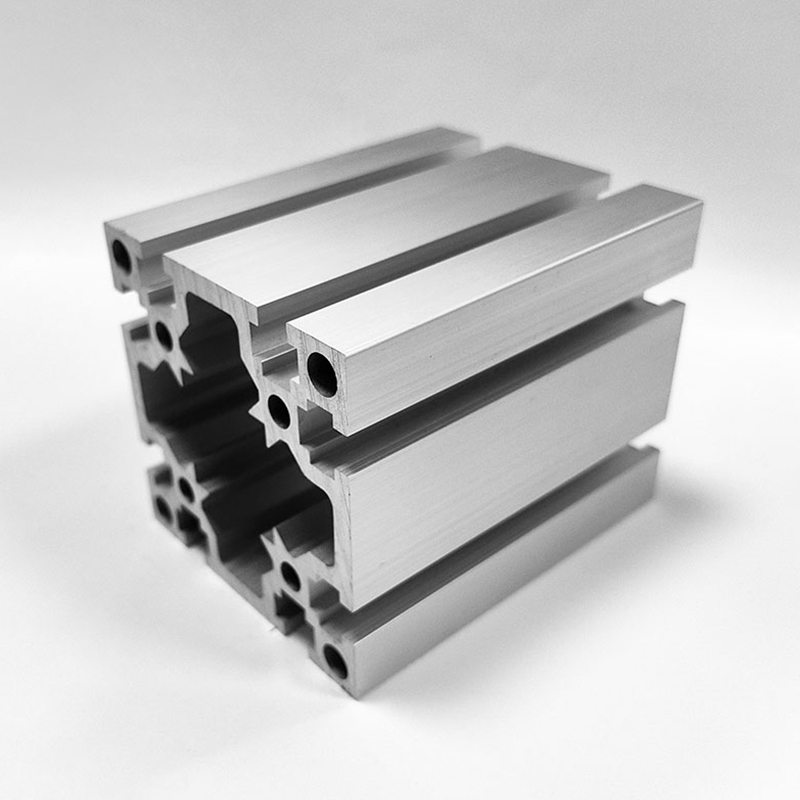

| HS-8-8080G | 80 × 80 | Square-slot (thickened) | Thickened | Heavy-duty | Fixed heavy structures, machine bases |

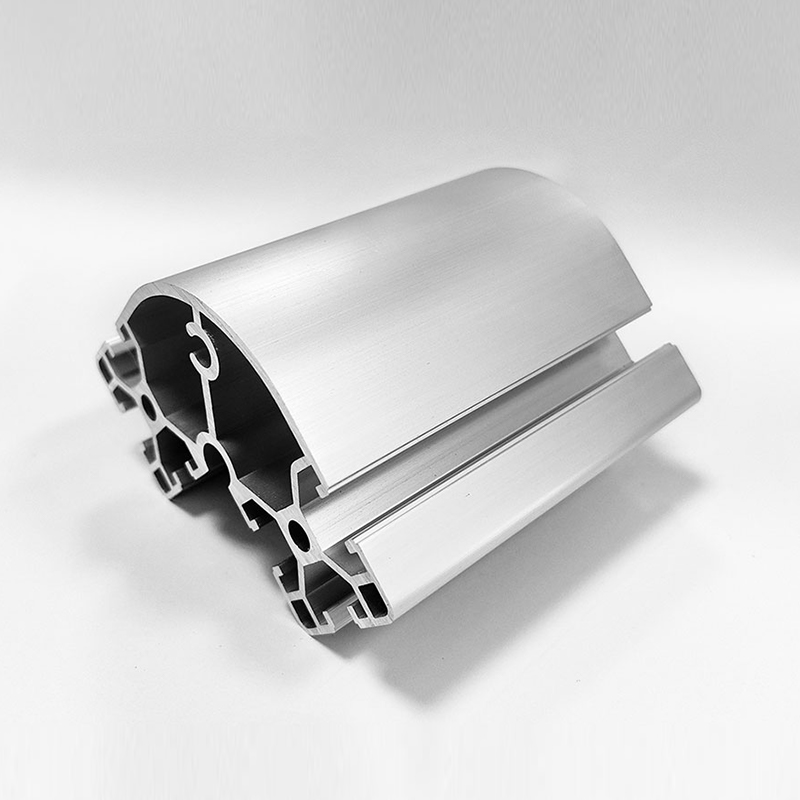

| HS-8-8840R | 80 × 80 (lightweight) | T-slot (deep, lightweight) | Reduced | Light-medium | Easy construction, cost-sensitive frames |

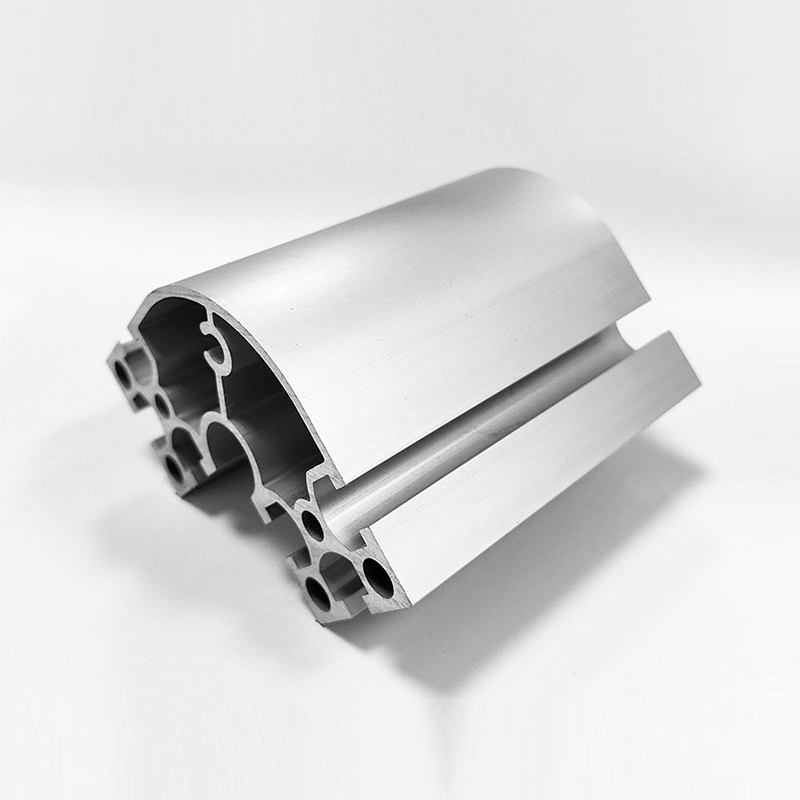

| HS-8-8840GR | 80 × 80 (balanced) | U-slot (deep) | Balanced | Medium | Balanced adaptation, mixed connections |

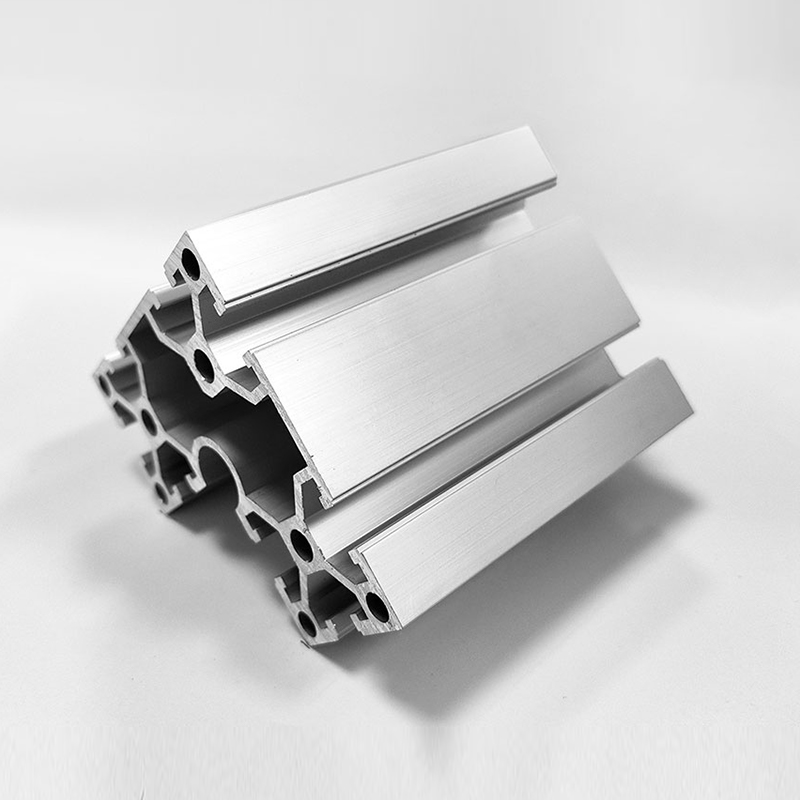

| HS-8-8840Z | 80 × 80 (precision) | T-slot (deep, precision) | Precision | Medium | Precision assembly, modular fixtures |

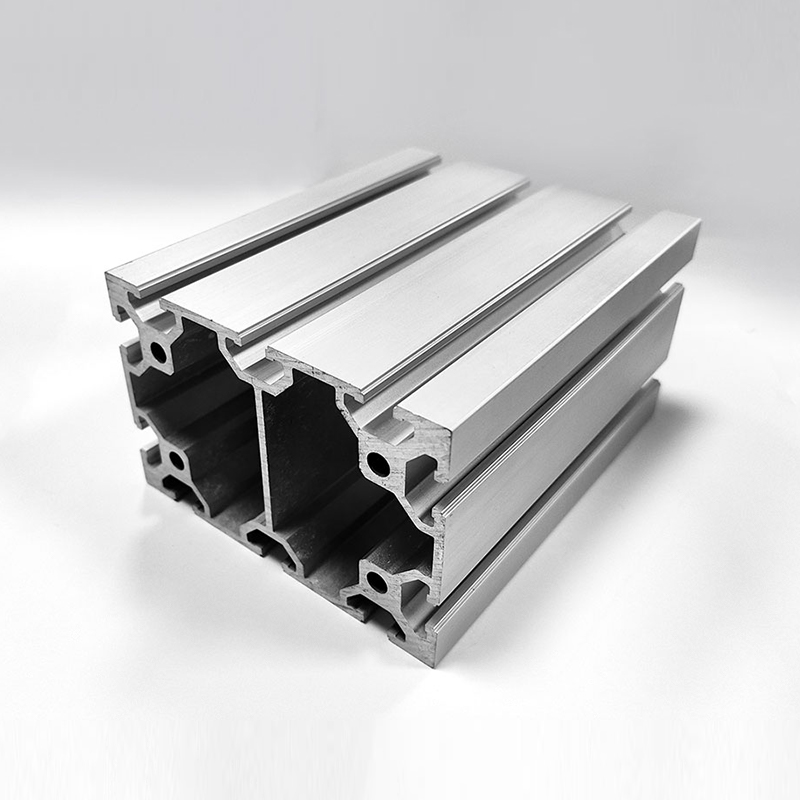

| HS-8-80120 | 80 × 120 | T-slot (8 mm) | Standard | Medium-heavy | Wide beams, conveyor supports |

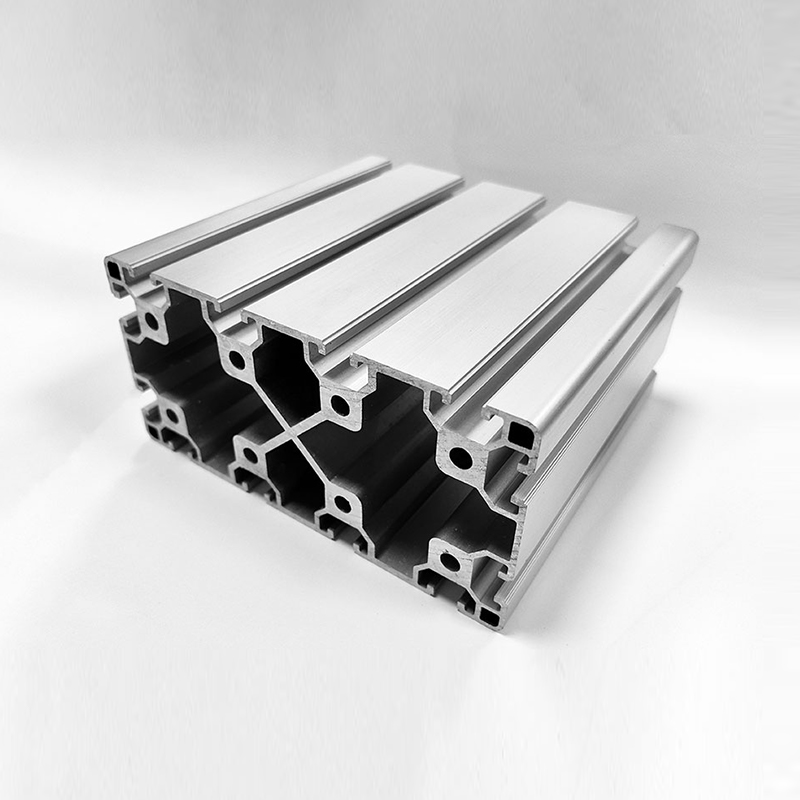

| HS-8-80160 | 80 × 160 | T-slot (8 mm) | Standard | Heavy-duty | Extra-wide spans, gantry beams |
The slot design determines which connectors, T-nuts, and bolts you can use. The 80 series offers three slot types:
Select the slot type based on your accessory ecosystem. If you already use M8 T-nuts and connectors, the 8 mm T-slot profiles minimize inventory complexity. For new designs requiring higher joint strength, the 10 mm slot is the better choice.
Wall thickness directly influences bending stiffness, weight, and cost. The 80 series profiles range from lightweight (reduced wall) to extra-thick (reinforced). Here is the selection logic:
Request a load-deflection calculation from the supplier for your specific span and load. A reliable 80 Series Aluminum Extrusion Profile supplier should provide engineering support for structural analysis.
Standard finish is mill finish or silver anodized. For enhanced corrosion resistance in wet or chemical environments, specify anodizing, powder coating, or electrophoretic coating. The factory operates multiple surface treatment lines, including anodizing and vertical spray coating, as shown on the Factory Tour page. Anodized profiles offer a hard, wear-resistant surface with consistent color. Powder coating provides a thicker protective layer and a wider color range. For outdoor or wash-down applications, request a salt spray test report.
Most 80 series profiles can be supplied cut to length, drilled, tapped, and milled to your drawing. The supplier’s CNC Aluminum Processing capability includes 26 machining centers with effective machining diameter up to 6.5 m and tolerance precision of 0.01 mm. This allows for precision hole patterns, counterbores, and slotting directly on the profile, reducing assembly time and ensuring repeatability. Include a detailed 2D or 3D drawing with your RFQ to avoid misinterpretation.
The 80 series is designed to work with a full ecosystem of Aluminium Profile Connectors, Fasteners, Finishing Parts, and Assembly Parts. When ordering, confirm that the slot size matches the intended connector series. For example, 8 mm T-slot profiles require 8 mm T-nuts and compatible brackets. The supplier also offers Aluminum Profile Frame design and assembly services, which can simplify procurement if you need turnkey structures.
Use the following checklist to ensure your RFQ covers all critical parameters:
