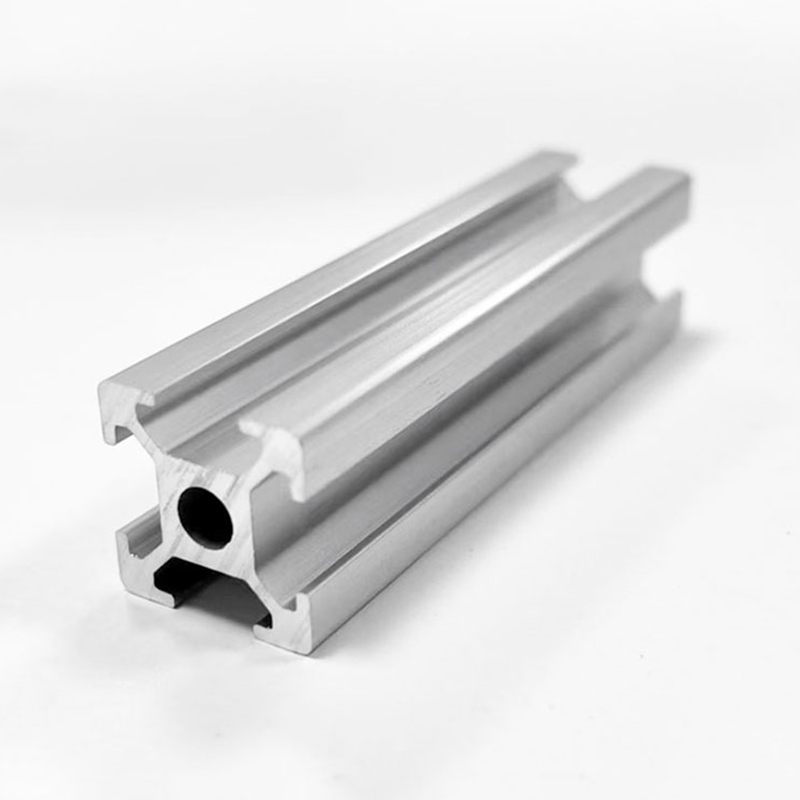

1515B series compact T-slot silver aluminum extrusion profile

Due to its compact and versatile design, the 1515B series aluminum profile is extensively utilized in small-scale, lightweight frame structures where space and weight efficiency are critical. It is an ideal choice for electronic instrument racks, 3D printer frames, robotic skeletons, small commodity display stands, household flower stands, and lighting fixtures. It plays an irreplaceable role in small-scale automation, precision instrumentation, light industrial displays, and various DIY sectors.

CAD Drawing Download

PREV：1530 series square slot dual-sided opening with standard anodic oxidation aluminum extrusion profile - 6mm square slot NEXT：1560G series industrial square slot silver aluminum alloy extrusion profile

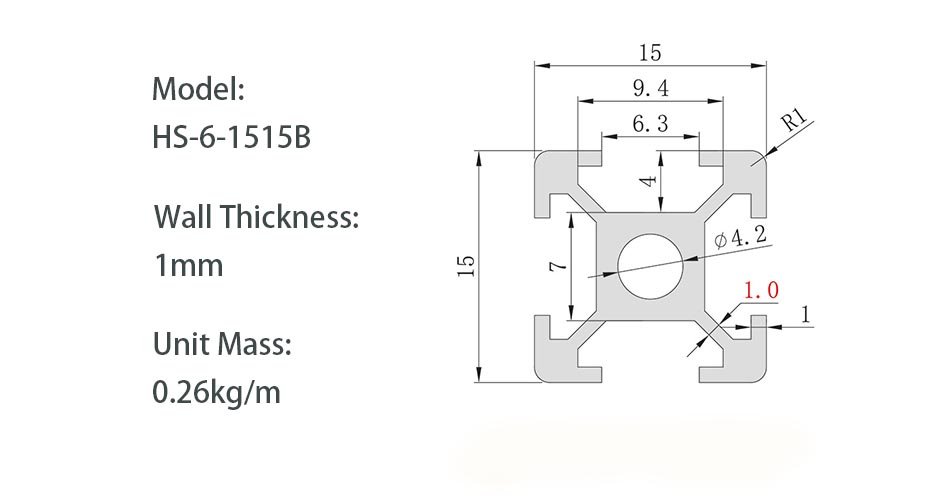

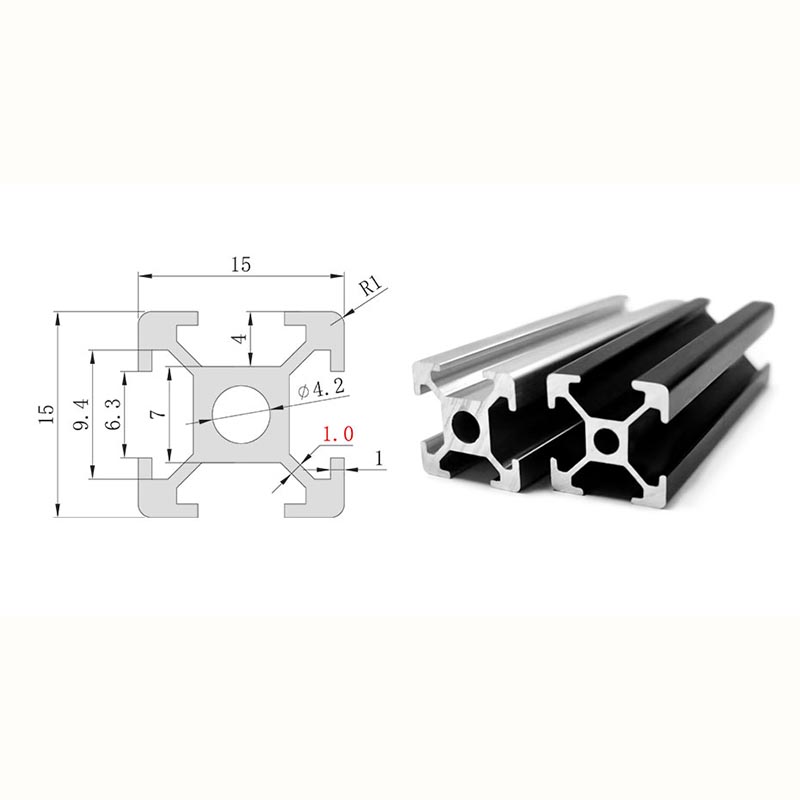

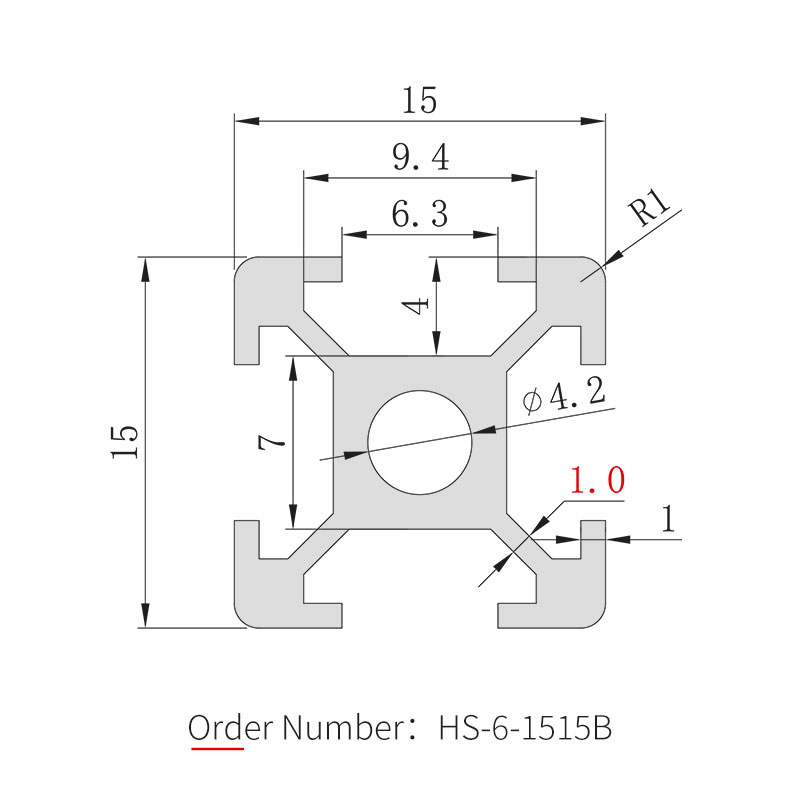

Specification

	Model	HS-6-1515B
	Section Size	15mm*15mm
	Unit Mass	0.26kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	T-Slot
	Slot Width	6.3mm
	Slot Depth	4mm
	Hole Diameter	Φ4.2
	Wall Thickness	1mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
