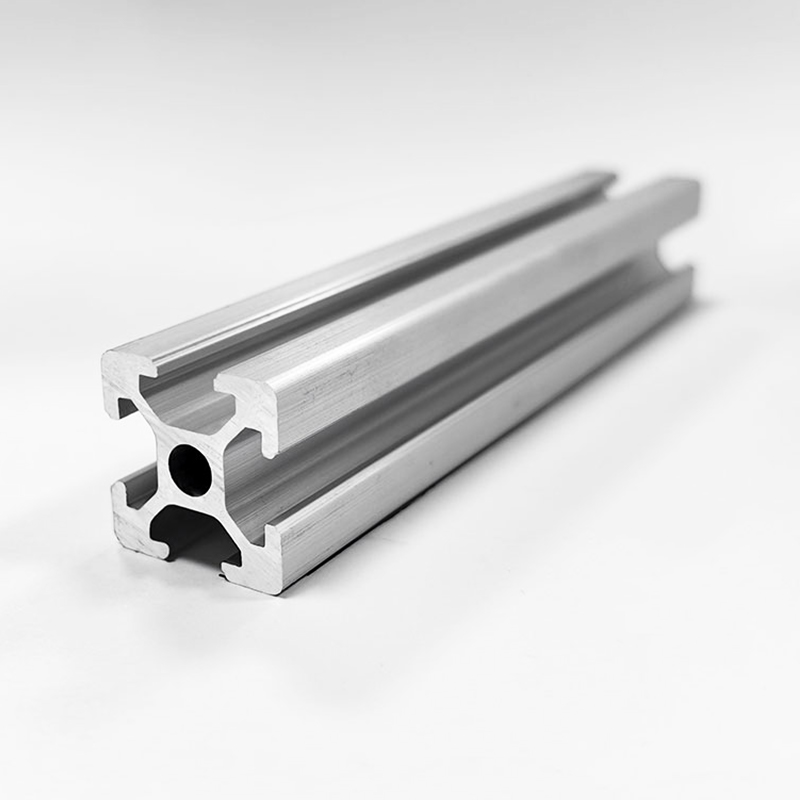

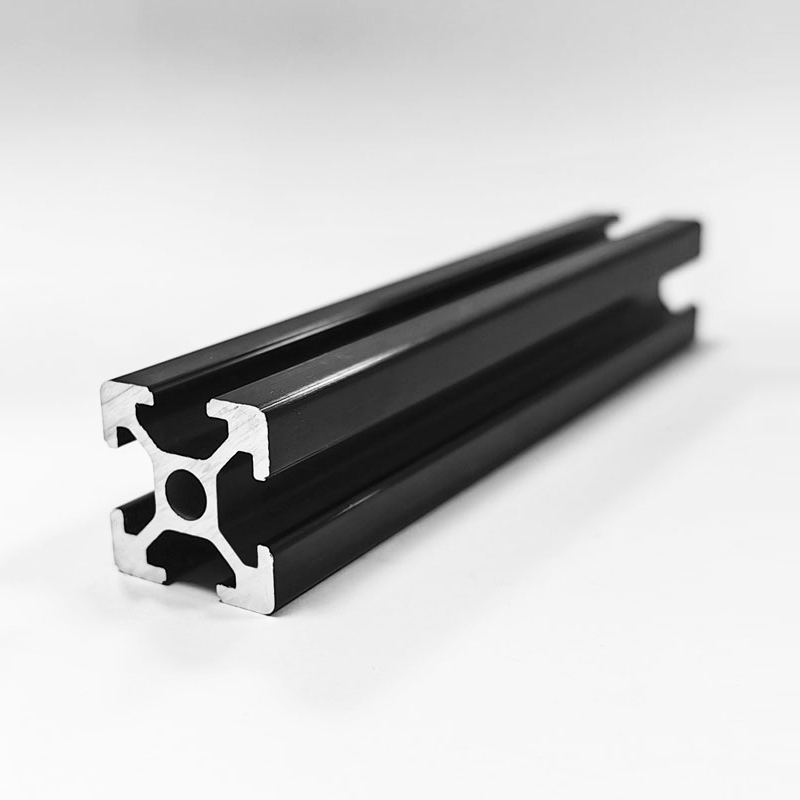

2020 aluminum profile, T-slot design, silver or black anodized finish, compatible with standard mainstream accessories

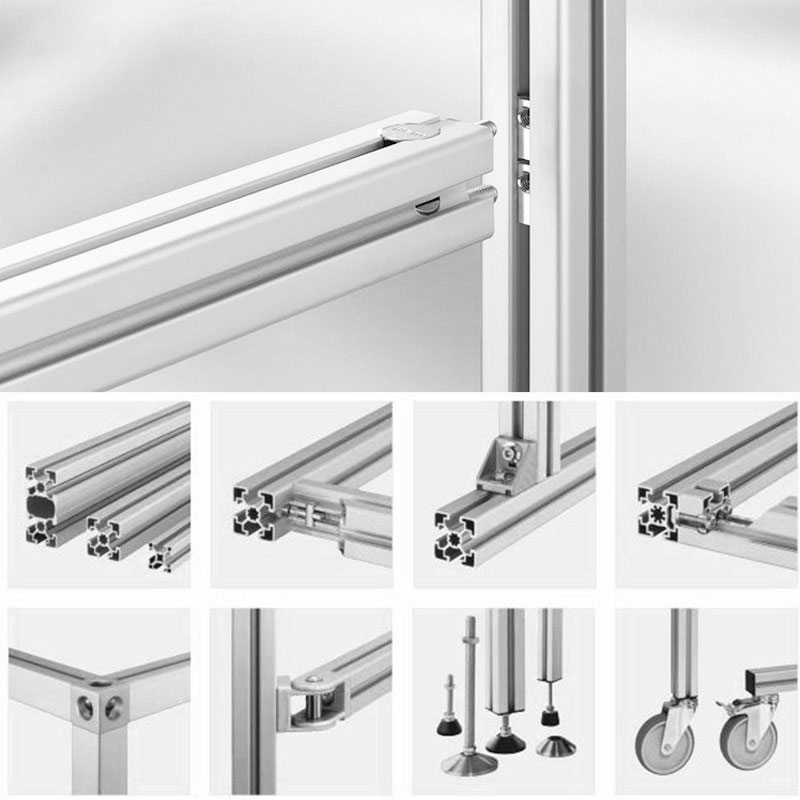

This 2020 aluminum profile is the standard classic model of the 20 series, featuring a 20×20mm square cross-section design, 6mm slot width, and a 6063-T5 aluminum alloy body with standard anodized surface treatment for a smooth, corrosion-resistant finish. Commonly used for constructing light equipment enclosures, instrument frames, display panels, small door frames, and assembly line barriers, making it one of the most widely used profiles in lightweight frame structures. Matching connections typically use M5 dedicated T-slot nuts and hex socket bolts, providing flexible and reliable connection methods.

CAD Drawing Download

PREV：2020 aluminum alloy square tube profile, T-slot aluminum profile, slot width 6mm, lightweight and easy to install NEXT：2020R Arc Aluminum Profile 20×20mm rounded corner design 6mm slot width Anodized finish Impact-resistant and aesthetically pleasing

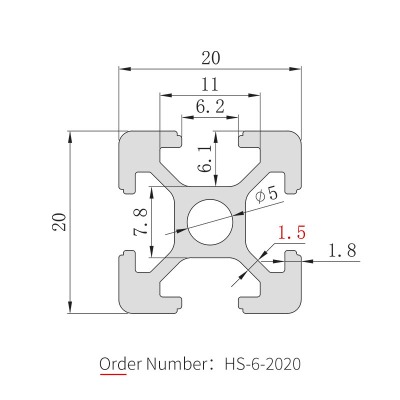

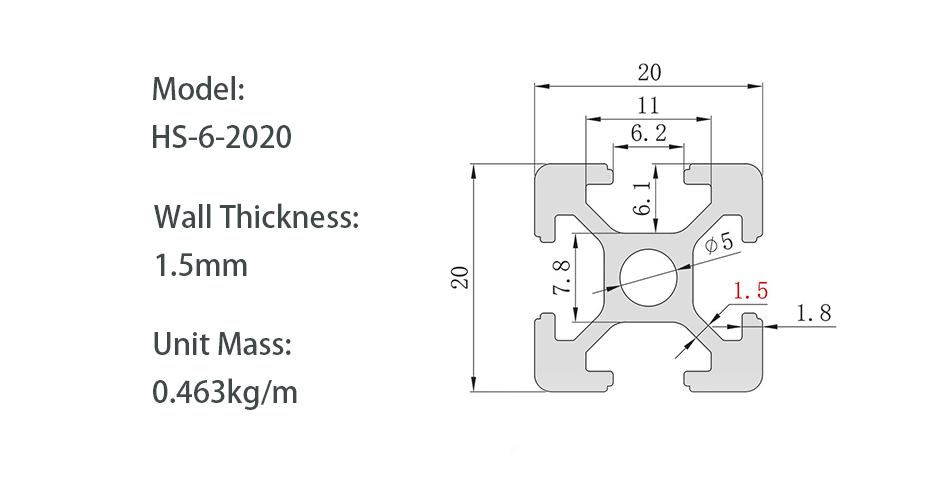

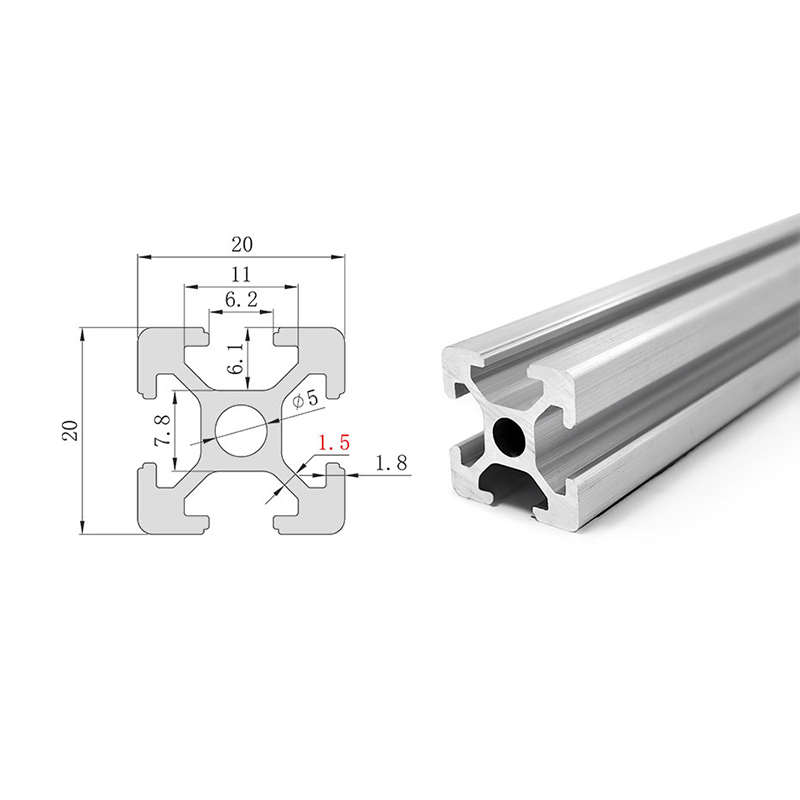

Specification

	Model	HS-6-2020
	Cross-sectional Dimensions	20mm × 20mm
	Unit Weight	0.463 kg/m
	Surface Treatment	Anodized
	Color	Silver / Black
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	6.2mm
	Slot Depth	6.1mm
	Hole Diameter	Φ5
	Wall Thickness	1.5mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
