2020 aluminum alloy square tube profile, T-slot aluminum profile, slot width 6mm, lightweight and easy to install

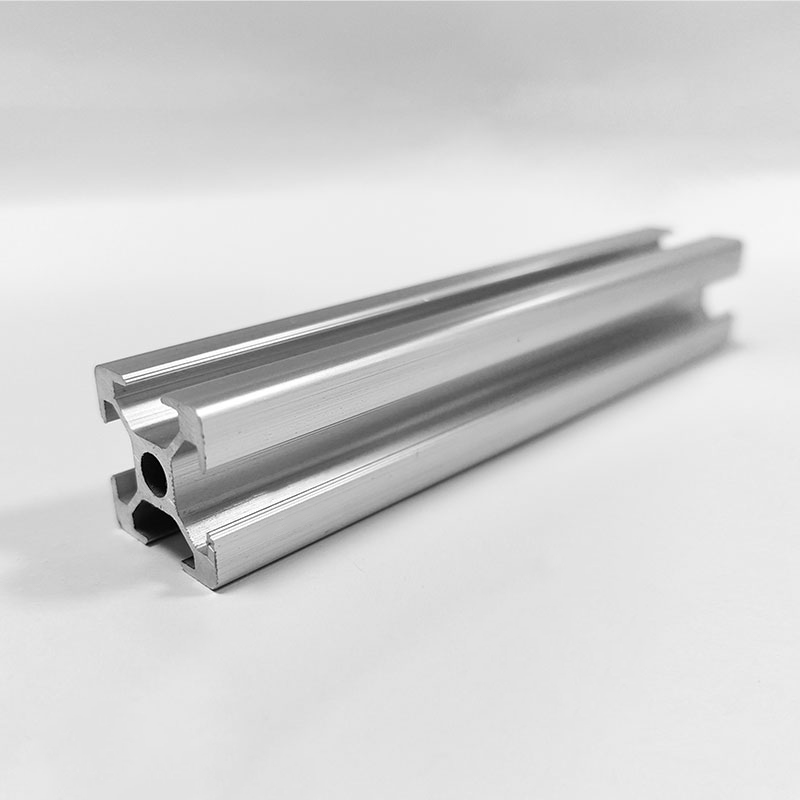

The 2020 aluminum profile is the basic model of the 20 series, featuring a 20×20mm square cross-section, 6mm slot width, and a 6063-T5 aluminum alloy body with anodized surface treatment for a smooth, corrosion-resistant finish. Lightweight and easy to install. Commonly used for light equipment enclosures, instrument frames, display panels, and small door frames, making it one of the most widely used profiles in lightweight frame structures.

CAD Drawing Download

PREV：2020 series aluminum extrusion profile with 6mm t-slot design NEXT：2020 aluminum profile, T-slot design, silver or black anodized finish, compatible with standard mainstream accessories

Specification

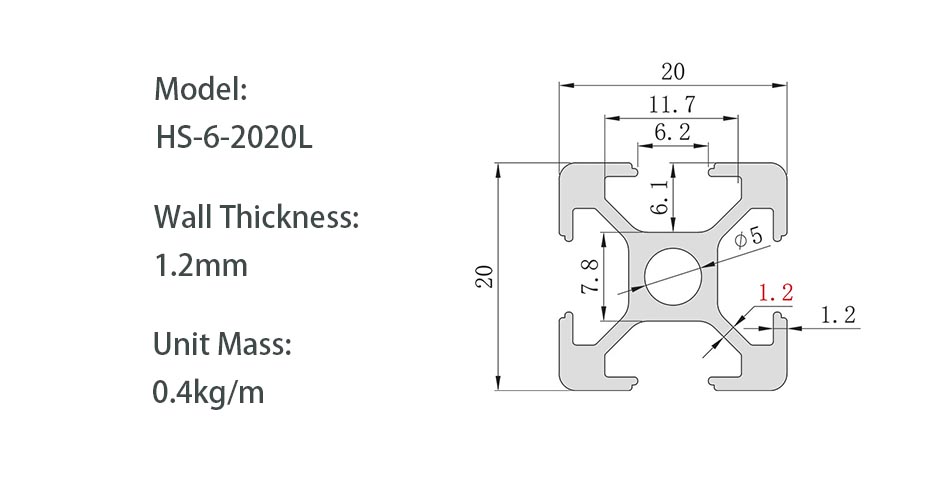

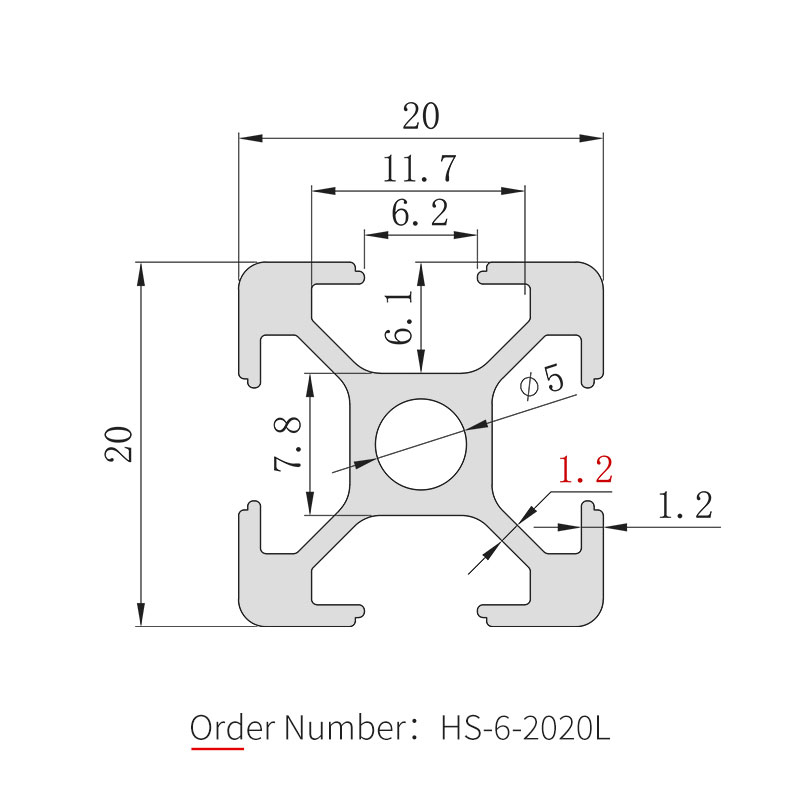

	Model	HS-6-2020L

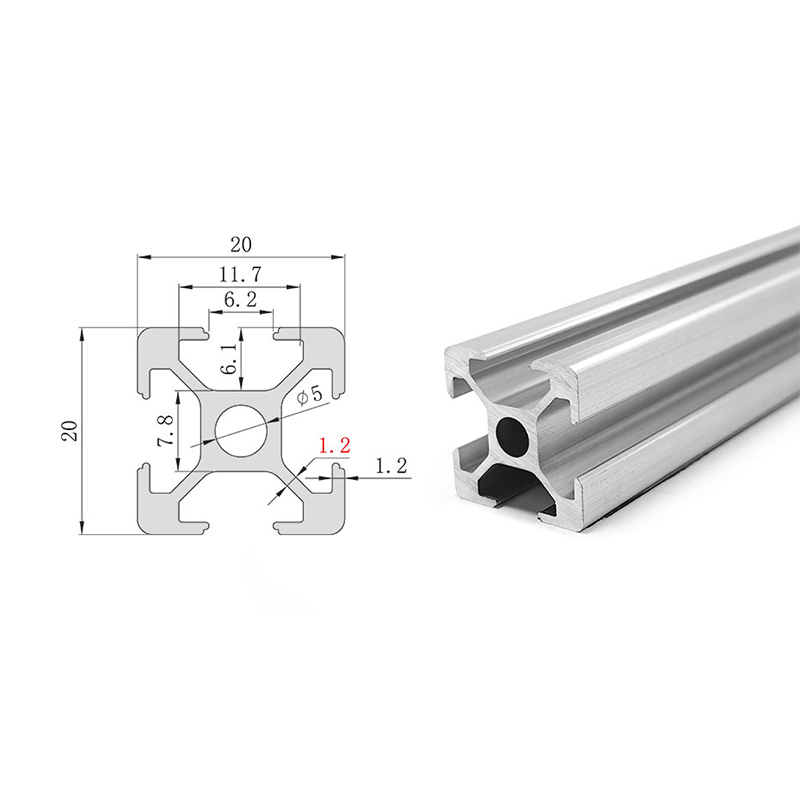

	Cross-sectional Dimensions	20mm × 20mm
	Unit Weight	0.4 kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	6.2mm
	Slot Depth	6.1mm
	Hole Diameter	Φ5.2
	Wall Thickness	1.2mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
