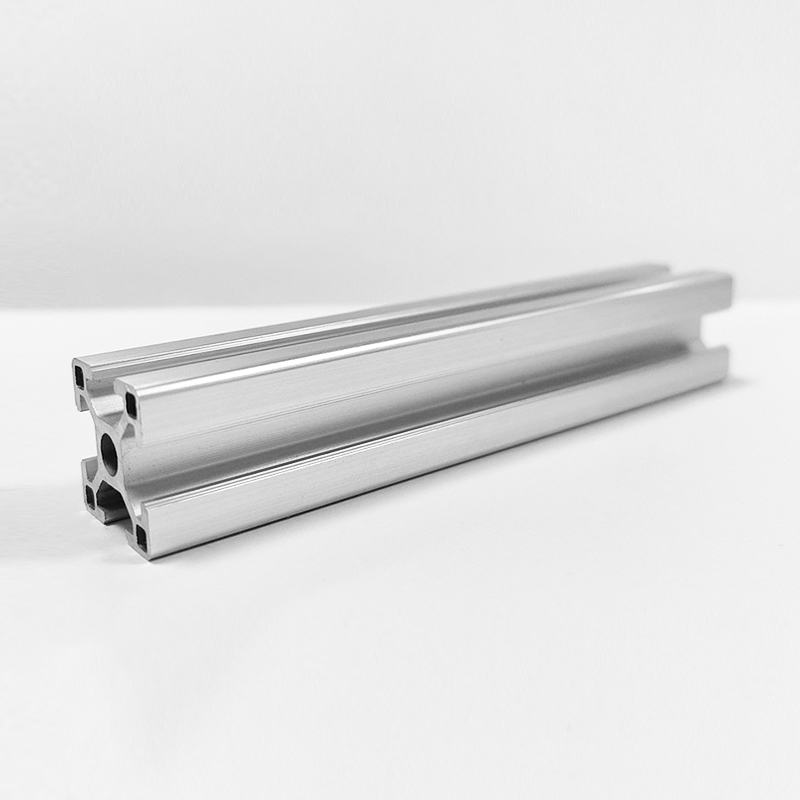

2020 series aluminum extrusion profile with 6mm t-slot design

The 2020 series aluminum extrusion is a fundamental and vital component of the industrial aluminum profile family. Due to its lightweight and modular characteristics, it is widely utilized in applications with low load-bearing requirements that necessitate flexible structures. Typical uses include small equipment frames, electronic assembly benches, computer monitor stands, and storage racks for lightweight parts and tools.

CAD Drawing Download

PREV：No previous article NEXT：No next article

Specification

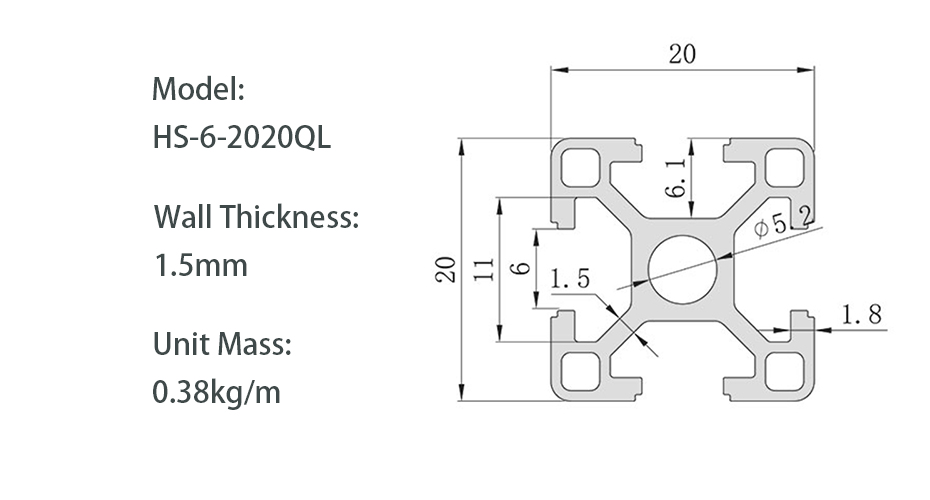

	Model	HS-6-2020QL

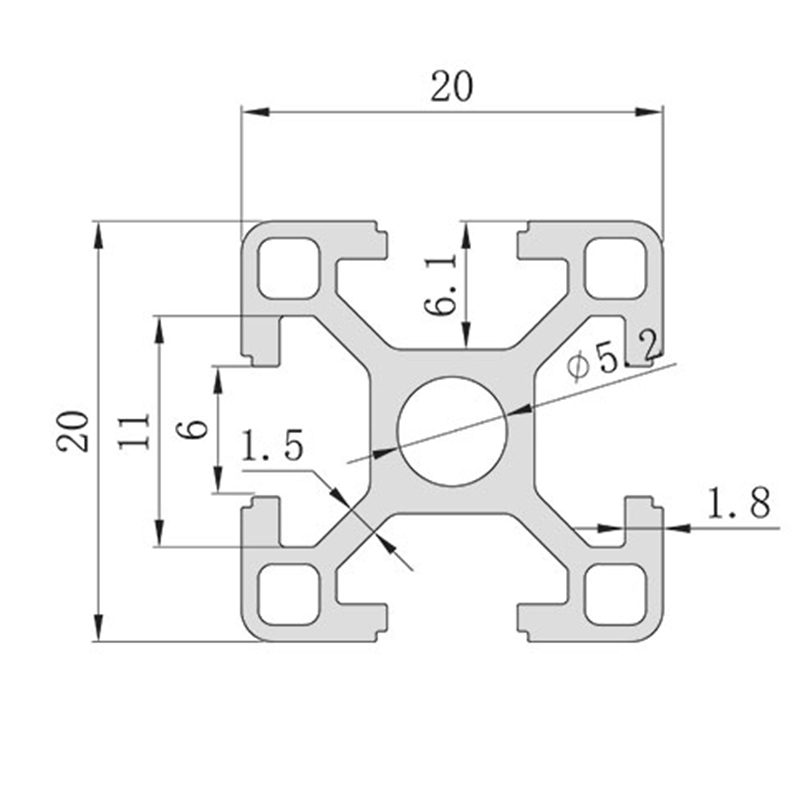

	Section Dimensions	20mm*20mm
	Unit Mass	0.38kg/m
	Surface Treatment	Anodic Oxidation
	Color Options	Silver
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	T-Slot
	Slot Width	6mm
	Slot Depth	6.1mm
	Aperture (Hole Diameter)	Φ5.2
	Wall Thickness	1.5mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

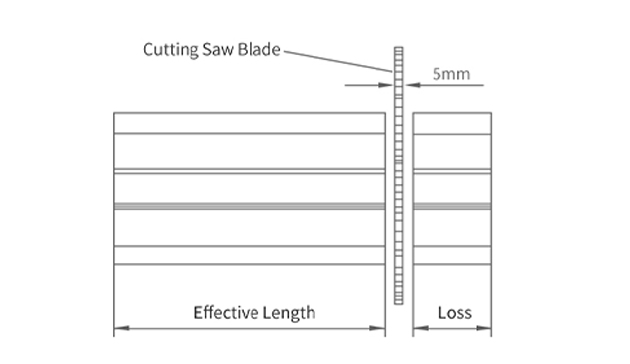

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
