1530 series square slot dual-sided opening with standard anodic oxidation aluminum extrusion profile - 6mm square slot

The 1530 aluminum extrusion profile is a "star" product in the modular aluminum profile market. It is lightweight and easy to install, making it a popular choice for equipment door frames and outer structures. This profile significantly improves both the construction efficiency and the economic value of equipment frameworks.

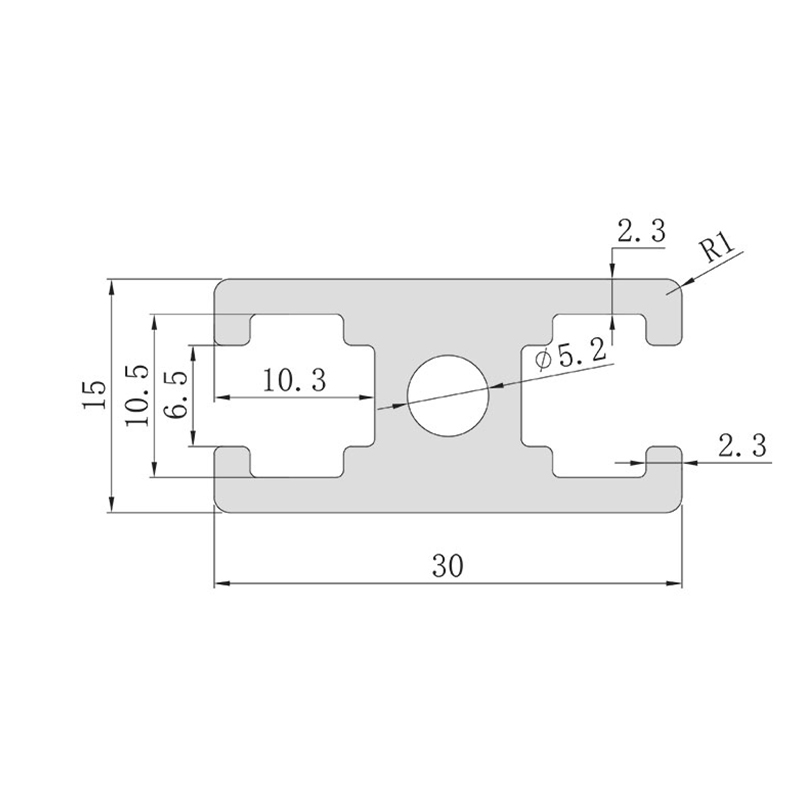

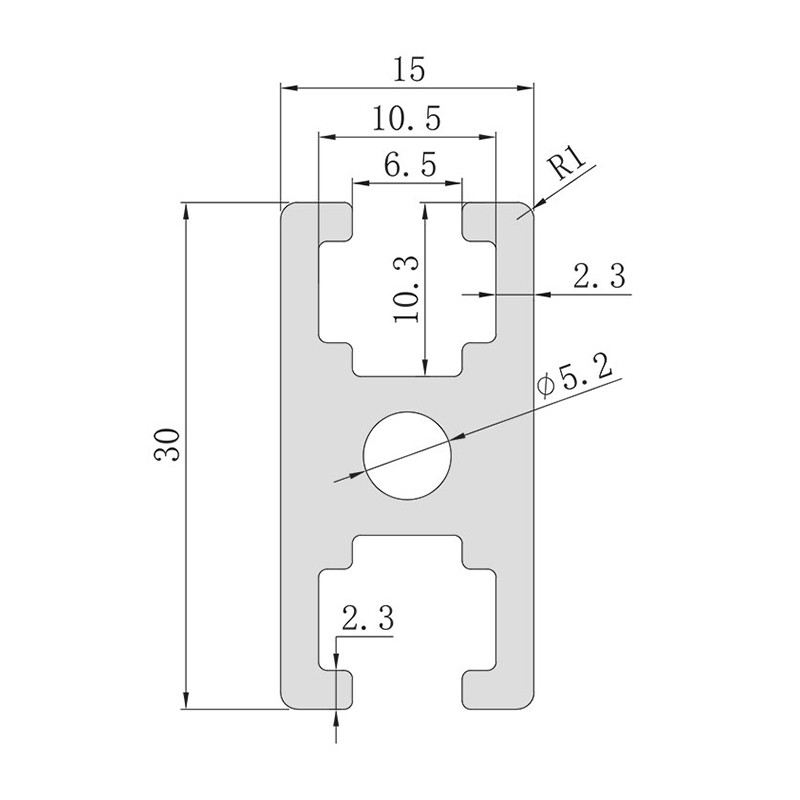

CAD Drawing Download

PREV：1515 series T-Slot silver/black lightweight aluminum extrusion profile with 6mm slot width NEXT：No next article

Specification

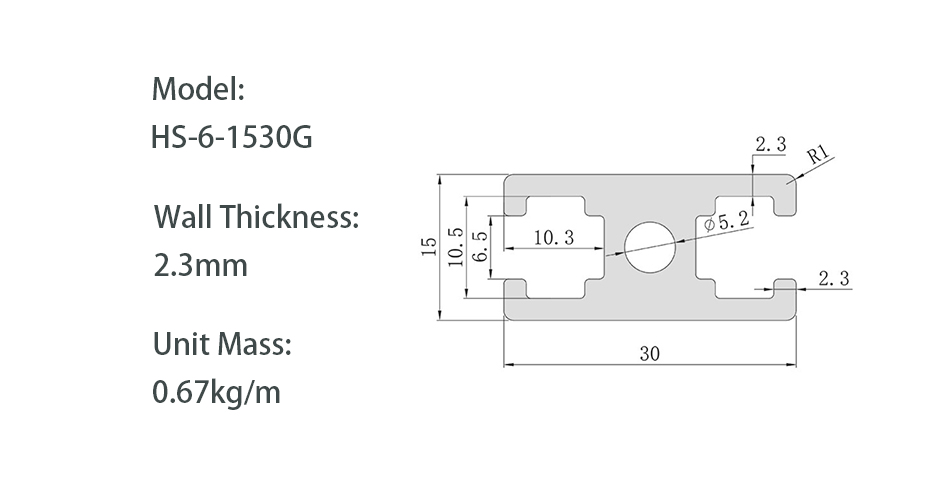

	Model	HS-6-1530G
	Section Dimensions	15mm*30mm
	Unit Mass	0.67kg/m
	Surface Treatment	Anodic Oxidation

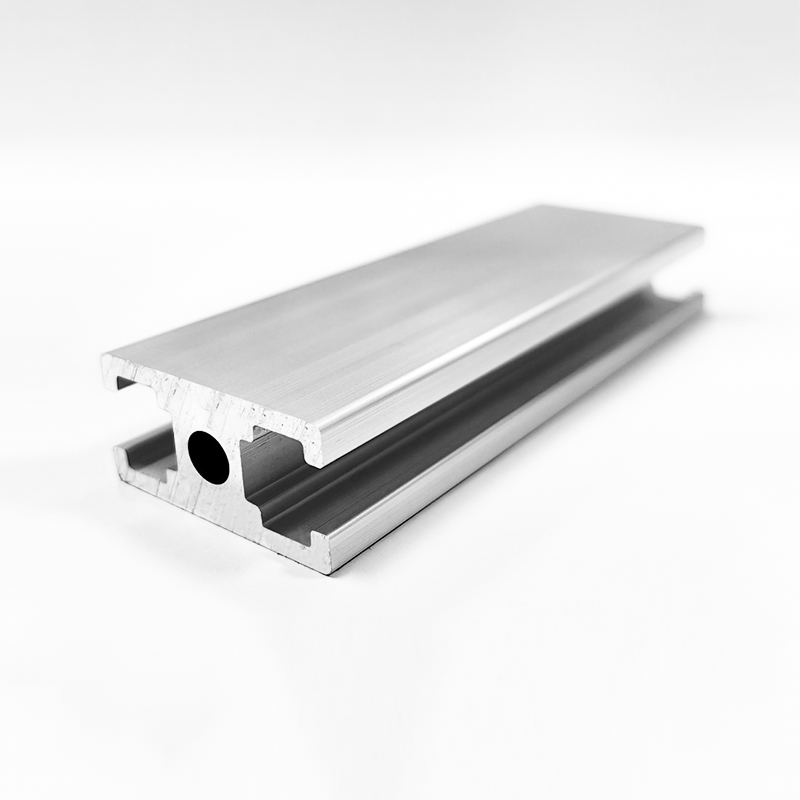

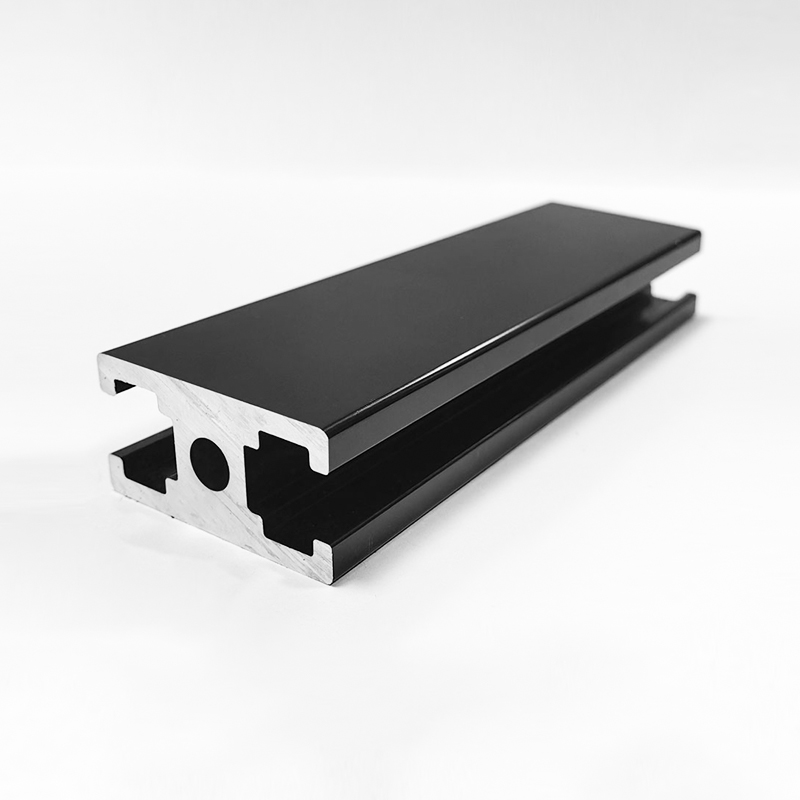

	Color Options	Silver / Black
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	Square
	Slot Width	6.5mm
	Slot Depth	4.8mm
	Aperture (Hole Diameter)	Φ5.2
	Wall Thickness	2.3mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
