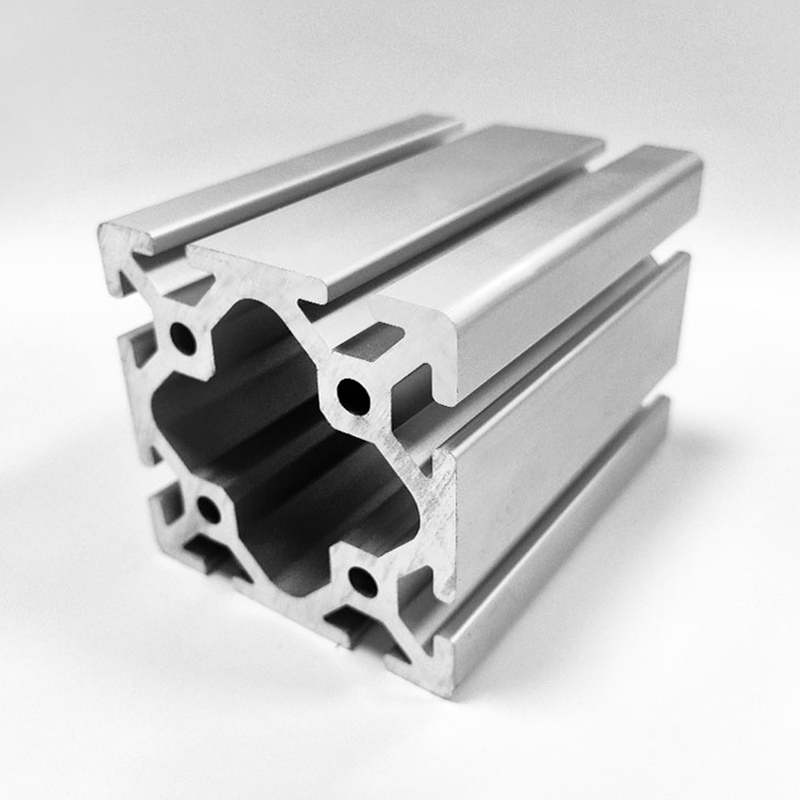

Adopting a 5mm extra-thick wall design, it is a model with outstanding wall thickness among profiles of the same specification. Combined with an 80mm*80mm large-size square cross-section, it has extremely strong structural strength, a unit mass of up to 7.12kg/m, excellent load-bearing performance, can bear extra-large loads for a long time, and adapts to the needs of extra-heavy load scenarios. Made of 6063-T5 aluminum alloy, after strict heat treatment and anodizing process treatment, the surface is full and uniform silver with a strong metallic texture, which has excellent compression and deformation resistance, can adapt to various complex and harsh industrial environments, and has a long service life. Equipped with an 8.2mm wide T-slot with a depth of 12.2mm, it is suitable for various heavy-duty T-type connectors, firm assembly and is not easy to lose. The Φ6.8mm hole diameter design meets the fixing needs of extra-heavy load scenarios, supporting customized deep processing services, direct supply from the source factory, and is suitable for extra-heavy load scenarios such as large heavy-duty equipment frames and heavy-duty frames.
 |

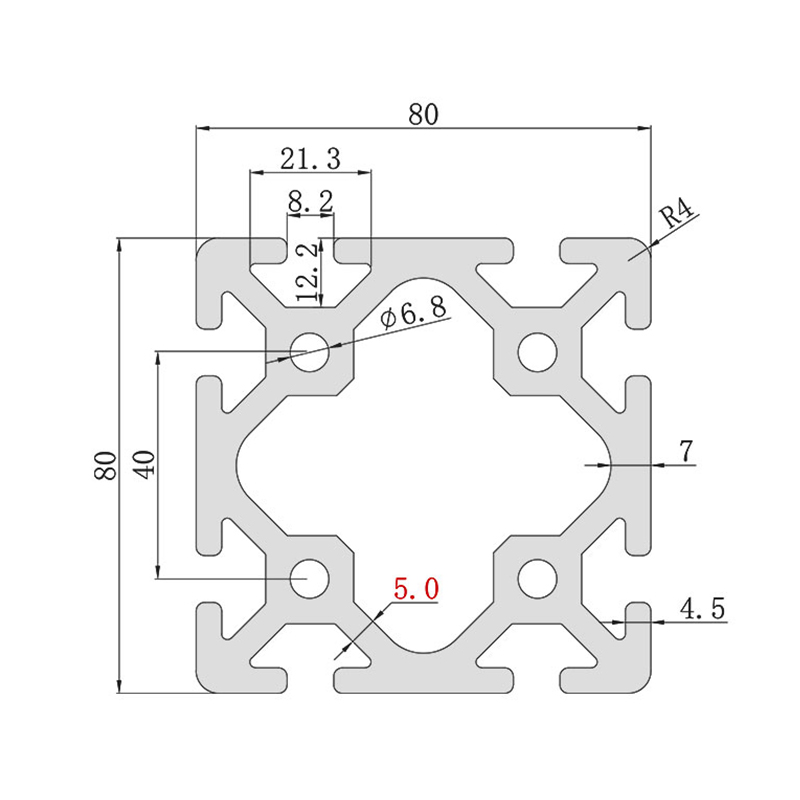

Model | HS-8-8080W |
| Cross-section dimensions | 80mm*80mm | |
| Unit weight | 7.12kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 8.2mm | |
| Slot depth | 12.2mm | |
| Hole diameter | Φ6.8 | |
| Wall thickness | 5mm |
Model:
OB8080W
Wall Thickness:
5.0mm
Unit Mass:
7.33kg/m
