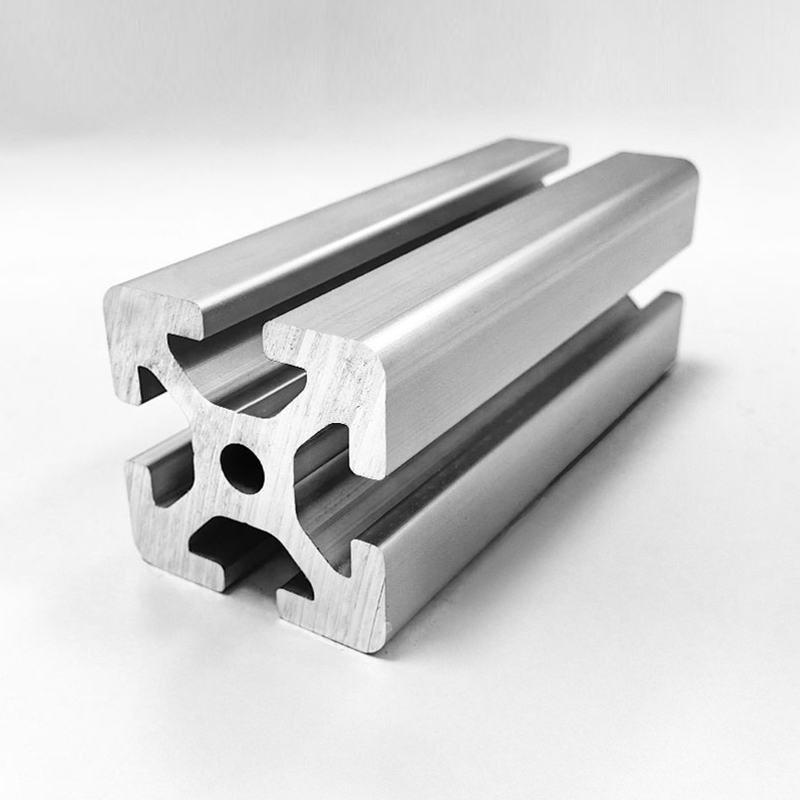

HS-8-4040W Extra-Heavy-Duty T-Slot 4040 Aluminum Profile, 4.5mm Extra-Thick Wall Thickness, Φ6.7 Hole Diameter, Silver Industrial Aluminum

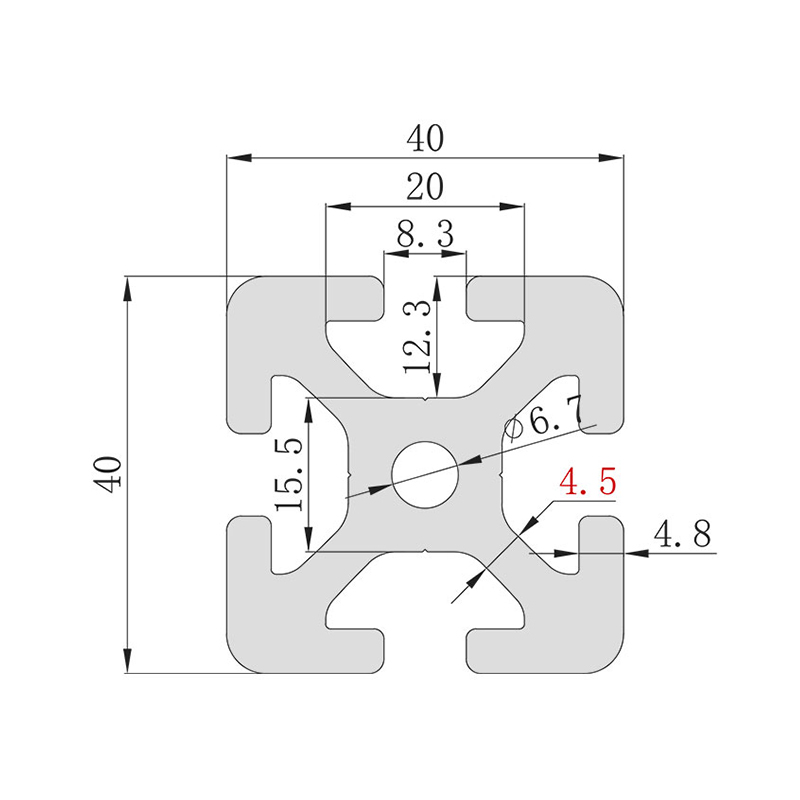

The HS-8-4040W industrial aluminum profile is a heavy-duty product in the 4040 series, with a standard 40mm*40mm cross-section, an ultra-thick wall thickness of 4.5mm, and a high unit weight of 2.44kg/m. Its structural strength and stability reach the high-end level of the industry, and it can bear extra-large loads for a long time without easy deformation. Made of high-strength 6063-T5 aluminum alloy, after a strict heat treatment process, it has excellent compression resistance, impact resistance, and deformation resistance, specially customized for extra-heavy frame scenarios. The surface is treated with professional anodizing, presenting a uniform and delicate silver metallic luster, which not only improves the appearance texture but also endows the product with excellent wear resistance, corrosion resistance, and aging resistance, making it usable in harsh industrial environments. The profile is equipped with a T-slot, with a slot width of 8.3mm (slightly wider than conventional) and a slot depth of 12.3mm, adapting to various heavy-duty European standard connectors, and the assembly connection is firmer and more reliable. The innovative Φ6.7 hole diameter design (different from the conventional Φ6.8) is suitable for special specifications of bolts, with more uniform force support, further improving the load-bearing capacity and stability of the overall frame. The standard length is 6.02m, supporting one-stop services such as precise cutting, CNC deep processing, and frame customization. Direct supply from the source factory, quality guaranteed.
Applications: Suitable for the construction of extra-heavy-duty automation equipment frames, large industrial equipment frames, heavy-duty material warehouse shelves, heavy-duty workshop protective fences, and extra-large load tooling fixtures.
