30 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 30 Series Aluminum Extrusion Profile / HS-8-3030F Thickened Load-Bearing 3030 T-Slot Aluminum Profile, 2.2mm Wall Thickness Silver Industrial Aluminum Alloy Profile

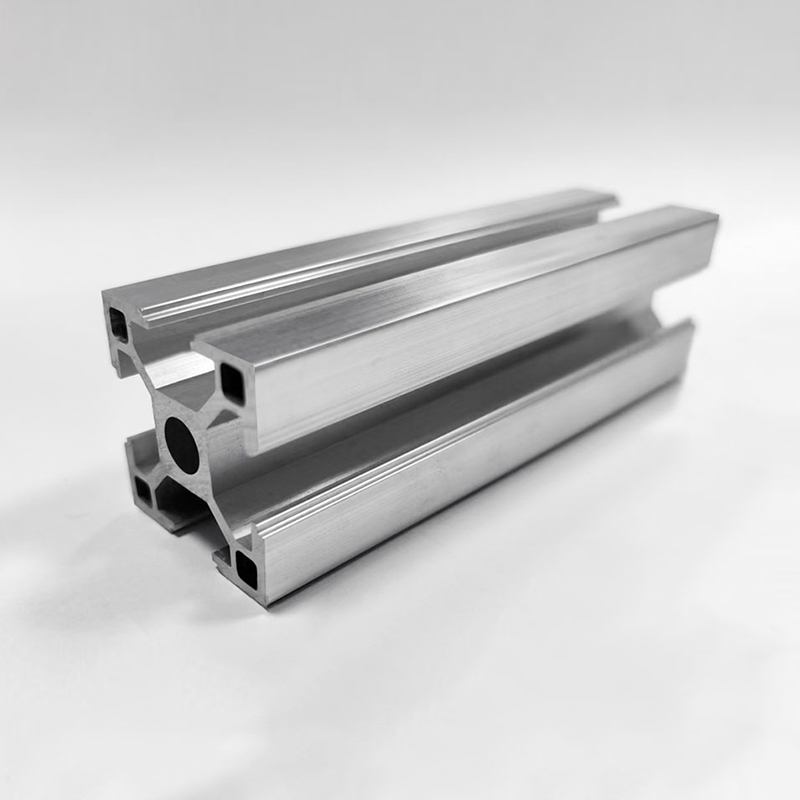

HS-8-3030F Thickened Load-Bearing 3030 T-Slot Aluminum Profile, 2.2mm Wall Thickness Silver Industrial Aluminum Alloy Profile

The HS-8-3030F industrial aluminum profile is specially designed for high load-bearing scenarios, with a 30mm*30mm cross-section and 2.2mm thickened wall thickness, a unit weight of 0.90kg/m, which is structurally strong, with excellent compression and deformation resistance, and can bear greater weight. Made of high-quality 6063-T5 aluminum alloy, it has good mechanical properties and durability after special processing. The surface is treated with an anodizing process, with a smooth silver appearance and strong metallic texture, and also has excellent corrosion resistance and wear resistance, suitable for long-term use in complex industrial environments. The profile is equipped with a standard T-slot, 8.2mm in width and 9.2mm in depth, compatible with various European standard connectors, supporting modular rapid assembly without welding, saving construction time and cost. The Φ6.8 hole diameter design ensures precise assembly, with a standard length of 6.02m, which can be precisely cut, deep processed and frame customized according to customer needs. Direct supply from the source factory, quality guaranteed.
Applications: Suitable for the construction of heavy material shelves, large automation equipment frames, heavy workshop protective fences, assembly line load-bearing supports and large industrial frames.

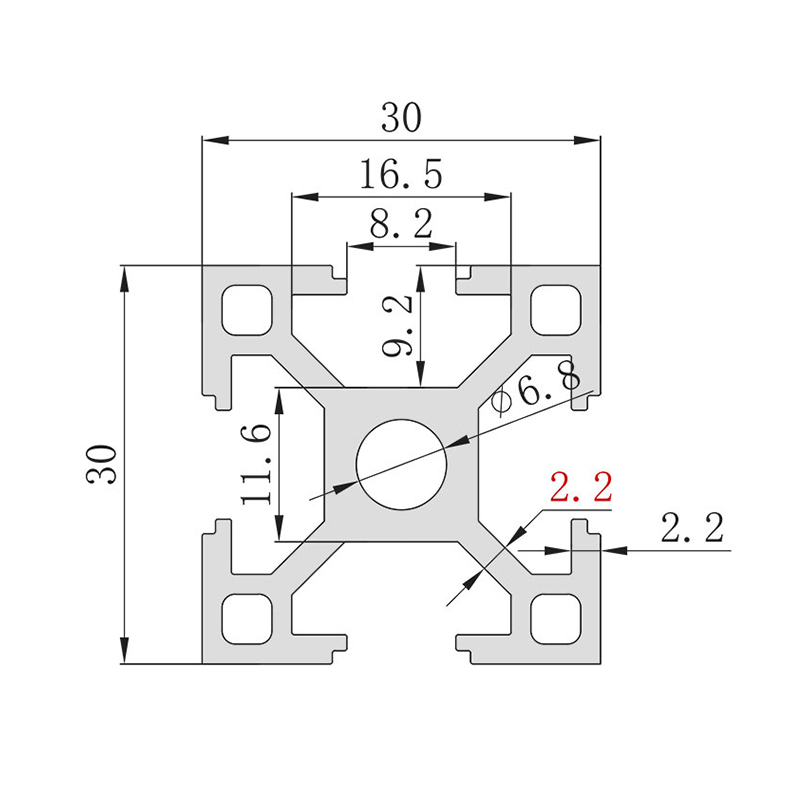

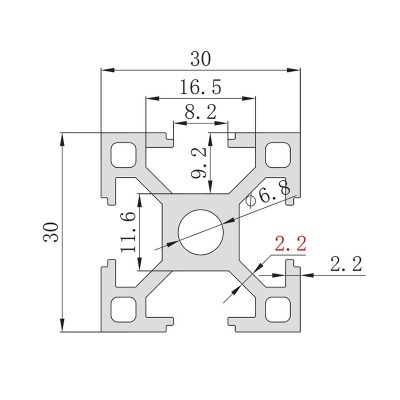

CAD Drawing Download
PREV：HS-8-3030 Multifunctional 3030 T-Slot Aluminum Profile, Silver & Black Optional, 2.1mm Wall Thickness Industrial AluminumNEXT：HS-8-3030N1 High Stability 3030 T-Slot Aluminum Profile, 0.95kg/m Unit Weight Silver Industrial Aluminum
  • Specification
Model HS-8-3030F
Cross-section dimensions 30mm*30mm
Unit weight 0.90kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 9.2mm
Hole diameter Φ6.8
Wall thickness 2.2mm
  • Product Parameters

Model:

OB3030F

Wall Thickness:

2.1mm

Unit Mass:

0.95kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
