30 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 30 Series Aluminum Extrusion Profile / HS-8-3030N2 Heavy-Duty 3030 T-Slot Aluminum Profile, 2.2mm Wall Thickness, 1.00kg/m Industrial Aluminum

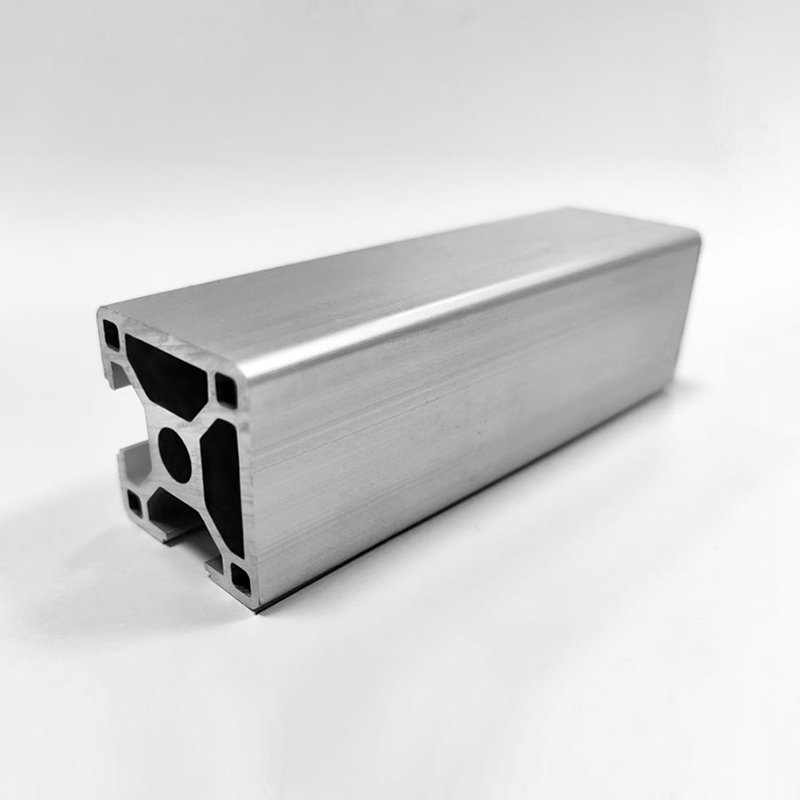

HS-8-3030N2 Heavy-Duty 3030 T-Slot Aluminum Profile, 2.2mm Wall Thickness, 1.00kg/m Industrial Aluminum

The HS-8-3030N2 industrial aluminum profile is a heavy-duty product, with a 30mm*30mm cross-section and 2.2mm thickened wall thickness, a unit weight of 1.00kg/m, high structural strength and outstanding load-bearing capacity, suitable for heavy equipment and large frame scenarios. Made of high-quality 6063-T5 aluminum alloy, it has excellent compression and deformation resistance after a strict heat treatment process, and can maintain structural stability after long-term use. The surface is treated with an anodizing process, with a simple and elegant silver appearance and strong metallic texture, and also has excellent corrosion resistance and wear resistance, which can adapt to complex industrial environments. The profile is equipped with a standard T-slot, 8.2mm in width and 9.2mm in depth, compatible with various European standard connectors, supporting welding-free modular rapid assembly, greatly improving construction efficiency. The Φ6.8 hole diameter design ensures precise assembly, with a standard length of 6.02m, and one-stop services such as precise cutting, CNC deep processing and frame design and assembly can be provided. Direct supply from the source factory with high cost performance, meeting the needs of heavy-duty scenarios.
Applications: Suitable for the construction of heavy automation equipment frames, large material shelves, heavy workshop protective fences, assembly line load-bearing supports and large industrial frames.

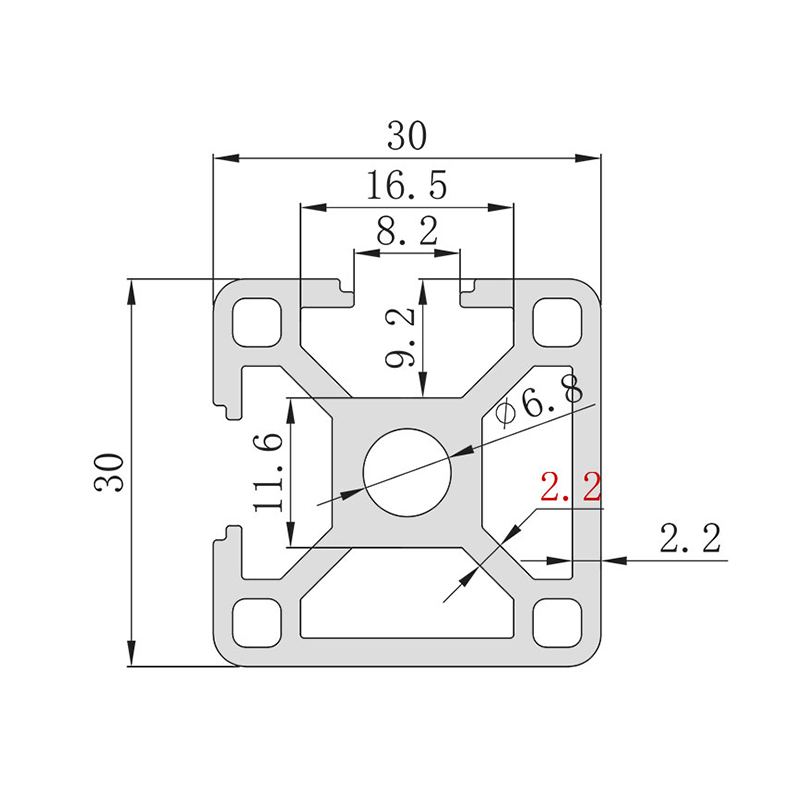

CAD Drawing Download
PREV：HS-8-3030N1 High Stability 3030 T-Slot Aluminum Profile, 0.95kg/m Unit Weight Silver Industrial AluminumNEXT：HS-8-3030N3 High-Strength Stable 3030 T-Slot Aluminum Profile, 1.02kg/m Unit Weight Silver Aluminum
  • Specification
Model HS-8-3030N2
Cross-section dimensions 30mm*30mm
Unit weight 1.00kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 9.2mm
Hole diameter Φ6.8
Wall thickness 2.2mm
  • Product Parameters

Model:

OB3030N2

Wall Thickness:

2.2mm

Unit Mass:

1.05kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
