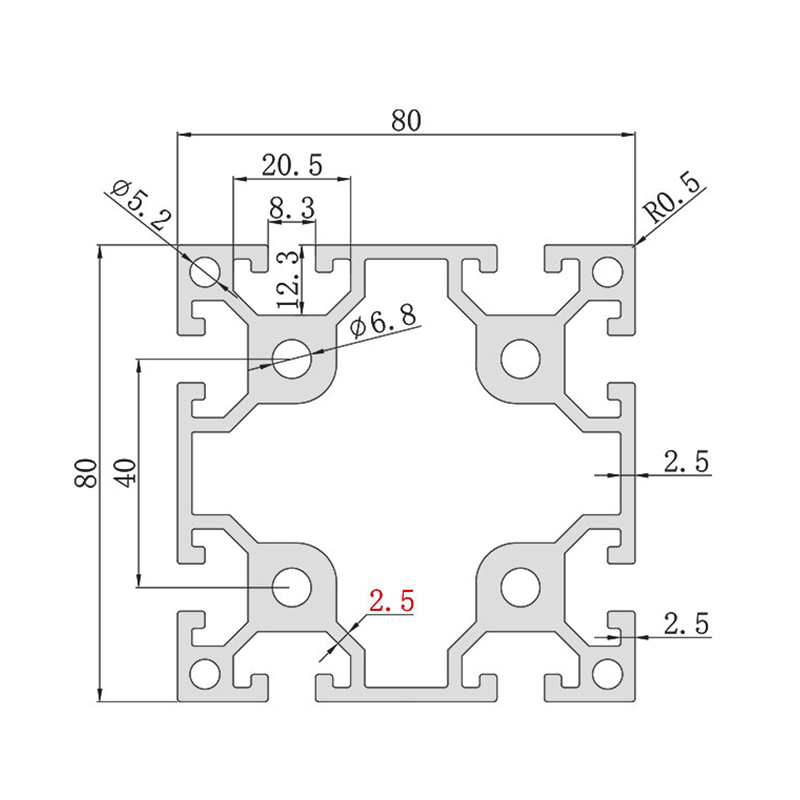

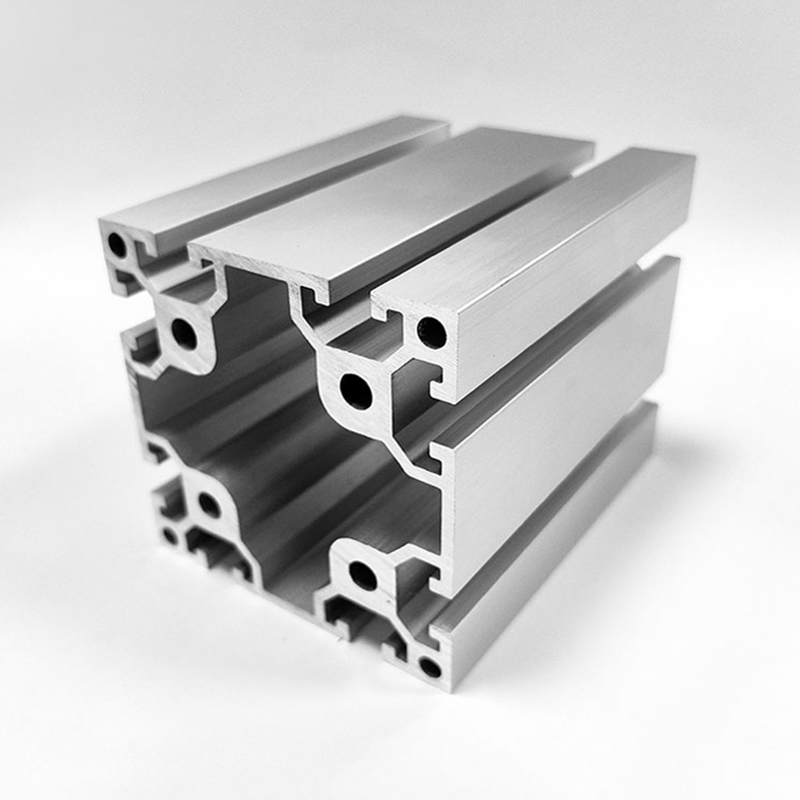

Focusing on high-precision assembly design, it is made of high-quality 6063-T5 aluminum alloy. After precision extrusion and anodizing double process treatment, the surface is uniformly delicate silver, with high dimensional accuracy, no obvious defects, warm metallic texture, corrosion resistance and wear resistance are better than conventional profiles. Adopting an 8.3mm precision T-slot structure with a depth of 12.3mm, the slot size error is small, the fit with the connector is extremely high, the stability after assembly is strong, and modular precision assembly can be realized without welding, with convenient construction and good forming effect. The 80mm*80mm square cross-section, combined with 2.5mm wall thickness, unit mass 5.14kg/m, solid structure, stable load-bearing performance, Φ6.8mm hole diameter design is precise, supporting precision cutting, CNC precision processing and other services, direct supply from the source factory, suitable for the construction of precision equipment frames and high-end display stands with strict requirements on dimensional accuracy and assembly effect.
 |
Model | HS-8-8080FW |
| Cross-section dimensions | 80mm*80mm | |
| Unit weight | 5.14kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 8.3mm | |
| Slot depth | 12.3mm | |
| Hole diameter | Φ6.8 | |
| Wall thickness | 2.5mm |
Model:
OB8080FW
Wall Thickness:
2.5mm
Unit Mass:
5.29kg/m
Huishuo Aluminum Industry is professional China HS-8-8080FW Precision T-Slot Industrial Aluminum Profile, 80 Square Silver High-Precision Aluminum suppliers and HS-8-8080FW Precision T-Slot Industrial Aluminum Profile, 80 Square Silver High-Precision Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
