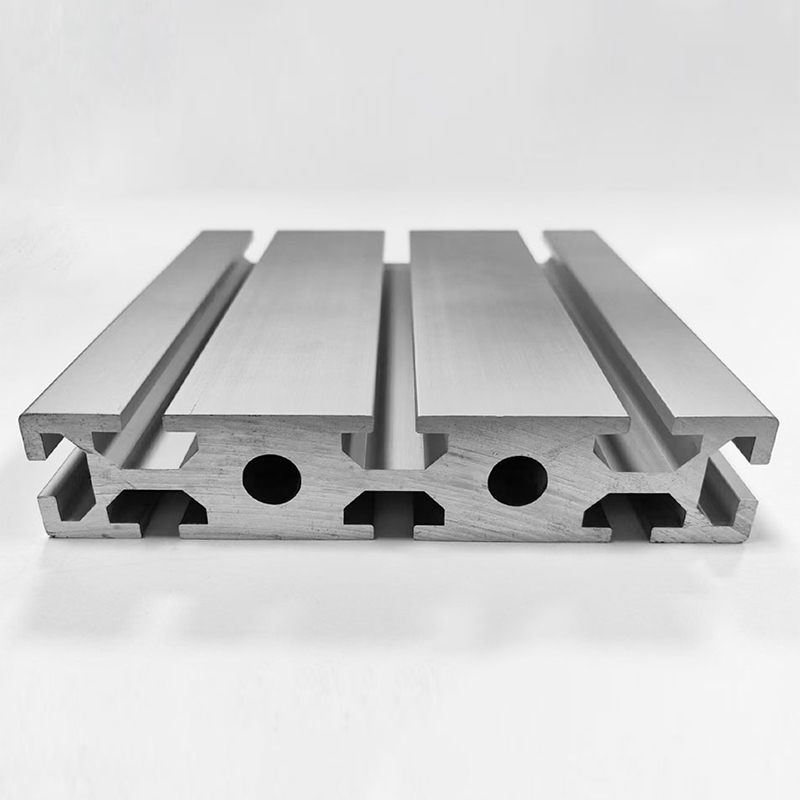

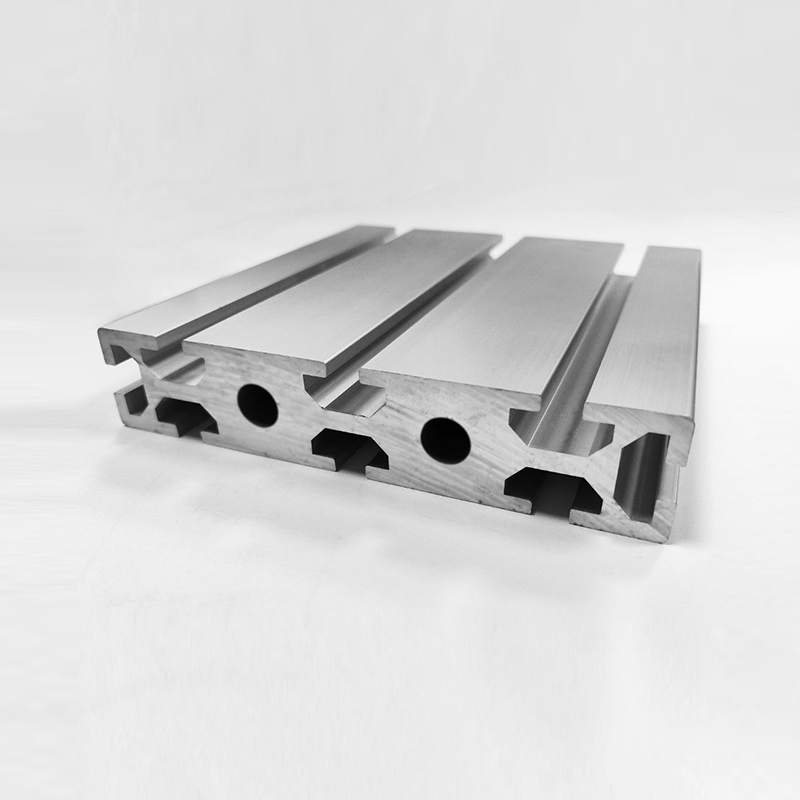

HS-8-30150W Extra-Heavy-Duty T-Slot Aluminum Profile, 4mm Extra-Thick Wall Thickness, Φ12 Large Hole Diameter, 30*150mm Industrial Aluminum

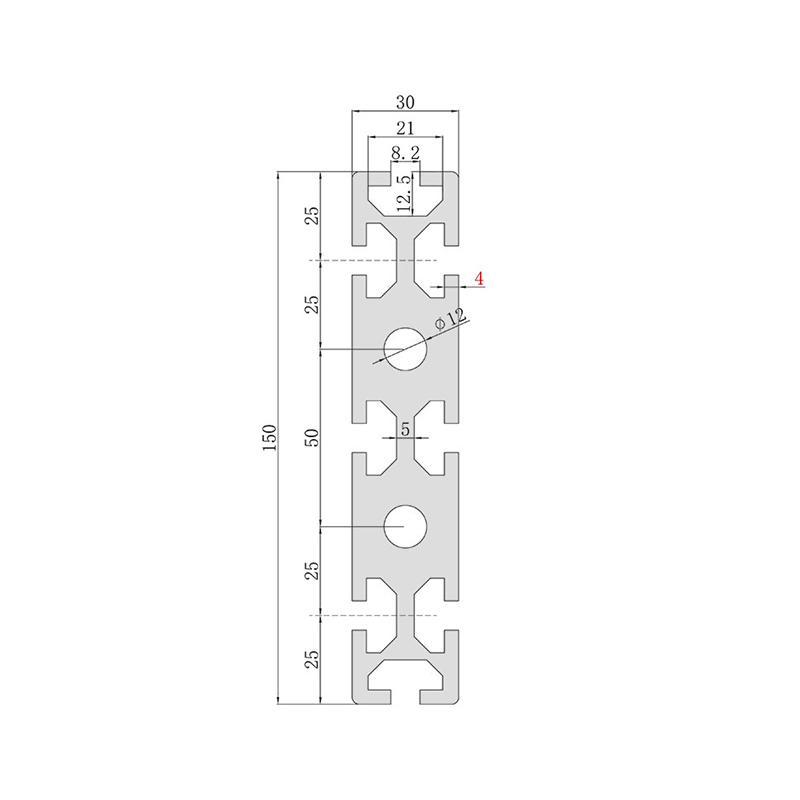

The HS-8-30150W industrial aluminum profile is specially developed for extra-heavy-duty load scenarios. It adopts an extra-large cross-sectional design of 30mm*150mm, with an ultra-thick wall thickness of 4mm and a high unit weight of 7.46kg/m. Its structural strength and stability reach the high-end level of the industry, and it can bear extra-large loads for a long time without easy deformation. Made of high-strength 6063-T5 aluminum alloy, after a strict heat treatment process, it has excellent compression resistance, impact resistance, and deformation resistance, suitable for the core load-bearing needs of extra-heavy-duty equipment and large frames. The surface is treated with professional anodizing, presenting a uniform and delicate silver metallic luster, which not only improves the appearance texture but also endows the product with excellent wear resistance, corrosion resistance, and aging resistance, making it usable in harsh industrial environments. The profile is equipped with a standard T-slot, with a slot width of 8.2mm and a slot depth of 12.5mm. Compared with conventional profiles, the slot depth is greatly increased, which is compatible with larger specifications of European standard connectors and accessories, and the assembly connection is firmer and more reliable. The innovative Φ12 large hole diameter design is different from conventional hole diameters, which can adapt to large-size bolts and heavy-duty connectors, with more uniform force support, further improving the load-bearing capacity and stability of the overall frame. The standard length is 6.02m, supporting one-stop services such as precise cutting, CNC deep processing, drilling, tapping, and overall frame customized assembly. As a direct supply from the source factory, we can optimize the design according to the actual customer needs, meeting the personalized customization needs of extra-heavy-duty frames.
Applications: Widely used in the construction of extra-heavy-duty automation equipment frames, large industrial equipment frames, heavy-duty material warehouse shelves, heavy-duty workshop protective fences, extra-large load tooling fixtures, and heavy-duty assembly line workbenches.
