HS-6-3090G 30*90 Square Slot Aluminum Profile, 6mm Slot Width, 2.0mm Wall Thickness Silver Industrial Aluminum

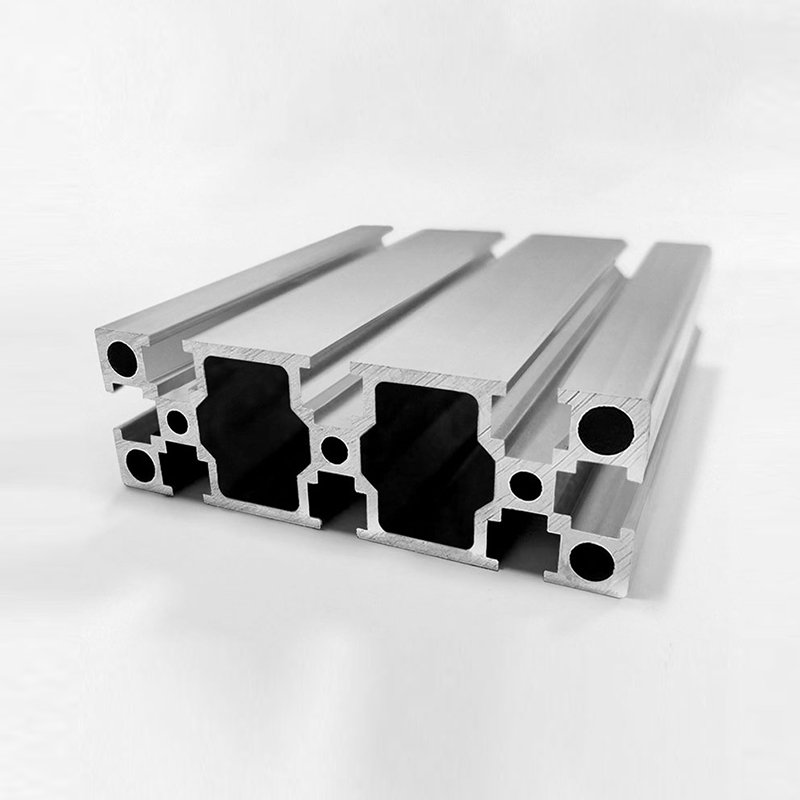

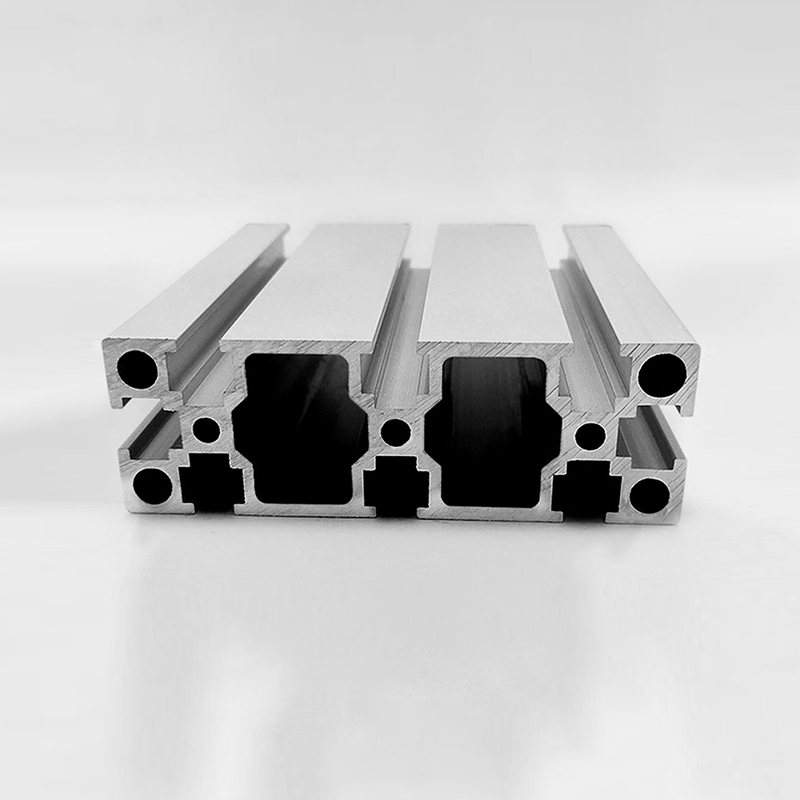

The HS-6-3090G industrial aluminum profile adopts a large 30mm*90mm cross-sectional design, with a unit weight of 2.52kg/m, stable structure and outstanding load-bearing capacity, specially customized for heavy frame scenarios. Made of high-quality 6063-T5 aluminum alloy, it has excellent compression and deformation resistance after a strict heat treatment process, can bear heavy loads for a long time, and has extremely strong stability. The surface is treated with anodizing, with a simple and elegant silver appearance and strong metallic texture, and also has excellent corrosion resistance and wear resistance, which can adapt to complex industrial environments. The profile slot type is square, with a slot width of 6mm and a slot depth of 10.5mm, suitable for special square connectors, with precise and firm assembly, supporting modular rapid assembly without complex welding processes, improving construction efficiency. The 2.0mm wall thickness design balances strength and economy, with a standard length of 6.02m, supporting one-stop services such as precise cutting, CNC deep processing, frame design and assembly. Direct supply from the source factory, quality guaranteed.
Applications: Suitable for the construction of heavy automation equipment frames, large material shelves, heavy workshop protective fences, assembly line load-bearing supports and large industrial frames.

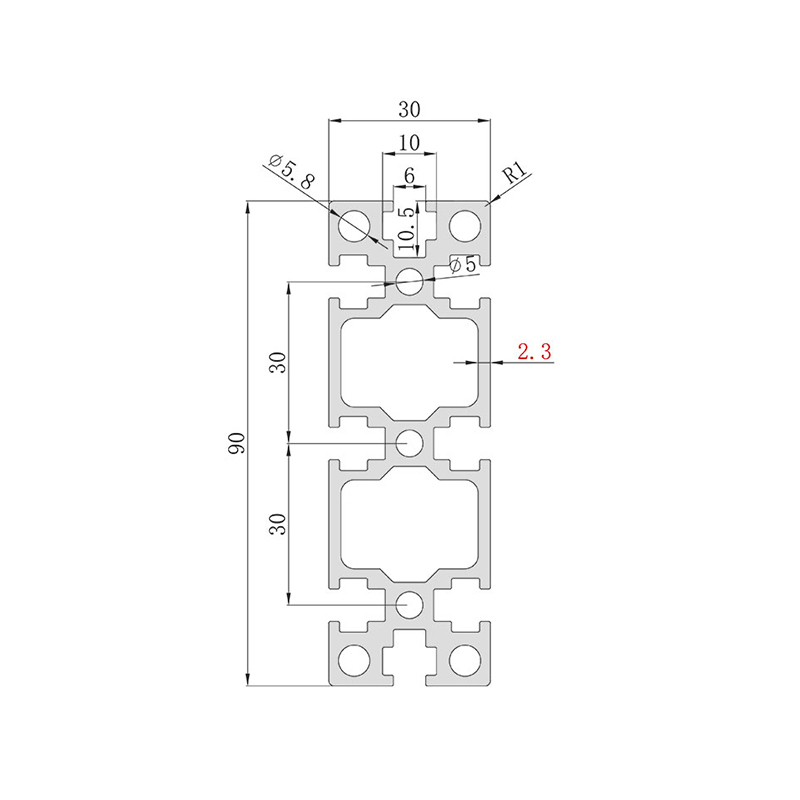

CAD Drawing Download
PREV：HS-6-3060GU 30*60 U-Slot Aluminum Profile, 6.5mm Slot Width, 1.8mm Wall Thickness Silver Industrial AluminumNEXT：HS-8-3040 30*40 T-Slot Aluminum Profile, 8.2mm Slot Width, 3mm Wall Thickness Silver Industrial Aluminum
  • Specification
Model HS-6-3090G
Cross-section dimensions 30mm*90mm
Unit weight 2.52kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type Square
Slot width 6mm
Slot depth 10.5mm
Wall thickness 2mm
  • Product Parameters

Model:

GB3090G

Wall Thickness:

2.0mm

Unit Mass:

2.65kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
