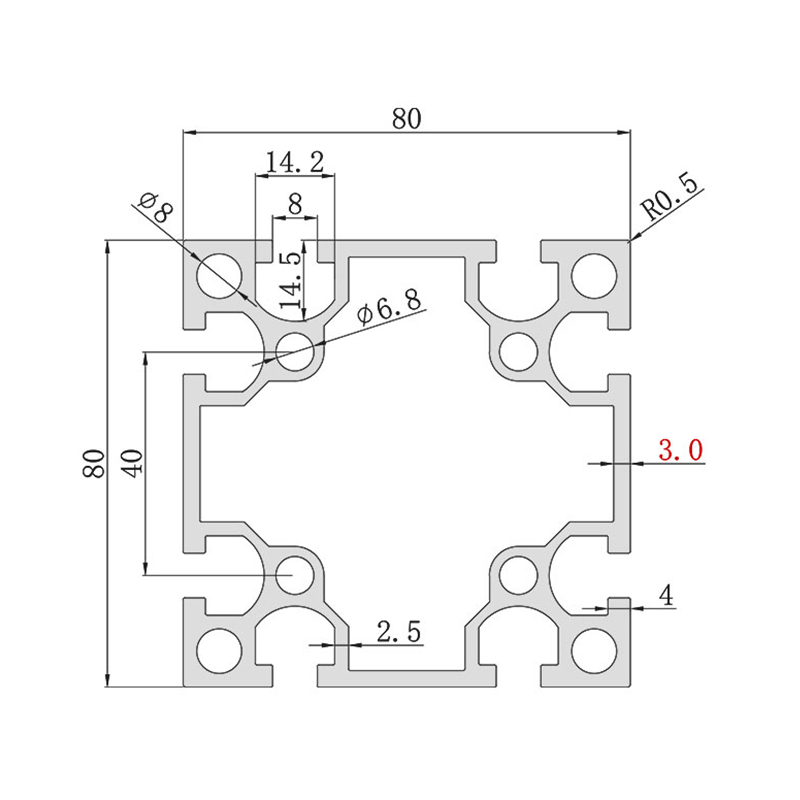

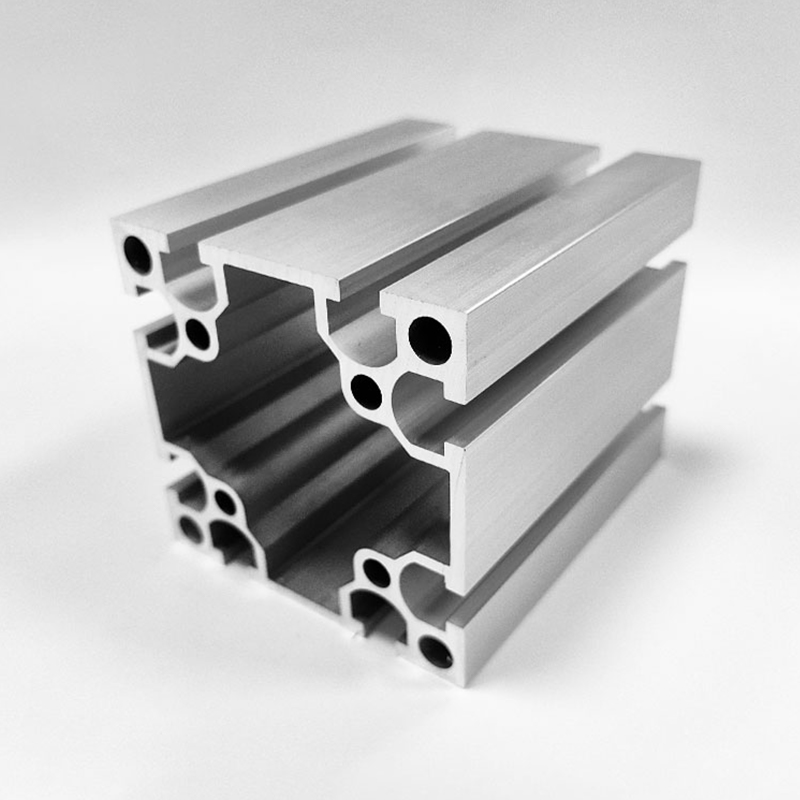

Adopting a unique U-slot design, different from conventional T-slot and square-slot, the 8mm wide U-slot with 14.5mm deep slot structure has strong slot wrapping, extremely high fit with special U-type connectors, strong locking force after assembly, not easy to lose, and modular assembly can be realized without welding, adapting to scenarios with special requirements for stability. Made of 6063-T5 aluminum alloy, after strict anodizing treatment, the surface is uniformly delicate silver, with good corrosion resistance and wear resistance, and can be used in various industrial scenarios for a long time. The 80mm*80mm square cross-section, combined with 3mm wall thickness, unit mass 4.22kg/m, solid structure and moderate self-weight, balancing support performance and lightweight needs, supporting simple deep processing services, direct supply from the source factory, suitable for medium-light frame and protective fence construction with high requirements for assembly fit and stability.
 |
Model | HS-8-8080GU |
| Cross-section dimensions | 80mm*80mm | |
| Unit weight | 4.22kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | U-shaped | |
| Slot width | 8mm | |
| Slot depth | 14.5mm | |
| Wall thickness | 3mm |
Model:
GB8080GU
Wall Thickness:
3.0mm
Unit Mass:
4.34kg/m
Huishuo Aluminum Industry is professional China HS-8-8080GU Deep-Slot U-Slot Industrial Aluminum Profile, 80 Square Silver High-Fit Aluminum suppliers and HS-8-8080GU Deep-Slot U-Slot Industrial Aluminum Profile, 80 Square Silver High-Fit Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
