40 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 40 Series Aluminum Extrusion Profile / HS-8-4040B Thickened Load-Bearing T-Slot 4040 Aluminum Profile, 2.5mm Wall Thickness, 8.2mm Slot Width, Silver Industrial Aluminum

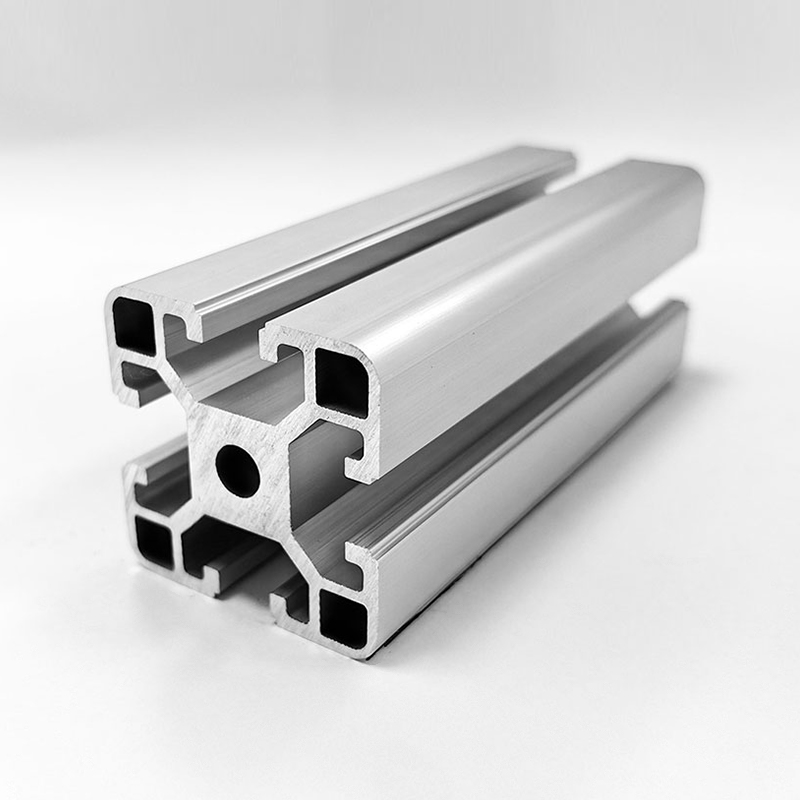

HS-8-4040B Thickened Load-Bearing T-Slot 4040 Aluminum Profile, 2.5mm Wall Thickness, 8.2mm Slot Width, Silver Industrial Aluminum

The HS-8-4040B industrial aluminum profile is specially designed for medium and heavy load-bearing scenarios, with a standard 40mm*40mm cross-section, 2.5mm thickened wall thickness and a unit weight of 1.59kg/m. The structural strength is significantly improved, the compression and deformation resistance are excellent, and it can bear greater weight. Made of high-quality 6063-T5 aluminum alloy, after a strict heat treatment process, it has excellent mechanical properties and durability, and can maintain structural stability after long-term use. The surface is treated with anodizing, with an exclusive silver appearance, smooth and delicate, strong metallic texture, and also has excellent corrosion resistance and wear resistance, suitable for long-term use in industrial environments. The profile is equipped with a standard T-slot, 8.2mm in width and 12.3mm in depth, compatible with various European standard connectors, supporting welding-free modular rapid assembly, saving construction time and cost. The Φ6.8 standard hole diameter ensures precise assembly and uniform force, with a standard length of 6.02m, supporting precise cutting, deep processing and frame customization. Direct supply from the source factory, quality guaranteed, adapting to the needs of medium and heavy scenarios.
Applications: Suitable for the construction of medium and heavy automation equipment frames, workshop protective fences, heavy material shelves, assembly line load-bearing supports and industrial medium and heavy frames.

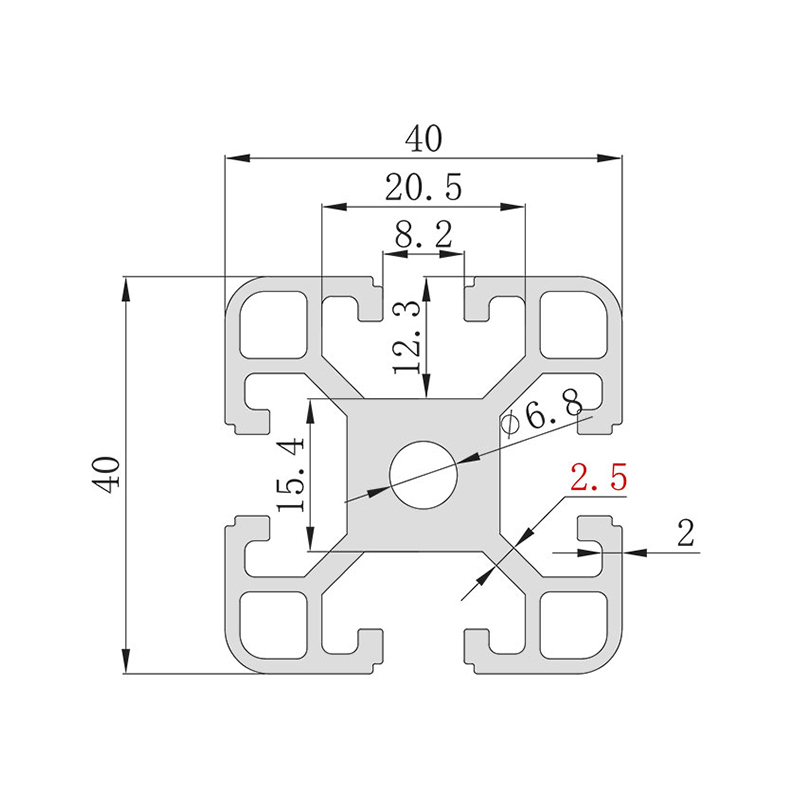

CAD Drawing Download
PREV：HS-8-4040BA Wide-Slot T-Slot 4040 Aluminum Profile, 8.5mm Wide Slot, 2mm Wall Thickness, Dual-Color Industrial AluminumNEXT：HS-8-4040D High-Strength T-Slot 4040 Aluminum Profile, 3.2mm Thickened Wall Thickness, No Hole Diameter Design, Silver Industrial Aluminum
  • Specification
Model HS-8-4040B
Cross-section dimensions 40mm*40mm
Unit weight 1.59kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 12.3mm
Hole diameter Φ6.8
Wall thickness 2.5mm
  • Product Parameters

Model:

OB4040B

Wall Thickness:

2.5mm

Unit Mass:

1.75kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
