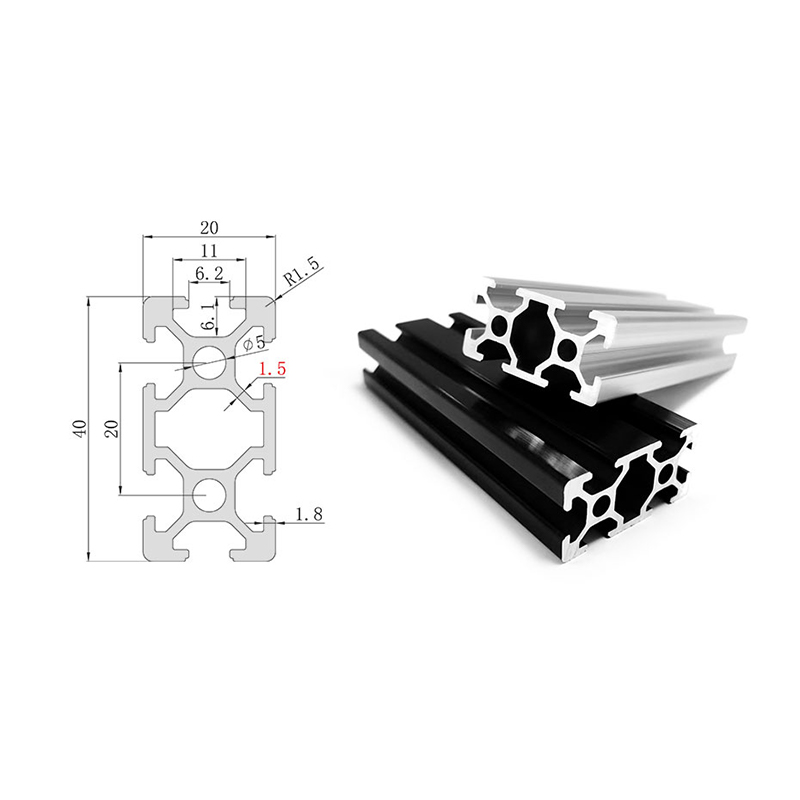

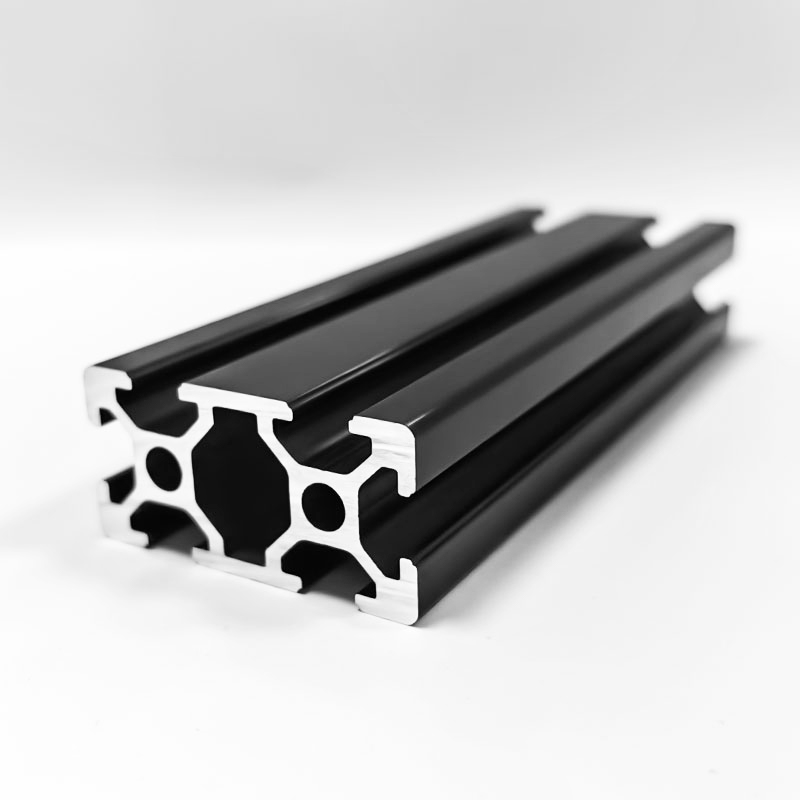

2040 Industrial Aluminum Profile 20×40mm rectangular cross-section 6mm slot width Light-load frame structure

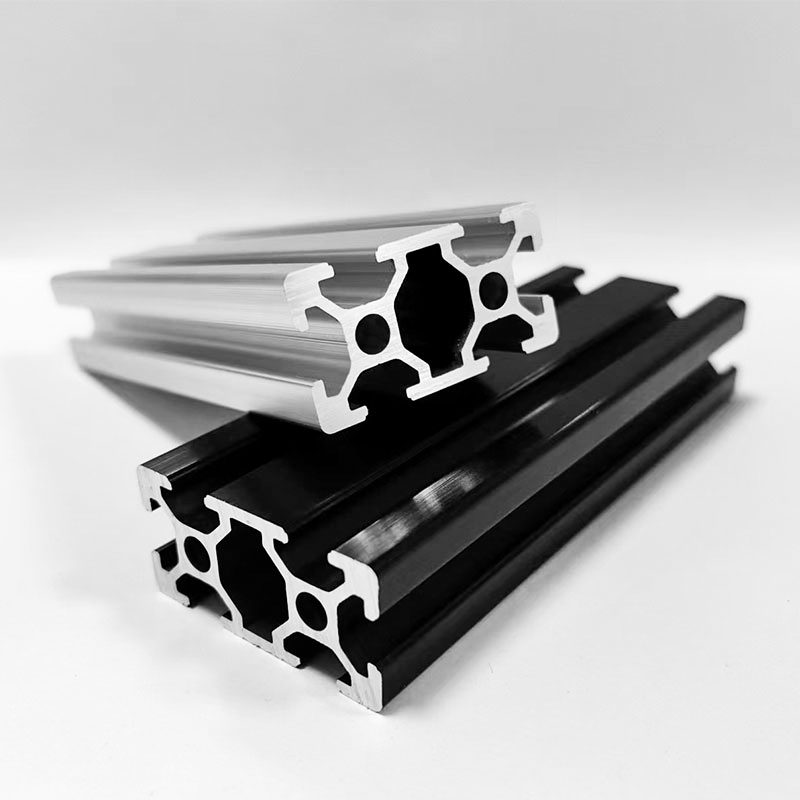

The 2040 aluminum profile is the rectangular cross-section model of the 20 series, with dimensions of 20×40mm and a 6mm slot width. The body is made of 6063-T5 aluminum alloy with anodized surface treatment. Commonly used together with 2020 aluminum profiles; compared to the 2020 profile, the 40mm width direction provides better bending resistance. Commonly used for small racks, equipment bases, workbench support beams, conveyor line barriers, and protective cover frames, making it a popular choice in light-load structures that balance cost and strength.

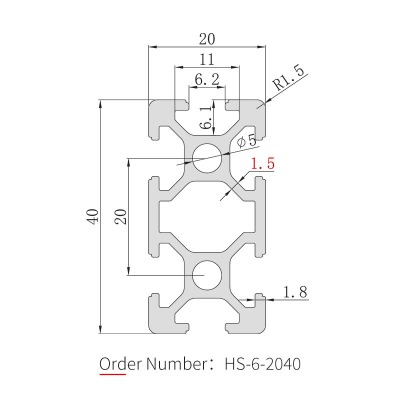

CAD Drawing Download

PREV：2020 Square Slot Aluminum Profile 4mm slot width Suitable for lightweight frame structures NEXT：Square Slot 2040 Aluminum Profile 8mm slot width Square slot design Dual-side slotting Standard anodized treatment

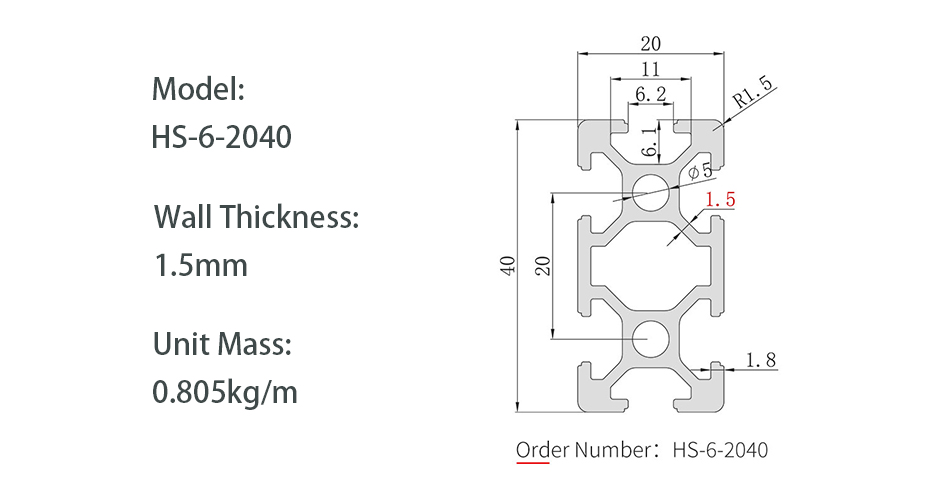

Specification

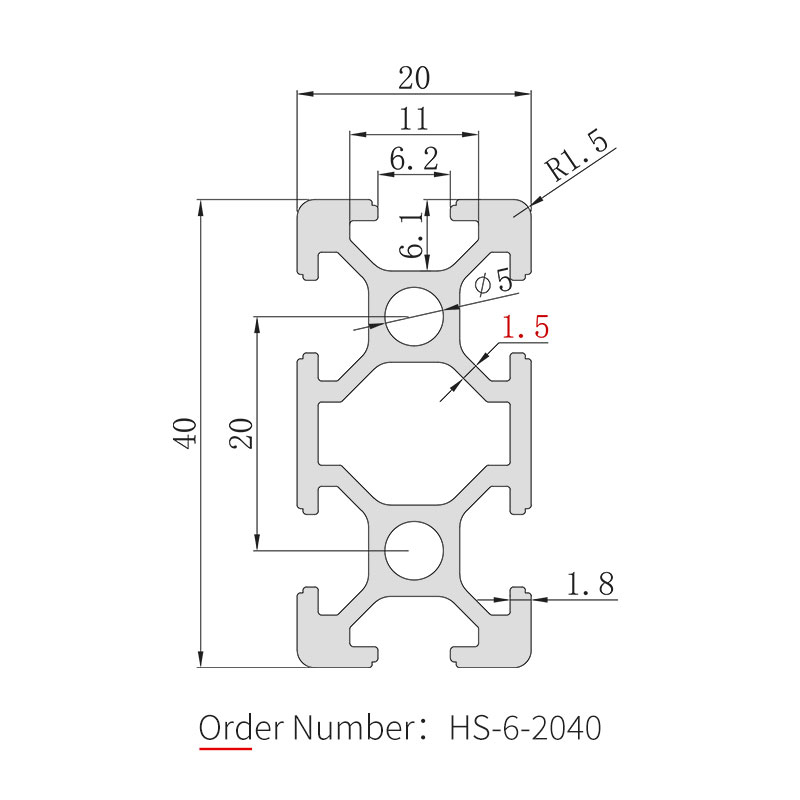

	Model	HS-6-2040
	Cross-sectional Dimensions	20mm × 40mm
	Unit Weight	0.805 kg/m
	Surface Treatment	Anodized
	Color	Silver / Black
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	6.2mm
	Slot Depth	6.1mm
	Hole Diameter	Φ5
	Wall Thickness	1.5mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
