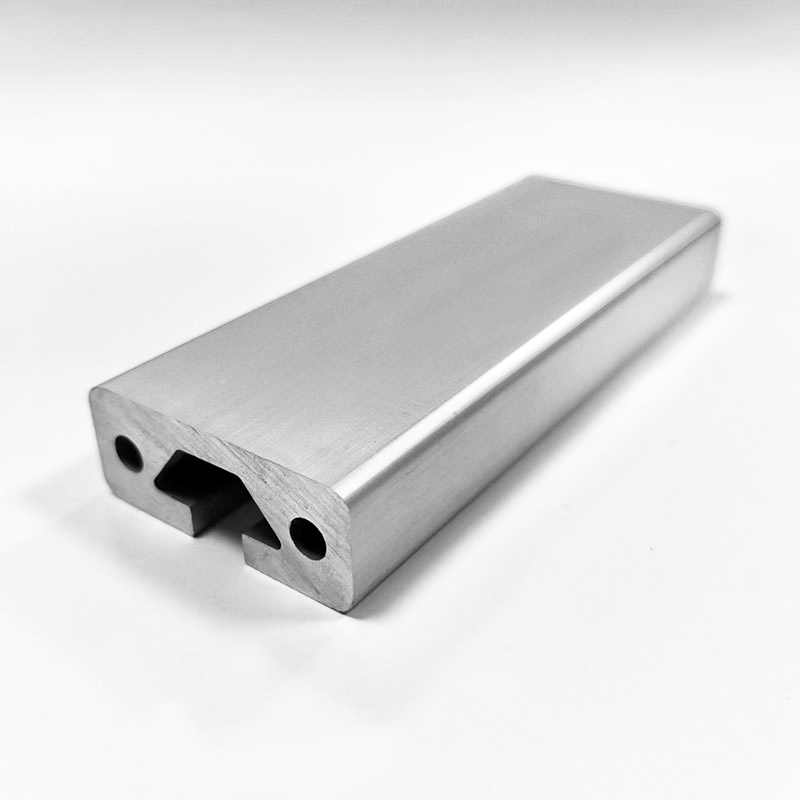

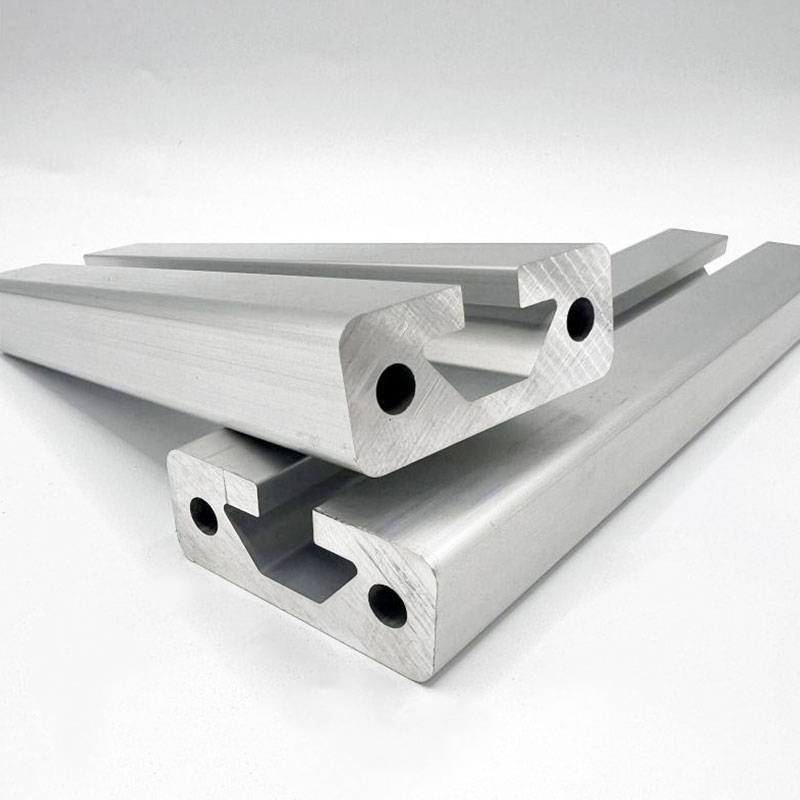

1640 Industrial Aluminum Profile 16×40mm rectangular cross-section 8mm slot width Dedicated guide rail structure

The 1640 aluminum profile is the dedicated guide rail model of the 16 series, with dimensions of 16×40mm and an 8mm slot width, compatible with 30 series M6 dedicated T-bolts and flange nuts. The body is made of 6063-T5 aluminum alloy with anodized surface treatment. Commonly used for guide rail channels, door frame fabrication, assembly line workbenches, mechanical equipment protective covers, and automated frame structures. 3030 or 4040 corner brackets can be used for reinforcement during connection.

CAD Drawing Download

PREV：No previous article NEXT：No next article

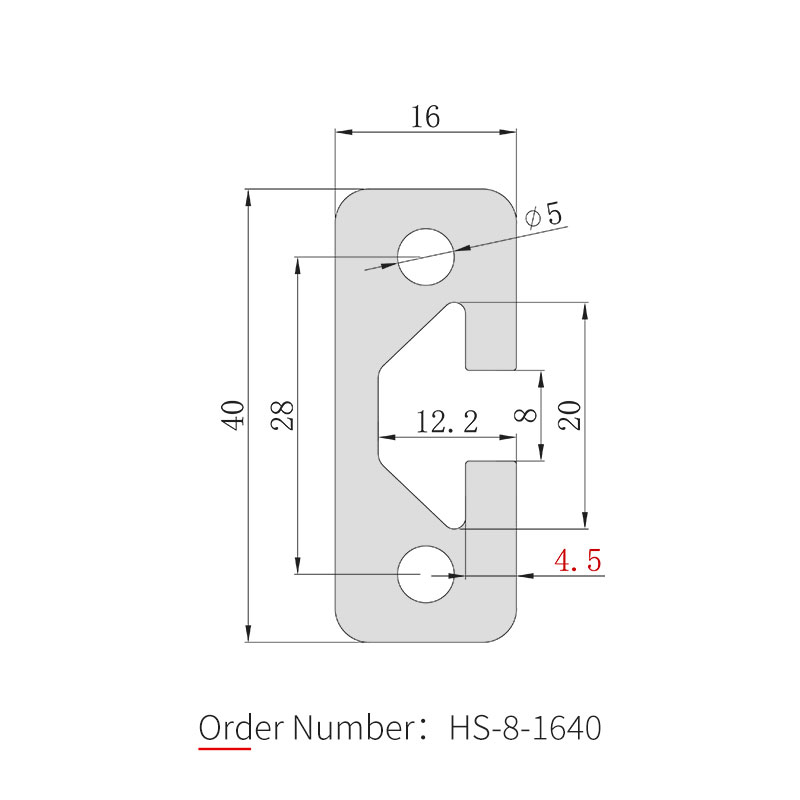

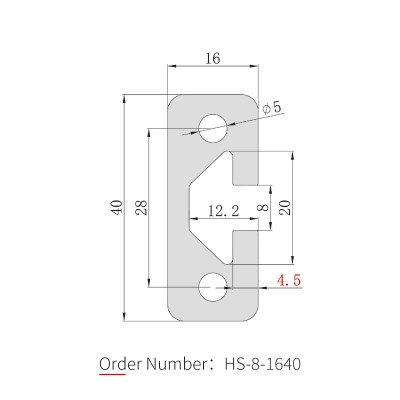

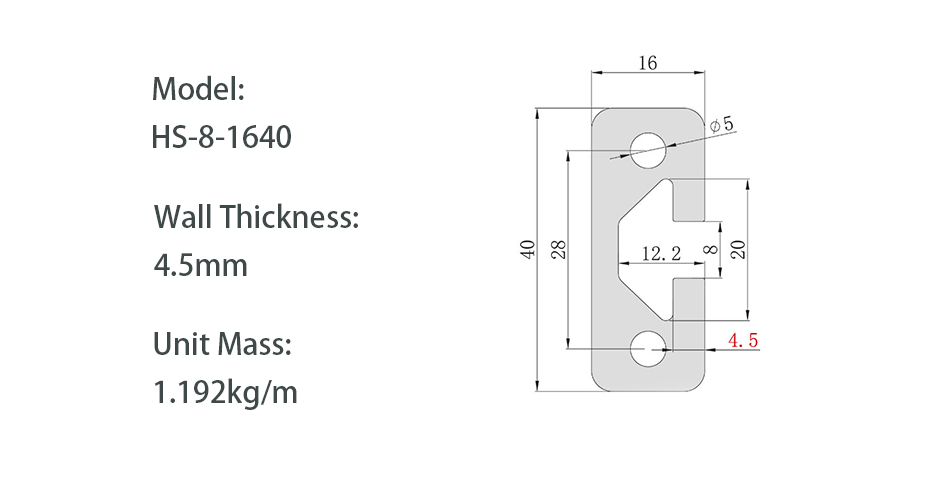

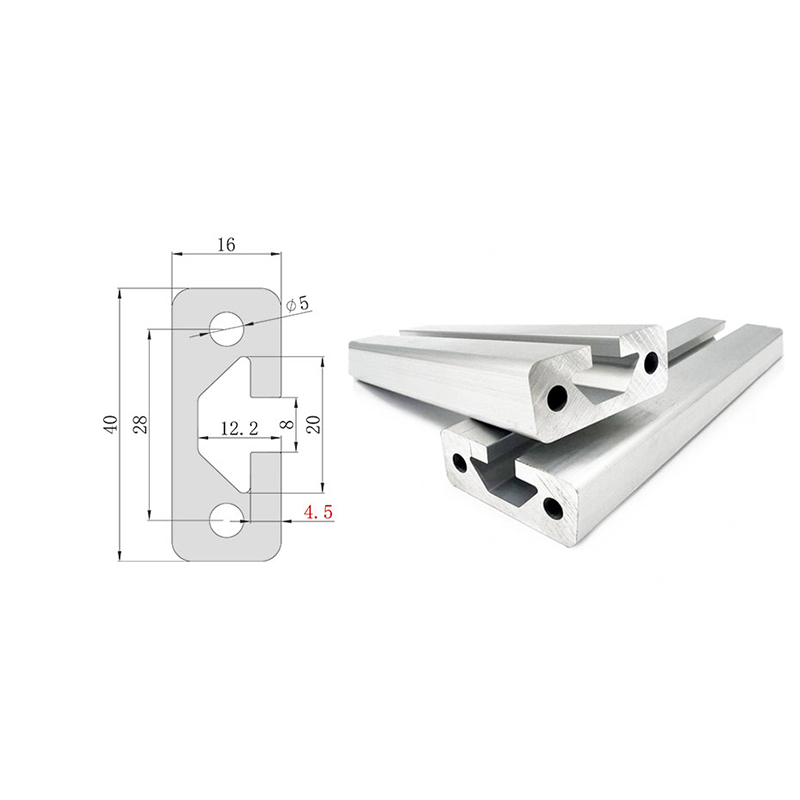

Specification

	Model	HS-8-1640
	Cross-sectional Dimensions	16mm × 40mm
	Unit Weight	1.192 kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 aluminum alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	8mm
	Slot Depth	12.2mm
	Hole Diameter	Φ5
	Wall Thickness	4.5mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
