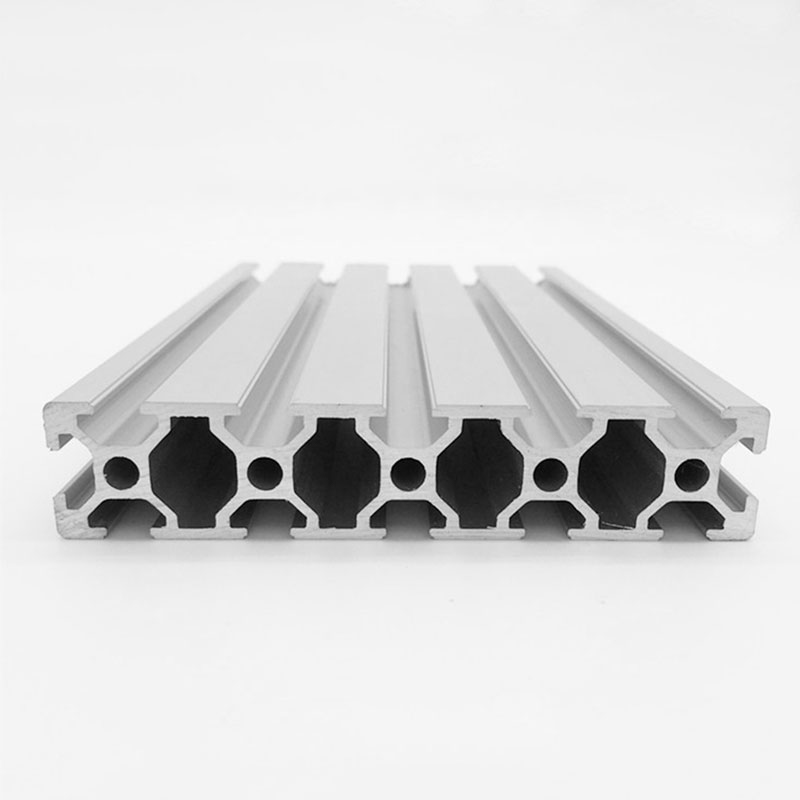

20100 Industrial Aluminum Profile 20×100mm wide cross-section 6mm slot width Heavy-load frame structure

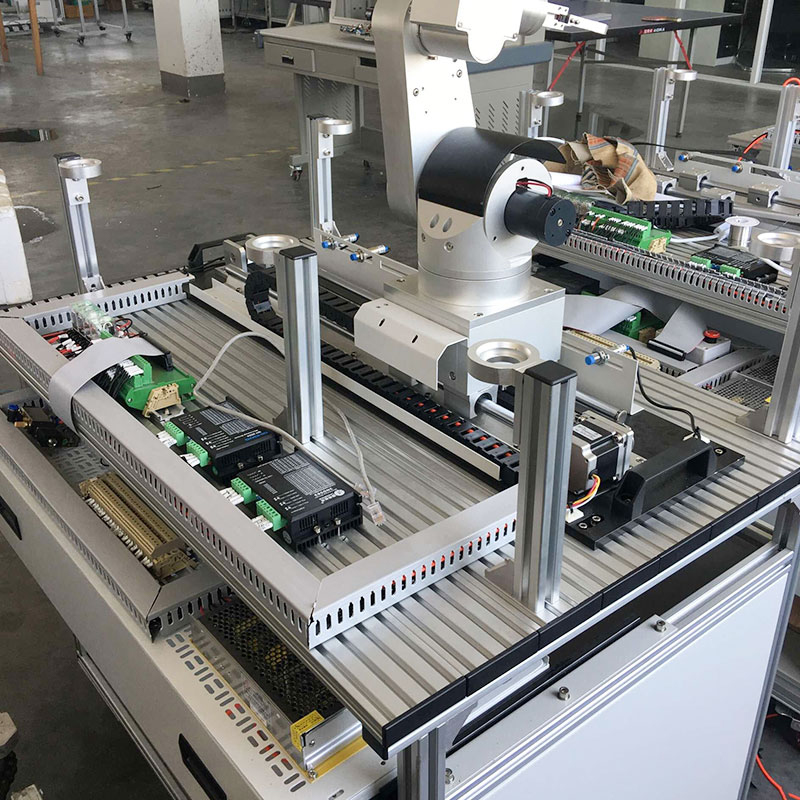

The 20100 aluminum profile is the heavy-load model of the 20 series, with dimensions of 20×100mm, and is one of the common specifications in the industrial aluminum profile market. This profile is lightweight (unit weight approximately 2.4 kg/m), made of 6063-T5 aluminum alloy with anodized surface treatment, offering strong corrosion resistance and good bending resistance. Commonly used for small CNC engraving machines, marking machines, and cutting machine frames, as well as automated assembly line frames, heavy-duty workbenches, equipment bases, and large enclosures, making it one of the higher load-bearing choices in the 20 series.

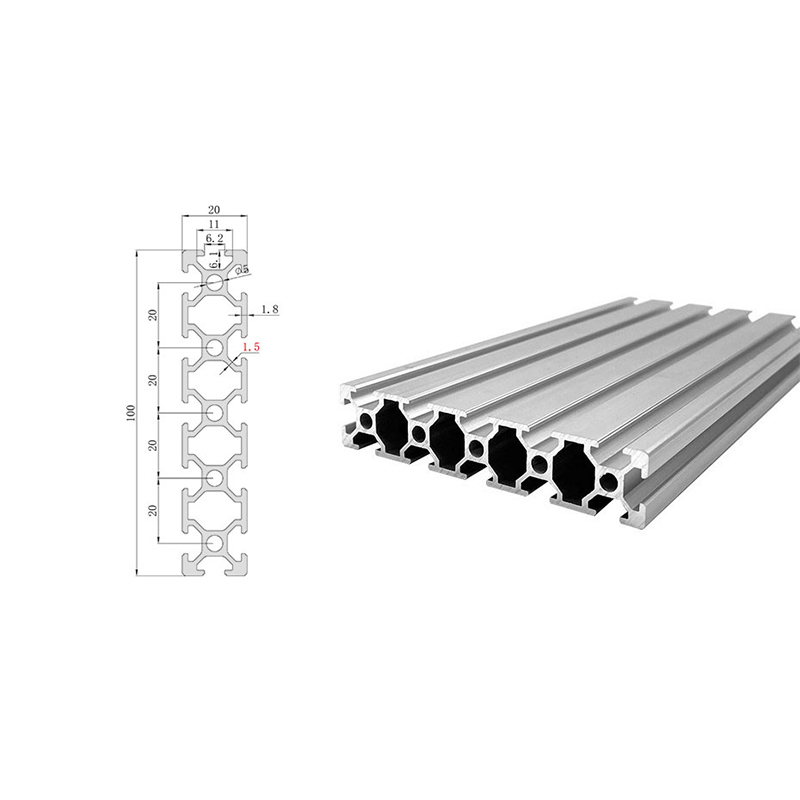

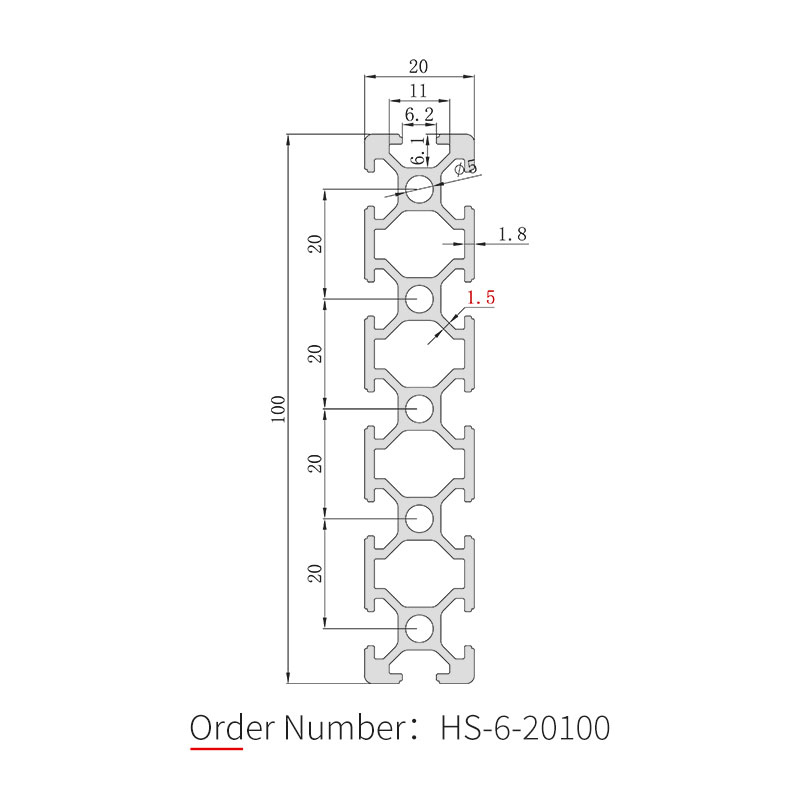

CAD Drawing Download
PREV：Square Slot 2080 Aluminum Profile 8mm slot width Multi-slot reinforced structure Anodized treatmentNEXT：No next article
  • Specification

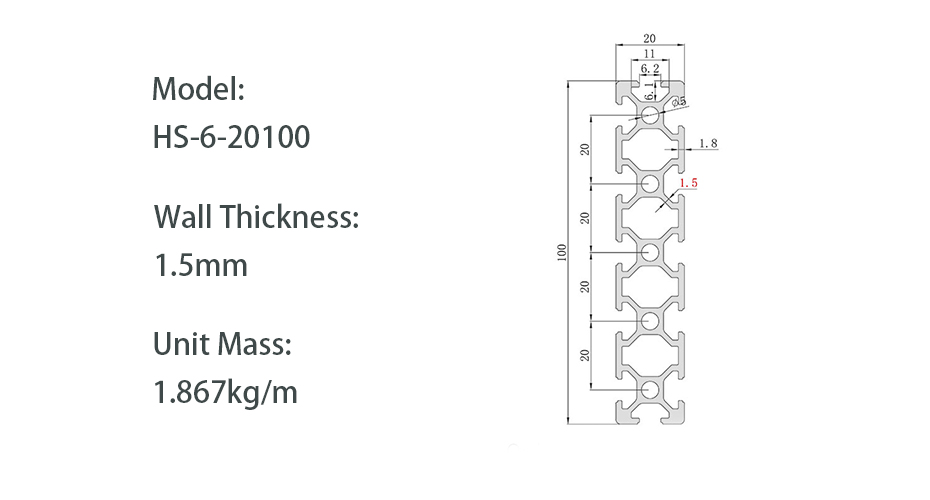

Model HS-6-20100
Cross-sectional Dimensions 20mm × 100mm
Unit Weight 1.867 kg/m
Surface Treatment Anodized
Color  Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot Type T-slot
Slot Width 6.2mm
Slot Depth 6.1mm
Hole Diameter Φ5
Wall Thickness 1.5mm
  • Product Parameters

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
