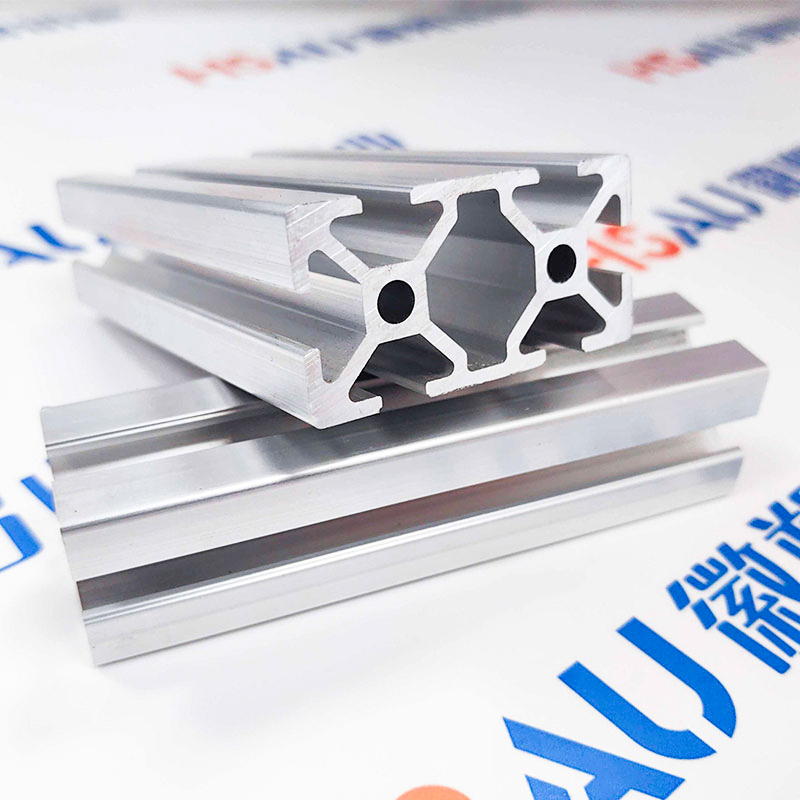

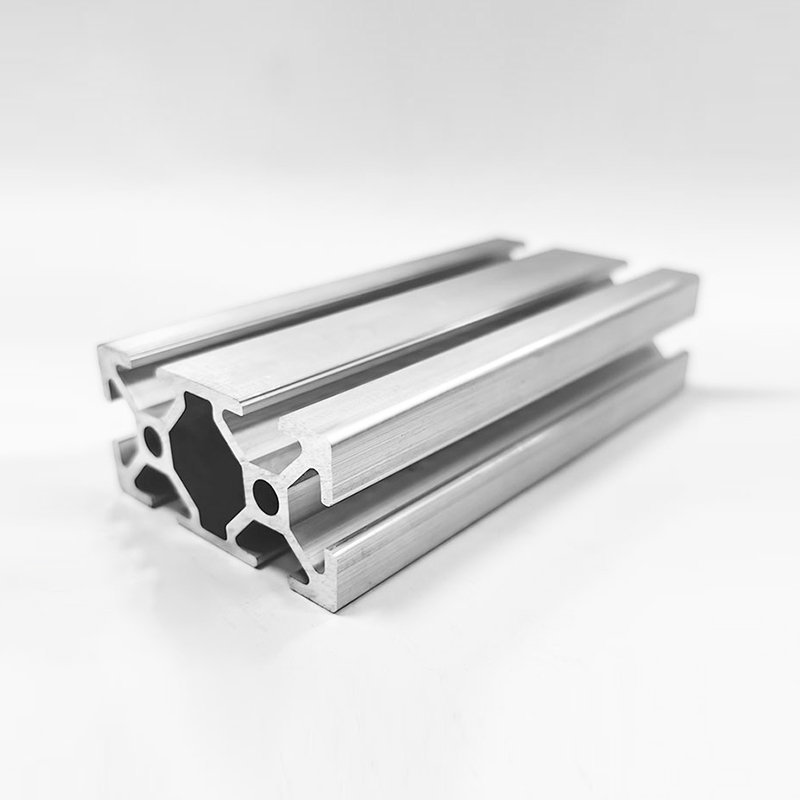

2550 Industrial Aluminum Profile 25×50mm rectangular cross-section 6mm slot width Multi-slot reinforced structure

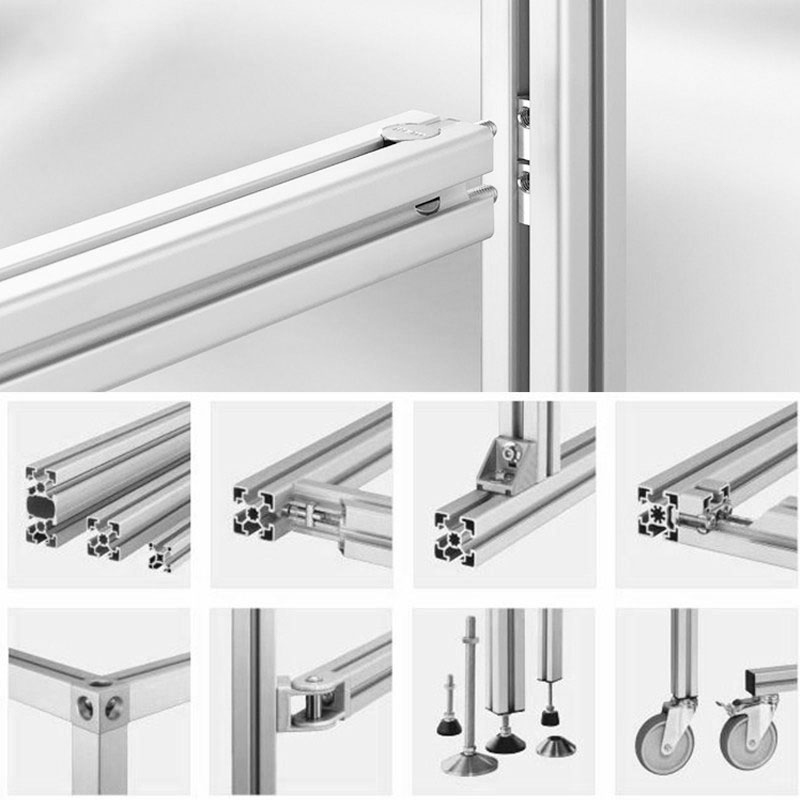

The 2550 aluminum profile is the rectangular cross-section model of the 25 series, with dimensions of 25×50mm and an available slot width of 6mm. The body is made of 6063-T5 aluminum alloy with anodized surface treatment, offering a bright silver finish with strong corrosion resistance. Commonly used for automated assembly line frames, medium-sized equipment bases, workbench supports, mechanical protective barriers, and conveyor line brackets, making it an ideal choice in the 25 series that balances rigidity and lightweight design.

CAD Drawing Download

PREV：Lightweight 2525 Aluminum Profile 6mm slot width Hollow corner weight-reduction design Primarily used for lightweight frames NEXT：No next article

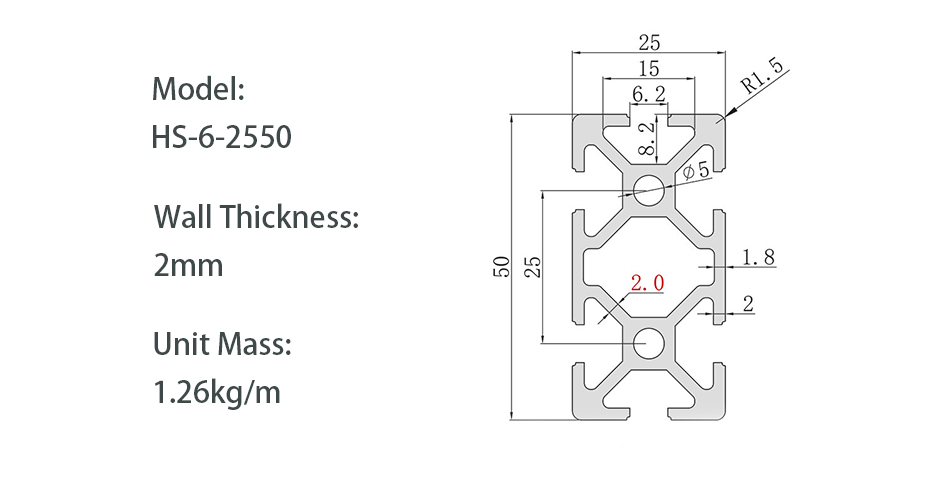

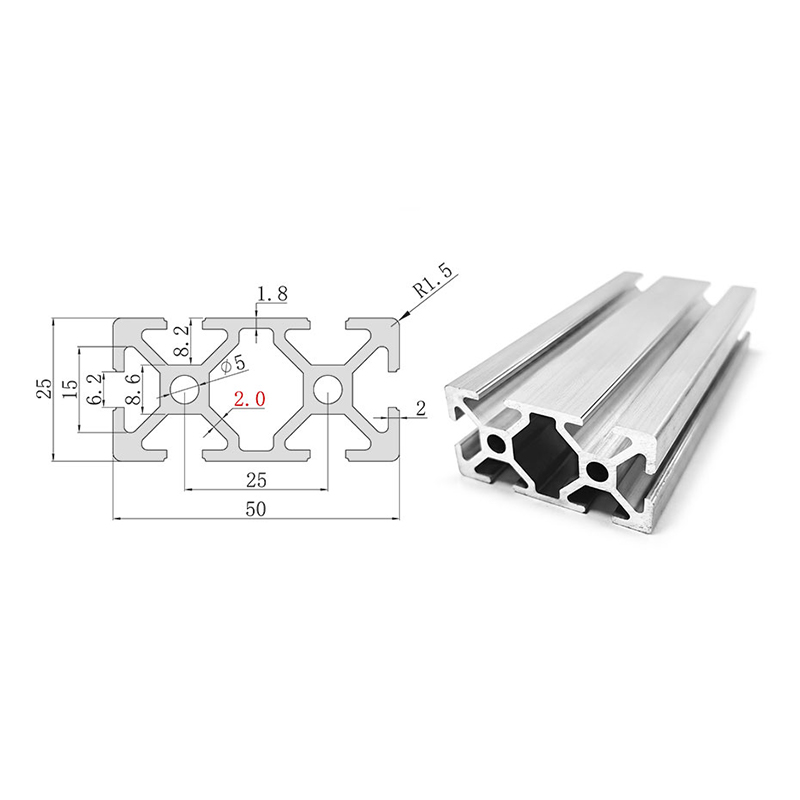

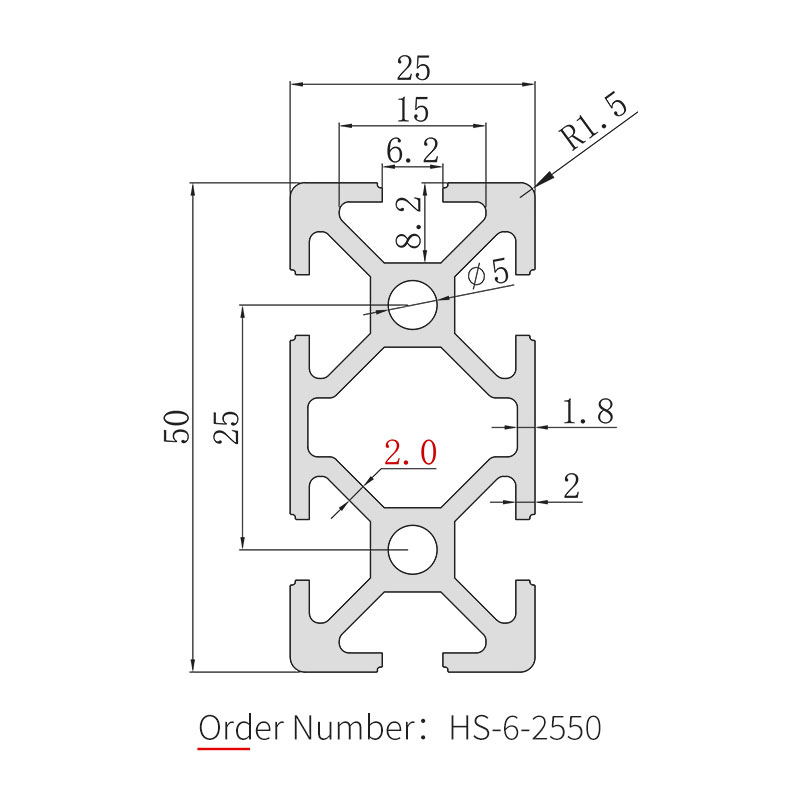

Specification

	Model	HS-6-2550
	Cross-sectional Dimensions	25mm * 50mm
	Unit Weight	1.26 kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 aluminum alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	6.2mm
	Slot Depth	8.2mm
	Hole Diameter	Φ5
	Wall Thickness	2mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
