25 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 25 Series Aluminum Extrusion Profile / Lightweight 2525 Aluminum Profile 6mm slot width Hollow corner weight-reduction design Primarily used for lightweight frames

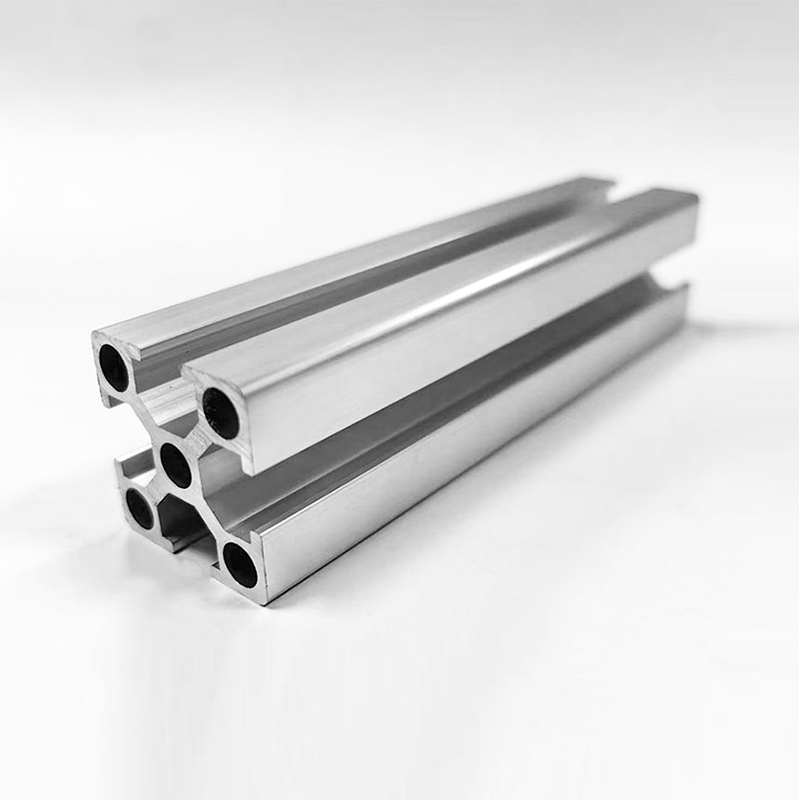

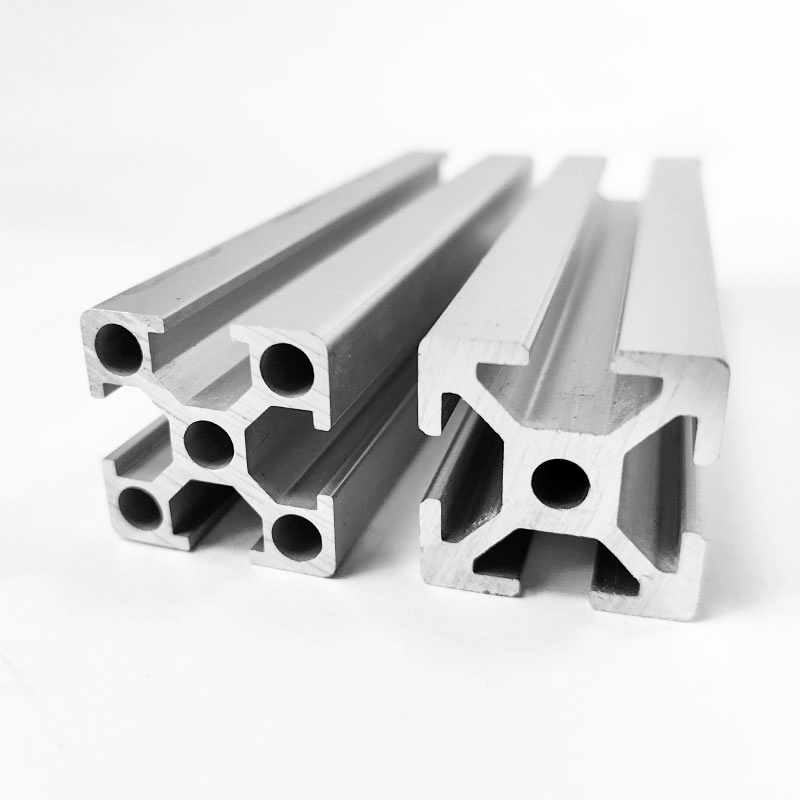

Lightweight 2525 Aluminum Profile 6mm slot width Hollow corner weight-reduction design Primarily used for lightweight frames

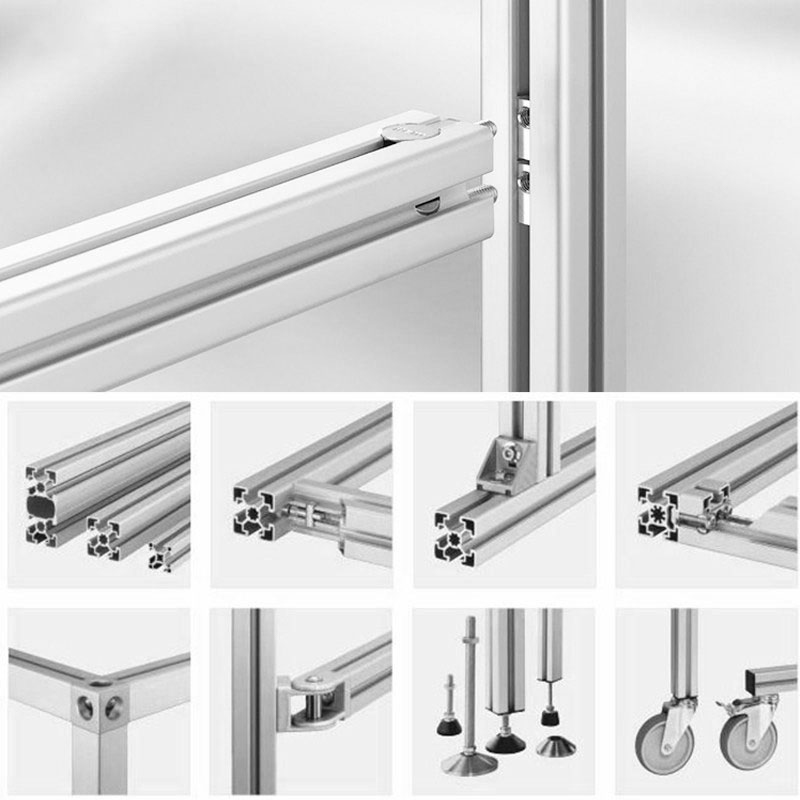

The lightweight 2525 aluminum profile is a special square model of the 25 series, with dimensions of 25×25mm and an available slot width of 6mm. The cross-section features a hollow design at the four corners. The body is made of 6063-T5 aluminum alloy with anodized surface treatment, offering a smooth, corrosion-resistant finish. Commonly used for 3D printer frames, lightweight instrument frames, measuring equipment supports, protective covers, and display panels, making it a versatile profile widely used in small frame structures.

CAD Drawing Download
PREV：2525 Industrial Aluminum Profile Square aluminum alloy cross-section Solid heavy-duty model 6mm slot widthNEXT：2550 Industrial Aluminum Profile 25×50mm rectangular cross-section 6mm slot width Multi-slot reinforced structure

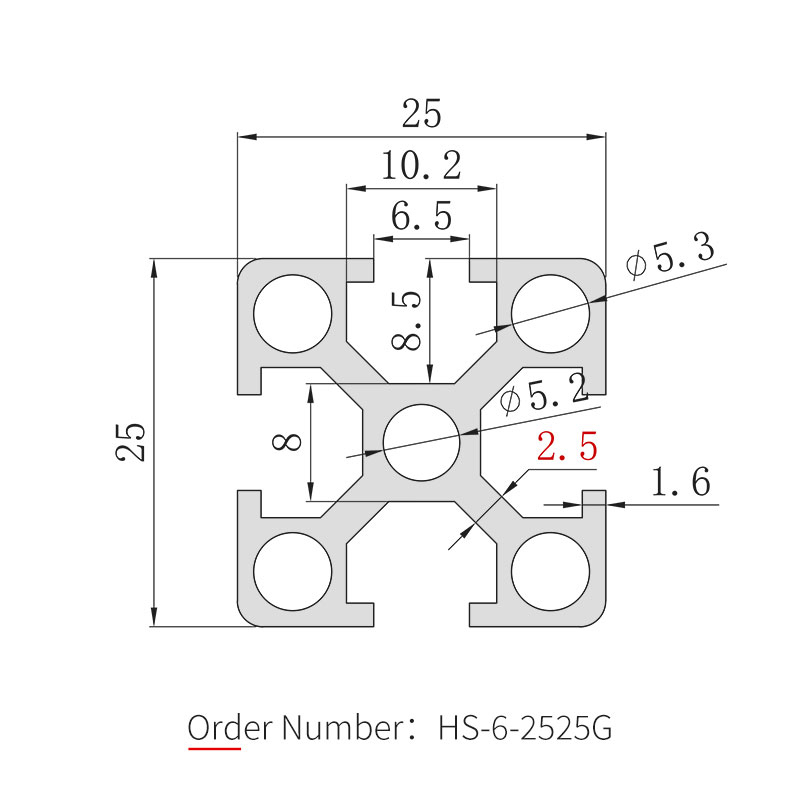

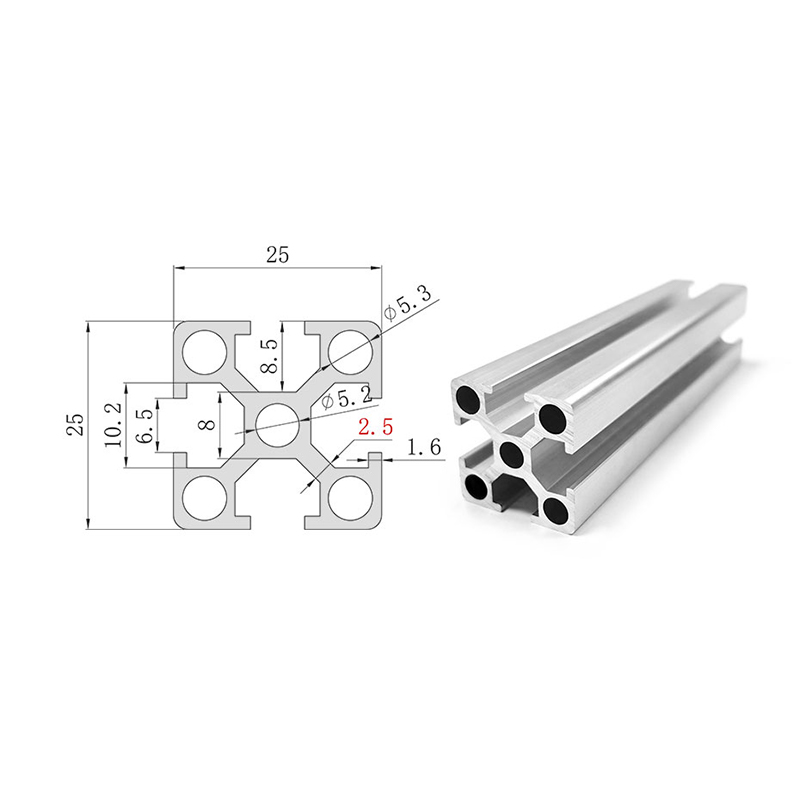

  • Specification

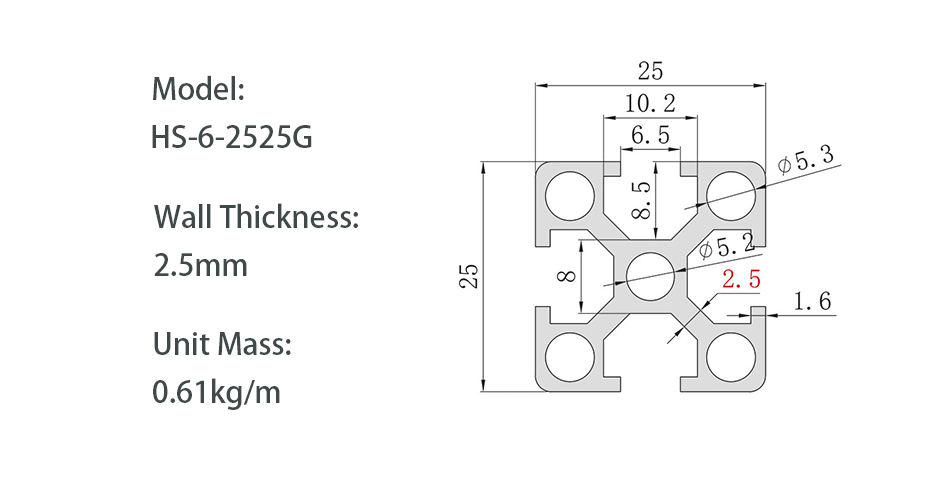

Model HS-6-2525G
Cross-sectional Dimensions 25mm*25mm
Unit Weight 0.61 kg/m
Surface Treatment Anodized
Color  Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot Type T-slot
Slot Width 6.5mm
Slot Depth 8.5mm
Hole Diameter Φ5.2
Wall Thickness 2.5mm
  • Product Parameters

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
