20 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 20 Series Aluminum Extrusion Profile / 2080 Aluminum Profile Wide-face structure Multi-slot design 6mm slot width Heavy-load frame structure

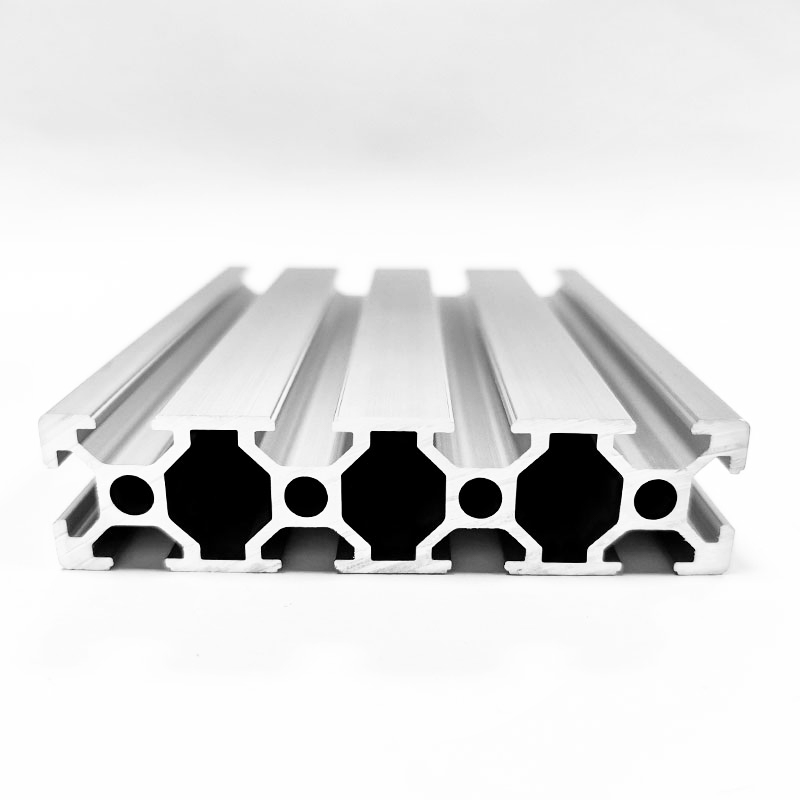

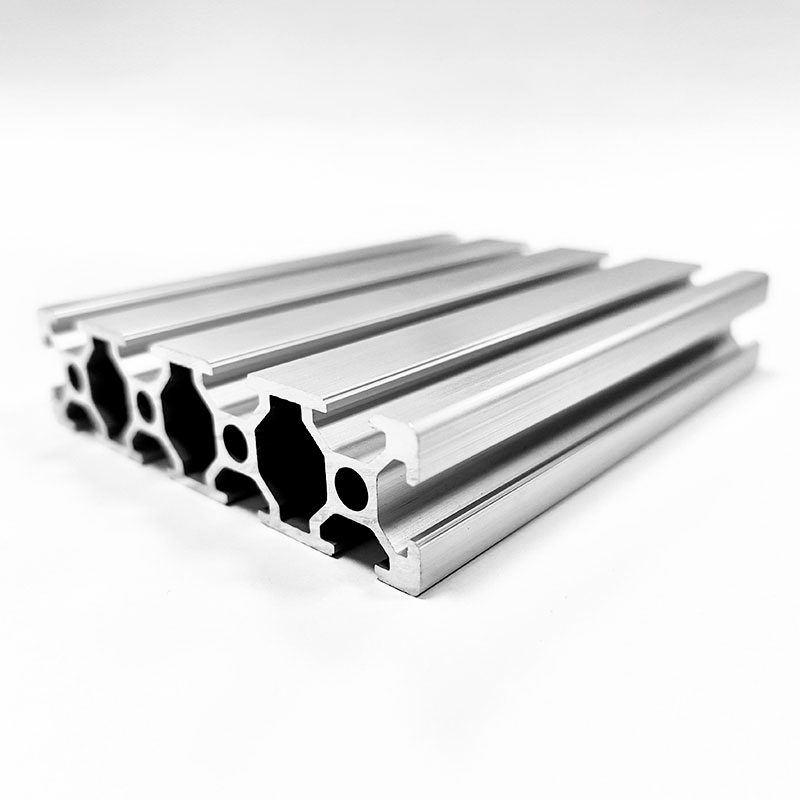

2080 Aluminum Profile Wide-face structure Multi-slot design 6mm slot width Heavy-load frame structure

The 2080 aluminum profile is the heavy-load model of the 20 series, with dimensions of 20×80mm and a 6mm slot width, belonging to the T-slot system. The body is made of 6063-T5 aluminum alloy with anodized surface treatment. The 80mm face features multiple slots, providing strong structural rigidity and high load-bearing capacity. Commonly used for heavy-load racks, equipment bases, large workbenches, robot enclosures, and automated assembly lines, making it an ideal choice for high-stress, high-strength frame structures.

CAD Drawing Download
PREV：T-slot 2060 Aluminum Profile 6mm slot width Multi-slot design Standard anodized treatmentNEXT：Square Slot 2080 Aluminum Profile 8mm slot width Multi-slot reinforced structure Anodized treatment

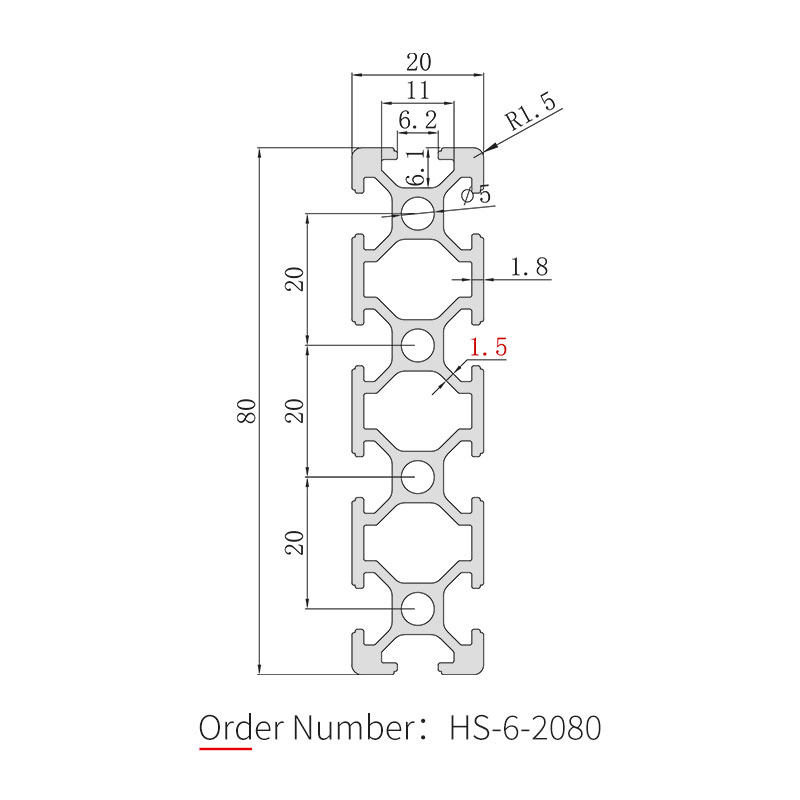

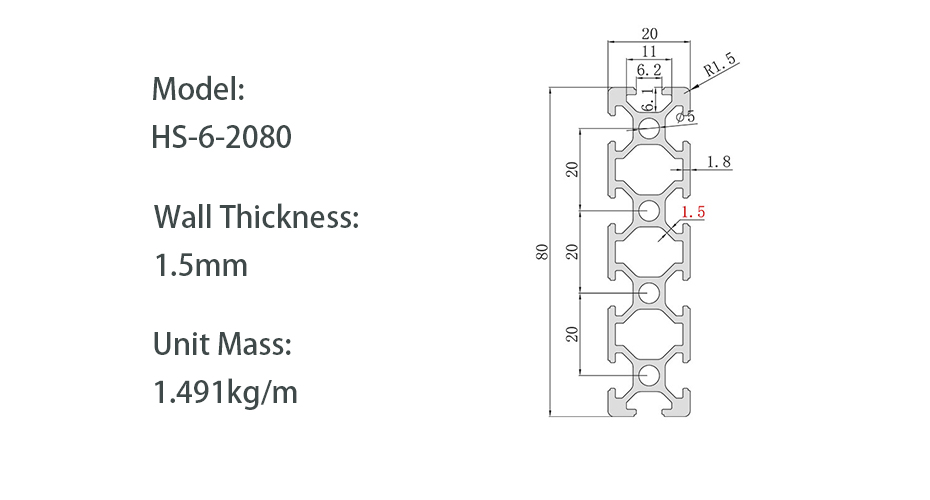

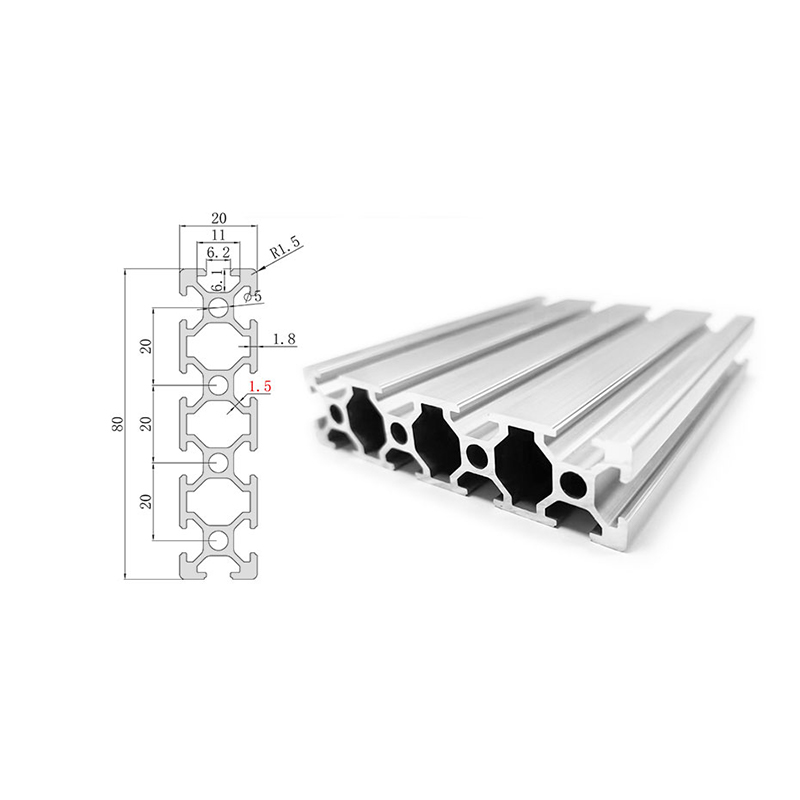

  • Specification
Model HS-6-2080
Cross-sectional Dimensions 20mm × 80mm
Unit Weight 1.491 kg/m
Surface Treatment Anodized
Color  Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot Type T-slot
Slot Width 6.2mm
Slot Depth 6.1mm
Hole Diameter Φ5
Wall Thickness 1.5mm
  • Product Parameters

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
