2020 Square Slot Aluminum Profile 4mm slot width Suitable for lightweight frame structures

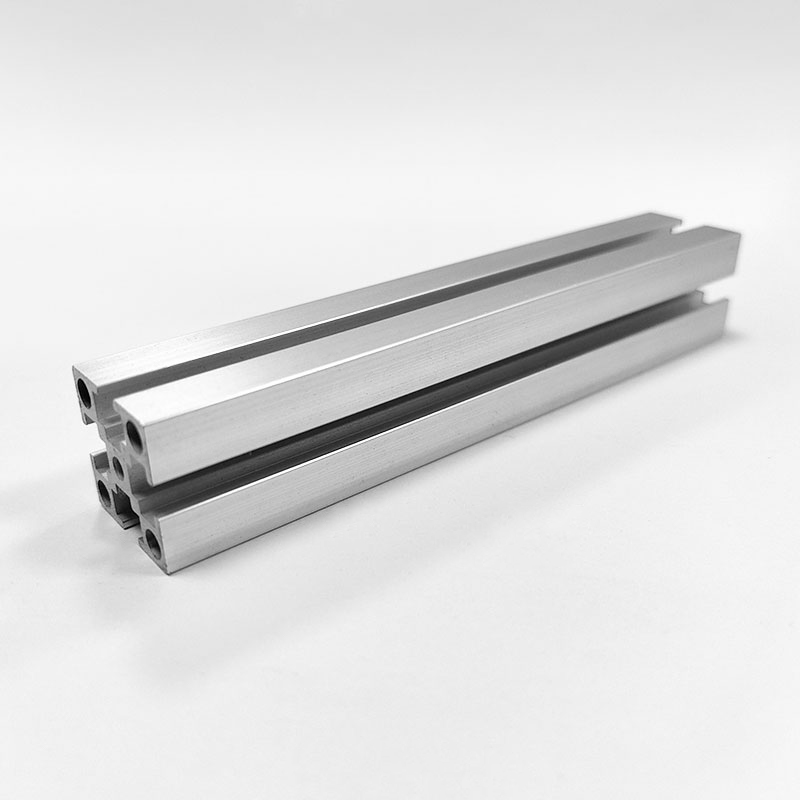

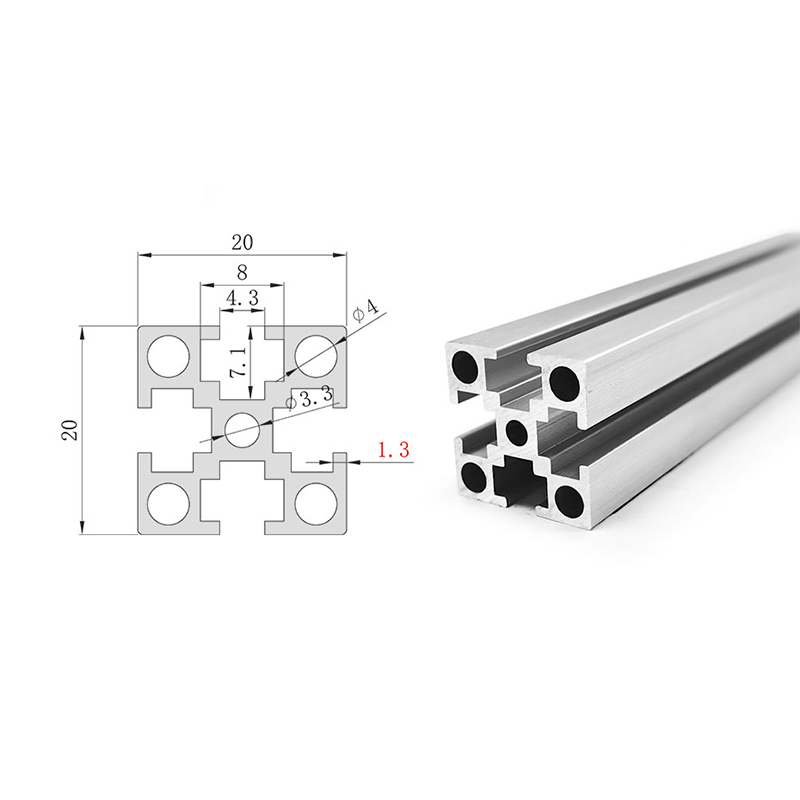

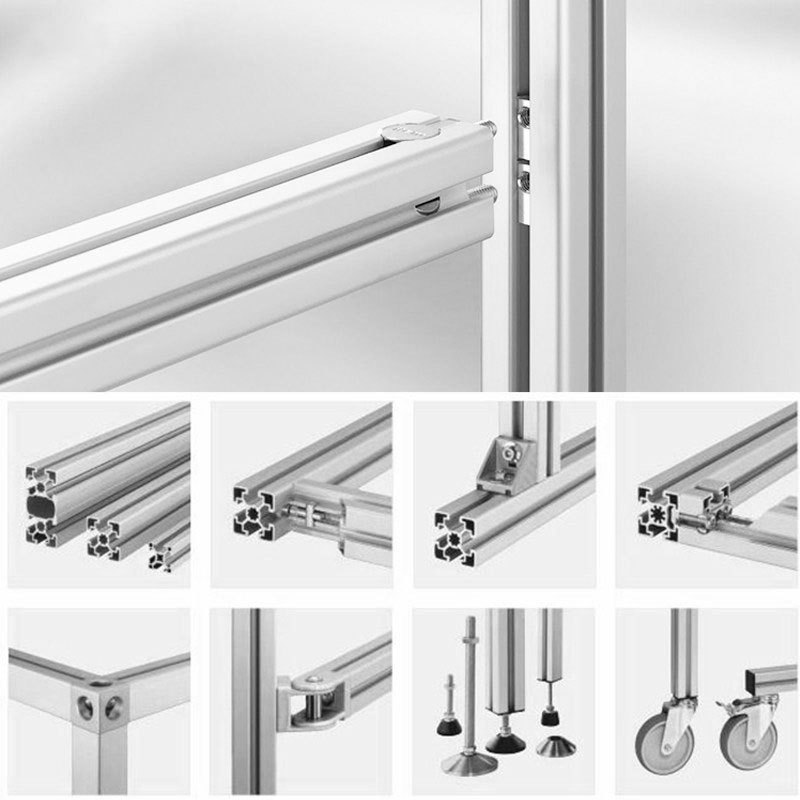

The square slot 2020 aluminum profile is the basic model of the 20 series, featuring a 20×20mm square cross-section design with a 4mm slot width, belonging to the national standard square slot system. The body is made of 6063-T5 aluminum alloy with anodized surface treatment, offering a bright silver finish with strong corrosion resistance. Compatible with M4 square nuts and hex socket bolts, with a well-established accessory system. Commonly used for light equipment enclosures, instrument racks, display panels, small door frames, and laboratory bench frames, making it one of the classic profiles widely used in lightweight frame structures.

CAD Drawing Download
PREV：2020N2 double-side closed slot aluminum profile 20×20mm Adjacent-side slot design Smooth and aesthetically pleasing Classic closed slot aluminum profileNEXT：2040 Industrial Aluminum Profile 20×40mm rectangular cross-section 6mm slot width Light-load frame structure
  • Specification

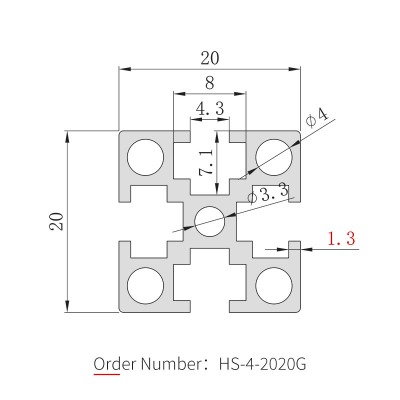

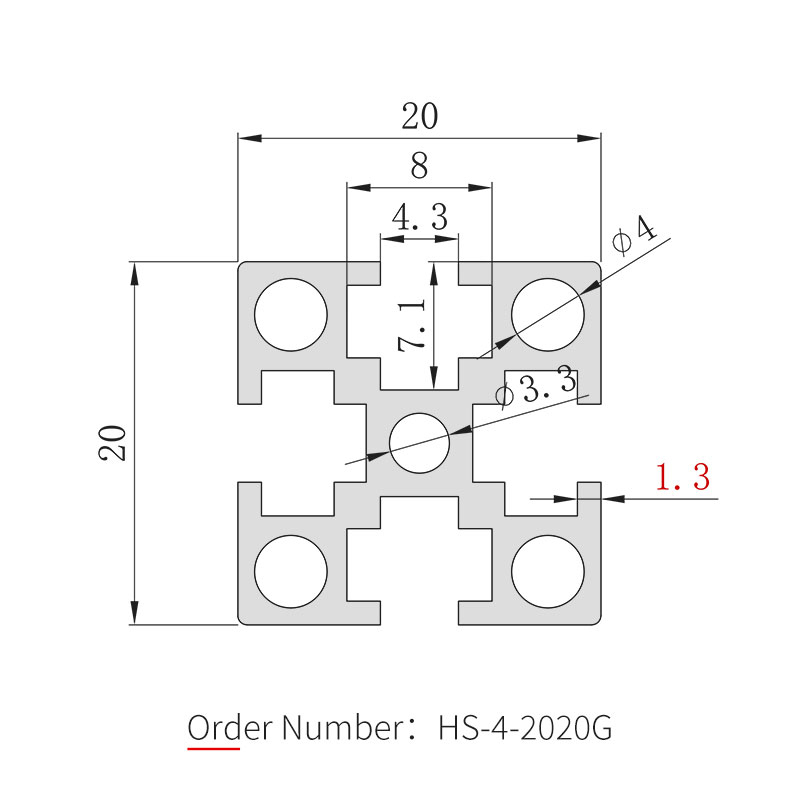

Model HS-4-2020G
Cross-sectional Dimensions 20mm × 20mm
Unit Weight 0.434 kg/m
Surface Treatment Anodized
Color  Silver
Material 6063-T5 Aluminum Alloy
Length 6.02m
Slot Type Square slot
Slot Width 4.3mm
Slot Depth 7.1mm
Hole Diameter Φ3.3
Wall Thickness 1.3mm
  • Product Parameters

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
