2525 Industrial Aluminum Profile Square aluminum alloy cross-section Solid heavy-duty model 6mm slot width

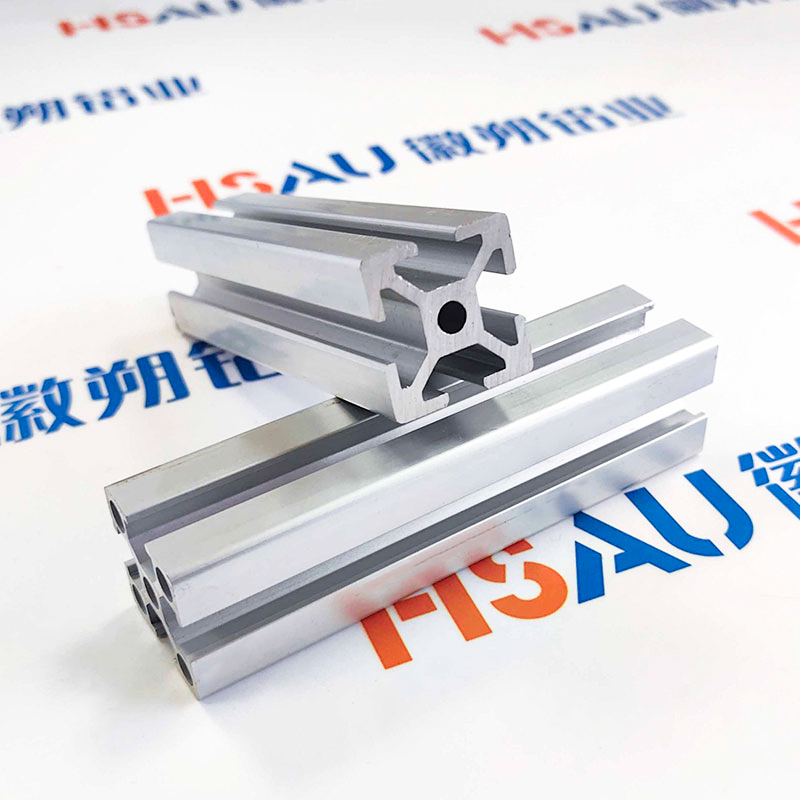

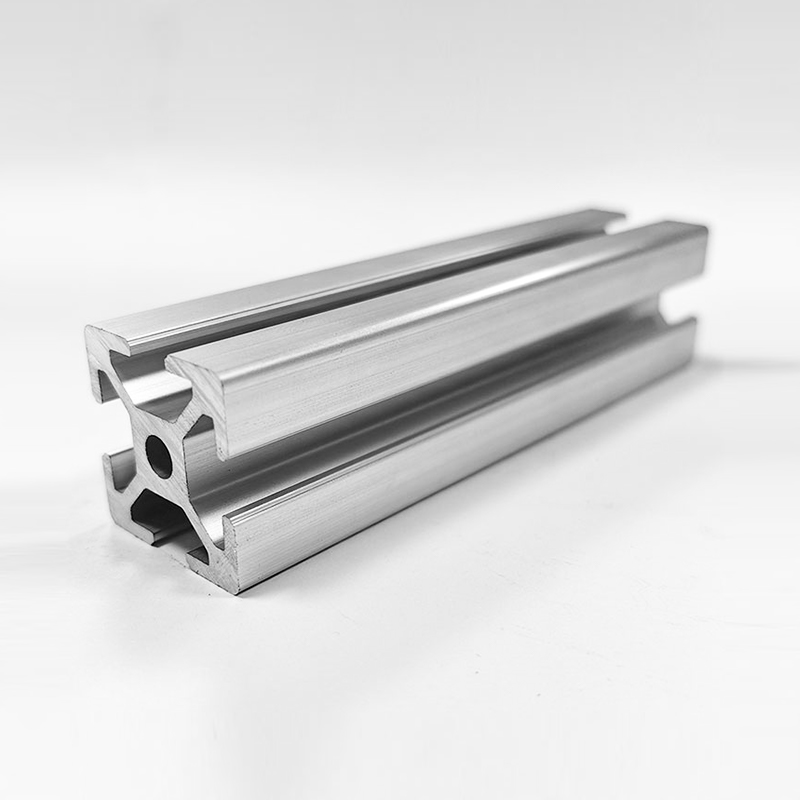

The 2525 aluminum profile is the basic square model of the 25 series, with dimensions of 25×25mm and an available slot width of 6mm. The body is made of 6063-T5 aluminum alloy with anodized surface treatment, offering a smooth, corrosion-resistant finish. Commonly used for 3D printer frames, lightweight instrument frames, measuring equipment, protective covers, and display panels, making it a versatile profile widely used in lightweight structures.

CAD Drawing Download

PREV：No previous article NEXT：Lightweight 2525 Aluminum Profile 6mm slot width Hollow corner weight-reduction design Primarily used for lightweight frames

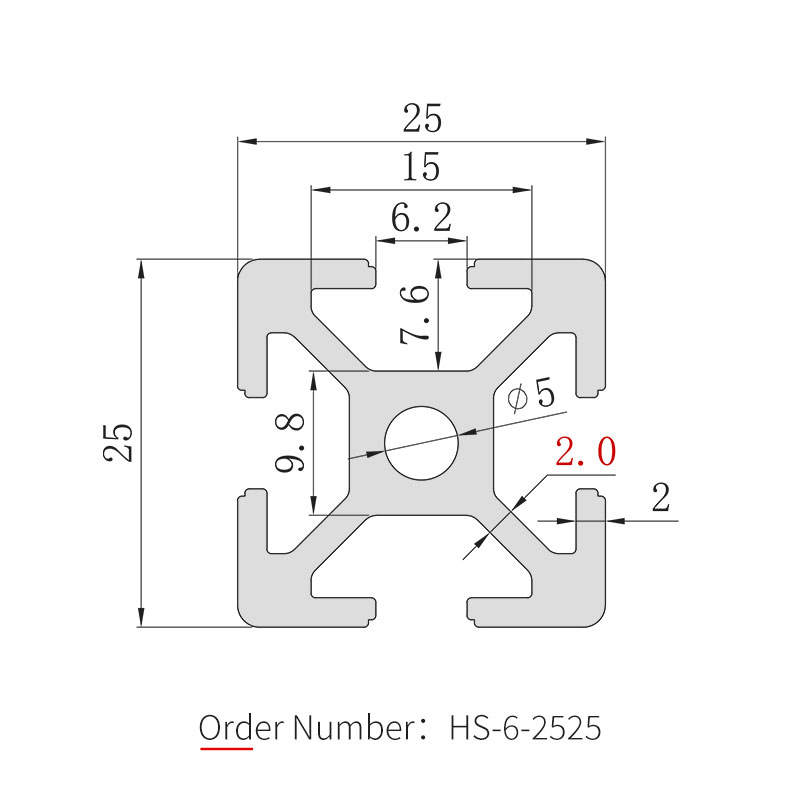

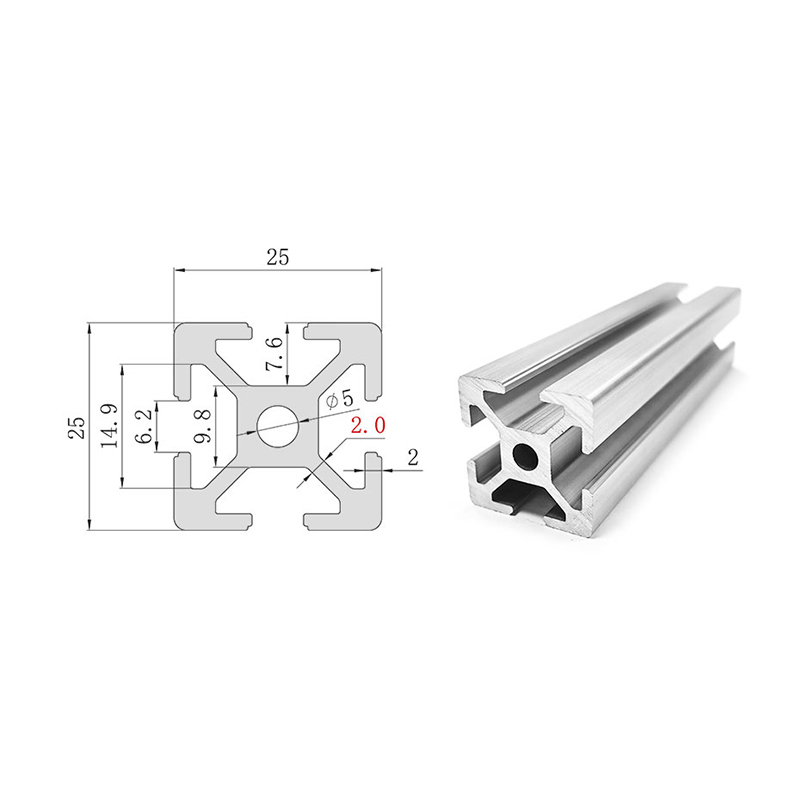

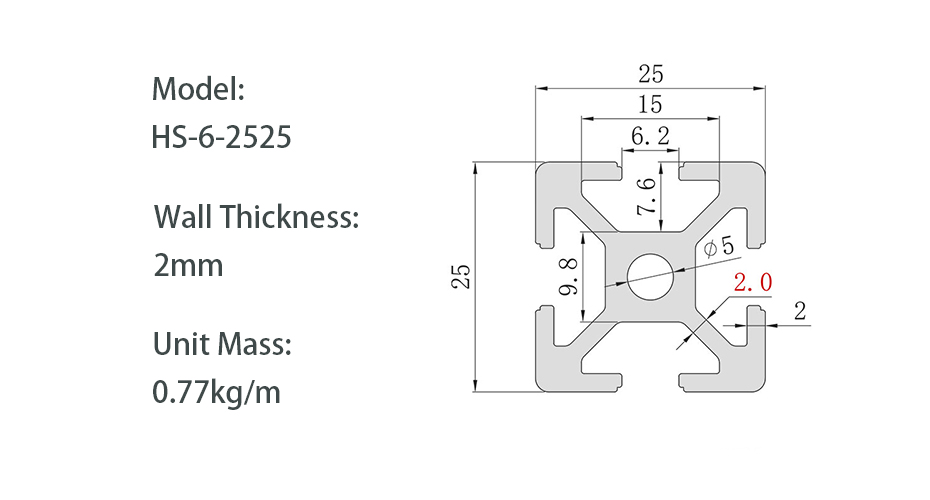

Specification

	Model	HS-6-2525
	Cross-sectional Dimensions	25mm*25mm
	Unit Weight	0.77 kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 aluminum alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	6.2mm
	Slot Depth	7.6mm
	Hole Diameter	Φ5
	Wall Thickness	2mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
