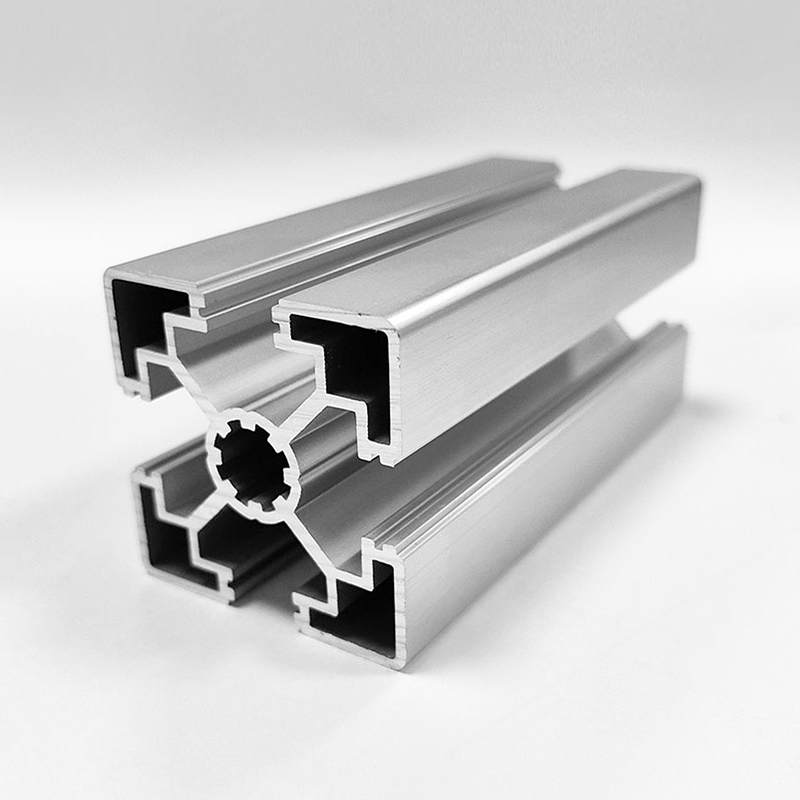

HS-10-4545L Large-Span 4545 series Industrial T-Slot Aluminum Extrusion Profile for Heavy-Duty Robot Workstation Enclosures

The HS-10-4545L is a heavy-duty 45x45mm T-slot aluminum extrusion engineered for large-span industrial structures requiring superior load-bearing capacity. Manufactured from premium 6063-T5 alloy, this profile features a 1.9mm wall thickness and a unit mass of 1.53kg/m, offering exceptional structural rigidity. Its standout feature is the 10.2mm wide slot, which allows for the use of larger fasteners (such as M10 bolts), providing maximum stability for heavy-duty industrial frames. The 14.7mm slot depth and 10.2mm slot width ensure secure and vibration-resistant connections, making it ideal for dynamic machinery environments. Perfectly suited for constructing industrial stairs and platforms, large-scale robot cell safety fencing, heavy-duty automation machinery frames, conveyor system supports, and high-capacity storage racking systems.

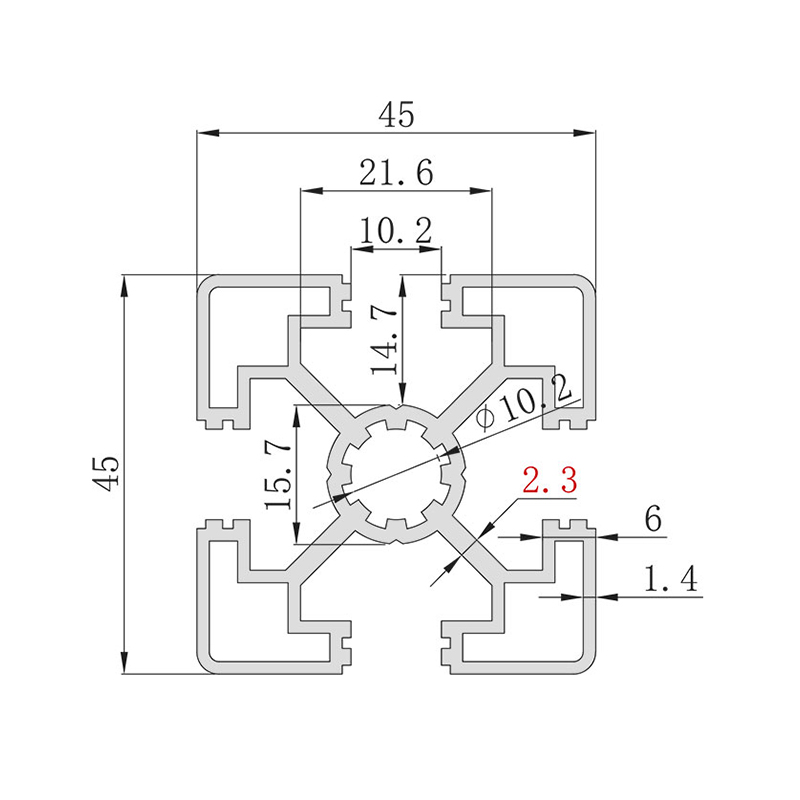

CAD Drawing Download
PREV：HS-10-4590W Wide Extra-Thick T-Slot Industrial Aluminum Profile, 45*90 Silver Extra-Heavy-Duty AluminumNEXT：HS-10-4545 Heavy-Duty 4545 series Industrial Aluminum Extrusion Profile with 2.4mm Extra Thick Wall for Large Machinery Bases
  • Specification
Model Number HS-10-4545L
Section Size 45mm * 45mm
Unit Mass 1.53 kg/m
Surface Treatment Anodized
Color Silver
Material 6063-T5 Aluminum Alloy
Standard Length 6.02 m
Slot Type T-Slot
Slot Width 10.2 mm
Slot Depth 14.7 mm
Center Hole Diameter Φ10.2
Wall Thickness 1.9 mm
  • Product Parameters

Model:

OB4545L

Wall Thickness:

2.3mm

Unit Mass:

1.58kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
