HS-8-3030CY Large Hole 3030 T-Slot Aluminum Profile, Silver & Black Dual Color, 7mm Slot Depth Industrial Aluminum

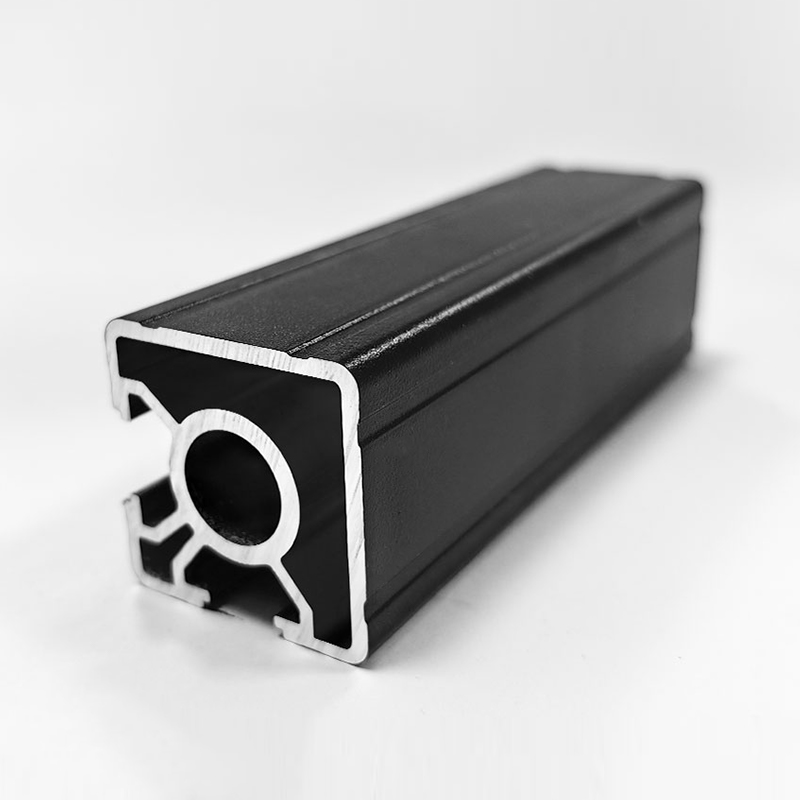

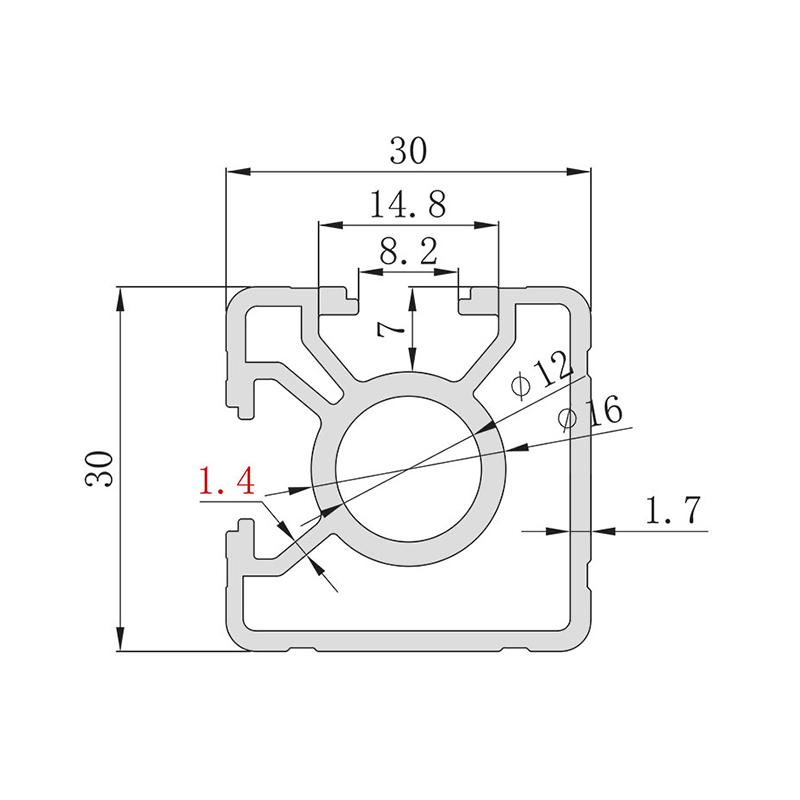

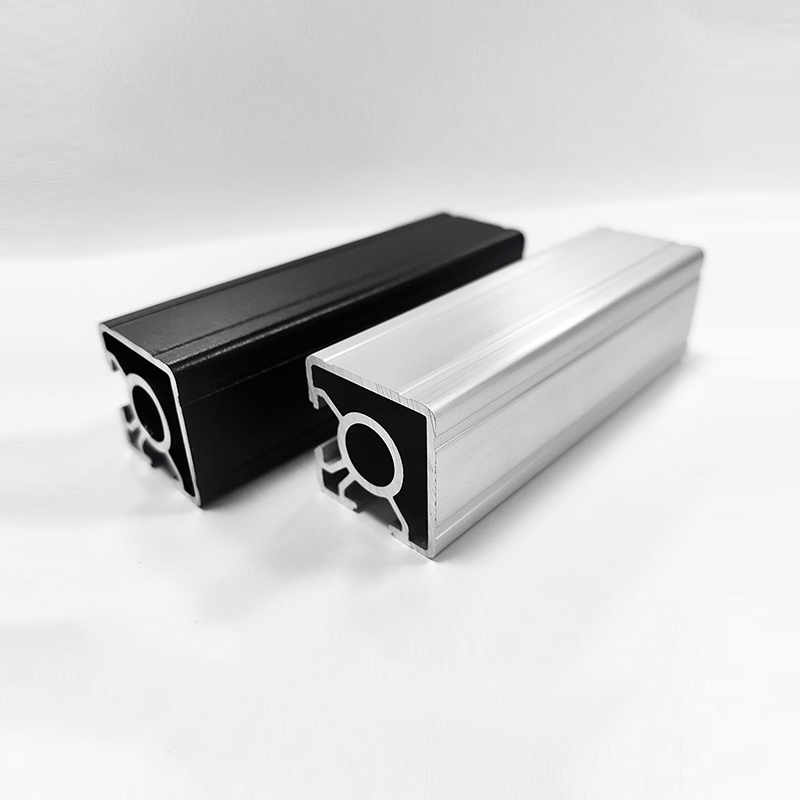

The HS-8-3030CY industrial aluminum profile features a differentiated design, with a standard 30mm*30mm cross-section, 1.4mm wall thickness, a unit weight of 0.79kg/m, and a lightweight design suitable for light applications, while offering unique large-hole diameter and shallow-slot-depth characteristics. Made of 6063-T5 aluminum alloy, it is lightweight and has good toughness, making it suitable for scenarios with weight requirements. The surface is treated with an anodizing process, providing two color options: silver and black, with an exquisite appearance, combining decoration and corrosion resistance. The profile adopts a standard T-slot, 8.2mm in width and only 7mm in depth, suitable for special connectors, and is equipped with a Φ12 large hole diameter design, which can meet the needs of large-size bolt assembly and has higher assembly flexibility. The standard length is 6.02m, which can be precisely cut according to requirements, supporting deep processing services such as drilling and tapping. Direct supply from the source factory, which can be customized into different sizes and specifications to adapt to the use needs of special scenarios.
Applications: Suitable for the construction of light display stands, light laboratory brackets, small automation equipment frames, home storage racks, and light frames with special requirements on hole diameter.

CAD Drawing Download
PREV：HS-8-3030R Universal 3030 T-Slot Aluminum Profile, Silver & Black Dual Color, 2.1mm Wall Thickness Industrial AluminumNEXT：HS-6-3030G Square Slot 3030 Aluminum Profile, 6.3mm Slot Width, 2.0mm Wall Thickness Silver Industrial Aluminum
  • Specification
Model HS-8-3030CY
Cross-section dimensions 30mm*30mm
Unit weight 0.79kg/m
Surface treatment Anodized
Color Silver or black
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 7mm
Hole diameter Φ12
Wall thickness 1.4mm
  • Product Parameters

Model:

OB3030CY

Wall Thickness:

1.4mm

Unit Mass:

0.83kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
