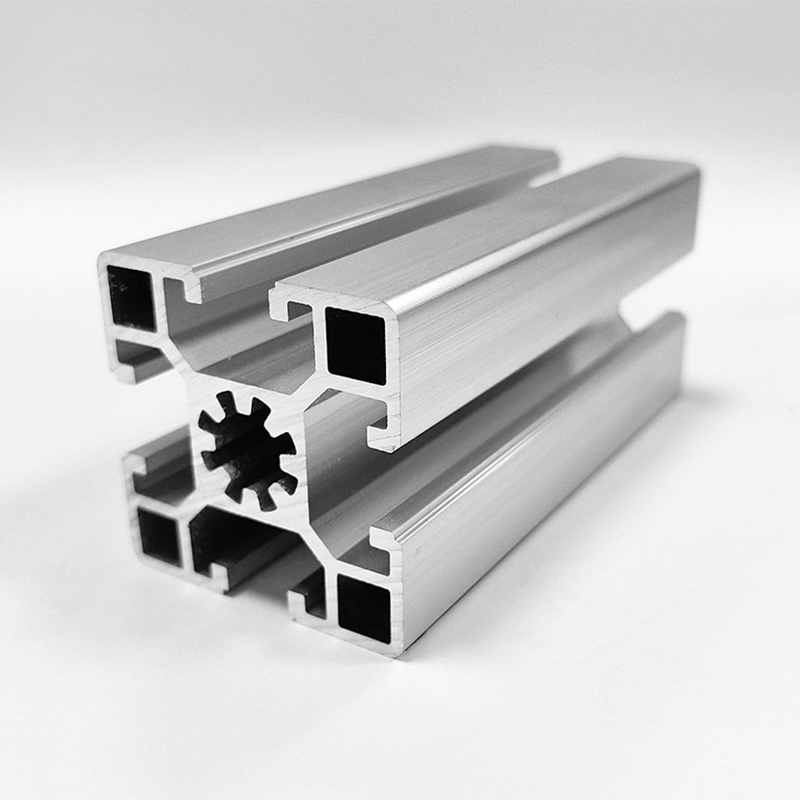

Heavy-Duty 45x45mm T-slot aluminum extrusion designed for industrial structures demanding maximum stability and high load-bearing capacity. Engineered from high-strength 6063-T5 alloy, this profile features a superior 2.4mm wall thickness and a unit mass of 1.66kg/m, providing exceptional structural integrity and resistance to mechanical fatigue in high-stress environments. Equipped with a 10.2mm wide T-slot, it supports heavy-duty fasteners for high-torque connections, making it the ideal foundation for large-scale industrial frames. Suited for large-scale automation equipment bases, heavy-duty material handling systems, industrial mezzanine platforms, robotic cell structural frames, and high-capacity storage racking solutions.
 |

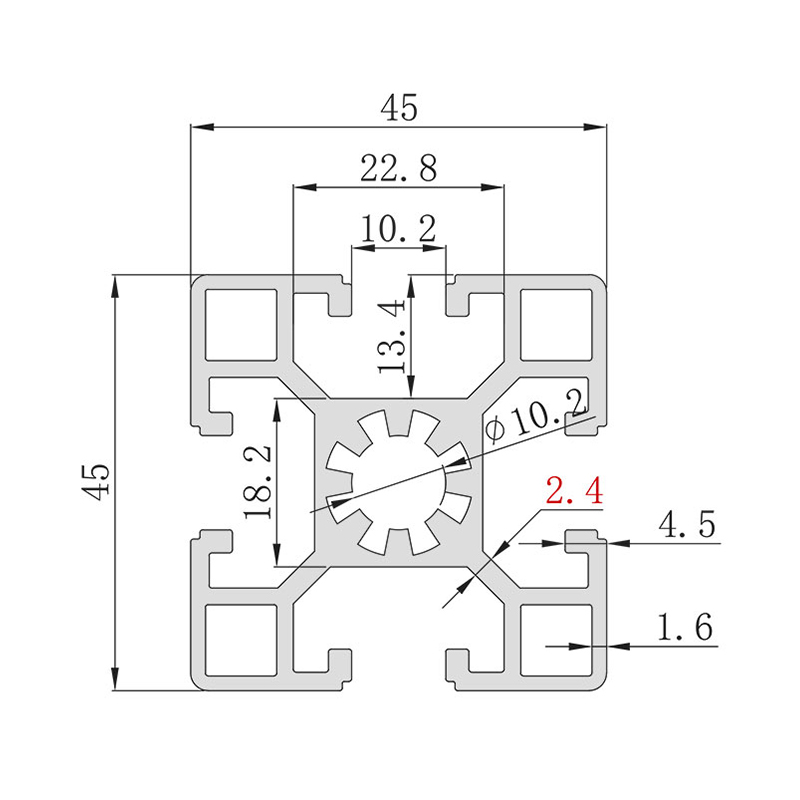

Model Number | HS-10-4545 |
| Section Size | 45mm * 45mm | |
| Unit Mass | 1.66 kg/m | |
| Surface Treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 Aluminum Alloy | |
| Standard Length | 6.02 m | |
| Slot Type | T-Slot | |
| Slot Width | 10.2 mm | |
| Slot Depth | 13.4 mm | |
| Center Hole Diameter | Φ10.2 | |
| Wall Thickness | 2.4 mm |
Model:
OB4545
Wall Thickness:
2.4mm
Unit Mass:
1.74kg/m
