30 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 30 Series Aluminum Extrusion Profile / HS-8-3060L Lightweight 30*60 T-Slot Aluminum Profile, 1.4mm Wall Thickness, Φ7 Hole Diameter Silver Industrial Aluminum

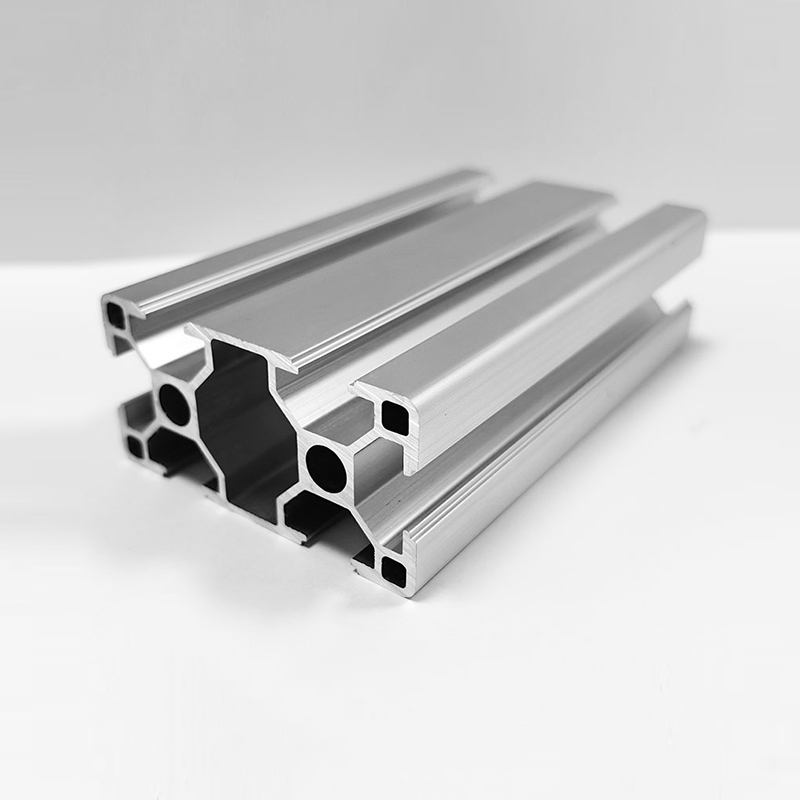

HS-8-3060L Lightweight 30*60 T-Slot Aluminum Profile, 1.4mm Wall Thickness, Φ7 Hole Diameter Silver Industrial Aluminum

The HS-8-3060L industrial aluminum profile adopts a 30mm*60mm cross-sectional design, focusing on lightweight characteristics. With a 1.4mm thin-walled design and a unit weight of 1.23kg/m, it greatly reduces the frame's own weight, suitable for medium and light scenarios with strict requirements on self-weight. Made of high-quality 6063-T5 aluminum alloy, it is lightweight and has good toughness. Although it is a thin-walled design, it can still ensure structural stability and is not easy to deform. The surface is treated with anodizing, with a smooth silver appearance and strong metallic texture, with excellent corrosion resistance and wear resistance, which can be used in various scenarios. The profile adopts a standard T-slot design, with a slot width of 8.2mm and a slot depth of 10.1mm, compatible with various European standard connectors, supporting welding-free modular rapid assembly, and convenient construction. The Φ7 hole diameter design is different from the conventional Φ6.8 hole diameter, with higher assembly flexibility, a standard length of 6.02m, and supporting deep processing services such as precise cutting and drilling. Direct supply from the source factory with high cost performance, adapting to the needs of medium and light frames.
Applications: Suitable for the construction of light automation equipment frames, display stands, light laboratory brackets, home storage racks and medium and light frames with requirements on self-weight.

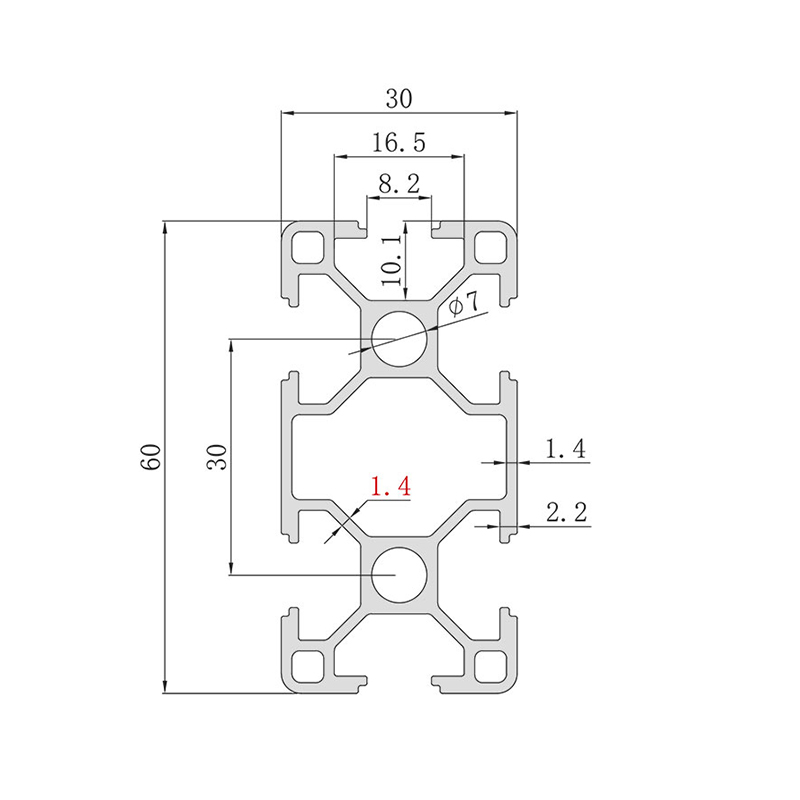

CAD Drawing Download
PREV：HS-8-3060 30*60 T-Slot Aluminum Profile, 8.2mm Slot Width, 2.0mm Wall Thickness Silver Industrial AluminumNEXT：HS-8-3090 30*90 T-Slot Aluminum Profile, 8.2mm Slot Width, 2.2mm Wall Thickness Silver Industrial Aluminum
  • Specification
Model HS-8-3060L
Cross-section dimensions 30mm*60mm
Unit weight 1.23kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 10.1mm
Hole diameter Φ7
Wall thickness 1.4mm
  • Product Parameters

Model:

OB3060L

Wall Thickness:

1.4mm

Unit Mass:

1.28kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
