HS-10-4040L Wide-Slot Lightweight T-Slot 4040 Aluminum Profile, 10.3mm Wide Slot, Φ10.5 Large Hole Diameter, 2.3mm Wall Thickness Industrial Aluminum

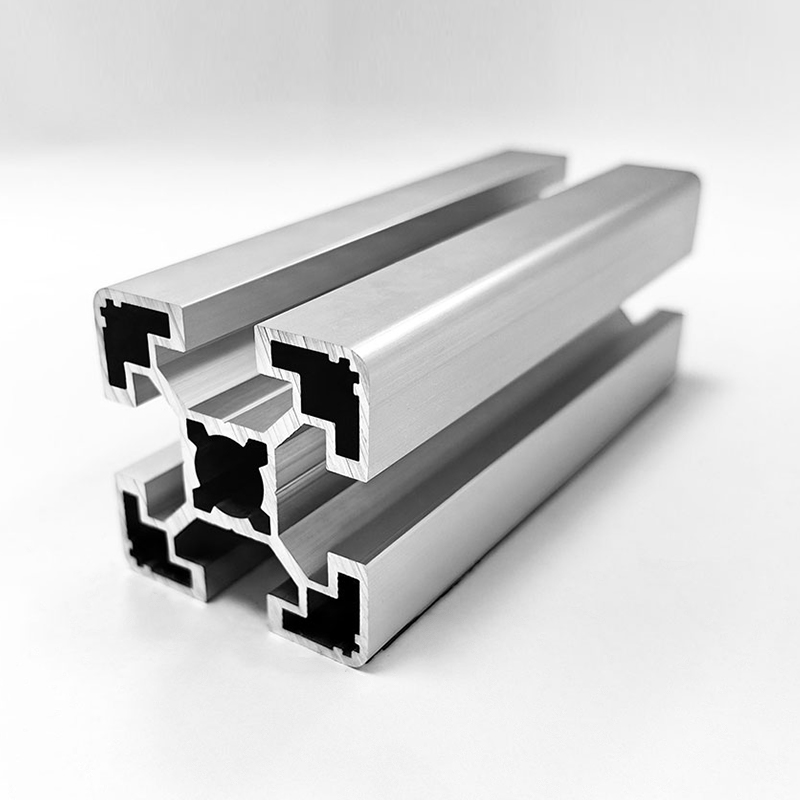

The HS-10-4040L industrial aluminium profile focuses on three differentiations: wide slot, large hole diameter and lightweight. With a standard 40mm*40mm cross-section, 2.3mm wall thickness and a unit weight of 1.20kg/m, it is extremely light in self-weight, suitable for medium and light scenarios with requirements on self-weight, and the wide slot design improves assembly flexibility. Made of high-quality 6063-T5 aluminium alloy, it is lightweight and has good toughness. After anodising treatment, the silver appearance is uniform and delicate, with a strong metallic texture, and has excellent corrosion resistance and wear resistance. The profile adopts a T-slot design, with a slot width of 10.3mm (different from the conventional 8.2mm slot width), which can adapt to larger size European standard connectors, with more firm assembly and wider adaptability; the slot depth is 12.6mm, combined with Φ10.5 large hole diameter design, different from the conventional small hole diameter, it can adapt to large-size bolts and heavy-duty connectors, with more uniform force support. The standard length is 6.02m, supporting deep processing services such as precise cutting, drilling and tapping. Direct supply from the source factory, adapting to lightweight scenarios with special requirements on slot width and hole diameter.
Applications: Suitable for the construction of light automation equipment frames, customised display stands, light laboratory brackets, medium and light frames with limited space and scenarios that need to adapt to large-size connectors.

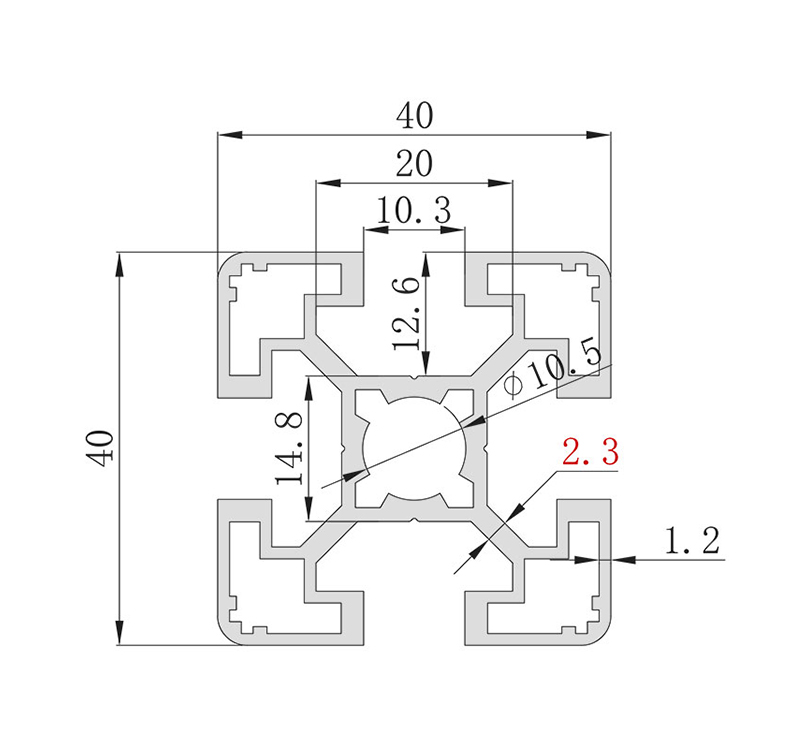

CAD Drawing Download
PREV：HS-8-4040N2 High-Stability T-Slot 4040 Aluminum Profile, 2.3mm Wall Thickness, 8.2mm Slot Width, 13mm Slot Depth Industrial AluminumNEXT：HS-10-4040 Wide-Slot Thickened T-Slot 4040 Aluminum Profile, 10.2mm Wide Slot, Φ10.2 Large Hole Diameter, 2.5mm Wall Thickness Industrial Aluminum
  • Specification
Model HS-10-4040L
Cross-section dimensions 40mm*40mm
Unit weight 1.20kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 10.3mm
Slot depth 12.6mm
Hole diameter Φ10.5
Wall thickness 2.3mm
  • Product Parameters

Model:

OB4040L-10

Wall Thickness:

2.3mm

Unit Mass:

1.26kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
