HS-8-4040BA Wide-Slot T-Slot 4040 Aluminum Profile, 8.5mm Wide Slot, 2mm Wall Thickness, Dual-Color Industrial Aluminum

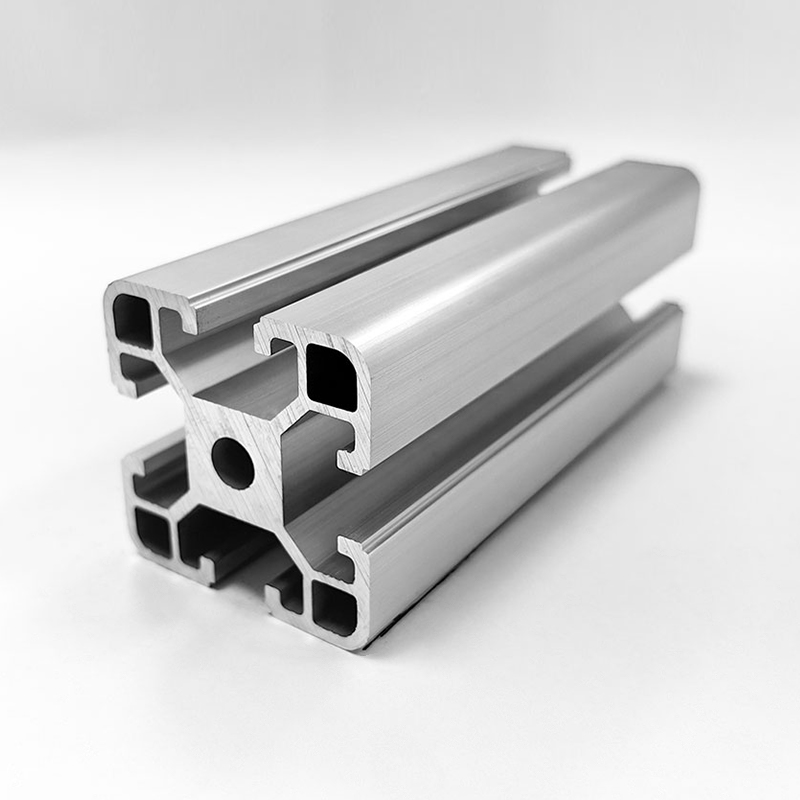

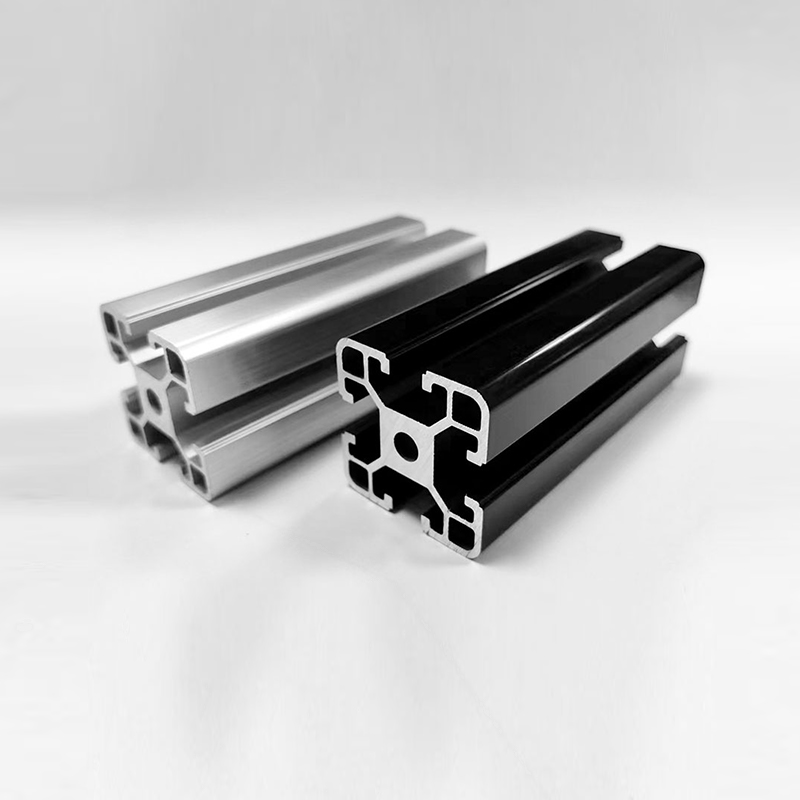

The HS-8-4040BA industrial aluminum profile focuses on a wide-slot differentiated design, with a standard 40mm*40mm cross-section and a unit weight of 1.49kg/m, stable structure, and better load-bearing performance than conventional profiles with the same wall thickness. Made of high-quality 6063-T5 aluminum alloy, after a special anodizing process, the surface presents a uniform and delicate silver or black color, combining decoration and corrosion resistance, and can be used for a long time in complex industrial environments. The profile adopts a widened T-slot design, with a slot width of 8.5mm (different from the conventional 8.2mm slot width) and a slot depth of 12.5mm, which can adapt to larger size European standard connectors, with firmer assembly and more uniform force, solving the problem of limited adaptation of conventional slot width. The Φ6.8 standard hole diameter design ensures precise assembly, no complex welding is required, supports modular rapid assembly, and greatly improves construction efficiency. The standard length is 6.02m, supporting one-stop services such as precise cutting and CNC deep processing. Direct supply from the source factory, which can be customized according to customer needs, adapting to scenarios with special requirements on slot width.
Applications: Suitable for scenarios that need to adapt to large-size connectors, such as heavy display stands, automation equipment brackets, workshop material shelves, heavy laboratory brackets and customized frame construction.

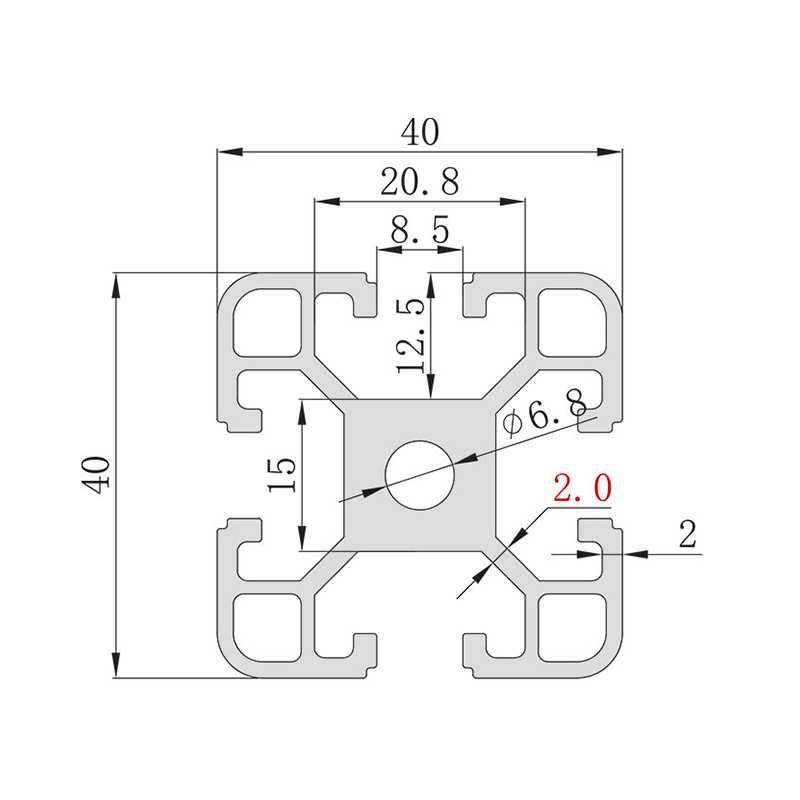

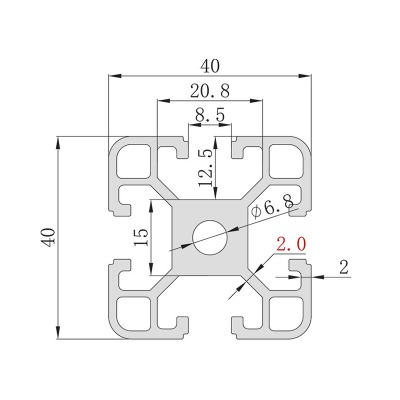

CAD Drawing Download
PREV：HS-8-4040C Universal T-Slot 4040 Aluminum Profile, 8.2mm Slot Width, 14mm Deep Slot, 2mm Wall Thickness Industrial AluminumNEXT：HS-8-4040B Thickened Load-Bearing T-Slot 4040 Aluminum Profile, 2.5mm Wall Thickness, 8.2mm Slot Width, Silver Industrial Aluminum
  • Specification
Model HS-8-4040BA
Cross-section dimensions 40mm*40mm
Unit weight 1.49kg/m
Surface treatment Anodized
Color Silver or black
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.5mm
Slot depth 12.5mm
Hole diameter Φ6.8
Wall thickness 2mm
  • Product Parameters

Model:

OB4040BA

Wall Thickness:

2.0mm

Unit Mass:

1.67kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
