40 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 40 Series Aluminum Extrusion Profile / HS-8-4040N2 High-Stability T-Slot 4040 Aluminum Profile, 2.3mm Wall Thickness, 8.2mm Slot Width, 13mm Slot Depth Industrial Aluminum

HS-8-4040N2 High-Stability T-Slot 4040 Aluminum Profile, 2.3mm Wall Thickness, 8.2mm Slot Width, 13mm Slot Depth Industrial Aluminum

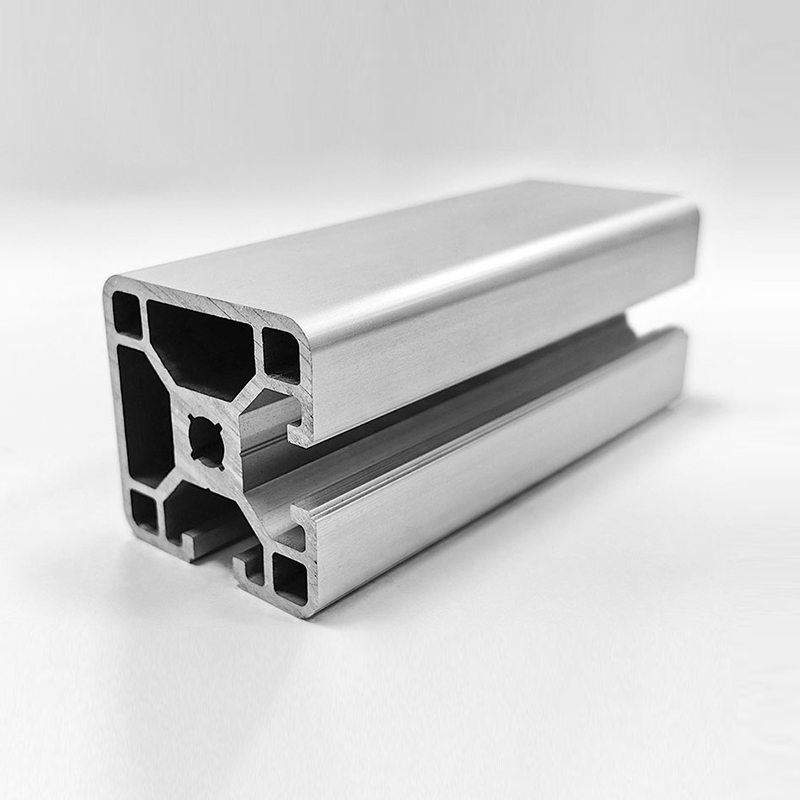

The HS-8-4040N2 industrial aluminum profile has similar parameters to HS-8-4040N1, but focuses on high stability differentiation. With a standard 40mm*40mm cross-section, 2.3mm wall thickness and a unit weight of 1.57kg/m, which is slightly higher than that of N1, it has a more stable structure and stronger deformation resistance, suitable for medium and light scenarios with higher stability requirements. Made of high-quality 6063-T5 aluminum alloy, after special processing, it has more excellent mechanical properties, can bear stable loads for a long time, and is not easy to deform. The surface is treated with anodizing, with a smooth silver appearance and strong metallic texture, with excellent corrosion and wear resistance, which can adapt to complex industrial environments. The profile adopts a standard T-slot design, with a slot width of 8.2mm and a slot depth of 13mm, compatible with various European standard connectors, supporting welding-free modular rapid assembly, and convenient and efficient construction. The Φ6.8 standard hole diameter ensures precise assembly and uniform force, with a standard length of 6.02m, supporting precise cutting, CNC deep processing and frame customization services. Direct supply from the source factory, which can meet the needs of scenarios with special stability requirements.
Applications: Suitable for the construction of precision automation equipment frames, heavy display stands, heavy laboratory brackets, workshop protective fences and medium and light assembly line load-bearing supports.

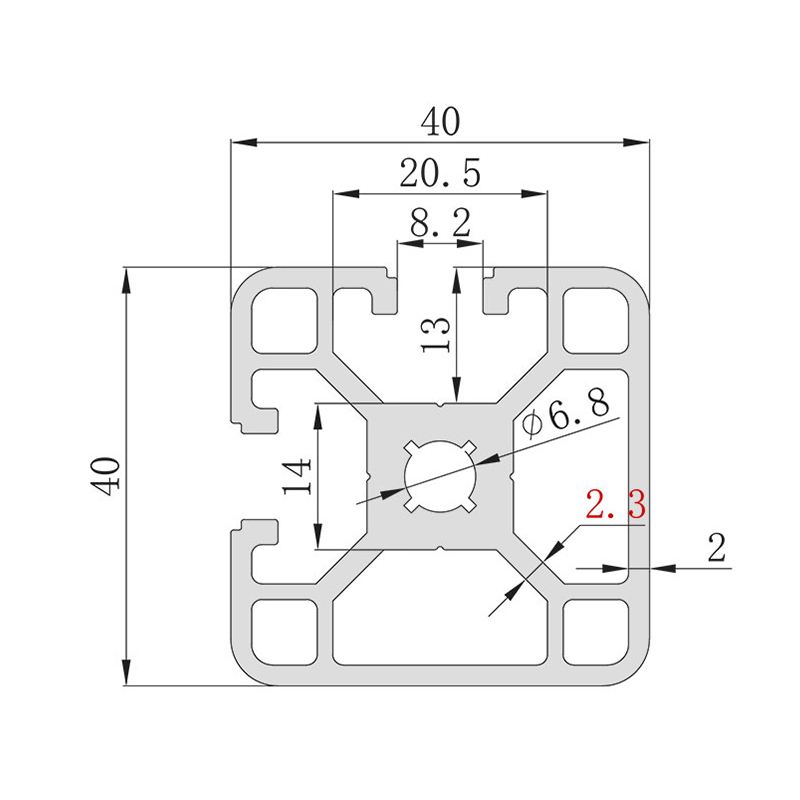

CAD Drawing Download
PREV：HS-8-4040N1 Precision Load-Bearing T-Slot 4040 Aluminum Profile, 2.3mm Wall Thickness, 8.2mm Slot Width, 13mm Slot Depth Industrial AluminumNEXT：HS-10-4040L Wide-Slot Lightweight T-Slot 4040 Aluminum Profile, 10.3mm Wide Slot, Φ10.5 Large Hole Diameter, 2.3mm Wall Thickness Industrial Aluminum
  • Specification
Model HS-8-4040N2
Cross-section dimensions 40mm*40mm
Unit weight 1.57kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 8.2mm
Slot depth 13mm
Hole diameter Φ6.8
Wall thickness 2.3mm
  • Product Parameters

Model:

OB4040N2

Wall Thickness:

2.3mm

Unit Mass:

1.74kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
