40 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 40 Series Aluminum Extrusion Profile / HS-10-4040 Wide-Slot Thickened T-Slot 4040 Aluminum Profile, 10.2mm Wide Slot, Φ10.2 Large Hole Diameter, 2.5mm Wall Thickness Industrial Aluminum

HS-10-4040 Wide-Slot Thickened T-Slot 4040 Aluminum Profile, 10.2mm Wide Slot, Φ10.2 Large Hole Diameter, 2.5mm Wall Thickness Industrial Aluminum

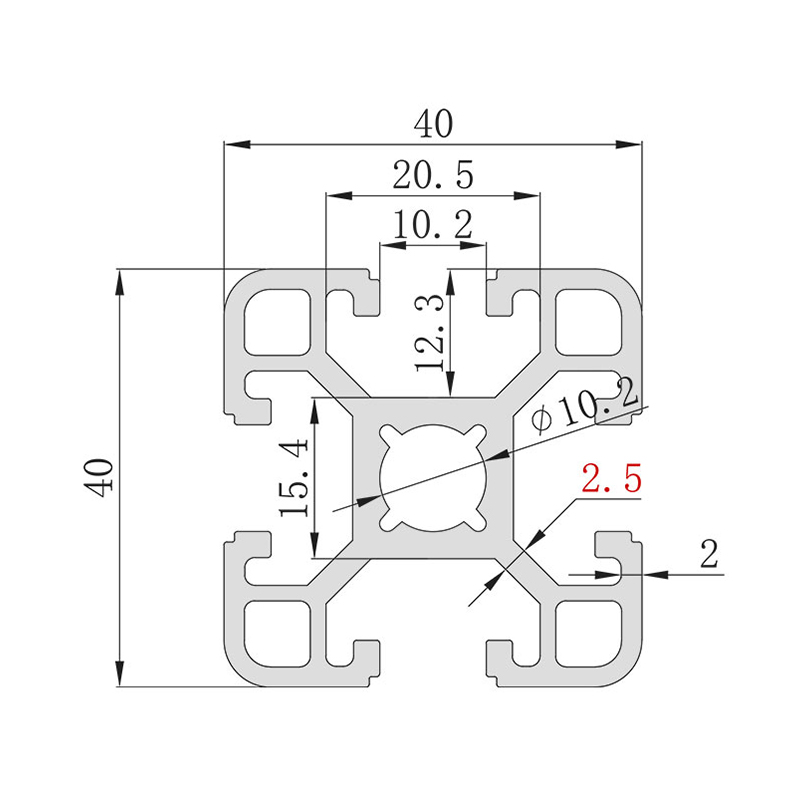

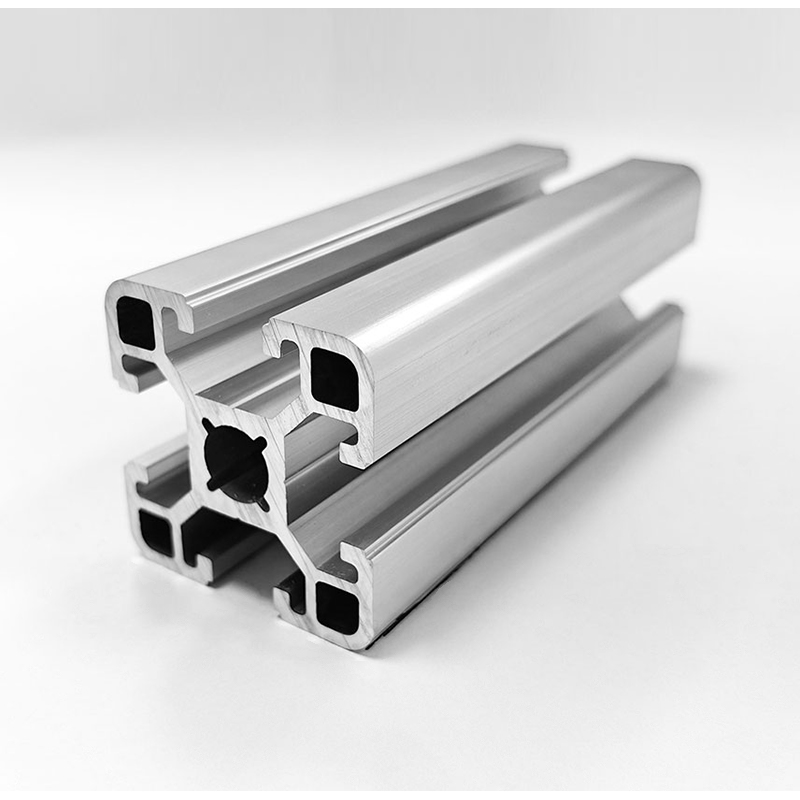

With a standard 40mm*40mm cross-section, 2.5mm thickened wall thickness and a unit weight of 1.61kg/m, the structural strength is significantly improved, and the load-bearing performance is better than that of the wide-slot lightweight models in the same series, suitable for medium and heavy scenarios. Made of high-quality 6063-T5 aluminum alloy, after a strict heat treatment process, it has excellent compression and deformation resistance, and can bear medium and heavy loads for a long time. The surface is treated with anodizing, with a simple and elegant silver appearance and strong metallic texture, and excellent corrosion resistance and wear resistance, which can adapt to complex industrial environments. The profile adopts a T-slot design, with a slot width of 10.2mm (slightly narrower than HS-10-4040L) and a slot depth of 12.3mm, adapting to various large-size European standard connectors; the Φ10.2 large hole diameter design is precisely adapted to the corresponding specifications of bolts, with uniform force and firm assembly. The standard length is 6.02m, supporting precise cutting, CNC deep processing and frame customization services. Direct supply from the source factory, quality guaranteed, adapting to scenarios with dual requirements for wide slots and load-bearing.
Applications: Suitable for the construction of medium and heavy automation equipment frames, heavy display stands, material shelves, workshop protective fences and medium and heavy frames that need to adapt to large-size connectors.

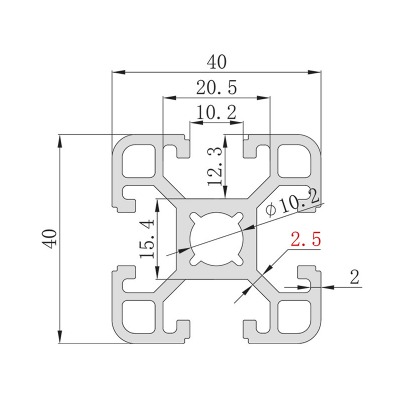

CAD Drawing Download
PREV：HS-10-4040L Wide-Slot Lightweight T-Slot 4040 Aluminum Profile, 10.3mm Wide Slot, Φ10.5 Large Hole Diameter, 2.3mm Wall Thickness Industrial AluminumNEXT：HS-8-4040CY Dual-Color Large Hole Diameter T-Slot 4040 Aluminum Profile, Φ12 Extra-Large Hole Diameter, 2.5mm Wall Thickness, 8.2mm Slot Width Industrial Aluminum
  • Specification
Model HS-10-4040
Cross-section dimensions 40mm*40mm
Unit weight 1.61kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-type
Slot width 10.2mm
Slot depth 12.3mm
Hole diameter Φ10.2mm
Wall thickness 2.5mm
  • Product Parameters

Model:

OB4040-10

Wall Thickness:

2.5mm

Unit Mass:

1.75kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
