20 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 20 Series Aluminum Extrusion Profile / Square Slot 2080 Aluminum Profile 8mm slot width Multi-slot reinforced structure Anodized treatment

Square Slot 2080 Aluminum Profile 8mm slot width Multi-slot reinforced structure Anodized treatment

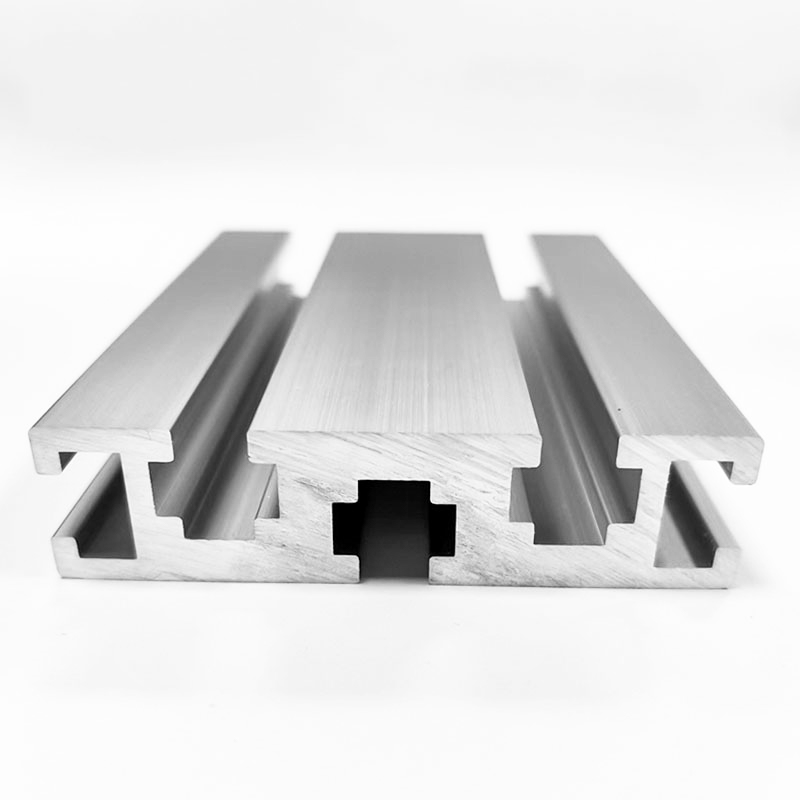

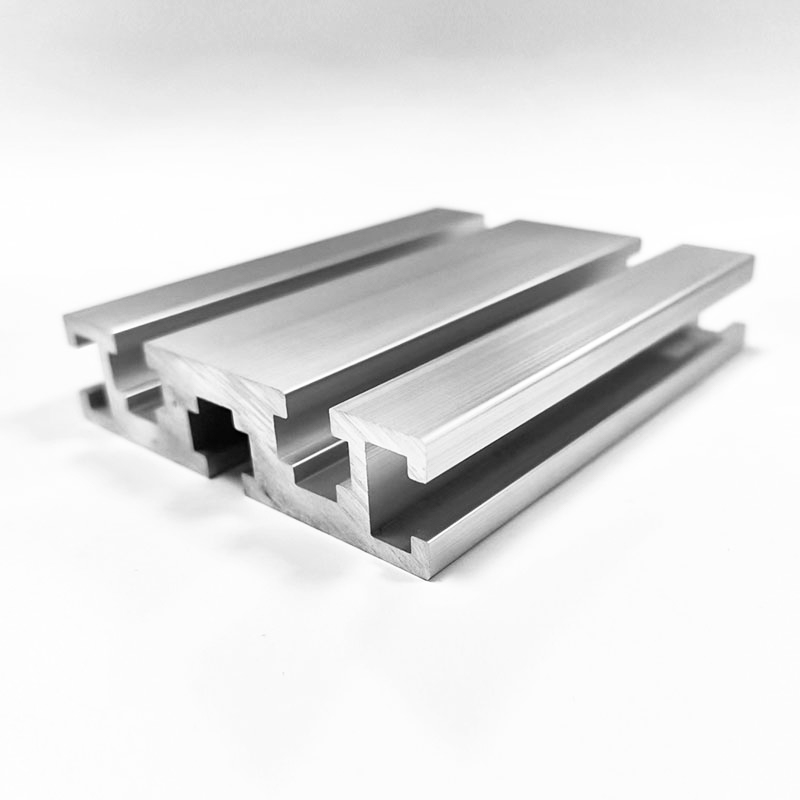

The 2080 aluminum profile is the heavy-load model of the 20 series, with dimensions of 20×80mm and an 8mm slot width, belonging to the national standard square slot system. The body is made of 6063-T5 aluminum alloy with anodized surface treatment. The 80mm face features a single-slot design on one side and a double-slot design on the other, which is notably different from the four-slot design on both sides of T-slot aluminum profiles. Compatible with M8/M6 square nuts with 14mm opposite sides and national standard 14F series T-nuts and bolts. Commonly used for manufacturing frames and bases of small CNC engraving machines, marking machines, individual cutting machines, grinding machines, and similar equipment. The wide face can serve as a stable sliding rail worktop, ensuring equipment operating precision.

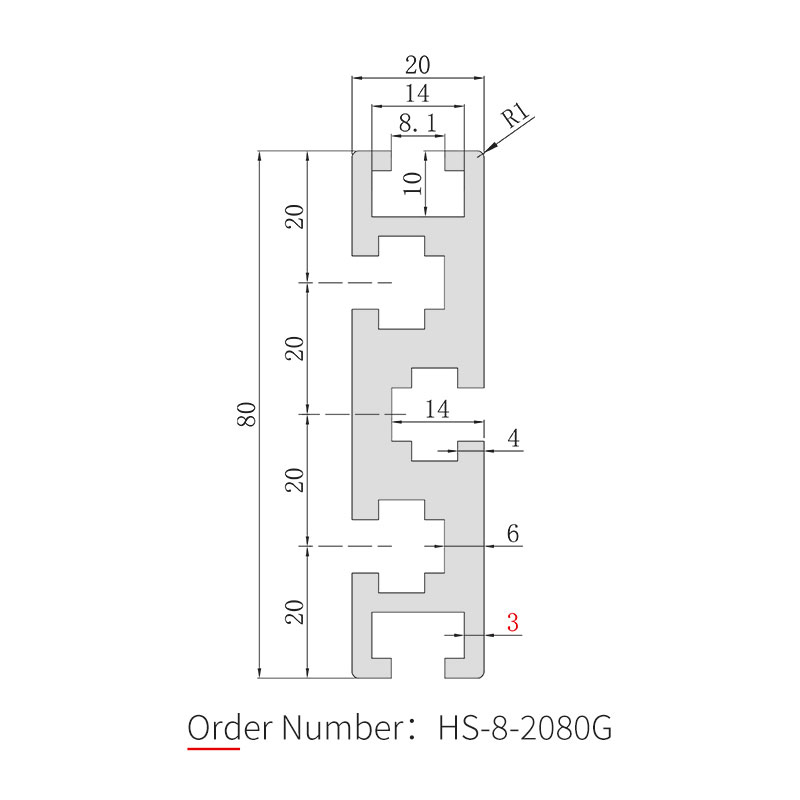

CAD Drawing Download
PREV：2080 Aluminum Profile Wide-face structure Multi-slot design 6mm slot width Heavy-load frame structureNEXT：20100 Industrial Aluminum Profile 20×100mm wide cross-section 6mm slot width Heavy-load frame structure
  • Specification

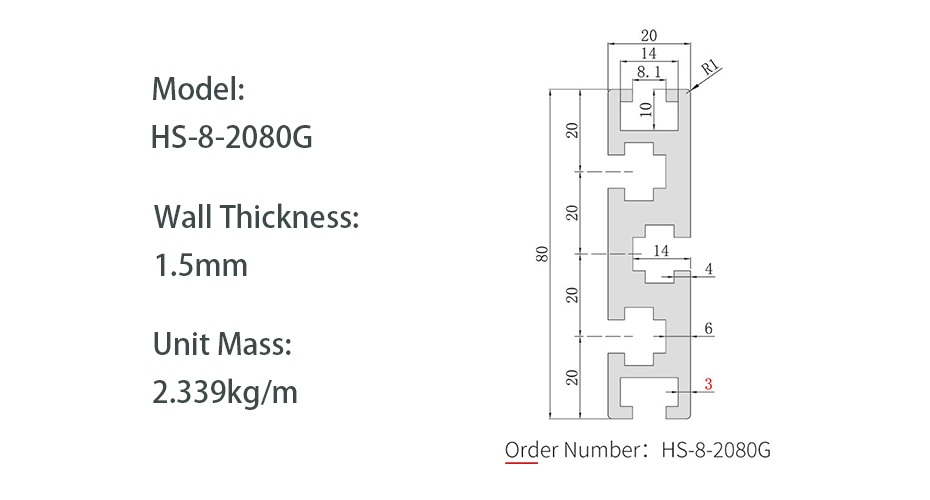

Model HS-8-2080G
Cross-sectional Dimensions 20mm × 80mm
Unit Weight 2.339 kg/m
Surface Treatment Anodized
Color  Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot Type T-slot
Slot Width 8.1mm
Slot Depth 14mm
Hole Diameter
Wall Thickness 1.5mm
  • Product Parameters

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
