2020N1 Aluminum Profile 6mm slot width Single-side closed slot Three-sided T-slot design Dust-proof and aesthetically pleasing

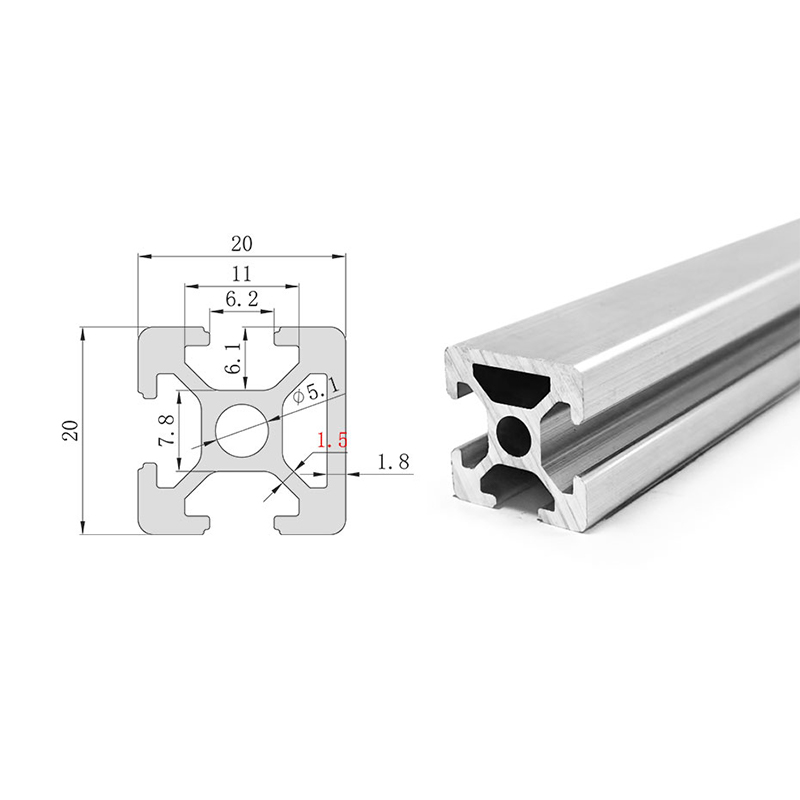

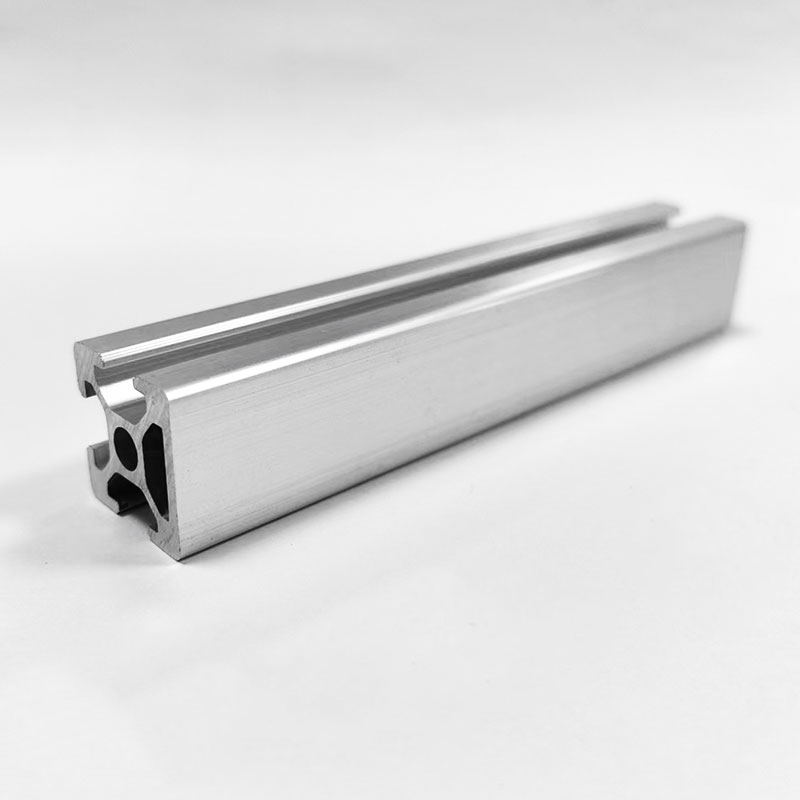

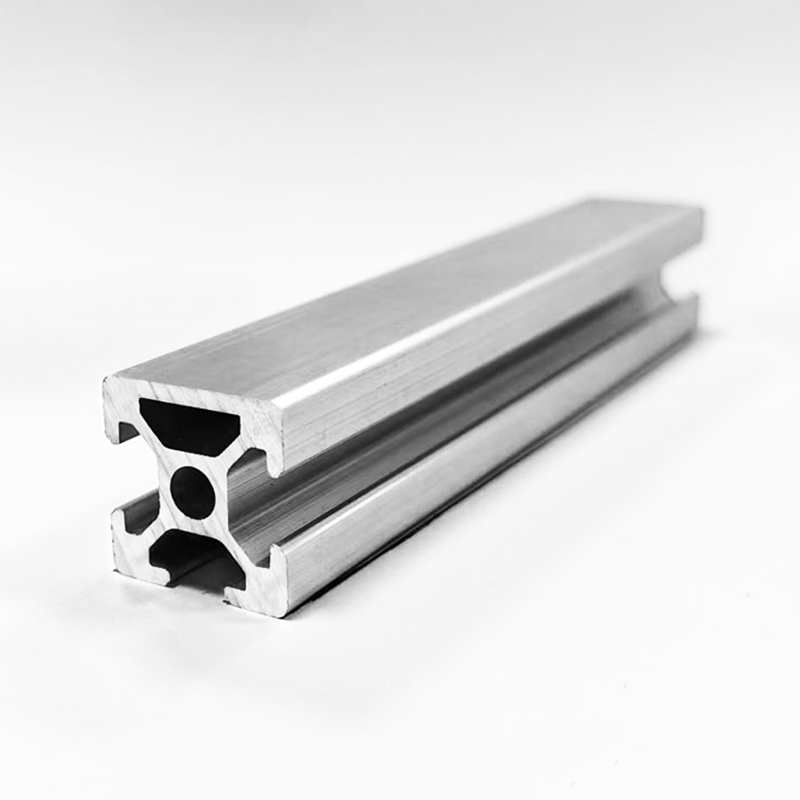

The 2020N1 aluminum profile is the single-sided closed slot model of the 20 series. Based on the standard 2020, one slot opening is changed to a closed design, with a cross-sectional dimension of 20×20mm. The body is made of 6063-T5 aluminum alloy with anodized surface treatment. The closed face effectively prevents dust and debris from entering, while enhancing the overall appearance. Commonly used for equipment door frame edges, operation table front panels, display cabinet frames, and visually sensitive areas where slot openings need to be concealed, balancing practicality and aesthetics.

CAD Drawing Download

PREV：2020R Arc Aluminum Profile 20×20mm rounded corner design 6mm slot width Anodized finish Impact-resistant and aesthetically pleasing NEXT：2020N2 double-side closed slot aluminum profile 20×20mm Adjacent-side slot design Smooth and aesthetically pleasing Classic closed slot aluminum profile

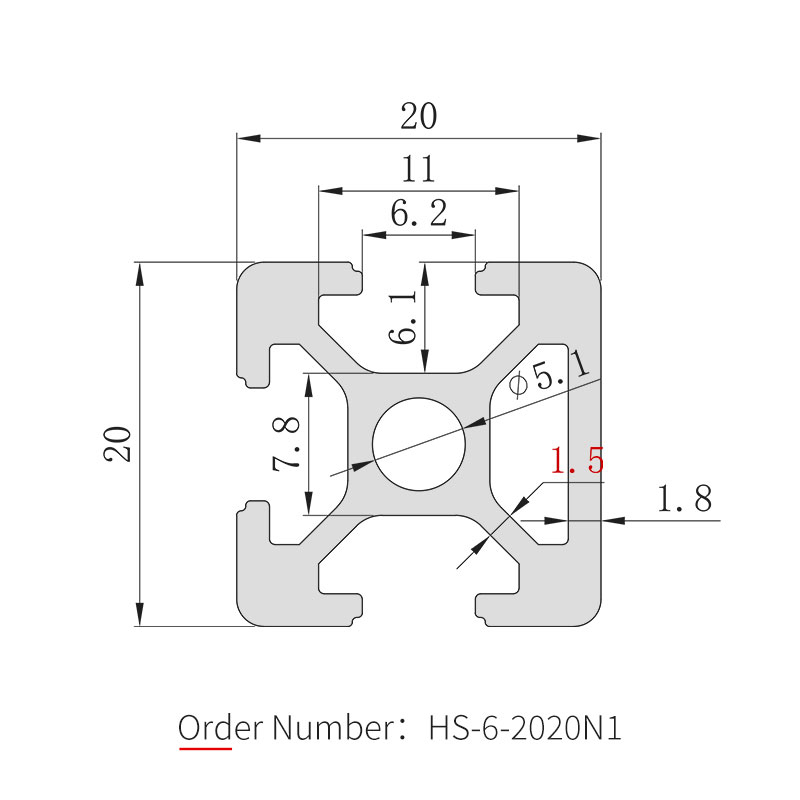

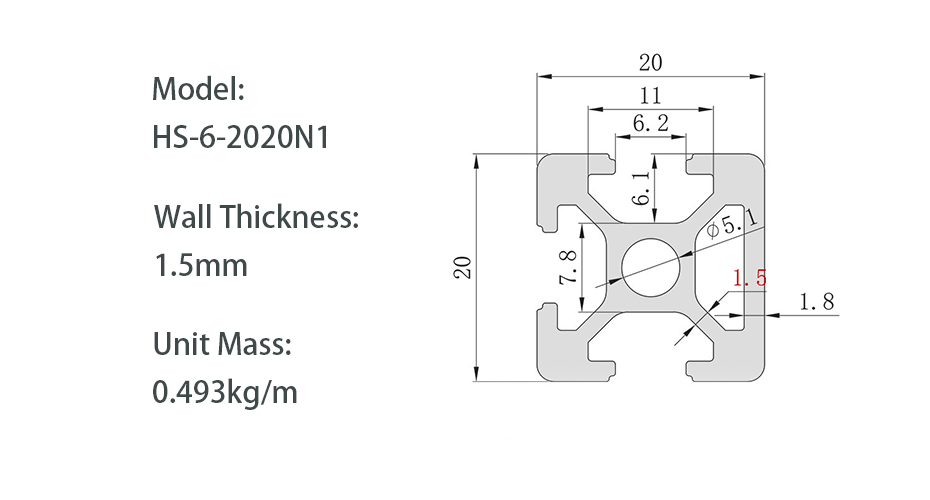

Specification

	Model	HS-6-2020N1
	Cross-sectional Dimensions	20mm × 20mm
	Unit Weight	0.493 kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	6.2mm
	Slot Depth	6.1mm
	Hole Diameter	Φ5.1
	Wall Thickness	1.5mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
