2020N2 double-side closed slot aluminum profile 20×20mm Adjacent-side slot design Smooth and aesthetically pleasing Classic closed slot aluminum profile

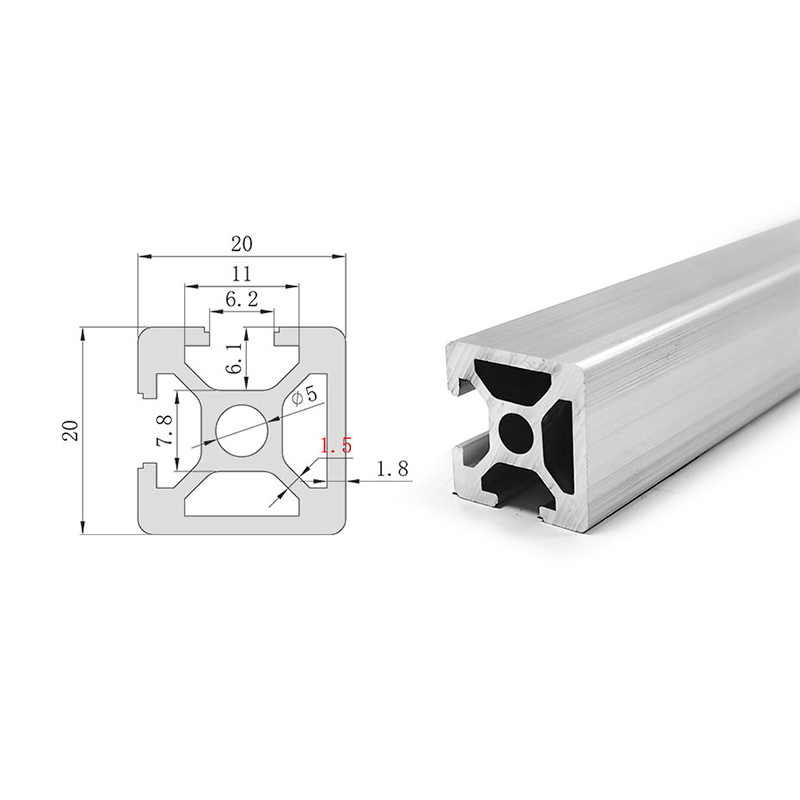

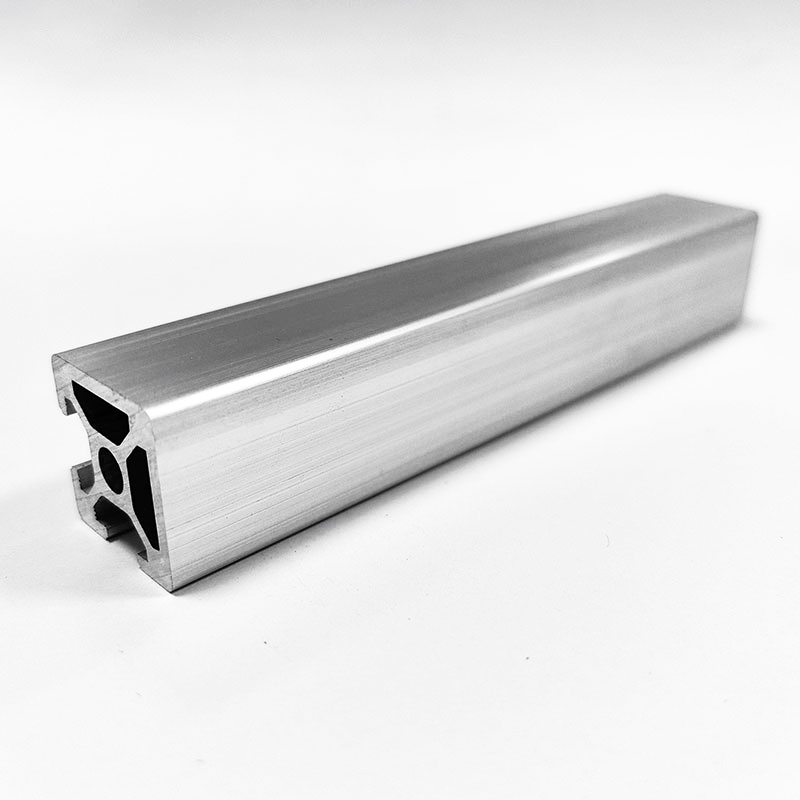

The 2020N2 aluminum profile is the double-sided closed slot model of the 20 series. Based on the standard 2020, two adjacent slot openings are closed while retaining the mounting slots on the other two sides, with a cross-sectional dimension of 20×20mm and a 6mm slot width. The body is made of 6063-T5 aluminum alloy with anodized surface treatment. The closed faces are smooth and slot-free, mainly used for structural connections in the middle sections of frames. After assembly, the inner and outer surfaces of the frame are smooth and groove-free, making cleaning easier while enhancing the overall visual appearance. Suitable for equipment enclosures, operation tables, and display racks with high requirements for aesthetics and cleanliness.

CAD Drawing Download

PREV：2020N1 Aluminum Profile 6mm slot width Single-side closed slot Three-sided T-slot design Dust-proof and aesthetically pleasing NEXT：2020 Square Slot Aluminum Profile 4mm slot width Suitable for lightweight frame structures

Specification

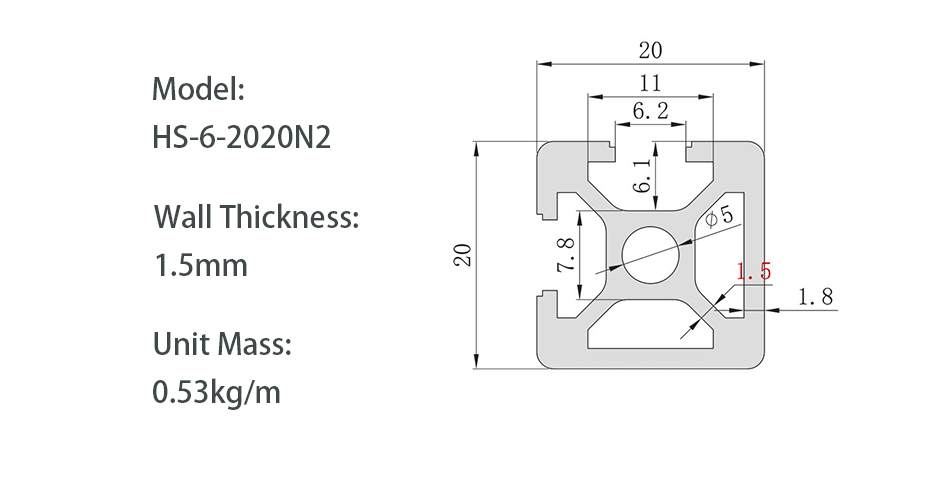

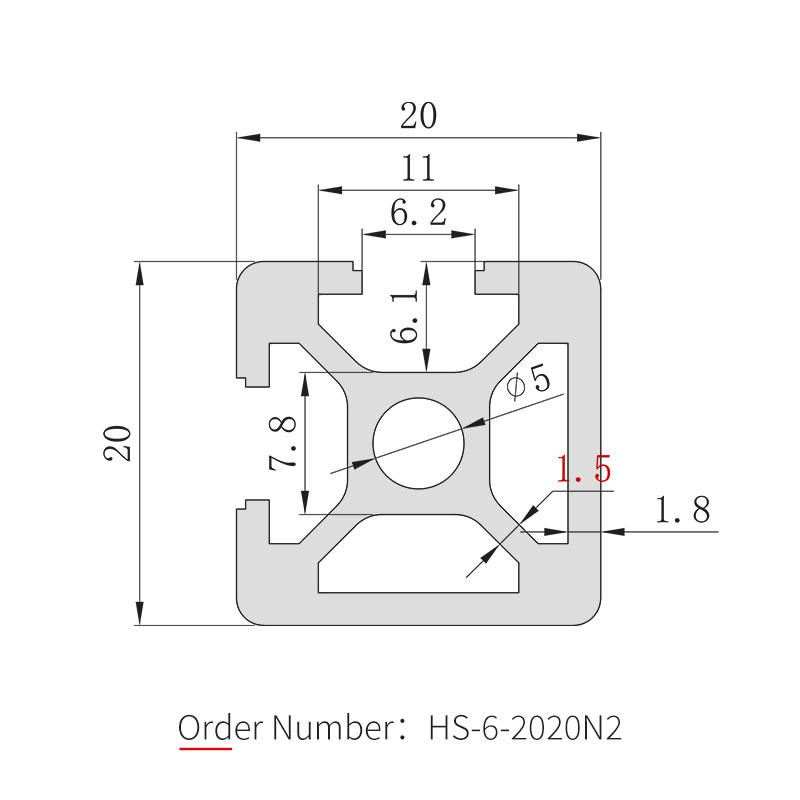

	Model	HS-6-2020N2
	Cross-sectional Dimensions	20mm × 20mm
	Unit Weight	0.53 kg/m
	Surface Treatment	Anodized
	Color	Silver
	Material	6063-T5 Aluminum Alloy
	Length	6.02m
	Slot Type	T-slot
	Slot Width	6.2mm
	Slot Depth	6.1mm
	Hole Diameter	Φ5
	Wall Thickness	1.5mm

Product Parameters

Technical Support

CUTTING
DRILLING
TAPPING
MILLING GROOVE

BENDING
WELDING
CNC MACHINING
STAMPING

Effective length

Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service

Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
