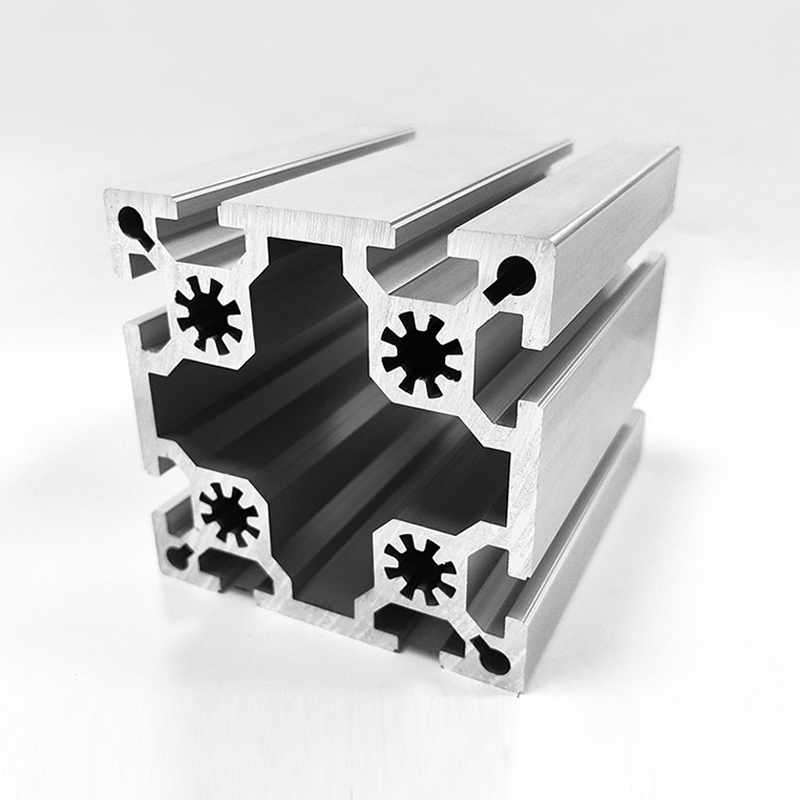

The HS-10-100100A is a premium 100x100mm T-slot aluminum extrusion expertly designed for the most demanding heavy-duty industrial applications. Featuring a reinforced 6.0mm wall thickness and a substantial unit mass of 10.05kg/m, this profile offers maximum strength and superior rigidity. The Anodized surface finish provides a long-lasting protective layer, ensuring resistance to wear and corrosion in various manufacturing environments. Engineered to support complex 3D structures and large-scale frames, it serves as a robust alternative to traditional steel structures.
 |

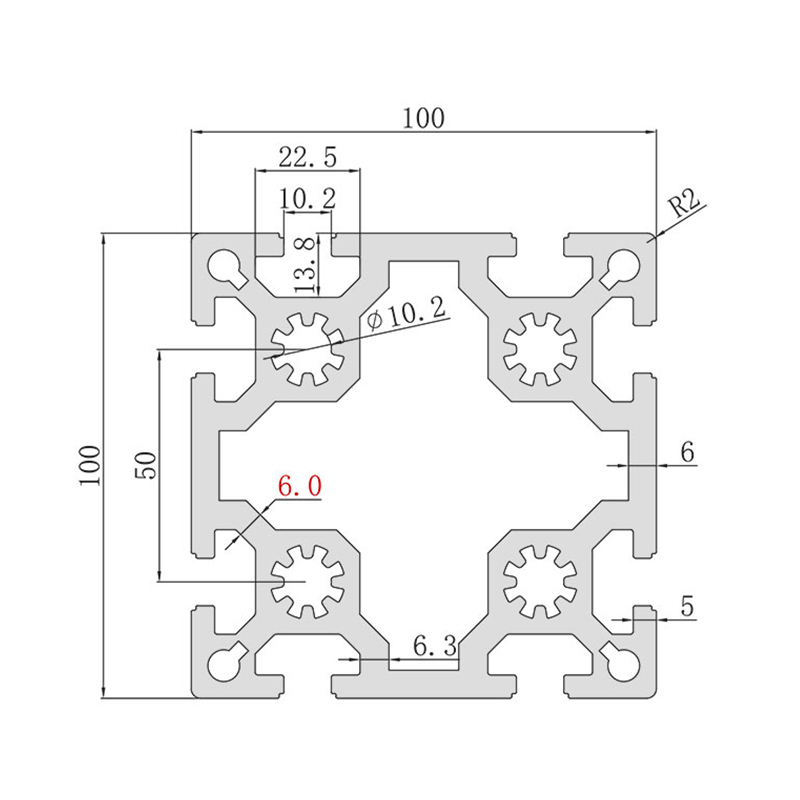

Model Number | HS-10-100100A |
| Section Size | 100mm * 100mm | |
| Unit Mass | 10.05 kg/m | |
| Surface Treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 Aluminum Alloy | |
| Standard Length | 6.02 m | |
| Slot Type | T-Slot | |
| Slot Width | 10.2 mm | |
| Slot Depth | 13.8 mm | |
| Center Hole Diameter | Φ10.2 | |
| Wall Thickness | 6.0 mm |
Model:
OB100100A
Wall Thickness:
6.0mm
Unit Mass:
10.35kg/m
Huishuo Aluminum Industry is professional China HS-10-100100A Ultra Heavy Duty T Slot Industrial Aluminum Extrusion Profile for Heavy Load Automation Support suppliers and HS-10-100100A Ultra Heavy Duty T Slot Industrial Aluminum Extrusion Profile for Heavy Load Automation Support company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
