30 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 30 Series Aluminum Extrusion Profile / HS-8-3040 30*40 T-Slot Aluminum Profile, 8.2mm Slot Width, 3mm Wall Thickness Silver Industrial Aluminum

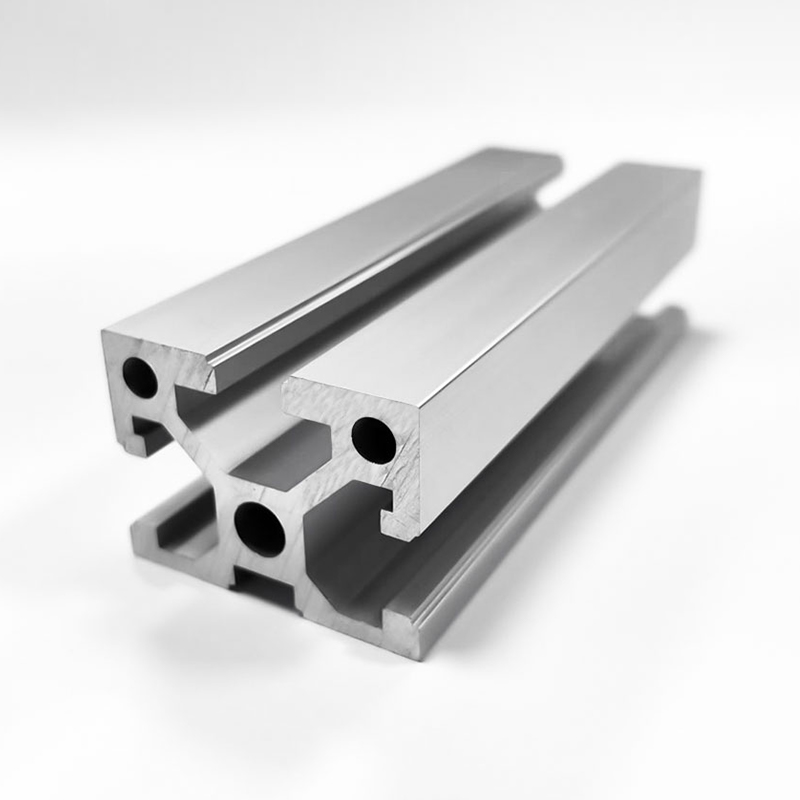

HS-8-3040 30*40 T-Slot Aluminum Profile, 8.2mm Slot Width, 3mm Wall Thickness Silver Industrial Aluminum

The HS-8-3040 industrial aluminum profile adopts an asymmetric 30mm*40mm cross-sectional design, different from the conventional 3030 specification. With a 3mm thickened wall thickness and a unit weight of 1.43kg/m, it has extremely high structural strength and outstanding load-bearing performance. Made of high-quality 6063-T5 aluminum alloy, it has excellent mechanical strength and toughness, can bear large loads, is not easy to deform, and is suitable for scenarios with high requirements on strength. The surface is treated with anodizing to present a uniform silver luster, with a strong metallic texture, and also has excellent corrosion resistance and wear resistance, is not easy to fading or deformation after long-term use. The profile adopts a standard T-slot design, with a slot width of 8.2mm and a slot depth of 14mm, which is much deeper than conventional profiles, compatible with more specifications of European standard connectors, with higher assembly flexibility, supporting welding-free modular rapid assembly. The standard length is 6.02m, supporting deep processing services such as precise cutting, drilling, and tapping. The source factory can customize the frame according to customer needs, adapting to various high-strength scenarios.
Applications:  Suitable for the construction of high-strength automation equipment frames, precision instrument brackets, heavy material shelves, workshop protective fences, and industrial high-strength frames.

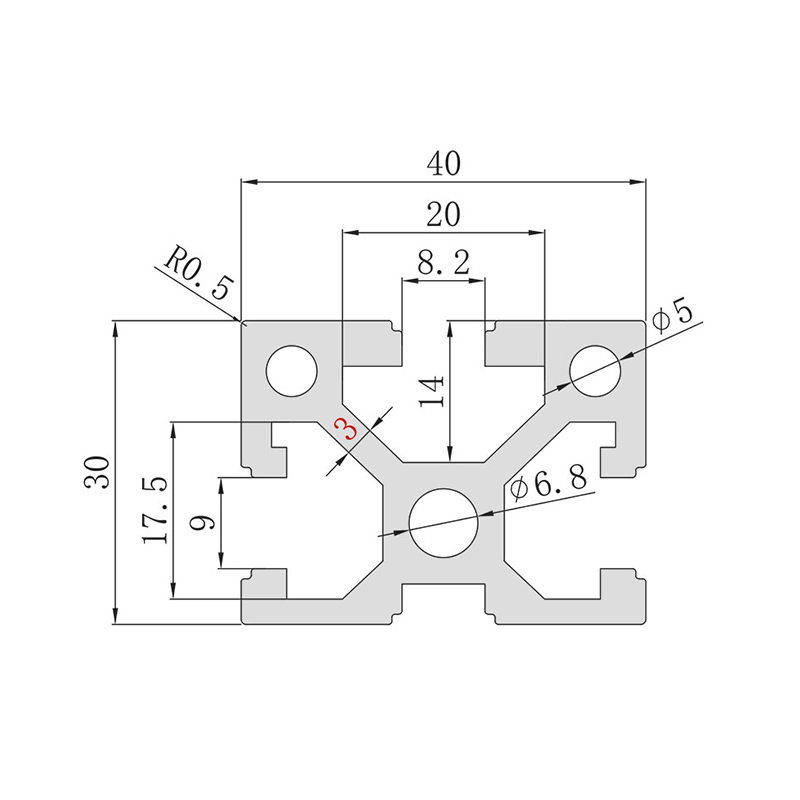

CAD Drawing Download
PREV：HS-6-3090G 30*90 Square Slot Aluminum Profile, 6mm Slot Width, 2.0mm Wall Thickness Silver Industrial AluminumNEXT：HS-8-3060 30*60 T-Slot Aluminum Profile, 8.2mm Slot Width, 2.0mm Wall Thickness Silver Industrial Aluminum
  • Specification
Model HS-8-3040
Cross-section dimensions 30mm*40mm
Unit weight 1.43kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-shaped
Slot width 8.2mm
Slot depth 14mm
Wall thickness 3mm
  • Product Parameters

Model:

OB3040

Wall Thickness:

3.0mm

Unit Mass:

1.51kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
