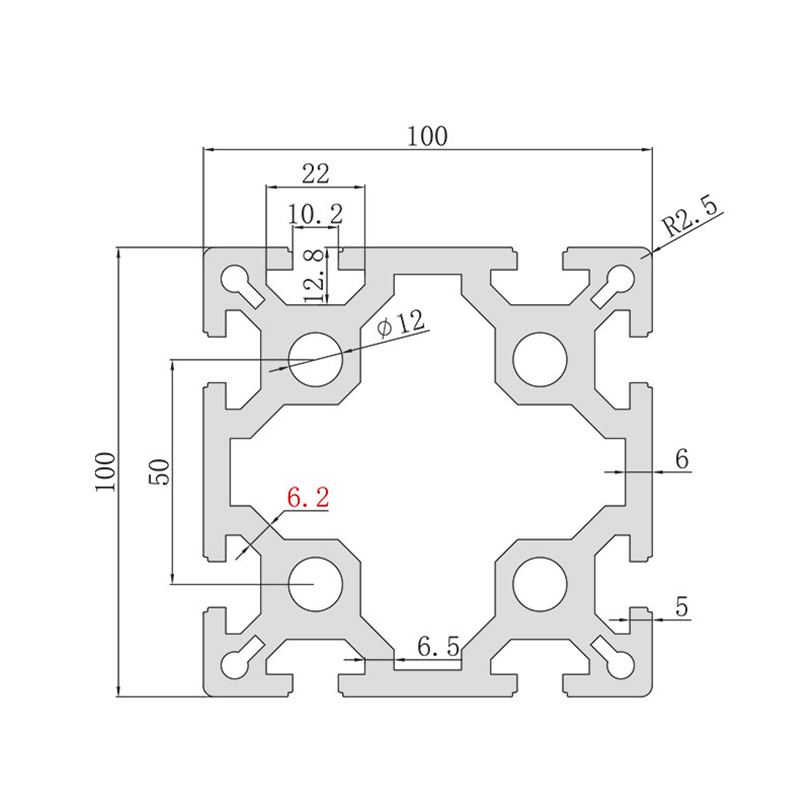

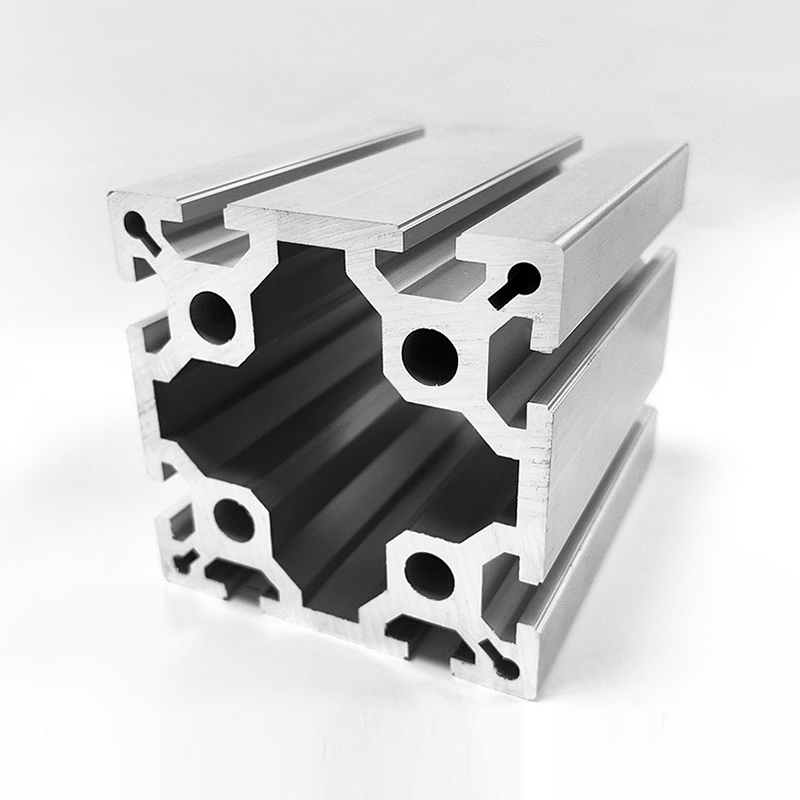

The HS-10-100100 is an exceptionally robust aluminum extrusion engineered for heavy-load industrial environments that demand maximum structural stability. This profile is defined by its massive 100mm x 100mm cross-section and an impressive 6.2mm wall thickness, providing the necessary rigidity and maximum strength for complex 3D structures. Manufactured from high-grade 6063-T5 aluminum alloy, it possesses a unit mass of 10.33kg/m, ensuring a high strength-to-weight ratio for demanding framing projects. The surface undergoes a professional silver anodized treatment, which not only enhances the industrial aesthetic but also offers long-lasting protection against corrosion and wear. Functionally, the HS-10-100100 features a precision-engineered T-slot with a 10.2mm width and a 12.8mm depth, making it fully compatible with a wide range of standard industrial fasteners.
 |
Model | HS-10-100100 |
| Section Size | 100mm * 100mm | |
| Unit Mass | 10.33 kg/m | |
| Material | 6063-T5 Aluminum Alloy | |
| Surface Treatment | Silver Anodized | |
| Color | Silver | |
| Wall Thickness | 6.2 mm | |
| Slot Type | T-Slot | |
| Slot Width | 10.2 mm | |
| Slot Depth | 12.8 mm | |
| Hole Diameter | Φ12 | |
| Standard Length | 6.02 m |
Model:
OB100100
Wall Thickness:
6.2mm
Unit Mass:
10.64kg/m
