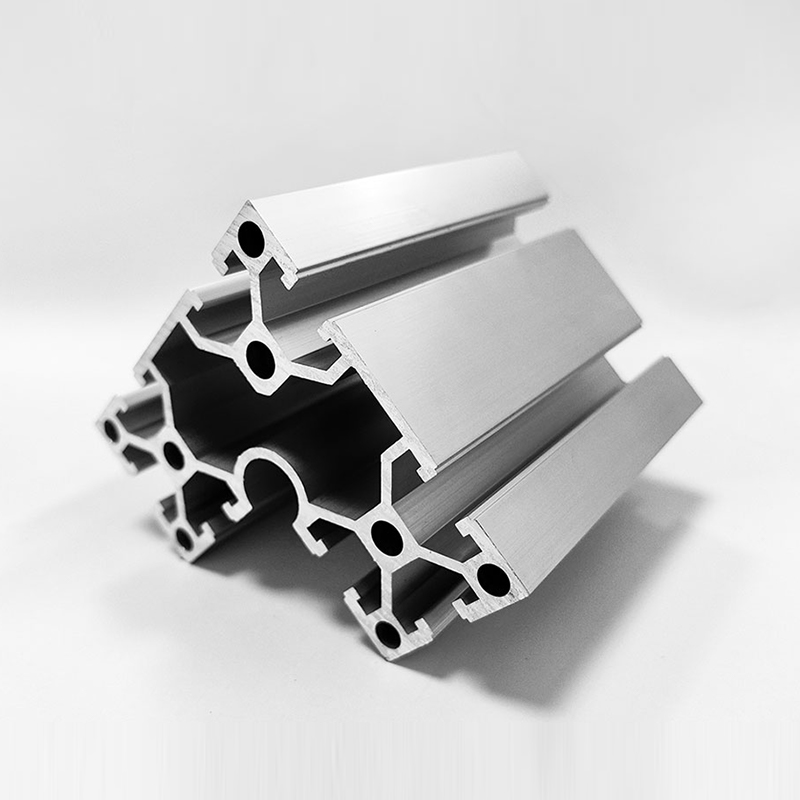

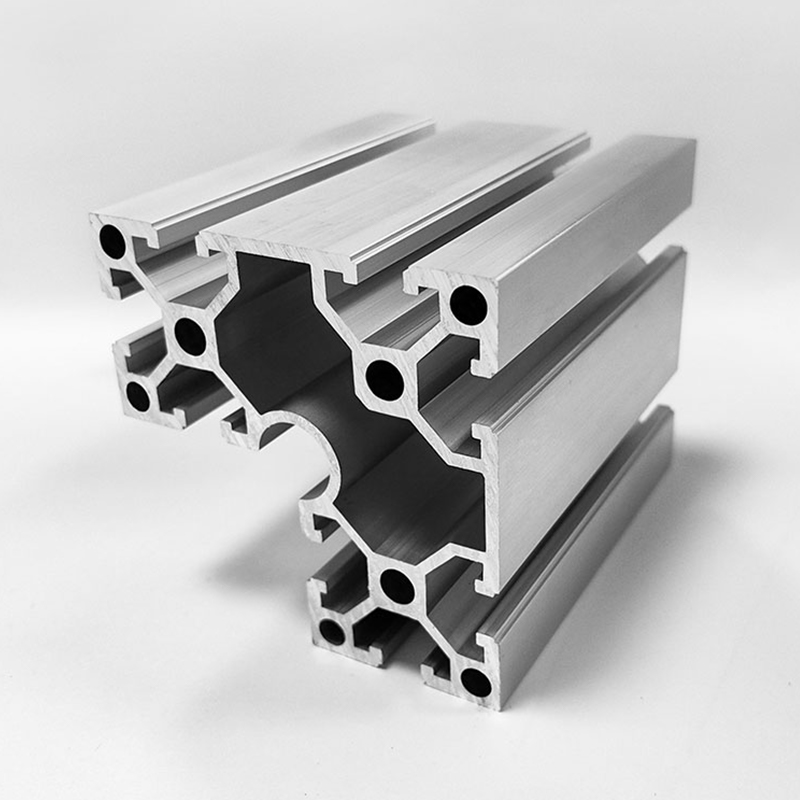

Focusing on precision assembly design, it is made of high-quality 6063-T5 aluminum alloy, after precision extrusion and anodizing double process treatment, the surface is uniformly delicate silver, high dimensional accuracy, no obvious defects, corrosion resistance and wear resistance are better than conventional profiles. Adopting an 8.3mm precision T-slot structure with a 14mm deep slot, the slot size error is small, the fit with the connector is extremely high, precise and firm after assembly, and modular precision assembly can be realized without welding, with convenient construction and good forming effect. The 2.4mm wall thickness combined with 80mm*80mm square cross-section, unit mass 3.96kg/m, solid structure and moderate self-weight, suitable for medium-light frames with certain requirements for assembly precision, supporting deep processing services such as precision cutting and drilling, direct supply from the source factory, reliable quality.
 |
Model | HS-8-8840Z |

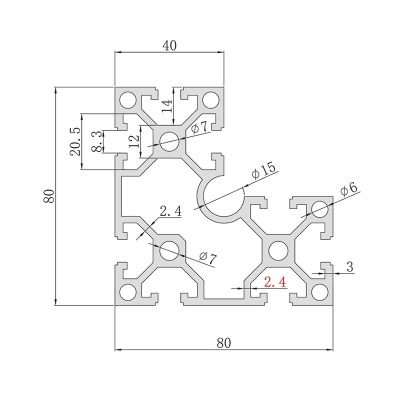

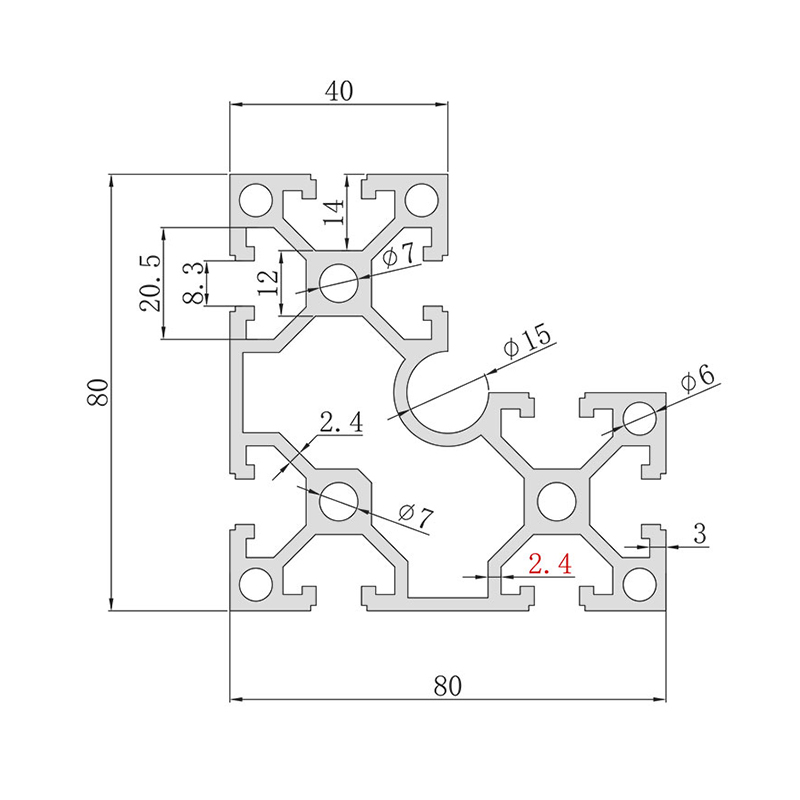

| Cross-section dimensions | 80mm*80mm | |
| Unit weight | 3.96kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-shaped | |
| Slot width | 8.3mm | |
| Slot depth | 14mm | |
| Wall thickness | 2.4mm |
Model:
OB8840Z
Wall Thickness:
2.4mm
Unit Mass:
4.08kg/m
Huishuo Aluminum Industry is professional China HS-8-8840Z Precision Deep-Slot T-Slot Industrial Aluminum Profile, 80 Square Silver Precision Assembly Aluminum suppliers and HS-8-8840Z Precision Deep-Slot T-Slot Industrial Aluminum Profile, 80 Square Silver Precision Assembly Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
