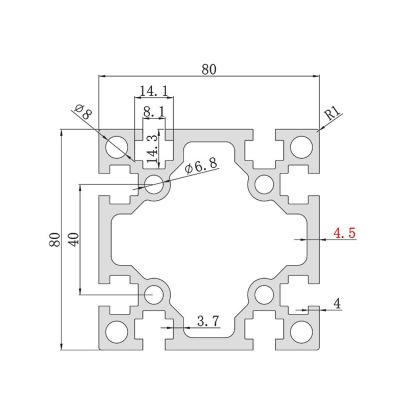

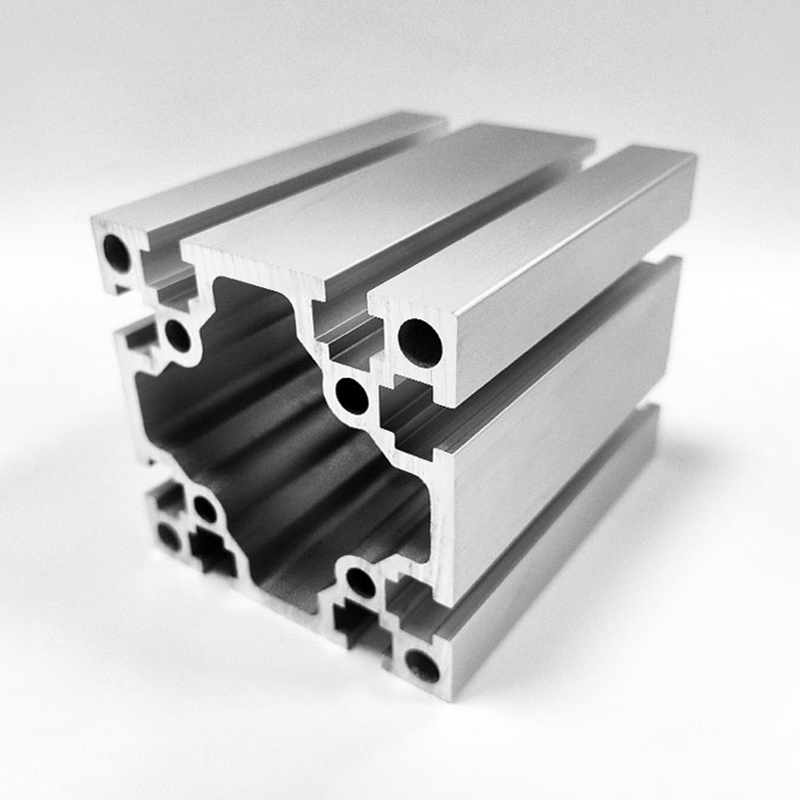

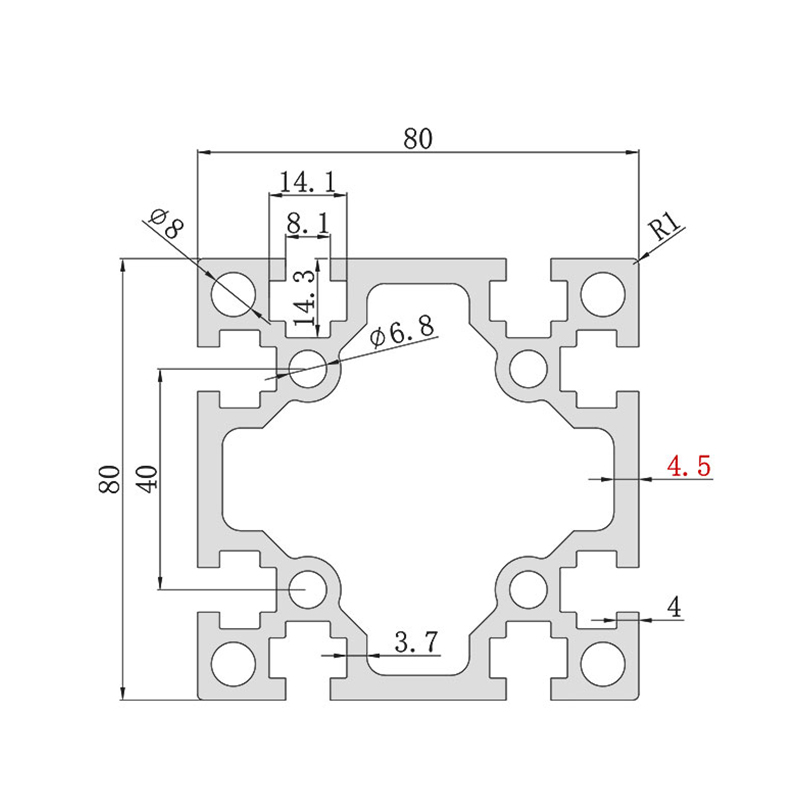

Adopting a 4.5mm thick-wall square-slot design, different from conventional thin-wall square-slot profiles, the structural strength and load-bearing capacity are greatly improved. The 8.1mm wide square-slot with 14.3mm deep slot, the national standard square-slot structure has strong locking force, suitable for special square connectors, firm and stable assembly, and modular assembly can be completed without complex construction tools, adapting to fixed heavy-duty scenarios. Made of 6063-T5 aluminum alloy, after strict anodizing treatment, the surface is full and uniform silver with a strong metallic texture, excellent corrosion resistance and deformation resistance, can bear heavy loads for a long time, and adapts to various complex industrial environments. The 80mm*80mm square cross-section, combined with a unit mass of 5.25kg/m, makes the structure solid and heavy, supporting precision cutting, customized deep processing services, direct supply from the source factory, quality guaranteed, suitable for heavy-duty fixed scenarios such as heavy-duty fixed frames, equipment bases, and heavy-duty display stands.
 |
Model | HS-8-8080GA |
| Cross-section dimensions | 80mm*80mm | |
| Unit weight | 5.25kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | Square | |
| Slot width | 8.1mm | |
| Slot depth | 14.3mm | |
| Wall thickness | 4.5mm |
Model:
GB8080GA
Wall Thickness:
4.5mm
Unit Mass:
5.41kg/m
Huishuo Aluminum Industry is professional China HS-8-8080GA Thick-Wall Square-Slot Industrial Aluminum Profile, 80 Square Silver Strong Load-Bearing Aluminum suppliers and HS-8-8080GA Thick-Wall Square-Slot Industrial Aluminum Profile, 80 Square Silver Strong Load-Bearing Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
