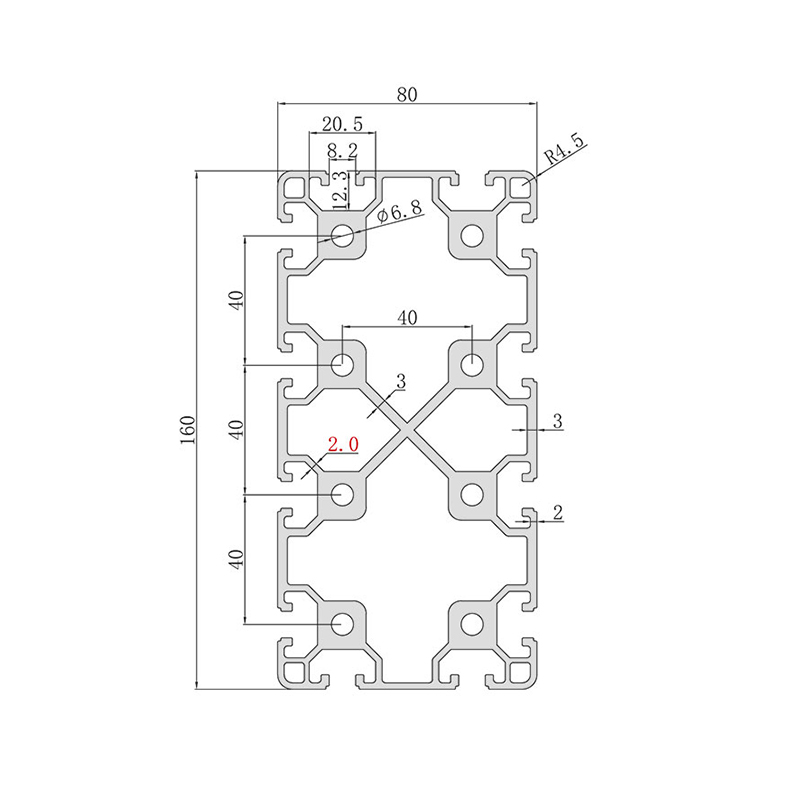

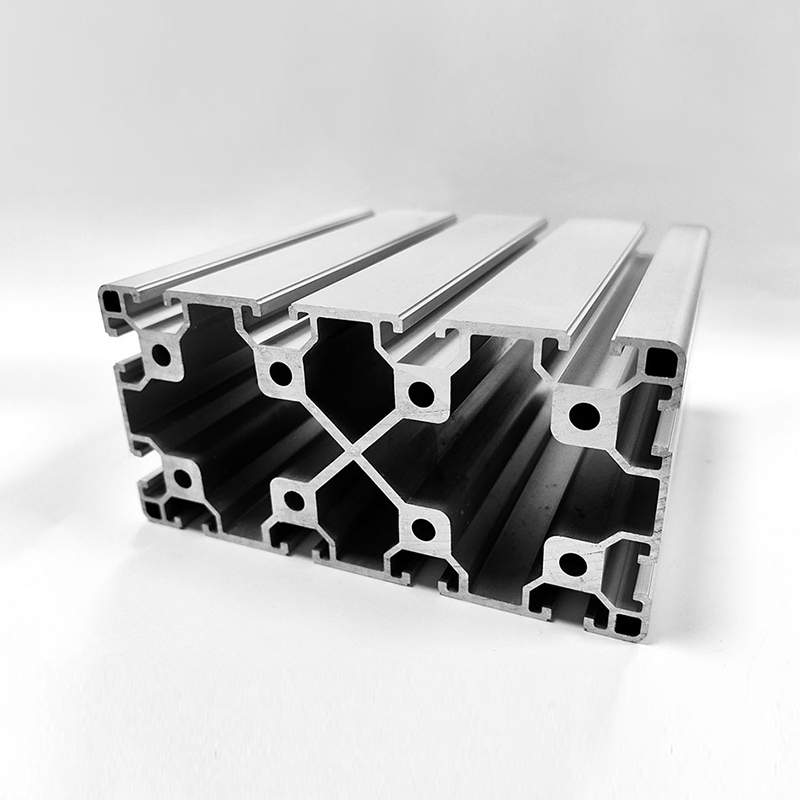

Adopting an 80mm*160mm extra-wide rectangular cross-sectional design, it is a model with outstanding heavy-duty performance among wide profiles, with a large support area, which can adapt to the construction needs of extra-large span and heavy-duty wide scenarios, complying with the design standards of industrial wide frames. Made of high-quality 6063-T5 aluminum alloy, after strict heat treatment and anodizing double process treatment, the surface is uniformly delicate silver with a full metallic texture, which has excellent compression and deformation resistance, can bear heavy loads for a long time, adapts to various complex and harsh industrial environments, and has a long service life. Equipped with an 8.2mm wide T-slot with a depth of 12.3mm, suitable for various heavy-duty T-type connectors, firm assembly and strong stability, the Φ6.8mm hole diameter design meets the fixing needs of heavy-duty scenarios, the 2mm wall thickness combined with a unit mass of 8.74kg/m, balancing structural strength and assembly flexibility, supporting customized deep processing services, direct supply from the source factory, suitable for heavy-duty wide scenarios such as large industrial wide frames and heavy equipment protection frames.
 |
Model | HS-8-80160 |
| Cross-section dimensions | 80mm*160mm | |
| Unit weight | 8.74kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 8.2mm | |
| Slot depth | 12.3mm | |
| Hole diameter | Φ6.8 | |
| Wall thickness | 2mm |
Model:
OB80160
Wall Thickness:
2.0mm
Unit Mass:
9.05kg/m
Huishuo Aluminum Industry is professional China HS-8-80160 Extra-Wide T-Slot Industrial Aluminum Profile, 80*160 Silver Heavy-Duty Wide Aluminum suppliers and HS-8-80160 Extra-Wide T-Slot Industrial Aluminum Profile, 80*160 Silver Heavy-Duty Wide Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
