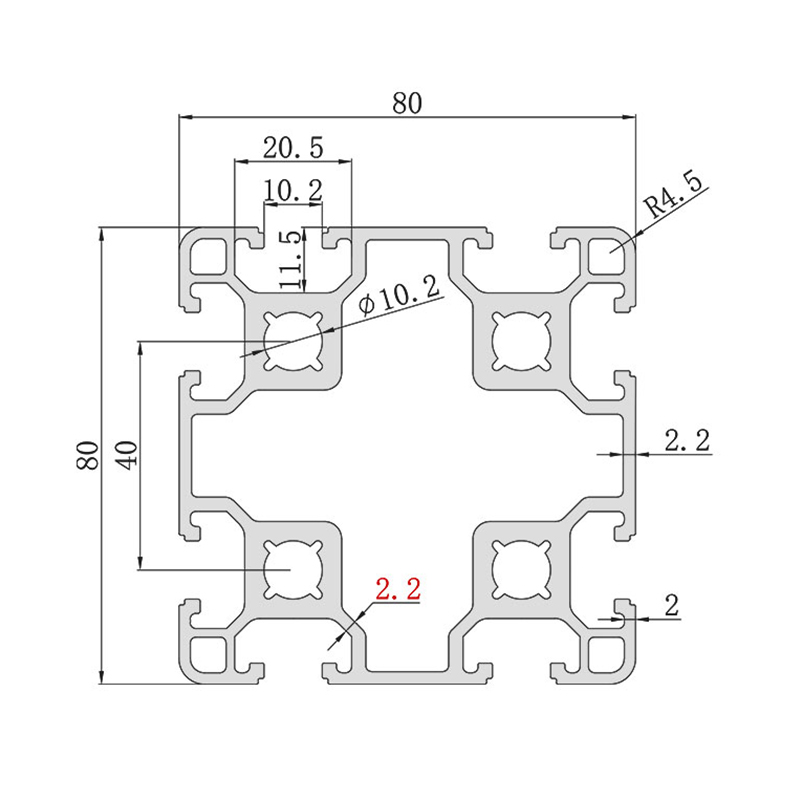

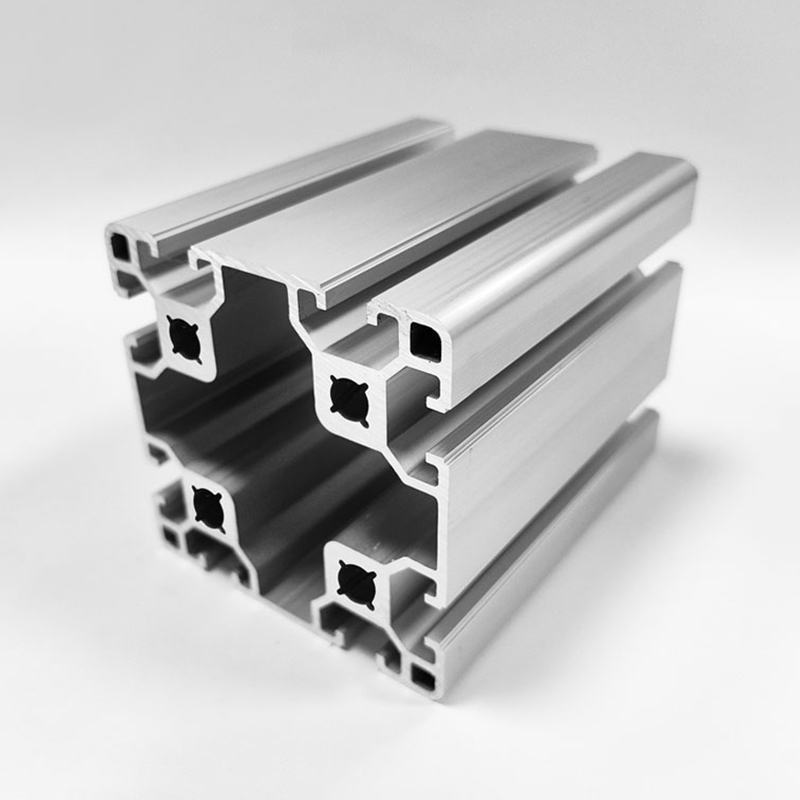

The core highlight is the 10.2mm wide slot width T-slot design. Different from conventional narrow-slot profiles, the slot depth is 11.5mm, the slot space is sufficient, which can adapt to larger specifications of T-type connectors, the assembly flexibility is greatly improved, and modular assembly can be realized without welding, adapting to complex construction needs. Made of 6063-T5 aluminum alloy, after strict anodizing treatment, the surface is full and shiny silver with a strong metallic texture, excellent corrosion resistance and wear resistance, and can be used in various industrial scenarios for a long time. The 80mm*80mm square cross-section, combined with 2.2mm wall thickness, unit mass 4.7kg/m, light in self-weight and balancing structural stability, Φ10.2mm large hole diameter design, suitable for the fixing needs of heavy-duty connectors, supporting a variety of deep processing services, direct supply from the source factory, suitable for medium-heavy load frame construction with high requirements for assembly flexibility and adaptability.
 |
Model | HS-10-8080 |
| Cross-section dimensions | 80mm*80mm | |
| Unit weight | 4.7kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 10.2mm | |
| Slot depth | 11.5mm | |
| Hole diameter | Φ10.2mm | |
| Wall thickness | 2.2mm |
Model:
OB8080-10
Wall Thickness:
2.2mm
Unit Mass:
4.84kg/m
Huishuo Aluminum Industry is professional China HS-10-8080 Large Slot Width T-Slot Industrial Aluminum Profile, 80 Square Silver High-Adaptability Aluminum suppliers and HS-10-8080 Large Slot Width T-Slot Industrial Aluminum Profile, 80 Square Silver High-Adaptability Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
