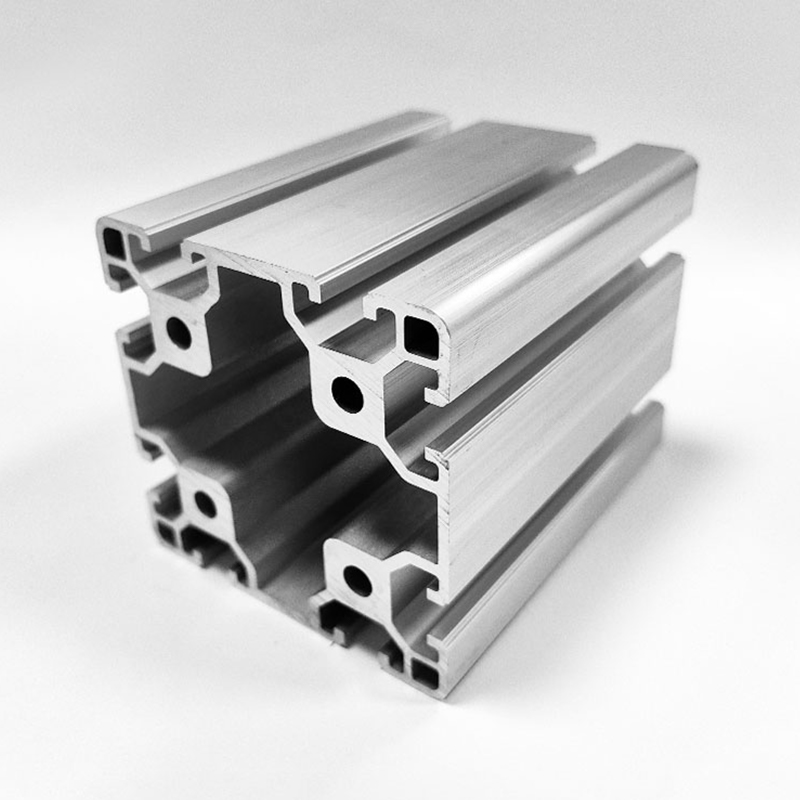

Adopting an 80mm*80mm large-size square cross-sectional design, compared with conventional small cross-section profiles, the support area is greatly improved, suitable for the basic construction needs of medium-heavy load scenarios. Made of high-quality 6063-T5 aluminum alloy, after high-precision anodizing treatment, the surface is uniformly delicate silver, and the formed oxide film is dense and wear-resistant, with excellent corrosion resistance, which can be used stably in various industrial environments for a long time. Equipped with an 8.2mm wide T-slot with a depth of 12.3mm, the slot body is regular and smooth, suitable for corresponding specifications of T-type connectors, enabling modular rapid assembly without welding, with efficient and convenient construction; the Φ6.8mm hole diameter design meets the fixing needs of medium-heavy load scenarios, the 2.5mm wall thickness combined with a unit mass of 4.83kg/m, the structure is solid and the self-weight is reasonable, the load-bearing performance is balanced, supporting deep processing such as precision cutting and drilling, direct supply from the source factory, suitable for the construction of various medium-heavy load square frames and equipment frames.
 |

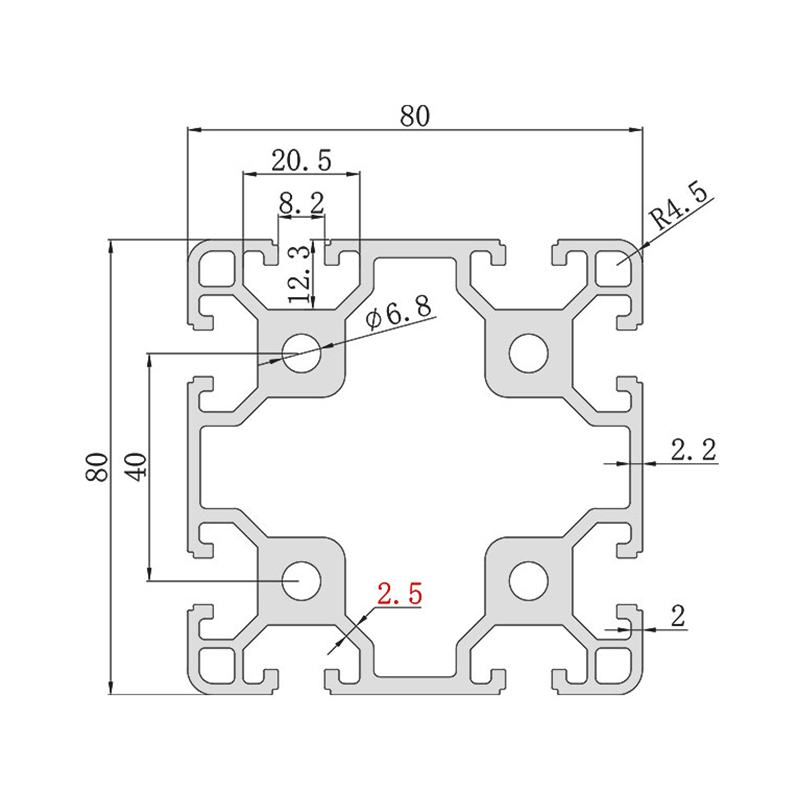

Model | HS-8-8080 |
| Cross-section dimensions | 80mm*80mm | |
| Unit weight | 4.83kg/m | |
| Surface treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 aluminum alloy | |
| Length | 6.02m | |
| Slot type | T-type | |
| Slot width | 8.2mm | |
| Slot depth | 12.3mm | |
| Hole diameter | Φ6.8 | |
| Wall thickness | 2.5mm |
Model:
OB8080
Wall Thickness:
2.5mm
Unit Mass:
4.97kg/m
Huishuo Aluminum Industry is professional China HS-8-8080 Large Cross-Section T-Slot Industrial Aluminum Profile, 80 Square Silver Medium-Heavy Load Aluminum suppliers and HS-8-8080 Large Cross-Section T-Slot Industrial Aluminum Profile, 80 Square Silver Medium-Heavy Load Aluminum company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
