40 Series Aluminum Extrusion Profile

Home / Products / Industrial Aluminum Extrusion Profiles / 40 Series Aluminum Extrusion Profile / HS-8-4040F Economical T-Slot 4040 Aluminum Profile, 2.0mm Wall Thickness, 14mm Deep Slot, Silver Industrial Aluminum

HS-8-4040F Economical T-Slot 4040 Aluminum Profile, 2.0mm Wall Thickness, 14mm Deep Slot, Silver Industrial Aluminum

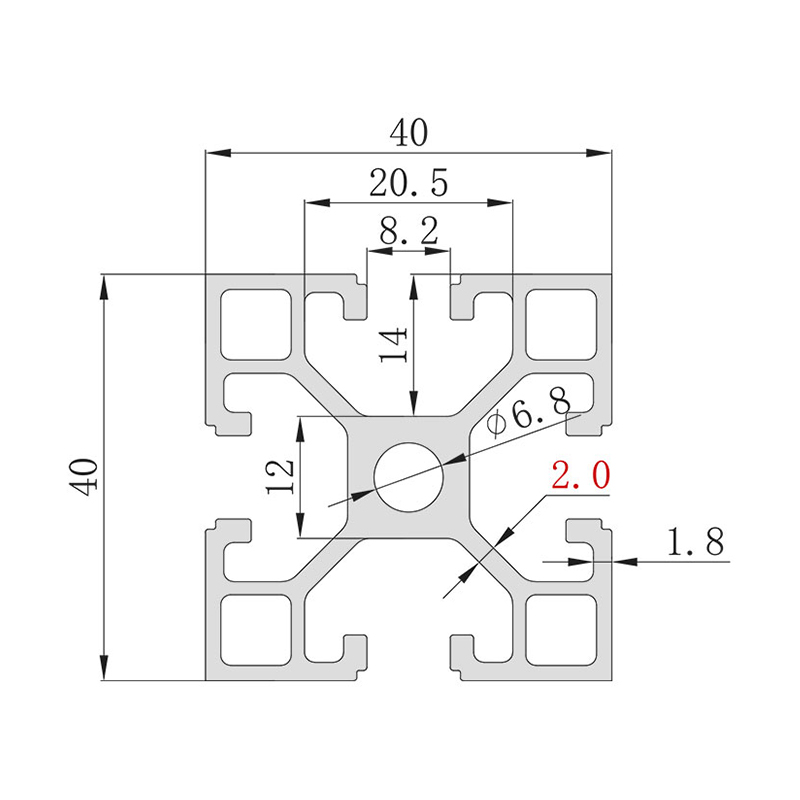

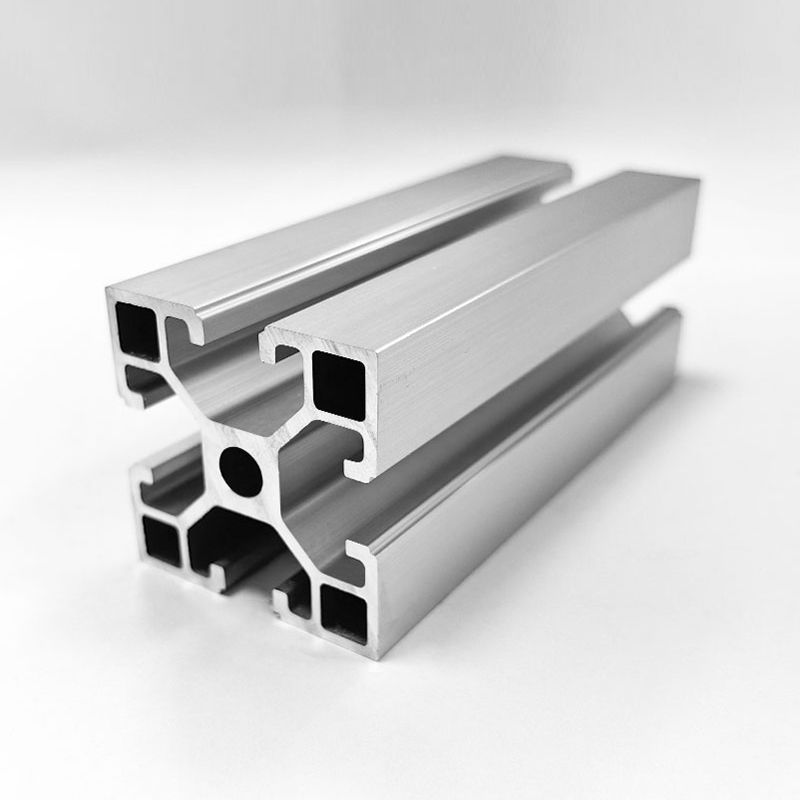

The HS-8-4040F industrial aluminum profile is a cost-effective, economical product in the 4040 series, with a standard 40mm*40mm cross-section, 2.0mm wall thickness and a unit weight of 1.30kg/m. The lightweight design balances practicality and economy, suitable for light scenarios. Made of 6063-T5 aluminum alloy, after standard anodizing treatment, the silver appearance is simple and elegant, with basic corrosion resistance and wear resistance, which can meet the needs of daily industrial and civil scenarios. The profile adopts a standard T-slot design, with a slot width of 8.2mm and a slot depth of 14mm. The deep slot design is compatible with more specifications of European standard connectors, with high assembly flexibility, and can realize modular rapid assembly without welding, which is convenient for construction. The Φ6.8 standard hole diameter ensures precise assembly and uniform force, with a standard length of 6.02m, supporting precise cutting and simple deep processing services. Direct supply from the source factory, affordable price, suitable for bulk purchase and cost-sensitive scenarios.
Applications: Suitable for the construction of light automation equipment frames, simple display stands, home storage racks, light laboratory brackets and small assembly line workbenches.

CAD Drawing Download
PREV：HS-8-4040W Extra-Heavy-Duty T-Slot 4040 Aluminum Profile, 4.5mm Extra-Thick Wall Thickness, Φ6.7 Hole Diameter, Silver Industrial AluminumNEXT：HS-8-4040FW Thickened Deep-Slot T-Slot 4040 Aluminum Profile, 3.0mm Wall Thickness, Dual-Color, 14mm Deep Slot Industrial Aluminum
  • Specification
Model HS-8-4040F
Cross-section dimensions 40mm*40mm
Unit weight 1.30kg/m
Surface treatment Anodized
Color Silver
Material 6063-T5 aluminum alloy
Length 6.02m
Slot type T-shaped
Slot width 8.2mm
Slot depth 14mm
Hole diameter Φ6.8
Wall thickness 2.0mm
  • Product Parameters

Model:

OB4040F

Wall Thickness:

2.0mm

Unit Mass:

1.37kg/m

  • Technical Support
  • CUTTING
  • DRILLING
  • TAPPING
  • MILLING GROOVE
  • BENDING
  • WELDING
  • CNC MACHINING
  • STAMPING
  • Effective length
Cutting Method: Servo feeding
Effective Length: ≥50mm, ≤6020mm
Cutting Accuracy: ±0.3mm
Cutting Loss: Consult customer service
Friendly Reminder: For single-size orders with large quantities, custom-length extrusion service is available. Please contact customer service for details.
