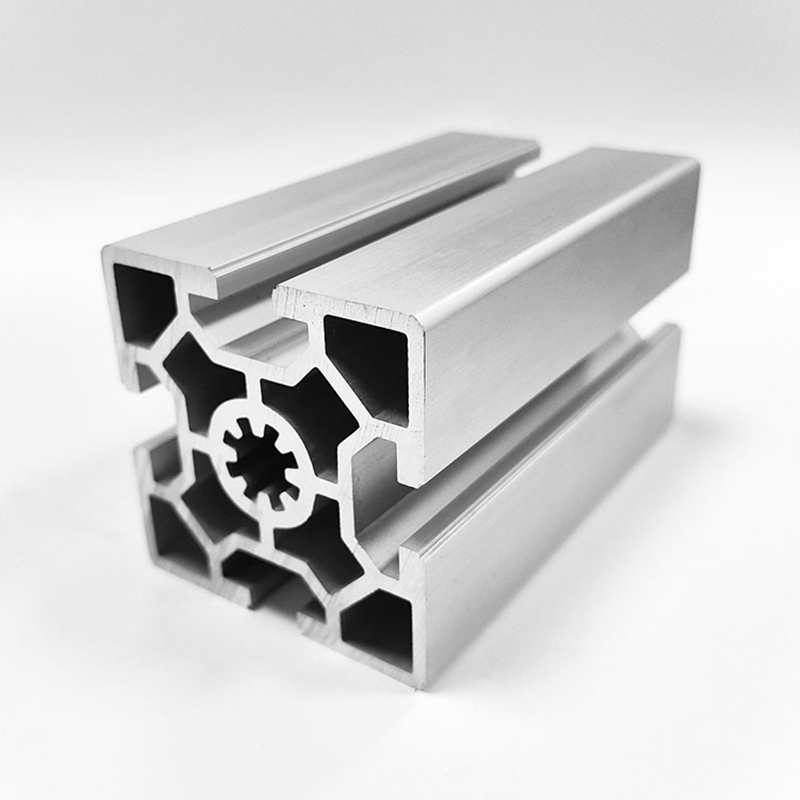

The HS-10-6060W is a high-rigidity, Extra-Heavy-Duty 60x60mm T-slot aluminum extrusion specifically developed for demanding industrial applications requiring maximum load-bearing capacity. Featuring a superior 2.5mm wall thickness and an exceptional unit mass of 3.71kg/m, this profile offers unparalleled structural integrity and resistance to mechanical fatigue. It is the ultimate solution for large-scale frames that must withstand high stress and heavy equipment loads. Designed with a 10.2mm wide T-slot and 12.3mm depth, it provides high-torque fastening and vibration-resistant connections for heavy-duty industrial machinery. Suited for large robot bases, heavy-duty automated assembly lines, precision multi-axis motion stages, heavy machinery foundations, and large-scale industrial mezzanine systems.
 |

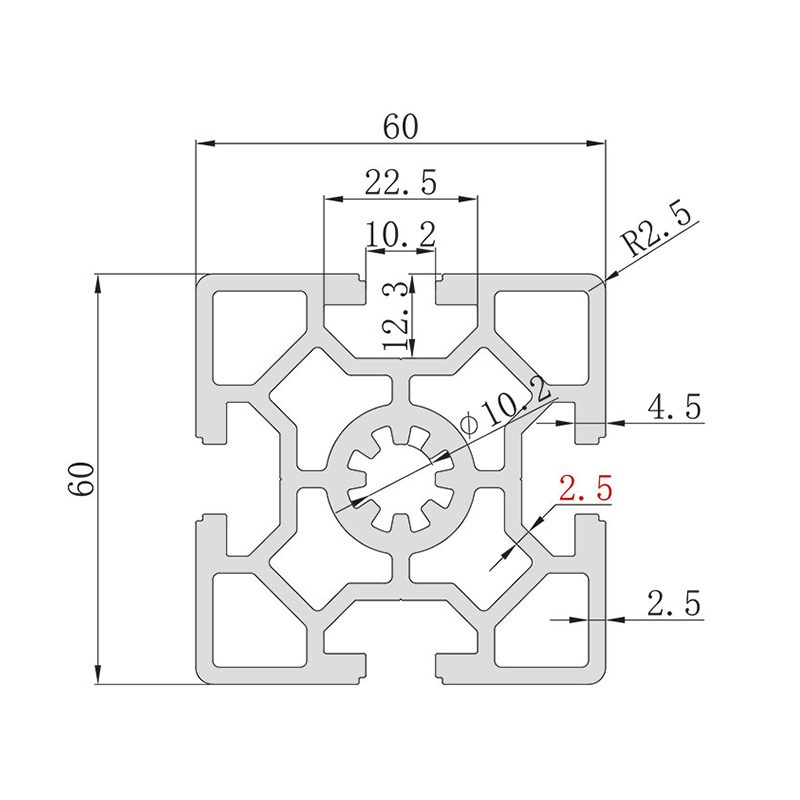

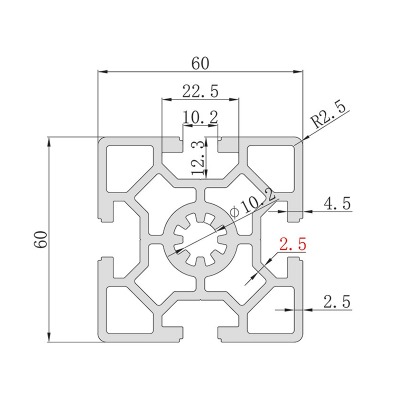

Model Number | HS-10-6060W |
| Section Size | 60mm * 60mm | |
| Unit Mass | 3.71 kg/m | |
| Surface Treatment | Anodized | |
| Color | Silver | |
| Material | 6063-T5 Aluminum Alloy | |
| Standard Length | 6.02 m | |
| Slot Type | T-Slot | |
| Slot Width | 10.2 mm | |
| Slot Depth | 12.3 mm | |
| Center Hole Diameter | Φ10.2 | |
| Wall Thickness | 2.5 mm |
Model:
OB6060W
Wall Thickness:
2.5mm
Unit Mass:
3.87kg/m
Huishuo Aluminum Industry is professional China HS-10-6060W Extra-Heavy-Duty 6060 series Industrial Aluminum Extrusion Profile for High-Load Large Automation Lines suppliers and HS-10-6060W Extra-Heavy-Duty 6060 series Industrial Aluminum Extrusion Profile for High-Load Large Automation Lines company, a medium-to-large-scale industrial aluminum profile customization and processing manufacturer integrating R&D, production, and sales. We currently have three major production bases in Shanghai, Anhui, and Jiangsu, covering a total area of approximately 30,000 square meters. We have focused on the aluminum profile customization and processing industry for over 16 years, providing customers with one-stop services including industrial aluminum profiles, custom mold making for special profiles, CNC precision aluminum processing, aluminum surface treatment, and aluminum frame design and assembly.
Since our establishment, we have adhered to the service tenet of "survival through service, development through quality, and competitive through innovation." We have a professional team dedicated to design, R&D, production, and sales. Equipped with advanced machinery, we are able to meet diverse customer requirements by delivering high-quality products and comprehensive, one-stop services.
We have never stopped, we keep moving forward. We will uphold our consistent business policy and work hand in hand with you to achieve even greater success.
